Information governor
BOSCH
F 019 Z3E 987
f019z3e987
ZEXEL
105447-2570
1054472570

Rating:

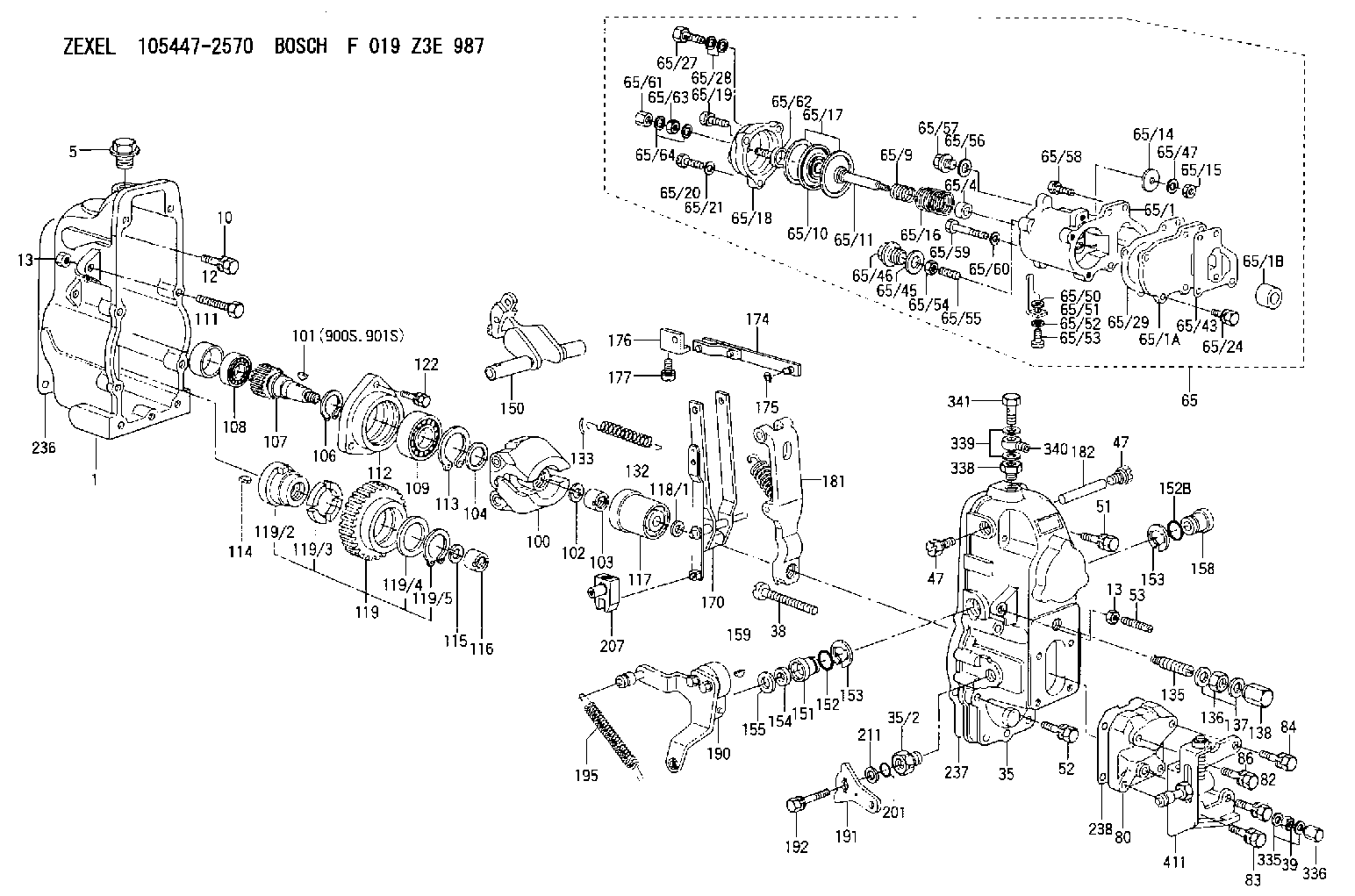

Scheme ###:
1. | [1] | 154002-4420 | GOVERNOR HOUSING |
5. | [1] | 154007-1600 | CAPSULE |
10. | [8] | 139006-4100 | BLEEDER SCREW |
12. | [1] | 154010-3900 | BLEEDER SCREW |
13. | [2] | 154011-0100 | HEXAGON NUT |
13. | [2] | 154011-0100 | HEXAGON NUT |
35. | [1] | 154023-4620 | GOVERNOR COVER |
35/2. | [1] | 154321-0200 | BUSHING |
38. | [1] | 154031-4400 | FLAT-HEAD SCREW |
39. | [1] | 139206-0600 | UNION NUT |
47. | [2] | 154036-0300 | CAPSULE |
47. | [2] | 154036-0300 | CAPSULE |
51. | [4] | 020106-5040 | BLEEDER SCREW |
52. | [3] | 020106-2840 | BLEEDER SCREW |
53. | [1] | 154010-0300 | FLAT-HEAD SCREW |
65. | [1] | 154422-7221 | MANIFOLD-PRESSURE COMP. |
65/1. | [1] | 154412-0020 | GOVERNOR HOUSING |
65/1A. | [1] | 154408-2901 | SPACER BUSHING |
65/1B. | [1] | 134009-0000 | SPACER BUSHING |
65/4. | [1] | 154413-1400 | BUSHING |
65/9. | [1] | 154412-4300 | COILED SPRING |
65/10. | [1] | 154400-9420 | DIAPHRAGM |
65/11. | [1] | 154400-6101 | STOP PIN |
65/14. | [1] | 154406-5500 | SLOTTED WASHER |
65/15. | [1] | 013020-6040 | UNION NUT M6P1H5 |
65/16. | [1] | 154402-0200 | COILED SPRING |
65/17. | [2] | 154413-2600 | GASKET |
65/18. | [1] | 154404-5000 | COVER |
65/19. | [1] | 020106-2040 | BLEEDER SCREW M6P1L20 |
65/20. | [2] | 029010-6310 | BLEEDER SCREW |
65/21. | [2] | 014110-6440 | LOCKING WASHER |
65/24. | [2] | 020106-2040 | BLEEDER SCREW M6P1L20 |
65/27. | [1] | 029731-0180 | EYE BOLT |
65/28. | [2] | 029341-0110 | GASKET |
65/29. | [1] | 154390-1700 | GASKET |
65/43. | [1] | 154390-1800 | GASKET |
65/45. | [1] | 029331-8040 | GASKET |
65/46. | [1] | 154406-5800 | FLAT-HEAD SCREW |
65/47. | [1] | 014110-6440 | LOCKING WASHER |
65/50. | [1] | 154406-6800 | PLAIN WASHER |
65/51. | [1] | 154406-6901 | CONTROL LEVER |
65/52. | [1] | 014110-4440 | LOCKING WASHER |
65/53. | [1] | 010234-0820 | HEX-SOCKET-HEAD CAP SCREW |
65/54. | [1] | 013030-6040 | UNION NUT M6P1H3.6 |
65/55. | [1] | 154404-1600 | FLAT-HEAD SCREW L26.00 |
65/56. | [1] | 029331-2130 | GASKET |
65/57. | [1] | 154406-6500 | FLAT-HEAD SCREW |
65/58. | [2] | 020106-2540 | BLEEDER SCREW M6P1L25 |
65/59. | [2] | 010006-7040 | BLEEDER SCREW M6P1L70 |
65/60. | [2] | 014110-6440 | LOCKING WASHER |
65/61. | [1] | 154035-1600 | CAP NUT |
65/62. | [1] | 154404-4400 | FLAT-HEAD SCREW |
65/63. | [1] | 013030-6040 | UNION NUT M6P1H3.6 |
65/64. | [2] | 026506-1040 | GASKET D9.9&6.2T1 |
80. | [1] | 154064-3800 | COVER |
82. | [1] | 139006-2500 | BLEEDER SCREW M6P1.0L23 |
83. | [1] | 139006-2500 | BLEEDER SCREW M6P1.0L23 |
84. | [1] | 029020-6290 | BLEEDER SCREW |
86. | [1] | 029020-6290 | BLEEDER SCREW |
100. | [1] | 154100-9920 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1610 | WOODRUFF KEY |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 029231-2030 | UNION NUT |
104. | [1] | 154120-0100 | PLAIN WASHER |
106. | [1] | 029602-0020 | LOCKING WASHER |
107. | [1] | 154121-0500 | TOOTHED GEAR |
108. | [1] | 016610-2640 | BEARING PLATE |
109. | [1] | 028102-0010 | BEARING PLATE |
111. | [1] | 154134-0000 | SPACER BUSHING |
112. | [1] | 154122-0300 | COVER |
113. | [1] | 029614-7020 | LOCKING WASHER |
114. | [1] | 025803-1310 | WOODRUFF KEY |
115. | [1] | 029321-2020 | LOCKING WASHER |
116. | [1] | 029231-2030 | UNION NUT |
117. | [1] | 154123-1020 | SLIDING PIECE |
118/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
118/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
118/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
118/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
118/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
118/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
118/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
118/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
118/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
119. | [1] | 154130-1820 | TOOTHED GEAR |
119/2. | [1] | 154132-0320 | HOLDER |
119/3. | [4] | 153251-0100 | DAMPER |
119/4. | [1] | 139329-0000 | PLAIN WASHER |
119/5. | [1] | 016020-2810 | LOCKING WASHER |
122. | [3] | 020106-2840 | BLEEDER SCREW |
132. | [1] | 154154-4200 | COILED SPRING |
133. | [2] | 154156-0100 | TUBE |
135. | [1] | 154158-0620 | HEADLESS SCREW |
136. | [1] | 029201-2290 | UNION NUT |
137. | [2] | 026512-1540 | GASKET D15.4&12.2T1.50 |
138. | [1] | 154159-1200 | CAP NUT |
150. | [1] | 154200-4520 | SWIVELLING LEVER |
151. | [1] | 154204-4100 | BUSHING |
152. | [1] | 139718-0200 | O-RING |
152B. | [1] | 139716-0100 | O-RING |
153. | [2] | 016010-1640 | LOCKING WASHER |
153. | [2] | 016010-1640 | LOCKING WASHER |
154. | [1] | 139611-0200 | PACKING RING |
155. | [1] | 029311-1010 | SHIM |
158. | [1] | 154204-2200 | BUSHING |
159. | [1] | 025803-1310 | WOODRUFF KEY |
170. | [1] | 154211-7620 | FORK LEVER |
174. | [1] | 154235-2720 | STRAP |
175. | [1] | 016010-0540 | LOCKING WASHER |
176. | [1] | 154232-0400 | CONNECTOR |
177. | [2] | 029050-5040 | FLAT-HEAD SCREW M5P0.8L9 |
181. | [1] | 154239-2720 | TENSIONING LEVER |
182. | [1] | 154237-0200 | BEARING PIN |
190. | [1] | 154395-5420 | CONTROL LEVER |
191. | [1] | 154383-0300 | CONTROL LEVER |
192. | [1] | 020006-1670 | BLEEDER SCREW M6P1L16 7T |
195. | [1] | 154332-3200 | COILED SPRING |
201. | [1] | 139710-0400 | O-RING |
207. | [1] | 154326-8320 | LEVER GROUP |
211. | [0] | 029311-0220 | SHIM D18&10.3T0.2 |
211B. | [0] | 029311-0230 | SHIM D18&10.3T0.5 |
236. | [1] | 154371-5600 | GASKET |
237. | [1] | 154371-3500 | GASKET |
238. | [1] | 154390-3500 | GASKET |
335. | [2] | 026506-1040 | GASKET D9.9&6.2T1 |
336. | [1] | 154035-1600 | CAP NUT |
338. | [1] | 131002-3800 | ADAPTOR |
339. | [2] | 029341-2140 | GASKET |
340. | [1] | 154373-1800 | INLET UNION |
341. | [1] | 154373-1700 | EYE BOLT |
411. | [1] | 154375-9320 | BRACKET |
900S. | [1] | 025803-1310 | WOODRUFF KEY |
901S. | [1] | 025803-1610 | WOODRUFF KEY |
Include in #1:
106685-4511
as GOVERNOR
Cross reference number
Zexel num
Bosch num
Firm num
Name
GOVERNOR
* K 14JC MECHANICAL GOVERNOR GOV RSUV(D) GOV
* K 14JC MECHANICAL GOVERNOR GOV RSUV(D) GOV
