105447-2530 ZEXEL F 019 Z3E 971 BOSCH GOVERNOR f019z3e971 1054472530

Information governor

BOSCH F 019 Z3E 971 f019z3e971

ZEXEL 105447-2530 1054472530

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105447-2530 zexel genuine, new aftermarket engine parts with delivery

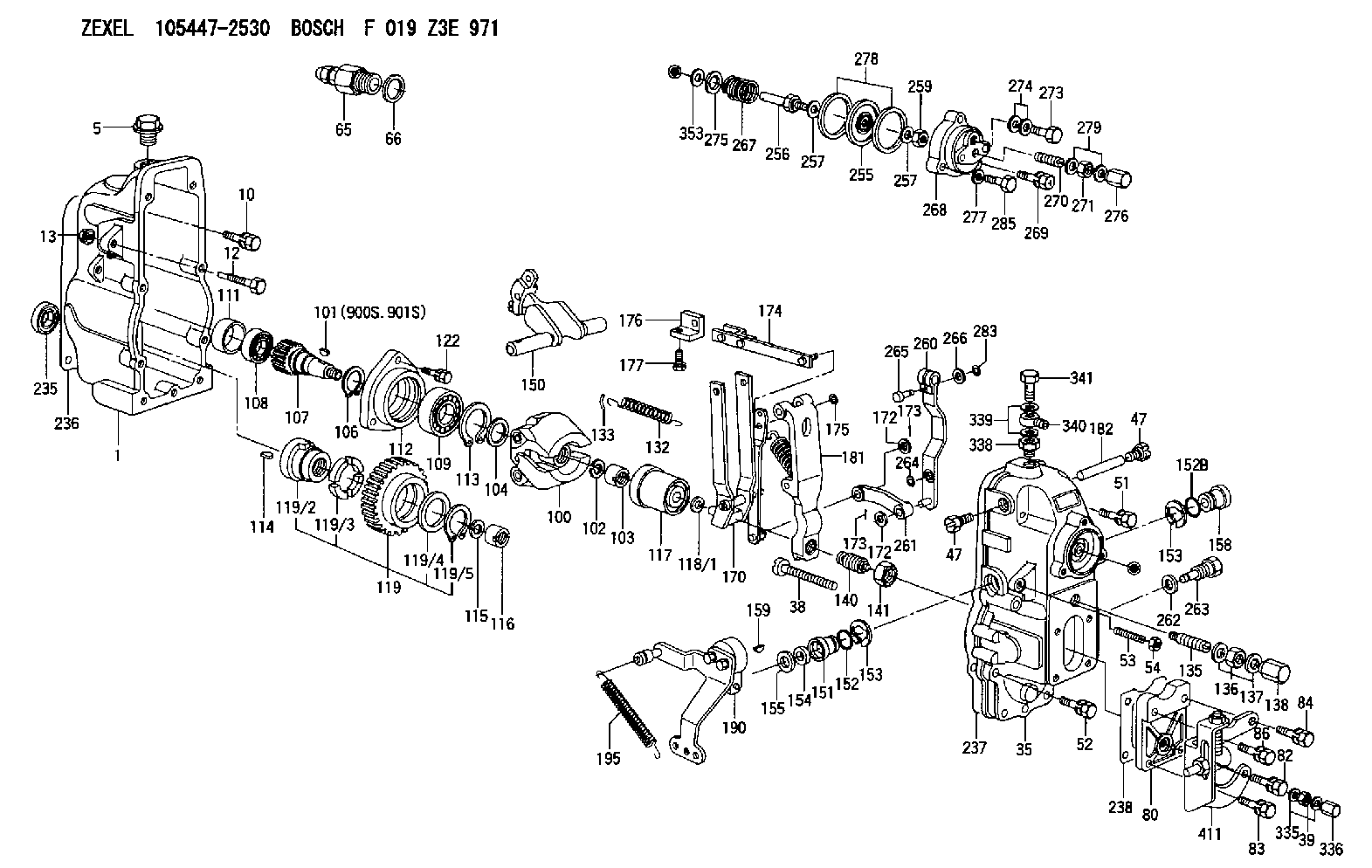

Scheme ###:

1.	[1]	154002-4520	GOVERNOR HOUSING
5.	[1]	154007-1600	CAPSULE
10.	[8]	139006-4100	BLEEDER SCREW
12.	[1]	154013-7200	BLEEDER SCREW
13.	[1]	154011-5400	UNION NUT
35.	[1]	154520-6920	GOVERNOR COVER
38.	[1]	154031-3000	FLAT-HEAD SCREW
39.	[1]	139206-0600	UNION NUT
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
51.	[4]	020106-5040	BLEEDER SCREW
52.	[3]	020106-2840	BLEEDER SCREW
53.	[1]	154010-0300	FLAT-HEAD SCREW
54.	[1]	154011-0100	HEXAGON NUT
65.	[1]	153021-2220	STOPPING DEVICE
66.	[1]	026524-3040	GASKET
80.	[1]	154064-3500	COVER
82.	[1]	029020-6260	BLEEDER SCREW
83.	[1]	029020-6260	BLEEDER SCREW
84.	[1]	029020-6260	BLEEDER SCREW
86.	[1]	029020-6260	BLEEDER SCREW
100.	[1]	154101-4620	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
104.	[1]	154120-0100	PLAIN WASHER
106.	[1]	029602-0020	LOCKING WASHER
107.	[1]	154121-0500	TOOTHED GEAR
108.	[1]	016610-2640	BEARING PLATE
109.	[1]	028102-0010	BEARING PLATE
111.	[1]	154134-0000	SPACER BUSHING
112.	[1]	154122-0300	COVER
113.	[1]	029614-7020	LOCKING WASHER
114.	[1]	025803-1310	WOODRUFF KEY
115.	[1]	029321-2020	LOCKING WASHER
116.	[1]	029231-2030	UNION NUT
117.	[1]	154123-1020	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
119.	[1]	154130-1920	TOOTHED GEAR
119/2.	[1]	154132-0320	HOLDER
119/3.	[4]	153251-0600	DAMPER
119/4.	[1]	139329-0000	PLAIN WASHER
119/5.	[1]	016020-2810	LOCKING WASHER
122.	[3]	020106-2840	BLEEDER SCREW
132.	[1]	154154-3900	COILED SPRING
133.	[2]	154156-0100	TUBE
135.	[1]	154158-4720	HEADLESS SCREW
136.	[1]	154371-3400	UNION NUT
137.	[2]	026520-2440	GASKET D23.9&20.2T1
138.	[1]	154159-2000	CAP NUT
140.	[1]	154176-4020	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-6420	SWIVELLING LEVER
151.	[1]	154204-4100	BUSHING
152.	[1]	139718-0000	O-RING
152B.	[1]	029631-6110	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	029621-1070	PACKING RING
155.	[1]	029311-1010	SHIM
158.	[1]	154204-2200	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
170.	[1]	154217-2820	FORK LEVER
172.	[3]	029310-5170	SHIM D8&5.3T0.5
172.	[3]	029310-5170	SHIM D8&5.3T0.5
173.	[2]	025520-1210	SPLIT PIN
173.	[2]	025520-1210	SPLIT PIN
174.	[1]	154230-0220	STRAP
175.	[1]	016010-0540	LOCKING WASHER
176.	[1]	154232-0400	CONNECTOR
177.	[2]	029050-5040	FLAT-HEAD SCREW M5P0.8L9
181.	[1]	154239-2720	TENSIONING LEVER
182.	[1]	154237-0200	BEARING PIN
190.	[1]	154340-6420	CONTROL LEVER
195.	[1]	154339-1100	COILED SPRING
235.	[1]	029621-7010	PACKING RING
236.	[1]	154371-5600	GASKET
237.	[1]	154371-3500	GASKET
238.	[1]	154371-3600	GASKET
255.	[1]	154400-7820	DIAPHRAGM
256.	[1]	154400-4800	STOP PIN
257.	[2]	029330-8050	GASKET
257.	[2]	029330-8050	GASKET
259.	[1]	154372-7200	HEXAGON NUT
260.	[1]	154401-4420	CONTROL LEVER
261.	[1]	154401-1020	STRAP
262.	[1]	026510-1440	GASKET D13.9&10.2T1
263.	[1]	154401-4500	BLEEDER SCREW
264.	[1]	016010-0540	LOCKING WASHER
265.	[1]	154222-6200	BEARING PIN
266.	[1]	029300-4010	PLAIN WASHER
267.	[1]	154416-0900	COILED SPRING
268.	[1]	154404-5600	COVER
269.	[2]	020106-2240	BLEEDER SCREW
270.	[1]	154034-1900	FLAT-HEAD SCREW
271.	[1]	013030-6040	UNION NUT M6P1H3.6
273.	[1]	029731-0120	EYE BOLT
274.	[2]	029341-0110	GASKET
275.	[0]	029312-0180	SHIM D25.5&20T0.5
275B.	[0]	029312-0210	SHIM D25.5&20T0.2
276.	[1]	154035-1600	CAP NUT
277.	[1]	029320-6010	LOCKING WASHER
278.	[2]	154413-2600	GASKET
279.	[2]	026506-1040	GASKET D9.9&6.2T1
283.	[1]	016010-0440	LOCKING WASHER
285.	[1]	029010-6310	BLEEDER SCREW
335.	[2]	026506-1040	GASKET D9.9&6.2T1
336.	[1]	154035-1600	CAP NUT
338.	[1]	131002-3800	ADAPTOR
339.	[2]	029341-2140	GASKET
340.	[1]	154373-1800	INLET UNION
341.	[1]	154373-1700	EYE BOLT
353.	[3]	029310-9080	SHIM D16&9T1.7
411.	[1]	154375-7720	BRACKET
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106685-4480 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105447-2530
105447-2531

F 019 Z3E 971

GOVERNOR
* K
