105447-2330 ZEXEL F 019 Z3E 905 BOSCH GOVERNOR f019z3e905 1054472330

Information governor

BOSCH F 019 Z3E 905 f019z3e905

ZEXEL 105447-2330 1054472330

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105447-2330 zexel genuine, new aftermarket engine parts with delivery

Scheme ###:

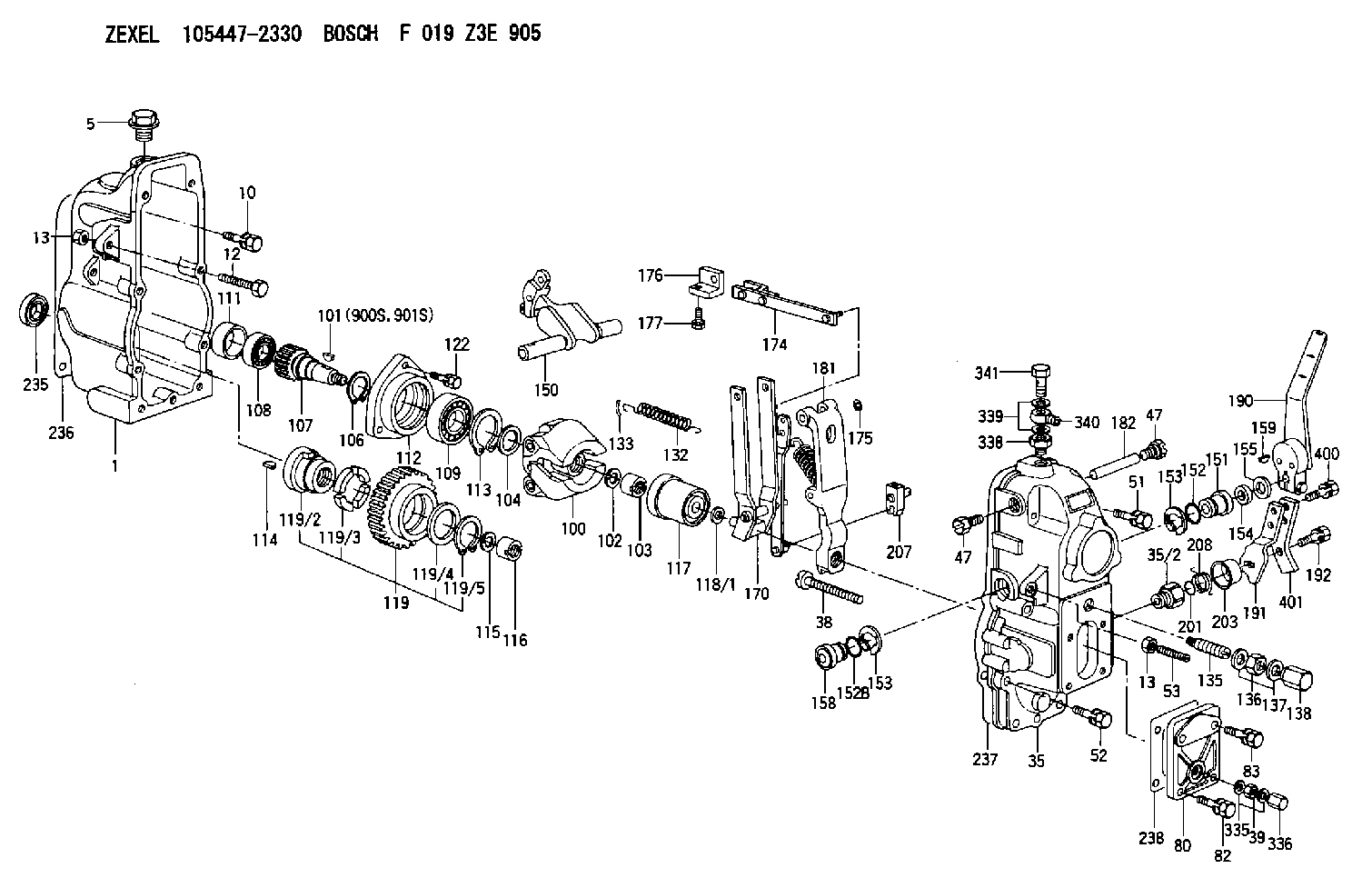

1.	[1]	154002-4520	GOVERNOR HOUSING
5.	[1]	154007-1600	CAPSULE
10.	[8]	139006-4100	BLEEDER SCREW
12.	[1]	154010-3900	BLEEDER SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
35.	[1]	154521-1220	GOVERNOR COVER
35/2.	[1]	154321-0200	BUSHING
38.	[1]	154031-3800	FLAT-HEAD SCREW
39.	[1]	139206-0600	UNION NUT
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
51.	[4]	020106-5040	BLEEDER SCREW
52.	[3]	020106-2840	BLEEDER SCREW
53.	[1]	154010-0100	FLAT-HEAD SCREW
80.	[1]	154063-0900	COVER
82.	[2]	029020-6210	BLEEDER SCREW
83.	[2]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154101-4620	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
104.	[1]	154120-0100	PLAIN WASHER
106.	[1]	029602-0020	LOCKING WASHER
107.	[1]	154121-0300	TOOTHED GEAR
108.	[1]	016610-2640	BEARING PLATE
109.	[1]	028102-0010	BEARING PLATE
111.	[1]	154134-0000	SPACER BUSHING
112.	[1]	154122-0300	COVER
113.	[1]	029614-7020	LOCKING WASHER
114.	[1]	025803-1310	WOODRUFF KEY
115.	[1]	029321-2020	LOCKING WASHER
116.	[1]	029231-2030	UNION NUT
117.	[1]	154123-1020	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
119.	[1]	154130-1620	TOOTHED GEAR
119/2.	[1]	154132-0320	HOLDER
119/3.	[4]	153251-0100	DAMPER
119/4.	[1]	139329-0000	PLAIN WASHER
119/5.	[1]	016020-2810	LOCKING WASHER
122.	[3]	020106-2840	BLEEDER SCREW
132.	[1]	154154-2900	COILED SPRING
133.	[2]	154156-0100	TUBE
135.	[1]	154158-3320	HEADLESS SCREW
136.	[1]	029201-2290	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
150.	[1]	154200-7520	SWIVELLING LEVER
151.	[1]	154204-4100	BUSHING
152.	[1]	139718-0200	O-RING
152B.	[1]	139716-0100	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0200	PACKING RING
155.	[1]	029311-1010	SHIM
158.	[1]	154204-2200	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
170.	[1]	154211-5420	FORK LEVER
174.	[1]	154230-0220	STRAP
175.	[1]	016010-0540	LOCKING WASHER
176.	[1]	154232-0400	CONNECTOR
177.	[2]	029050-5040	FLAT-HEAD SCREW M5P0.8L9
181.	[1]	154236-5821	TENSIONING LEVER
182.	[1]	154237-0200	BEARING PIN
190.	[1]	154395-0520	CONTROL LEVER
191.	[1]	154381-5000	CONTROL LEVER
192.	[1]	020006-2070	BLEEDER SCREW M6P1L20 7T
201.	[1]	139710-0400	O-RING
203.	[1]	154322-0100	CAP
207.	[1]	154326-8420	LEVER GROUP
208.	[1]	154327-7300	COILED SPRING
235.	[1]	029621-7010	PACKING RING
236.	[1]	154371-5600	GASKET
237.	[1]	154371-3500	GASKET
238.	[1]	154390-3500	GASKET
335.	[2]	026506-1040	GASKET D9.9&6.2T1
336.	[1]	154035-1600	CAP NUT
338.	[1]	131002-3800	ADAPTOR
339.	[2]	029341-2140	GASKET
340.	[1]	154373-1800	INLET UNION
341.	[1]	154373-1700	EYE BOLT
400.	[2]	020006-1470	BLEEDER SCREW M6P1L14 7T
401.	[1]	154381-5100	CONTROL LEVER
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106682-9921 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105447-2330

F 019 Z3E 905
NP-EP/RSUV110-720PQ33/301

GOVERNOR
K
