Information governor
BOSCH
F 019 Z9E 939
f019z9e939
ZEXEL
105447-2321
1054472321

Rating:

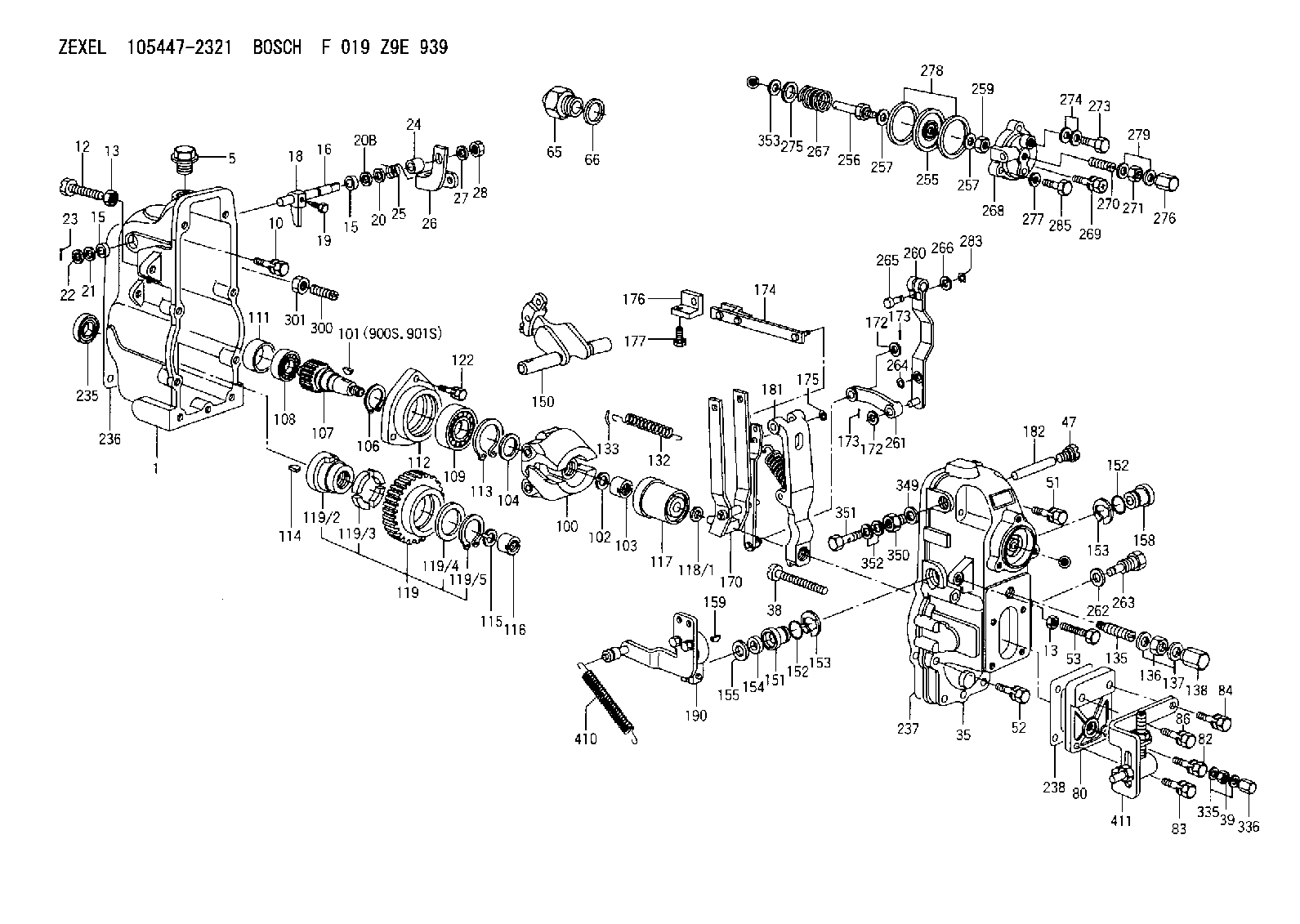

Scheme ###:
1. | [1] | 154002-4620 | GOVERNOR HOUSING |
5. | [1] | 154007-1600 | CAPSULE |
10. | [8] | 139006-4100 | BLEEDER SCREW |
12. | [1] | 154034-0800 | BLEEDER SCREW |
13. | [2] | 154011-0100 | HEXAGON NUT |
13. | [2] | 154011-0100 | HEXAGON NUT |
15. | [2] | 139608-0200 | PACKING RING |
15. | [2] | 139608-0200 | PACKING RING |
16. | [1] | 155004-4900 | LEVER SHAFT |
18. | [1] | 155003-3100 | CONTROL LEVER |
19. | [1] | 155006-0700 | BLEEDER SCREW |
20. | [1] | 139308-0900 | PLAIN WASHER D16&8T1 |
20B. | [1] | 139308-1000 | PLAIN WASHER D16&8T1.5 |
20C. | [1] | 139408-1500 | SHIM D16&8T0.5 |
21. | [0] | 029310-8050 | SHIM D13.5&8T0.5 |
22. | [0] | 029310-8050 | SHIM D13.5&8T0.5 |
23. | [1] | 025520-1210 | SPLIT PIN |
24. | [1] | 154206-6300 | BUSHING |
25. | [1] | 154327-4200 | COILED SPRING |
26. | [1] | 154380-1900 | CONTROL LEVER |
27. | [1] | 014110-8440 | LOCKING WASHER D15.4&8.2T2 |
28. | [1] | 013020-8040 | UNION NUT |
35. | [1] | 154520-6520 | GOVERNOR COVER |
38. | [1] | 154031-3000 | FLAT-HEAD SCREW |
39. | [1] | 139206-0600 | UNION NUT |
47. | [1] | 154036-0300 | CAPSULE |
51. | [4] | 020106-5040 | BLEEDER SCREW |
52. | [3] | 020106-2840 | BLEEDER SCREW |
53. | [1] | 154034-0800 | BLEEDER SCREW |
65. | [1] | 153021-4820 | STOPPING DEVICE |
66. | [1] | 026524-3040 | GASKET |
80. | [1] | 154063-8200 | COVER |
82. | [1] | 029020-6210 | BLEEDER SCREW |
83. | [1] | 029020-6260 | BLEEDER SCREW |
84. | [1] | 029020-6260 | BLEEDER SCREW |
86. | [1] | 029020-6260 | BLEEDER SCREW |
100. | [1] | 154100-9920 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1610 | WOODRUFF KEY 16 MM |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 029231-2030 | UNION NUT |
104. | [1] | 154120-0100 | PLAIN WASHER |
106. | [1] | 029602-0020 | LOCKING WASHER |
107. | [1] | 154121-0400 | TOOTHED GEAR |
108. | [1] | 016610-2640 | BEARING PLATE |
109. | [1] | 028102-0010 | BEARING PLATE |
111. | [1] | 154134-0000 | SPACER BUSHING |
112. | [1] | 154122-0300 | COVER |
113. | [1] | 029614-7020 | LOCKING WASHER |
114. | [1] | 025803-1310 | WOODRUFF KEY 13 MM |
115. | [1] | 029321-2020 | LOCKING WASHER |
116. | [1] | 029231-2030 | UNION NUT |
117. | [1] | 154123-1920 | SLIDING PIECE |
118/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
118/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
118/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
118/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
118/1. | [0] | 139410-0000 | SHIM D14&10.1T0.5 |
118/1. | [0] | 139410-0100 | SHIM D14&10.1T1.5 |
118/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
118/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
118/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
119. | [1] | 154130-1720 | TOOTHED GEAR |
119/2. | [1] | 154132-0320 | HOLDER |
119/3. | [4] | 153251-0100 | DAMPER |
119/4. | [1] | 139329-0000 | PLAIN WASHER |
119/5. | [1] | 016020-2810 | LOCKING WASHER |
122. | [3] | 020106-2840 | BLEEDER SCREW |
132. | [1] | 154154-0900 | COILED SPRING |
133. | [2] | 154156-0100 | TUBE |
135. | [1] | 154158-4320 | HEADLESS SCREW |
136. | [1] | 029201-2140 | UNION NUT |
137. | [2] | 026512-1540 | GASKET |
138. | [1] | 154159-1200 | CAP NUT |
150. | [1] | 154200-4520 | SWIVELLING LEVER |
151. | [1] | 154204-2100 | BUSHING |
152. | [2] | 139716-0100 | O-RING |
152. | [2] | 139716-0100 | O-RING |
153. | [2] | 016010-1640 | LOCKING WASHER |
153. | [2] | 016010-1640 | LOCKING WASHER |
154. | [1] | 139611-0200 | PACKING RING |
155. | [1] | 029311-1010 | SHIM |
158. | [1] | 154204-2200 | BUSHING |
159. | [1] | 025803-1310 | WOODRUFF KEY 13 MM |
170. | [1] | 154217-2820 | FORK LEVER |
172. | [3] | 029310-5170 | SHIM |
172. | [3] | 029310-5170 | SHIM |
173. | [2] | 025520-1210 | SPLIT PIN |
173. | [2] | 025520-1210 | SPLIT PIN |
174. | [1] | 154234-9220 | STRAP |
175. | [1] | 016010-0540 | LOCKING WASHER |
176. | [1] | 154232-2700 | CONNECTOR |
177. | [2] | 029050-5040 | FLAT-HEAD SCREW |
181. | [1] | 154236-5821 | TENSIONING LEVER |
182. | [1] | 154237-1500 | BEARING PIN |
190. | [1] | 154349-6520 | CONTROL LEVER |
235. | [1] | 029621-7010 | PACKING RING |
236. | [1] | 154371-5600 | GASKET |
237. | [1] | 154371-3500 | GASKET |
238. | [1] | 154390-3500 | GASKET |
255. | [1] | 154400-7420 | DIAPHRAGM |
256. | [1] | 154400-4800 | STOP PIN |
257. | [2] | 029330-8050 | GASKET |
257. | [2] | 029330-8050 | GASKET |
259. | [1] | 154372-7200 | HEXAGON NUT |
260. | [1] | 154401-4420 | CONTROL LEVER |
261. | [1] | 154401-1020 | STRAP |
262. | [1] | 026510-1440 | GASKET |
263. | [1] | 154401-4500 | BLEEDER SCREW |
264. | [1] | 016010-0540 | LOCKING WASHER |
265. | [1] | 154222-6200 | BEARING PIN |
266. | [1] | 029300-4010 | PLAIN WASHER |
267. | [1] | 154416-7000 | COILED SPRING |
268. | [1] | 154404-5000 | COVER |
269. | [2] | 020106-2240 | BLEEDER SCREW |
270. | [1] | 154034-1900 | FLAT-HEAD SCREW |
271. | [1] | 013030-6040 | UNION NUT |
273. | [1] | 029731-0120 | EYE BOLT |
274. | [2] | 029341-0110 | GASKET |
275. | [0] | 029312-0180 | SHIM D25.5&20T0.5 |
275B. | [0] | 029312-0210 | SHIM D25.5&20T0.2 |
276. | [1] | 154035-1600 | CAP NUT |
277. | [1] | 029320-6010 | LOCKING WASHER |
278. | [2] | 154413-2600 | GASKET |
279. | [2] | 026506-1040 | GASKET |
283. | [1] | 016010-0440 | LOCKING WASHER |
285. | [1] | 029010-6310 | BLEEDER SCREW |
300. | [1] | 154010-0300 | FLAT-HEAD SCREW M8.P1.25.L40 |
301. | [1] | 154011-0100 | HEXAGON NUT |
335. | [2] | 026506-1040 | GASKET |
336. | [1] | 154035-1600 | CAP NUT |
349. | [1] | 026510-1340 | GASKET |
350. | [1] | 154036-1600 | ADAPTOR |
351. | [1] | 139806-0000 | EYE BOLT |
352. | [2] | 029340-6120 | GASKET |
353. | [2] | 029310-9080 | SHIM |
410. | [1] | 154332-3100 | COILED SPRING |
411. | [1] | 154373-3720 | BRACKET |
900S. | [1] | 025803-1310 | WOODRUFF KEY 13 MM |
901S. | [1] | 025803-1610 | WOODRUFF KEY 16 MM |
Include in #1:
106681-4392
as GOVERNOR
Cross reference number
Zexel num
Bosch num
Firm num
Name
105447-2321
GOVERNOR
K 14JC MECHANICAL GOVERNOR GOV RSUV(D) GOV
K 14JC MECHANICAL GOVERNOR GOV RSUV(D) GOV
Information:
These recommendations are subject to change without notice. Consult your local Cat dealer for the most up to date recommendations.
Diesel engines may burn a wide variety of fuels. These fuels are divided into two general groups. The two groups are called the preferred fuels and the permissible fuels.The preferred fuels provide maximum engine service life and performance. The preferred fuels are distillate fuels. These fuels are commonly called diesel fuel, furnace oil, gas oil, or kerosene. These fuels must meet the “Cat Specification for Distillate Diesel Fuel for Off-Highway Diesel Engines” found in this Special Publication, "Distillate Diesel Fuel" article.The permissible fuels are some crude oils, some blends of crude oil with distillate fuel, and some marine diesel fuel. These fuels are not suitable for use in all engine applications. The acceptability of these fuels for use is determined on a case by case basis. A complete fuel analysis is required. Consult your Cat dealer for further information. Biodiesel fuel is permissible for use in Cat engines. Follow all the recommendations and guidelines given in this Special Publication, "Biodiesel" article.Note: Except for some biodiesel, permissible fuels are not acceptable for use in on-highway applications.
Use of permissible fuels can result in higher maintenance costs and reduced engine service life.
Note: Use of fuels that do not meet at least the minimum performance recommendations and/or requirements may lead to lower compartment performance and/or compartment failure. Problems/failures that are caused by using fuels that do not meet the minimum recommended and/or required performance level are not Cat factory defects and therefore are NOT covered by the Cat warranty. The fuel supplier and customer are responsible.
