105447-1060 ZEXEL 9 420 613 222 BOSCH GOVERNOR 9420613222 1054471060

Information governor

BOSCH 9 420 613 222 9420613222

ZEXEL 105447-1060 1054471060

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105447-1060 zexel genuine, new aftermarket engine parts with delivery

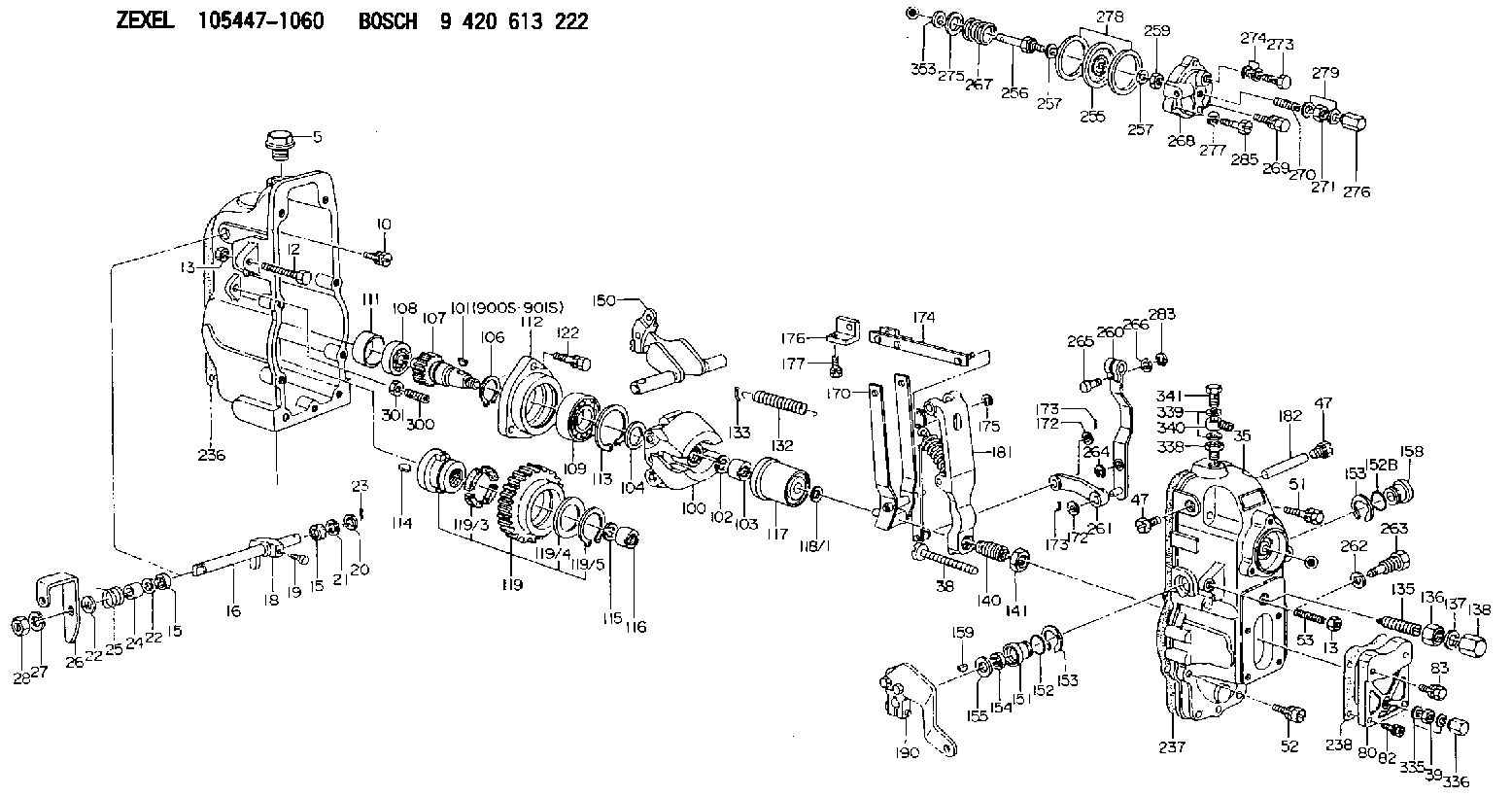

Scheme ###:

1.	[1]	154002-3520	GOVERNOR HOUSING
5.	[1]	154007-1600	CAPSULE
10.	[8]	139006-4100	BLEEDER SCREW
12.	[1]	154010-3900	BLEEDER SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
15.	[2]	139608-0200	PACKING RING
15.	[2]	139608-0200	PACKING RING
16.	[1]	155004-4900	LEVER SHAFT
18.	[1]	155003-3100	CONTROL LEVER
19.	[1]	155006-0700	BLEEDER SCREW
20.	[1]	139308-1100	PLAIN WASHER
21.	[0]	029310-8050	SHIM D13.5&8T0.5
22.	[0]	029310-8050	SHIM D13.5&8T0.5
22.	[0]	029310-8050	SHIM D13.5&8T0.5
23.	[1]	155402-3800	SAFETY PIN
24.	[1]	154206-2000	BUSHING
25.	[1]	154327-3600	COILED SPRING
26.	[1]	154367-5300	CONTROL LEVER
27.	[1]	014110-8440	LOCKING WASHER
28.	[1]	013020-8040	UNION NUT M8P1.25H7
35.	[1]	154520-6920	GOVERNOR COVER
38.	[1]	154031-3000	FLAT-HEAD SCREW
39.	[1]	139206-0600	UNION NUT
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
51.	[4]	020106-5040	BLEEDER SCREW
52.	[3]	020106-2840	BLEEDER SCREW
53.	[1]	154010-0300	FLAT-HEAD SCREW
80.	[1]	154063-9900	COVER
82.	[2]	029020-6210	BLEEDER SCREW
83.	[2]	029020-6210	BLEEDER SCREW
100.	[1]	154100-9720	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
104.	[1]	154120-0100	PLAIN WASHER
106.	[1]	029602-0020	LOCKING WASHER
107.	[1]	154121-0500	TOOTHED GEAR
108.	[1]	016610-2640	BEARING PLATE
109.	[1]	028102-0010	BEARING PLATE
111.	[1]	154134-0000	SPACER BUSHING
112.	[1]	154122-0300	COVER
113.	[1]	029614-7020	LOCKING WASHER
114.	[1]	025803-1610	WOODRUFF KEY
115.	[1]	029321-2020	LOCKING WASHER
116.	[1]	029231-2030	UNION NUT
117.	[1]	154123-1020	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
119.	[1]	154130-1820	TOOTHED GEAR
119/3.	[4]	153251-0100	DAMPER
119/4.	[1]	139329-0000	PLAIN WASHER
119/5.	[1]	016020-2810	LOCKING WASHER
122.	[3]	020106-2840	BLEEDER SCREW
132.	[1]	154154-3900	COILED SPRING
133.	[2]	154156-0100	TUBE
135.	[1]	154158-3720	HEADLESS SCREW
136.	[1]	154371-3400	UNION NUT
137.	[2]	026520-2440	GASKET D23.9&20.2T1
138.	[1]	154159-2000	CAP NUT
140.	[1]	154186-0220	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-6420	SWIVELLING LEVER
151.	[1]	154204-4100	BUSHING
152.	[1]	139718-0200	O-RING
152B.	[1]	139716-0100	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0200	PACKING RING
155.	[1]	029311-1010	SHIM
158.	[1]	154204-2200	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
170.	[1]	154217-2820	FORK LEVER
172.	[3]	029310-5170	SHIM D8&5.3T0.5
172.	[3]	029310-5170	SHIM D8&5.3T0.5
173.	[2]	025520-1210	SPLIT PIN
173.	[2]	025520-1210	SPLIT PIN
174.	[1]	154234-9220	STRAP
175.	[1]	016010-0540	LOCKING WASHER
176.	[1]	154232-2700	CONNECTOR
177.	[2]	029050-5040	FLAT-HEAD SCREW M5P0.8L9
181.	[1]	154236-9620	TENSIONING LEVER
182.	[1]	154237-0200	BEARING PIN
190.	[1]	154349-7921	CONTROL LEVER
236.	[1]	154371-5600	GASKET
237.	[1]	154371-3500	GASKET
238.	[1]	154371-3600	GASKET
255.	[1]	154400-7420	DIAPHRAGM
256.	[1]	154400-4800	STOP PIN
257.	[2]	029330-8050	GASKET
257.	[2]	029330-8050	GASKET
259.	[1]	154372-7200	HEXAGON NUT
260.	[1]	154401-4420	CONTROL LEVER
261.	[1]	154401-1020	STRAP
262.	[1]	026510-1440	GASKET D13.9&10.2T1
263.	[1]	154401-4500	BLEEDER SCREW
264.	[1]	016010-0540	LOCKING WASHER
265.	[1]	154222-6200	BEARING PIN
266.	[1]	029300-4010	PLAIN WASHER
267.	[1]	154411-2100	COILED SPRING
268.	[1]	154404-5000	COVER
269.	[2]	020106-2240	BLEEDER SCREW
270.	[1]	154034-1900	FLAT-HEAD SCREW
271.	[1]	013030-6040	UNION NUT M6P1H3.6
273.	[1]	029731-0120	EYE BOLT
274.	[2]	029341-0110	GASKET
275.	[0]	029312-0180	SHIM D25.5&20T0.5
275B.	[0]	029312-0210	SHIM D25.5&20T0.2
276.	[1]	154035-1600	CAP NUT
277.	[1]	029320-6010	LOCKING WASHER
278.	[2]	154413-2600	GASKET
279.	[2]	026506-1040	GASKET D9.9&6.2T1
283.	[1]	016010-0440	LOCKING WASHER
285.	[1]	029010-6310	BLEEDER SCREW
300.	[1]	154010-0300	FLAT-HEAD SCREW
301.	[1]	154011-0100	HEXAGON NUT
335.	[2]	026506-1040	GASKET D9.9&6.2T1
336.	[1]	154035-1600	CAP NUT
338.	[1]	131002-3800	ADAPTOR
339.	[2]	029341-2140	GASKET
340.	[1]	154373-1800	INLET UNION
341.	[1]	154373-1700	EYE BOLT
353.	[2]	029310-9080	SHIM D16&9T1.7
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106681-4120 as GOVERNOR

106681-4121

Cross reference number

Zexel num

Bosch num

Firm num

Name

105447-1060

9 420 613 222
NP-EP/RSUV210-1050PQ75/302

GOVERNOR
K 14JC MECHANICAL GOVERNOR GOV RSUV(D) GOV

Information:

Introduction
The problem that is identified below does not have a permanent solution. Until a permanent solution is known, use the solution that is listed below.Problem
A significant amount of HEUI pumps and injectors have been returned, but no cause of failure can be determined.Solution
Diagnostic procedures have been updated and have been incorporated into the following publications:
Special Instruction, REHS3819, "Procedure for Troubleshooting and Cleaning the Oil Rail System for the Hydraulic Electronic Unit Injector (HEUI)"
Troubleshooting, "Injection Actuation Pressure - Test"Note: These publications have been translated into Mandarin and Spanish.In addition, a new troubleshooting checklist is included with all service repair for HUEI pumps and HEUI injectors. The checklist is a summary of the diagnostic procedure steps to be confirmed before a suspect component is replaced. The checklist must be completed and returned with the suspect components in order to aid engineering to determine the cause of failure.Following the instructions step-by-step is critical in order to diagnose the failed component correctly. Do not skip steps in the procedures. Skipping steps in the procedure will lead to incorrect diagnosis of the problem.
