105445-1031 ZEXEL 9 420 611 733 BOSCH GOVERNOR 9420611733 1054451031

Information governor

BOSCH 9 420 611 733 9420611733

ZEXEL 105445-1031 1054451031

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105445-1031 zexel genuine, new aftermarket engine parts with delivery

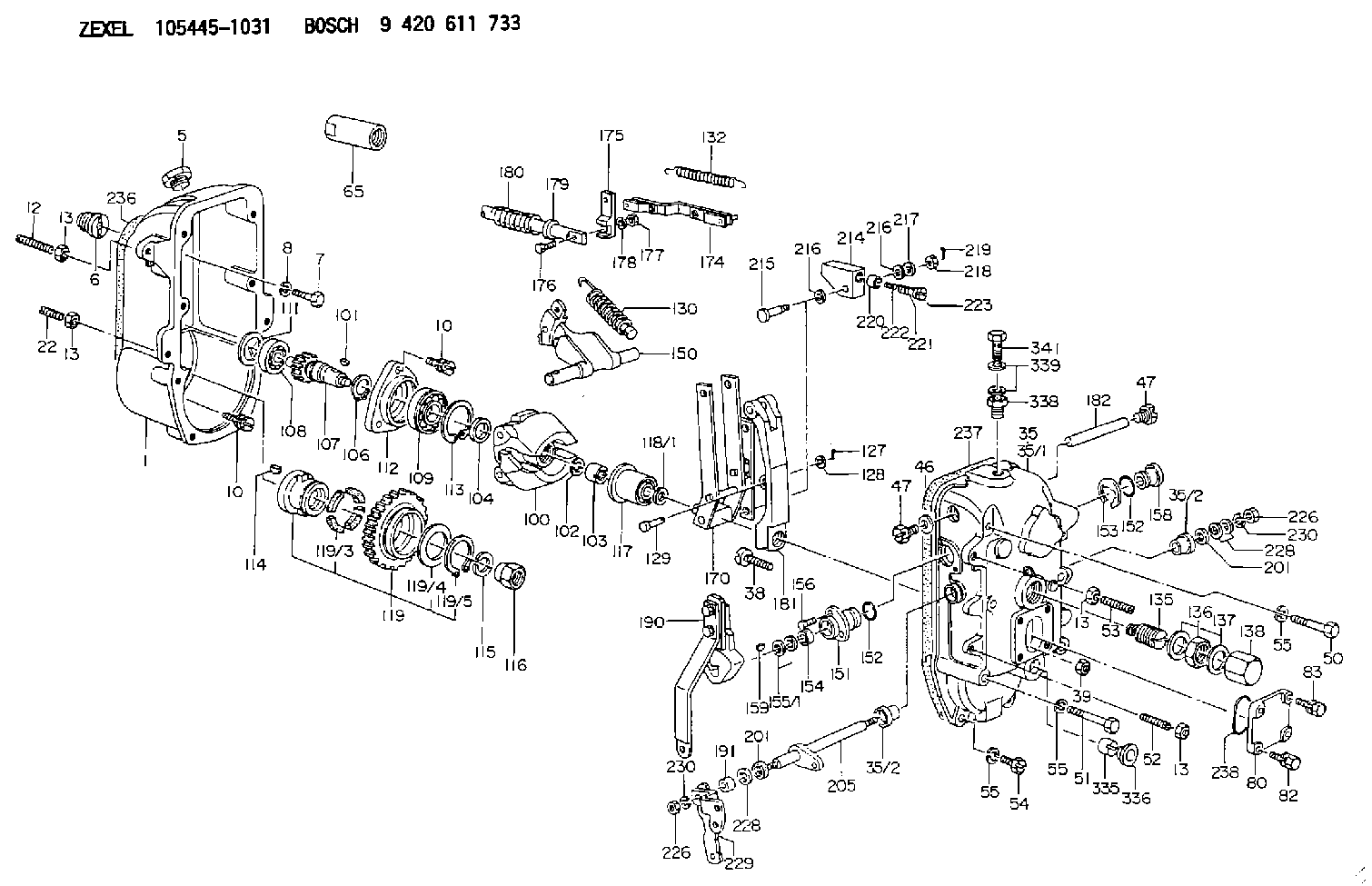

Scheme ###:

1.	[1]	154003-2020	GOVERNOR HOUSING
5.	[1]	154007-3400	CAPSULE
6.	[1]	154007-0500	ADAPTOR
7.	[1]	010038-1840	BLEEDER SCREW M8P1.25L18
8.	[1]	014110-8440	LOCKING WASHER
10.	[10]	020018-2840	BLEEDER SCREW
10.	[10]	020018-2840	BLEEDER SCREW
12.	[1]	154010-9700	FLAT-HEAD SCREW
13.	[4]	029241-0020	UNION NUT
13.	[4]	029241-0020	UNION NUT
13.	[4]	029241-0020	UNION NUT
13.	[4]	029241-0020	UNION NUT
22.	[1]	154010-9800	FLAT-HEAD SCREW
35.	[1]	154522-4320	GOVERNOR COVER
35/1.	[1]	154522-4300	GOVERNOR COVER
35/2.	[2]	154204-4200	BUSHING
35/2.	[2]	154204-4200	BUSHING
38.	[1]	154031-3900	FLAT-HEAD SCREW
39.	[1]	029201-0160	UNION NUT
46.	[2]	026512-1840	GASKET D17.9&12.2T1.50
47.	[2]	154036-2400	CAPSULE
47.	[2]	154036-2400	CAPSULE
50.	[2]	139008-0300	BLEEDER SCREW
51.	[4]	010038-9140	BLEEDER SCREW M8P1.25L95
52.	[1]	154010-9500	FLAT-HEAD SCREW
53.	[1]	154010-9700	FLAT-HEAD SCREW
54.	[3]	010038-2840	BLEEDER SCREW
55.	[9]	014110-8410	LOCKING WASHER
55.	[9]	014110-8410	LOCKING WASHER
55.	[9]	014110-8410	LOCKING WASHER
65.	[1]	154050-1620	STOPPING DEVICE
80.	[1]	154060-4200	COVER
82.	[2]	029020-6210	BLEEDER SCREW
83.	[2]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154102-2420	FLYWEIGHT ASSEMBLY
101.	[1]	025804-1610	WOODRUFF KEY
102.	[1]	029321-4010	LOCKING WASHER
103.	[1]	131325-2600	UNION NUT
104.	[1]	154120-0200	PLAIN WASHER
106.	[1]	016020-2510	LOCKING WASHER
107.	[1]	154121-0900	TOOTHED GEAR
108.	[1]	016630-2640	BEARING PLATE
109.	[1]	028102-5010	BEARING PLATE
111.	[1]	029313-2010	SHIM D39.8&32T1
111A.	[1]	029313-2020	SHIM D39.8&32T0.2
112.	[1]	154122-0200	COVER
113.	[1]	016110-5210	LOCKING WASHER
114.	[1]	025805-1910	WOODRUFF KEY
115.	[1]	023641-8410	LOCKING WASHER
116.	[1]	154011-2400	UNION NUT
117.	[1]	154123-1820	SLIDING PIECE
118/1.	[0]	029311-5020	SHIM D20.5&15T0.05
118/1.	[0]	029311-5030	SHIM D20.5&15T0.1
118/1.	[0]	029311-5050	SHIM D20.5&15T0.2
118/1.	[0]	029311-5060	SHIM D20.5&15T0.4
118/1.	[0]	029311-5080	SHIM D20.5&15T0.5
118/1.	[0]	029311-5120	SHIM D20.5&15T0.3
119.	[1]	154130-2320	TOOTHED GEAR
119/3.	[4]	153251-1000	DAMPER
119/4.	[1]	153321-0100	PLAIN WASHER
119/5.	[1]	016020-4010	LOCKING WASHER
127.	[1]	015325-1590	SPLIT PIN
128.	[1]	029310-6040	SHIM
129.	[1]	154356-6000	BEARING PIN
130.	[1]	154150-9320	GOVERNOR SPRING
132.	[1]	154154-2300	COILED SPRING
135.	[1]	154158-3020	HEADLESS SCREW
136.	[1]	139226-0000	UNION NUT
137.	[2]	029332-6030	GASKET
138.	[1]	154159-1600	CAP NUT
150.	[1]	154200-6020	SWIVELLING LEVER
151.	[1]	154204-3200	BUSHING
152.	[2]	139718-0200	O-RING
152.	[2]	139718-0200	O-RING
153.	[1]	016010-2010	LOCKING WASHER
154.	[1]	139614-0300	PACKING RING
155/1.	[0]	029311-4040	SHIM D26&14.2T0.3
155/1.	[0]	029311-4050	SHIM D26&14.2T0.4
155/1.	[0]	029311-4060	SHIM D26&14.2T0.5
155/1.	[0]	029311-4080	SHIM D26&14.2T0.1
156.	[2]	154372-1800	BLEEDER SCREW
158.	[1]	154204-2600	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
170.	[1]	154217-6020	FORK LEVER
174.	[1]	154234-0920	STRAP
175.	[1]	154232-0100	CONNECTOR
176.	[1]	010006-1840	BLEEDER SCREW M6P1L18 4T
177.	[1]	013020-6040	UNION NUT M6P1H5
178.	[2]	154233-0100	TAB WASHER
179.	[1]	153400-0200	SLOTTED WASHER
180.	[1]	153401-0300	COILED SPRING
181.	[1]	154236-8100	TENSIONING LEVER
182.	[1]	154237-0300	BEARING PIN
190.	[1]	154347-3220	CONTROL LEVER
191.	[1]	154376-1300	BUSHING
201.	[2]	139614-0300	PACKING RING
201.	[2]	139614-0300	PACKING RING
205.	[1]	154330-1301	LEVER SHAFT
214.	[1]	154333-0200	CONTROL LEVER
215.	[1]	154334-0100	BEARING PIN
216.	[2]	029301-0030	PLAIN WASHER
216.	[2]	029301-0030	PLAIN WASHER
217.	[1]	029300-8070	PLAIN WASHER
218.	[1]	013020-8020	UNION NUT M8P1.25H7
219.	[1]	025520-1210	SPLIT PIN
220.	[1]	154335-0100	SLOTTED WASHER
221.	[1]	154336-0100	COILED SPRING
222.	[1]	154336-0200	COILED SPRING
223.	[1]	154337-0100	CAPSULE
226.	[2]	013020-8040	UNION NUT M8P1.25H7
226.	[2]	013020-8040	UNION NUT M8P1.25H7
228.	[0]	139414-0000	SHIM
228.	[0]	139414-0000	SHIM
229.	[1]	154364-9900	CONTROL LEVER
230.	[3]	014110-8410	LOCKING WASHER
230.	[3]	014110-8410	LOCKING WASHER
236.	[1]	154390-3000	GASKET
237.	[1]	154390-3200	GASKET
238.	[1]	029635-5010	O-RING
335.	[1]	154159-1700	UNION NUT
336.	[1]	154356-6100	CAPSULE
338.	[1]	131002-3800	ADAPTOR
339.	[2]	029341-2140	GASKET
341.	[1]	154373-1700	EYE BOLT

Include in #1:

103662-3311 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105445-1031
105445-1032

9 420 611 733

GOVERNOR
* K

Information:

*******Group 2*******
3512 JM200111-00114
PARTS NEEDED
Qty
Part Number Description
*******Group 1*******
12 4P9077 INJECTOR GP-FUEL
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 7% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
*******Group 2*******
12 4P9076 INJECTOR GP-FUEL
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 7% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
ACTION REQUIRED
Refer to the service manual if/as necessary.
Replace all 12 injectors with new injectors.
SERVICE CLAIM ALLOWANCES
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
*******Group 1*******
0-5000 hrs,
0-24 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
This is a 9.0-hour job for Group 1
If there has been a previous repair, part age/hours will apply. Retain a copy of the previous repair invoice in the dealer's records for audit purposes, and specify repair date and machine hours in the "Additional Comments" section of the warranty claim.
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
*******Group 2*******
0-5000 hrs,
0-24 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
This is a 9.0-hour job for Group 2
If there has been a previous repair, part age/hours will apply. Retain a copy of the previous repair invoice in the dealer's records for audit purposes, and specify repair date and machine hours in the "Additional Comments" section of the warranty claim.
PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
