105445-0560 ZEXEL F 019 Z1F 004 BOSCH GOVERNOR f019z1f004 1054450560




Information governor

BOSCH F 019 Z1F 004 f019z1f004
ZEXEL 105445-0560 1054450560
105445-0560 GOVERNOR
Rating:
14
Buy GOVERNOR 105445-0560 zexel genuine, new aftermarket engine parts with delivery

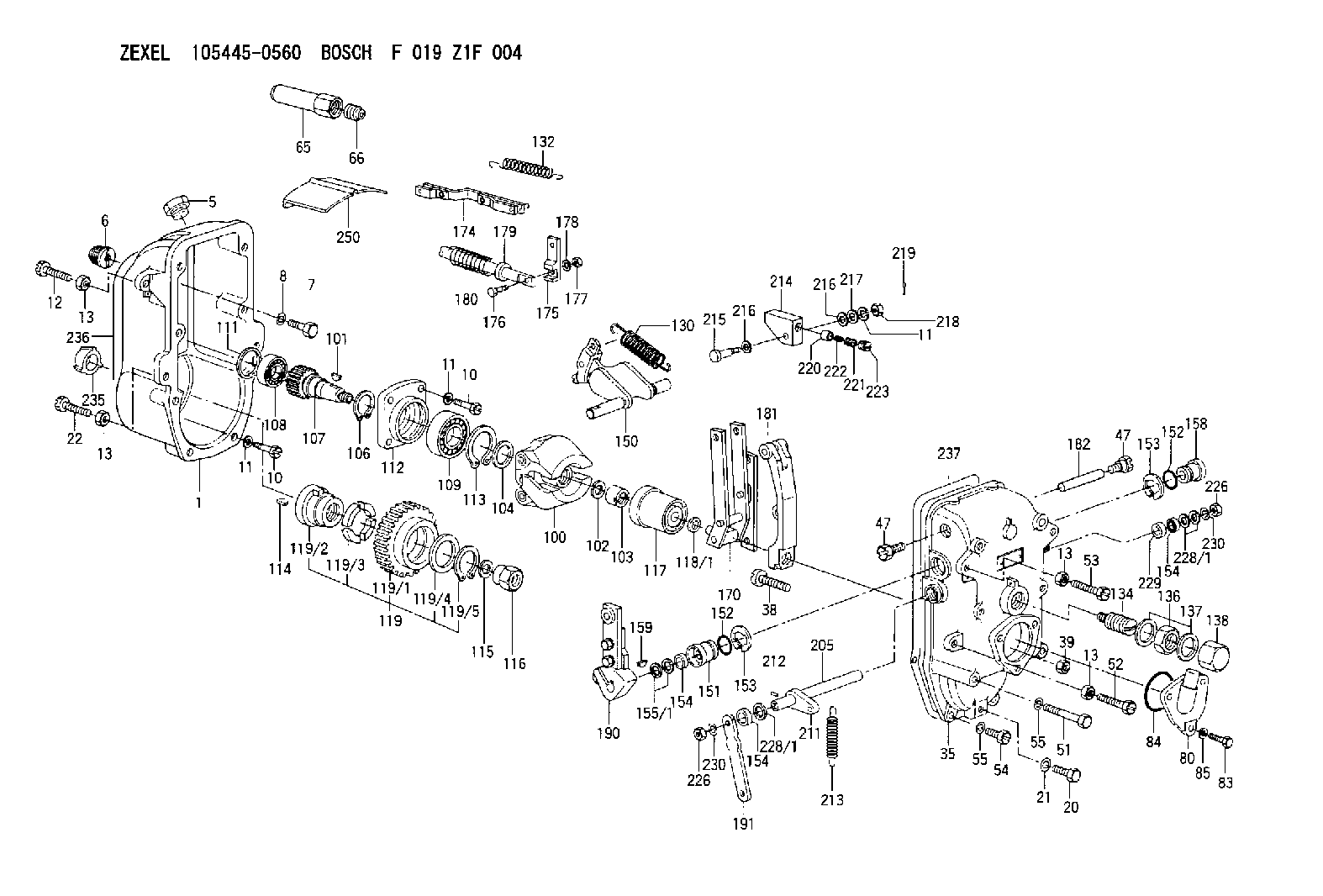

Scheme ###:

GOVERNOR HOUSING
1. [1] 154003-1220 GOVERNOR HOUSING
5. [1] 154007-1400 CAPSULE
6. [1] 154007-0500 ADAPTOR
7. [1] 010038-1840 BLEEDER SCREW M8P1.25L18
8. [1] 014110-8440 LOCKING WASHER
10. [10] 010038-2840 BLEEDER SCREW
10. [10] 010038-2840 BLEEDER SCREW
11. [10] 014110-8440 LOCKING WASHER
11. [10] 014110-8440 LOCKING WASHER
11. [10] 014110-8440 LOCKING WASHER
12. [1] 154010-6200 BLEEDER SCREW
13. [4] 029241-0020 UNION NUT
13. [4] 029241-0020 UNION NUT
13. [4] 029241-0020 UNION NUT
13. [4] 029241-0020 UNION NUT
20. [1] 029111-0030 CAPSULE
21. [1] 026510-1340 GASKET D13.4&10.2T1
22. [1] 154034-0400 BLEEDER SCREW
35. [1] 154522-0020 GOVERNOR COVER
38. [1] 154031-0400 FLAT-HEAD SCREW
39. [1] 029201-0160 UNION NUT
47. [2] 154036-0400 CAPSULE
47. [2] 154036-0400 CAPSULE
51. [6] 010038-9140 BLEEDER SCREW M8P1.25L95
52. [1] 154034-0400 BLEEDER SCREW
53. [1] 154034-0500 BLEEDER SCREW
54. [2] 010038-2840 BLEEDER SCREW
55. [8] 014110-8440 LOCKING WASHER
55. [8] 014110-8440 LOCKING WASHER
65. [1] 154050-5300 CAP
66. [1] 154007-0700 BUSHING
80. [1] 154060-8200 COVER
83. [3] 020508-1840 BLEEDER SCREW M8P1.25L18
84. [1] 029635-5010 O-RING
85. [3] 014110-8440 LOCKING WASHER
100. [1] 154102-1820 FLYWEIGHT ASSEMBLY
101. [1] 025804-1610 WOODRUFF KEY
102. [1] 029321-4010 LOCKING WASHER
103. [1] 131325-2600 UNION NUT
104. [1] 154120-0200 PLAIN WASHER
106. [1] 016020-2510 LOCKING WASHER
107. [1] 154121-0700 TOOTHED GEAR
108. [1] 016630-2640 BEARING PLATE
109. [1] 028102-5010 BEARING PLATE
111. [1] 029313-2010 SHIM D39.8&32T1
111A. [1] 029313-2020 SHIM D39.8&32T0.2
112. [1] 154122-0200 COVER
113. [1] 016110-5210 LOCKING WASHER
114. [1] 025805-1910 WOODRUFF KEY
115. [1] 023641-8410 LOCKING WASHER
116. [1] 154011-0200 UNION NUT
117. [1] 154123-1820 SLIDING PIECE
118/1. [0] 029311-5020 SHIM D20.5&15T0.05
118/1. [0] 029311-5030 SHIM D20.5&15T0.1
118/1. [0] 029311-5050 SHIM D20.5&15T0.2
118/1. [0] 029311-5060 SHIM D20.5&15T0.4
118/1. [0] 029311-5080 SHIM D20.5&15T0.5
118/1. [0] 029311-5120 SHIM D20.5&15T0.3
119. [1] 154130-0720 TOOTHED GEAR
119/1. [1] 154130-0710 TOOTHED GEAR
119/2. [1] 154132-0220 HOLDER
119/3. [4] 153251-0200 DAMPER
119/4. [1] 153321-0100 PLAIN WASHER
119/5. [1] 016020-4010 LOCKING WASHER
130. [1] 154150-1700 GOVERNOR SPRING
132. [1] 154154-1800 COILED SPRING
134. [1] 154157-0520 HEADLESS SCREW
136. [1] 029203-0010 UNION NUT
137. [2] 026530-3640 GASKET
138. [1] 154159-0200 CAP NUT
150. [1] 154200-1621 SWIVELLING LEVER
151. [1] 154204-0301 BUSHING
152. [2] 029632-1010 O-RING
152. [2] 029632-1010 O-RING
153. [2] 016010-2010 LOCKING WASHER
153. [2] 016010-2010 LOCKING WASHER
154. [3] 029621-4000 PACKING RING
154. [3] 029621-4000 PACKING RING
154. [3] 029621-4000 PACKING RING
155/1. [0] 029311-4040 SHIM D26&14.2T0.3
155/1. [0] 029311-4050 SHIM D26&14.2T0.4
155/1. [0] 029311-4060 SHIM D26&14.2T0.5
155/1. [0] 029311-4080 SHIM D26&14.2T0.1
158. [1] 154204-3800 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
170. [1] 154211-4820 FORK LEVER
174. [1] 154230-1620 STRAP
175. [1] 154232-0100 CONNECTOR
176. [1] 010006-1840 BLEEDER SCREW M6P1L18 4T
177. [1] 013020-6040 UNION NUT M6P1H5
178. [2] 154233-0100 TAB WASHER
179. [1] 153400-0200 SLOTTED WASHER
180. [1] 153401-0300 COILED SPRING
181. [1] 154236-1700 TENSIONING LEVER
182. [1] 154237-0300 BEARING PIN
190. [1] 154303-4420 CONTROL LEVER
191. [1] 154300-1700 CONTROL LEVER
205. [1] 154330-1301 LEVER SHAFT
211. [1] 154331-0100 CONTROL LEVER
212. [1] 024330-2030 BEARING PIN
213. [1] 154332-0100 COILED SPRING
214. [1] 154333-0200 CONTROL LEVER
215. [1] 154334-0100 BEARING PIN
216. [2] 029301-0030 PLAIN WASHER
216. [2] 029301-0030 PLAIN WASHER
217. [1] 029300-8070 PLAIN WASHER
218. [1] 013020-8020 UNION NUT M8P1.25H7
219. [1] 025520-1210 SPLIT PIN
220. [1] 154335-0100 SLOTTED WASHER
221. [1] 154336-0100 COILED SPRING
222. [1] 154336-0200 COILED SPRING
223. [1] 154337-0100 CAPSULE
226. [2] 013020-8040 UNION NUT M8P1.25H7
226. [2] 013020-8040 UNION NUT M8P1.25H7
228/1. [0] 029311-4040 SHIM D26&14.2T0.3
228/1. [0] 029311-4050 SHIM D26&14.2T0.4
228/1. [0] 029311-4060 SHIM D26&14.2T0.5
228/1. [0] 029311-4060 SHIM D26&14.2T0.5
228/1. [0] 029311-4080 SHIM D26&14.2T0.1
229. [1] 154351-0600 BUSHING
230. [2] 014110-8440 LOCKING WASHER
230. [2] 014110-8440 LOCKING WASHER
235. [1] 155412-5600 IMPELLER WHEEL
236. [1] 154390-3000 GASKET
237. [1] 154390-3300 GASKET
250. [1] 154351-0520 PLATE

Include in #1:

103672-0251 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105445-0560
F 019 Z1F 004
NP-EP/RSUV200-770ZW3/302

GOVERNOR
K




Information:

Start By:a. remove flywheelb. remove crankshaft rear seal 1. Install Tool (A) in the bore for the crankshaft rear seal as shown.2. Install Tool (B) between Tool (A) and the crankshaft wear sleeve. Turn Tool (B) until the edge of the tool makes a crease in the crankshaft wear sleeve. Repeat this in two more locations around the crankshaft wear sleeve until it is loose.3. Remove Tool (A) and the crankshaft wear sleeve from the end of the crankshaft.Install Salvaged Crankshaft Wear Sleeve
1. Be sure the flange of the crankshaft is thoroughly clean prior to installing the crankshaft wear sleeve.
The crankshaft wear sleeve has a taper on the outside diameter. It must be installed correctly on the crankshaft.
2. Put crankshaft wear sleeve (1) in position on the 1U7597 Sleeve Ring [part of Tool (A)]. Be sure the taper on the outside diameter of the wear sleeve is facing away from the sleeve ring as shown.3. Fasten the 1U7595 Locator Assembly [part of Tool (A)] to the rear of the crankshaft. 4. Position crankshaft wear sleeve (1), with the sleeve ring, over the locator assembly as shown.5. Install the 1U7594 Installer [part of Tool (A)] over the locator assembly. Tighten the nut assembly of Tool (A) to push the crankshaft wear sleeve into position on the crankshaft.6. Remove the installer and the sleeve ring from the locator assembly. Turn the sleeve ring around, and install it and the installer back on the locator assembly. Tighten the nut assembly of Tool (A) to complete the installation of the crankshaft wear sleeve.End By:a. install crankshaft rear sealb install flywheel
