Information governor
BOSCH
F 019 Z1E 869
f019z1e869
ZEXEL
105445-0380
1054450380

Rating:

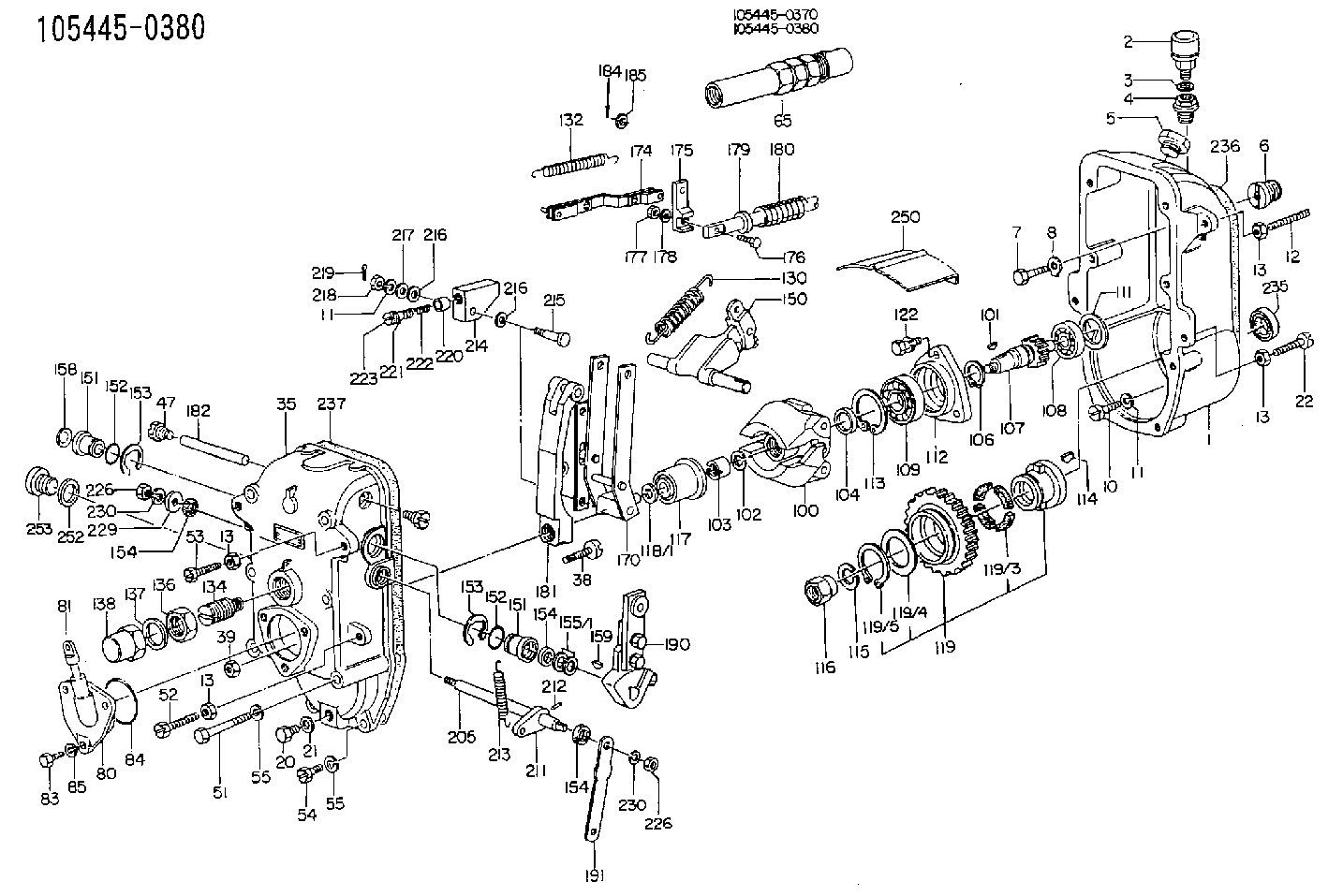

Scheme ###:
1. | [1] | 154003-0820 | GOVERNOR HOUSING |
2. | [1] | 155406-0620 | AIR FILTER |
3. | [1] | 026512-1540 | GASKET D15.4&12.2T1.50 |
4. | [1] | 154007-0100 | ADAPTOR |
5. | [1] | 154007-1400 | CAPSULE |
6. | [1] | 154007-0500 | ADAPTOR |
7. | [1] | 010038-1840 | BLEEDER SCREW M8P1.25L18 |
8. | [1] | 154008-0100 | TAB WASHER |
10. | [4] | 010508-2540 | FLAT-HEAD SCREW M8P1.25L25 |
11. | [9] | 014110-8410 | LOCKING WASHER |
11. | [9] | 014110-8410 | LOCKING WASHER |
12. | [1] | 154010-1800 | FLAT-HEAD SCREW |
13. | [4] | 029241-0020 | UNION NUT |
13. | [4] | 029241-0020 | UNION NUT |
13. | [4] | 029241-0020 | UNION NUT |
13. | [4] | 029241-0020 | UNION NUT |
20. | [1] | 029111-0030 | CAPSULE |
21. | [1] | 026510-1340 | GASKET D13.4&10.2T1 |
22. | [1] | 154034-0400 | BLEEDER SCREW |
35. | [1] | 154522-0220 | GOVERNOR COVER |
38. | [1] | 154031-0400 | FLAT-HEAD SCREW |
39. | [1] | 029201-0160 | UNION NUT |
47. | [2] | 154036-0400 | CAPSULE |
51. | [6] | 010038-9140 | BLEEDER SCREW M8P1.25L95 |
52. | [1] | 154034-0400 | BLEEDER SCREW |
53. | [1] | 154034-0500 | BLEEDER SCREW |
54. | [2] | 010038-2840 | BLEEDER SCREW |
55. | [8] | 014110-8410 | LOCKING WASHER |
55. | [8] | 014110-8410 | LOCKING WASHER |
65. | [1] | 153022-3320 | STOPPING DEVICE |
80. | [1] | 154060-0620 | COVER |
81. | [1] | 133030-1320 | LEVEL INDICATOR |
83. | [3] | 020508-1840 | BLEEDER SCREW M8P1.25L18 |
84. | [1] | 029635-5010 | O-RING |
85. | [3] | 014110-8410 | LOCKING WASHER |
100. | [1] | 154102-2020 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025804-1610 | WOODRUFF KEY |
102. | [1] | 029321-4010 | LOCKING WASHER |
103. | [1] | 131325-2600 | UNION NUT |
104. | [1] | 154120-0200 | PLAIN WASHER |
106. | [1] | 016020-2510 | LOCKING WASHER |
107. | [1] | 154121-0800 | TOOTHED GEAR |
108. | [1] | 016630-2640 | BEARING PLATE |
109. | [1] | 028102-5010 | BEARING PLATE |
111. | [1] | 029313-2010 | SHIM D39.8&32T1 |
111A. | [1] | 029313-2020 | SHIM D39.8&32T0.2 |
112. | [1] | 154122-0200 | COVER |
113. | [1] | 016110-5210 | LOCKING WASHER |
114. | [1] | 025805-1910 | WOODRUFF KEY |
115. | [1] | 023641-8410 | LOCKING WASHER |
116. | [1] | 154011-0200 | UNION NUT |
117. | [1] | 154123-2020 | SLIDING PIECE |
118/1. | [0] | 029311-5020 | SHIM D20.5&15T0.05 |
118/1. | [0] | 029311-5030 | SHIM D20.5&15T0.1 |
118/1. | [0] | 029311-5050 | SHIM D20.5&15T0.2 |
118/1. | [0] | 029311-5060 | SHIM D20.5&15T0.4 |
118/1. | [0] | 029311-5080 | SHIM D20.5&15T0.5 |
118/1. | [0] | 029311-5120 | SHIM D20.5&15T0.3 |
119. | [1] | 154130-0820 | TOOTHED GEAR |
119/1. | [1] | 154130-0810 | TOOTHED GEAR |
119/2. | [1] | 154132-0220 | HOLDER |
119/3. | [4] | 153251-0200 | DAMPER |
119/4. | [1] | 153321-0100 | PLAIN WASHER |
119/5. | [1] | 016020-4010 | LOCKING WASHER |
122. | [4] | 020308-2540 | BLEEDER SCREW M8P1.25L25 |
130. | [1] | 154150-6600 | GOVERNOR SPRING |
132. | [1] | 154154-2500 | COILED SPRING |
134. | [1] | 154157-0520 | HEADLESS SCREW |
136. | [1] | 029203-0010 | UNION NUT |
137. | [2] | 026530-3640 | GASKET |
138. | [1] | 154159-0200 | CAP NUT |
150. | [1] | 154200-4221 | SWIVELLING LEVER |
151. | [1] | 154204-0301 | BUSHING |
151. | [1] | 154204-0301 | BUSHING |
152. | [2] | 029632-1010 | O-RING |
152. | [2] | 029632-1010 | O-RING |
153. | [2] | 016010-2010 | LOCKING WASHER |
153. | [2] | 016010-2010 | LOCKING WASHER |
154. | [3] | 029621-4000 | PACKING RING |
154. | [3] | 029621-4000 | PACKING RING |
154. | [3] | 029621-4000 | PACKING RING |
155/1. | [0] | 029311-4040 | SHIM D26&14.2T0.3 |
155/1. | [0] | 029311-4050 | SHIM D26&14.2T0.4 |
155/1. | [0] | 029311-4060 | SHIM D26&14.2T0.5 |
155/1. | [0] | 029311-4080 | SHIM D26&14.2T0.1 |
158. | [1] | 154204-3800 | BUSHING |
159. | [1] | 025803-1310 | WOODRUFF KEY |
170. | [1] | 154211-5120 | FORK LEVER |
174. | [1] | 154230-4620 | STRAP |
175. | [1] | 154232-0100 | CONNECTOR |
176. | [1] | 010006-1840 | BLEEDER SCREW M6P1L18 4T |
177. | [1] | 013020-6040 | UNION NUT M6P1H5 |
178. | [2] | 154233-0100 | TAB WASHER |
179. | [1] | 153400-0200 | SLOTTED WASHER |
180. | [1] | 153401-0300 | COILED SPRING |
181. | [1] | 154236-1700 | TENSIONING LEVER |
182. | [1] | 154237-0300 | BEARING PIN |
184. | [1] | 025520-1510 | SPLIT PIN |
185. | [1] | 029300-6150 | SHIM D12&6.2T0.3 |
190. | [1] | 154303-5520 | CONTROL LEVER |
191. | [1] | 154300-1700 | CONTROL LEVER |
205. | [1] | 154330-1301 | LEVER SHAFT |
211. | [1] | 154331-0100 | CONTROL LEVER |
212. | [1] | 024330-2030 | BEARING PIN |
213. | [1] | 154332-0100 | COILED SPRING |
214. | [1] | 154333-0200 | CONTROL LEVER |
215. | [1] | 154334-0100 | BEARING PIN |
216. | [2] | 029301-0030 | PLAIN WASHER |
216. | [2] | 029301-0030 | PLAIN WASHER |
217. | [1] | 029300-8070 | PLAIN WASHER |
218. | [1] | 013020-8020 | UNION NUT M8P1.25H7 |
219. | [1] | 025520-1210 | SPLIT PIN |
220. | [1] | 154335-0100 | SLOTTED WASHER |
221. | [1] | 154336-0100 | COILED SPRING |
222. | [1] | 154336-0200 | COILED SPRING |
223. | [1] | 154337-0100 | CAPSULE |
226. | [2] | 013020-8040 | UNION NUT M8P1.25H7 |
226. | [2] | 013020-8040 | UNION NUT M8P1.25H7 |
228/1. | [0] | 029311-4040 | SHIM D26&14.2T0.3 |
228/1. | [0] | 029311-4050 | SHIM D26&14.2T0.4 |
228/1. | [0] | 029311-4060 | SHIM D26&14.2T0.5 |
228/1. | [0] | 029311-4080 | SHIM D26&14.2T0.1 |
229. | [1] | 154351-0600 | BUSHING |
230. | [2] | 014110-8410 | LOCKING WASHER |
230. | [2] | 014110-8410 | LOCKING WASHER |
235. | [1] | 029622-5010 | PACKING RING |
236. | [1] | 154350-1000 | GASKET |
237. | [1] | 154390-3300 | GASKET |
250. | [1] | 154351-0520 | PLATE |
252. | [1] | 029332-6030 | GASKET |
253. | [1] | 131034-1400 | CAPSULE |
Cross reference number
Zexel num
Bosch num
Firm num
Name
105445-0380
GOVERNOR
K 14JC MECHANICAL GOVERNOR GOV RSUV(D) GOV
K 14JC MECHANICAL GOVERNOR GOV RSUV(D) GOV
