105427-0440 ZEXEL F 019 Z4E 600 BOSCH GOVERNOR f019z4e600 1054270440 1910197410

Information governor

BOSCH F 019 Z4E 600 f019z4e600

ZEXEL 105427-0440 1054270440

NISSAN-DIESEL 1910197410 1910197410

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105427-0440 zexel genuine, new aftermarket engine parts with delivery

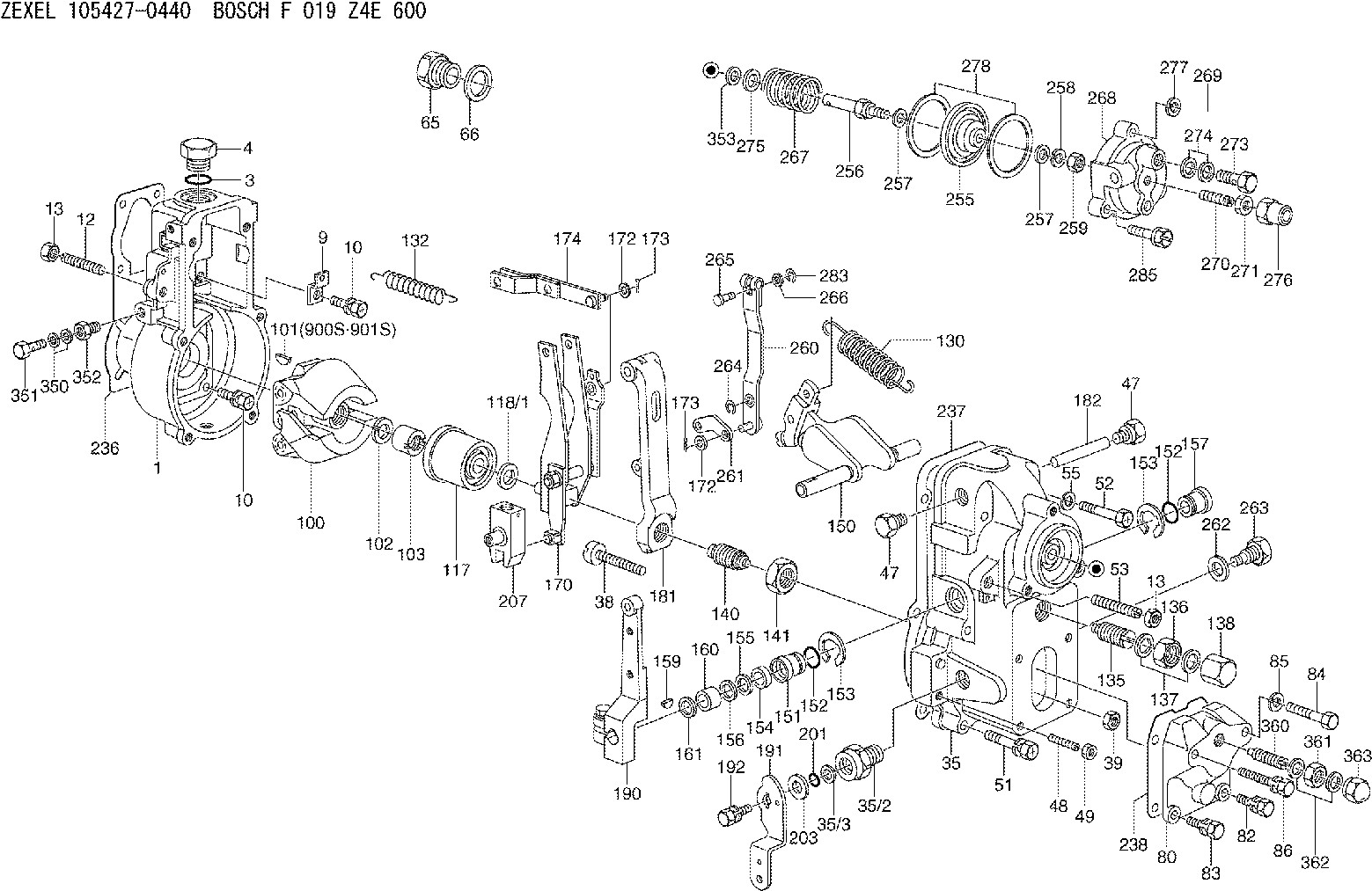

Scheme ###:

1.	[1]	154000-5900	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
9.	[1]	154350-6000	PLATE
10.	[8]	020106-2040	BLEEDER SCREW
10.	[8]	020106-2040	BLEEDER SCREW
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
35.	[1]	154509-1820	GOVERNOR COVER
35/2.	[1]	154321-1200	BUSHING
35/3.	[1]	029331-6030	GASKET
38.	[1]	154031-0100	FLAT-HEAD SCREW
39.	[1]	013020-6020	UNION NUT
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
48.	[1]	154037-0100	FLAT-HEAD SCREW
49.	[1]	154038-0200	HEXAGON NUT
51.	[5]	020106-5040	BLEEDER SCREW
52.	[1]	029010-6080	BLEEDER SCREW
53.	[1]	154010-1100	FLAT-HEAD SCREW
55.	[1]	029320-6010	LOCKING WASHER
65.	[1]	153021-4020	STOPPING DEVICE
66.	[1]	026524-3040	GASKET
80.	[1]	154063-0400	COVER
82.	[1]	020006-1440	BLEEDER SCREW
83.	[1]	020006-1440	BLEEDER SCREW
84.	[1]	020006-3240	BLEEDER SCREW
85.	[1]	014110-6440	LOCKING WASHER D12.2&6.1T1.5
86.	[1]	020506-3240	BLEEDER SCREW
100.	[1]	154101-0520	FLYWEIGHT
101.	[1]	025803-1310	WOODRUFF KEY 13 MM
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-0120	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-6400	GOVERNOR SPRING
132.	[1]	154154-4000	COILED SPRING
135.	[1]	154157-5720	HEADLESS SCREW
136.	[1]	029201-2130	UNION NUT
137.	[2]	026512-1540	GASKET
138.	[1]	154159-1200	CAP NUT
140.	[1]	154178-2920	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-7020	SWIVELLING LEVER
151.	[1]	154204-4300	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-4400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY 13 MM
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154211-4620	FORK LEVER
172.	[3]	029310-5170	SHIM
172.	[3]	029310-5170	SHIM
173.	[3]	025520-1210	SPLIT PIN
173.	[3]	025520-1210	SPLIT PIN
174.	[1]	154230-5020	STRAP
181.	[1]	154236-4100	TENSIONING LEVER
182.	[1]	154237-0100	BEARING PIN
190.	[1]	154309-6120	CONTROL LEVER
191.	[1]	154304-1400	CONTROL LEVER
192.	[1]	020006-1640	BLEEDER SCREW
201.	[1]	029621-0010	PACKING RING
203.	[0]	029311-0220	SHIM D18&10.3T0.2
203B.	[0]	029311-0230	SHIM D18&10.3T0.5
207.	[1]	154326-5220	CONTROL LEVER
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	154390-3500	GASKET
255.	[1]	154400-7420	DIAPHRAGM
256.	[1]	154400-4800	STOP PIN
257.	[2]	029330-8050	GASKET
257.	[2]	029330-8050	GASKET
258.	[1]	139308-0700	LOCKING WASHER
259.	[1]	013030-6040	UNION NUT
260.	[1]	154401-0220	CONTROL LEVER
261.	[1]	154401-1220	STRAP
262.	[1]	026510-1440	GASKET
263.	[1]	154401-2100	BLEEDER SCREW
264.	[1]	016010-0540	LOCKING WASHER
265.	[1]	154222-6200	BEARING PIN
266.	[1]	029300-4010	PLAIN WASHER
267.	[1]	154402-4900	COILED SPRING
268.	[1]	154404-5000	COVER
269.	[2]	020106-2540	BLEEDER SCREW
270.	[1]	154404-1100	FLAT-HEAD SCREW
271.	[1]	023040-6040	UNION NUT
273.	[1]	029731-0180	EYE BOLT
274.	[2]	029341-0010	GASKET
275.	[0]	029312-0180	SHIM D25.5&20T0.5
275B.	[0]	029312-0210	SHIM D25.5&20T0.2
276.	[1]	154035-0320	CAP NUT
277.	[1]	014110-6440	LOCKING WASHER D12.2&6.1T1.5
278.	[2]	154413-2600	GASKET
283.	[1]	016010-0440	LOCKING WASHER
285.	[1]	029010-6310	BLEEDER SCREW
350.	[2]	026506-1040	GASKET
351.	[1]	029730-6030	EYE BOLT
352.	[1]	155012-0700	ADAPTOR
353.	[4]	029310-9080	SHIM
360.	[1]	154158-4320	HEADLESS SCREW
361.	[1]	029201-2030	UNION NUT
362.	[2]	026512-1540	GASKET
363.	[1]	154159-0100	CAP NUT
900S.	[1]	025803-1310	WOODRUFF KEY 13 MM
901S.	[1]	025803-1610	WOODRUFF KEY 16 MM

Include in #1:

106971-5020 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105427-0440

F 019 Z4E 600
NP-EP/RSVD200-1500PQ34/32

1910197410 NISSAN-DIESEL

GOVERNOR
K 14JC MECHANICAL GOVERNOR GOV RSUV(D) GOV

Information:

Start By:a. remove oil pump1. Check the main bearing caps for identification for their location and direction in the block. The caps must be installed in the same location and direction from which they were removed. 2. Remove No. 2 through No. 6 bearing caps (1). Remove thrust plates from the No. 4 main bearing.
If the crankshaft is turned in the wrong direction, the tab of the bearing will be pushed between the crankshaft and cylinder block. This can cause damage to either the crankshaft or cylinder block or both.
3. Remove the upper halves of the main bearings by putting tool (A) in oil hole (2) in the crankshaft. Turn the crankshaft in the direction which will push the
