Information governor
BOSCH
F 019 Z1E 613
f019z1e613
ZEXEL
105427-0380
1054270380
NISSAN-DIESEL
1910196163
1910196163

Rating:
Scheme ###:

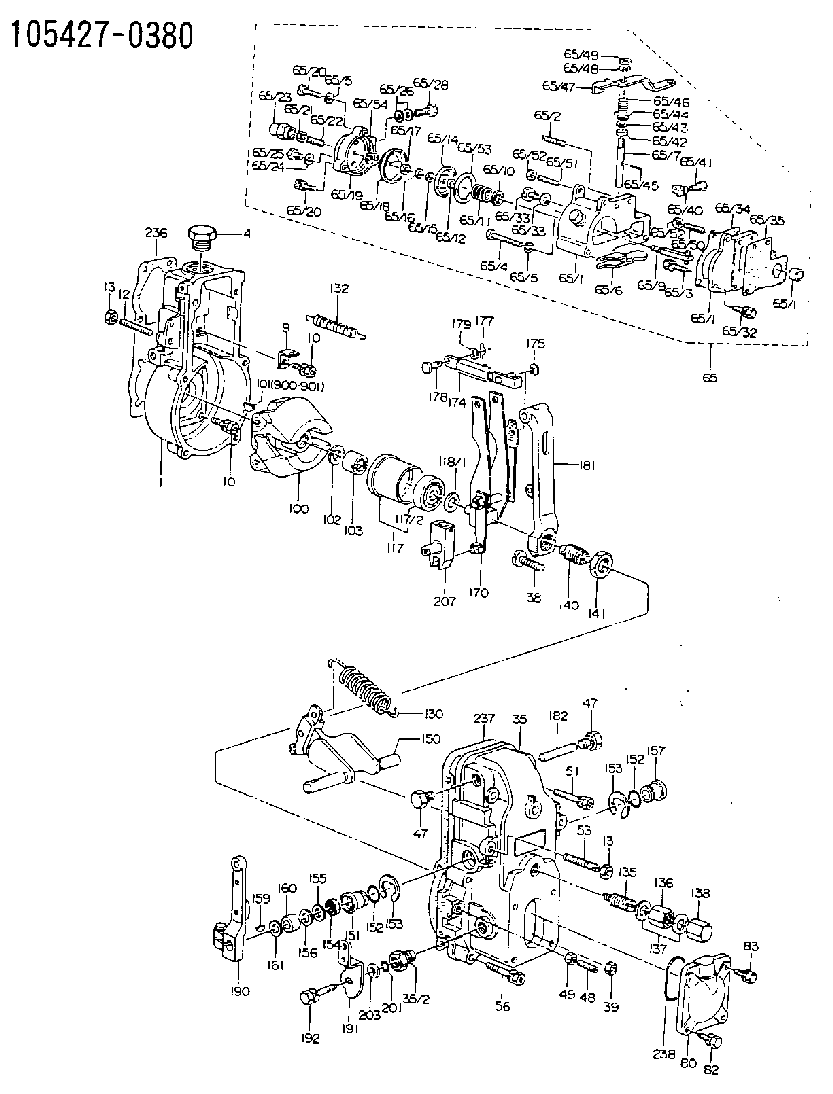

1. | [1] | 154000-4700 | GOVERNOR HOUSING |
4. | [1] | 154007-1600 | CAPSULE |
9. | [1] | 154350-6000 | PLATE |
10. | [8] | 020106-2040 | BLEEDER SCREW M6P1L20 |
10. | [8] | 020106-2040 | BLEEDER SCREW M6P1L20 |
12. | [1] | 154010-0100 | FLAT-HEAD SCREW |
13. | [2] | 154011-0100 | HEXAGON NUT |
13. | [2] | 154011-0100 | HEXAGON NUT |
35. | [1] | 154508-0320 | GOVERNOR COVER |
35/2. | [1] | 154321-1200 | BUSHING |
38. | [1] | 154031-0100 | FLAT-HEAD SCREW |
39. | [1] | 013020-6020 | UNION NUT M6P1H5 |
47. | [2] | 154036-0300 | CAPSULE |
47. | [2] | 154036-0300 | CAPSULE |
48. | [1] | 154037-0100 | FLAT-HEAD SCREW |
49. | [1] | 154038-0200 | HEXAGON NUT |
51. | [2] | 020106-5040 | BLEEDER SCREW |
53. | [1] | 154010-1200 | FLAT-HEAD SCREW |
56. | [4] | 020106-3840 | BLEEDER SCREW |
65. | [1] | 154407-1220 | MANIFOLD-PRESSURE COMP. |
65/1. | [1] | 154408-6120 | GOVERNOR HOUSING |
65/1A. | [1] | 154408-2400 | SPACER BUSHING |
65/1B. | [1] | 134009-0000 | SPACER BUSHING |
65/2. | [2] | 021006-2240 | FLAT-HEAD SCREW |
65/3. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
65/4. | [1] | 029010-6220 | BLEEDER SCREW |
65/5. | [3] | 014110-6440 | LOCKING WASHER |
65/5. | [3] | 014110-6440 | LOCKING WASHER |
65/6. | [1] | 154408-1100 | CONTROL LEVER |
65/7. | [1] | 155004-2700 | LEVER SHAFT |
65/9. | [1] | 154400-4720 | STOP PIN |
65/10. | [0] | 029312-0180 | SHIM D25.5&20T0.5 |
65/10B. | [0] | 029312-0210 | SHIM D25.5&20T0.2 |
65/11. | [1] | 154403-0900 | COILED SPRING |
65/12. | [1] | 029300-8260 | PLAIN WASHER |
65/14. | [1] | 154400-0120 | DIAPHRAGM |
65/15. | [1] | 029310-8560 | SHIM D14&8.4T0.7 |
65/16. | [1] | 139505-0000 | PLAIN WASHER |
65/17. | [1] | 013030-6040 | UNION NUT M6P1H3.6 |
65/18. | [1] | 154404-3100 | PLATE |
65/19. | [1] | 154404-3700 | COVER |
65/20. | [2] | 029010-6310 | BLEEDER SCREW |
65/20A. | [1] | 020106-2240 | BLEEDER SCREW |
65/21. | [1] | 023040-6040 | UNION NUT |
65/22. | [1] | 154404-1100 | FLAT-HEAD SCREW |
65/23. | [1] | 154035-0320 | CAP NUT |
65/24. | [1] | 026506-1040 | GASKET D9.9&6.2T1 |
65/25. | [1] | 029010-6010 | CAPSULE M6P1.0L7 |
65/26. | [2] | 026510-1340 | GASKET D13.4&10.2T1 |
65/28. | [1] | 029731-0180 | EYE BOLT |
65/32. | [1] | 029020-6210 | BLEEDER SCREW |
65/33. | [1] | 029011-0120 | BLEEDER SCREW |
65/33A. | [1] | 026510-1340 | GASKET D13.4&10.2T1 |
65/34. | [1] | 154390-0800 | GASKET |
65/35. | [1] | 154390-0900 | GASKET |
65/40. | [1] | 155003-1700 | CONTROL LEVER |
65/41. | [1] | 155006-0700 | BLEEDER SCREW |
65/42. | [1] | 139608-0000 | PACKING RING |
65/43. | [0] | 029310-8040 | SHIM D13.5&8T0.2 |
65/43. | [0] | 029310-8050 | SHIM D13.5&8T0.5 |
65/44. | [2] | 029300-8320 | SHIM |
65/45. | [1] | 025520-1210 | SPLIT PIN |
65/46. | [1] | 155005-1900 | COILED SPRING |
65/47. | [1] | 155400-1000 | CONTROL LEVER |
65/48. | [1] | 014110-8440 | LOCKING WASHER |
65/49. | [1] | 013020-8140 | UNION NUT M8P1.25H6.5 |
65/50. | [1] | 154037-2400 | FLAT-HEAD SCREW |
65/51. | [1] | 154037-0300 | FLAT-HEAD SCREW |
65/52. | [2] | 154038-0200 | HEXAGON NUT |
65/52. | [2] | 154038-0200 | HEXAGON NUT |
65/53. | [3] | 154413-2600 | GASKET |
65/54. | [1] | 014110-6440 | LOCKING WASHER |
80. | [1] | 154060-7100 | COVER |
82. | [2] | 029020-6210 | BLEEDER SCREW |
83. | [2] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
100. | [1] | 154100-4020 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1310 | WOODRUFF KEY |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 029231-2030 | UNION NUT |
117. | [1] | 154123-0120 | SLIDING PIECE |
118/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
118/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
118/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
118/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
118/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
118/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
118/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
118/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
118/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
130. | [1] | 154150-0400 | GOVERNOR SPRING |
132. | [1] | 154154-0701 | COILED SPRING |
135. | [1] | 154157-0120 | HEADLESS SCREW |
136. | [1] | 029201-2130 | UNION NUT M12P1.0H6 |
137. | [2] | 026512-1540 | GASKET D15.4&12.2T1.50 |
138. | [1] | 154159-0100 | CAP NUT |
140. | [1] | 154170-3320 | HEADLESS SCREW |
141. | [1] | 029201-6010 | UNION NUT |
150. | [1] | 154200-7020 | SWIVELLING LEVER |
151. | [1] | 154204-4300 | BUSHING |
152. | [2] | 029631-8020 | O-RING |
152. | [2] | 029631-8020 | O-RING |
153. | [2] | 016010-1640 | LOCKING WASHER |
153. | [2] | 016010-1640 | LOCKING WASHER |
154. | [1] | 139611-0000 | PACKING RING |
155. | [1] | 139411-0000 | SHIM |
156. | [0] | 029311-1070 | SHIM D16&11T0.5 |
157. | [1] | 154204-4400 | BUSHING |
159. | [1] | 025803-1310 | WOODRUFF KEY |
160. | [1] | 154206-2800 | BUSHING |
161. | [0] | 154206-0200 | PLAIN WASHER D19.5&11.2T1.0 |
170. | [1] | 154210-1220 | FORK LEVER |
174. | [1] | 154230-5120 | STRAP |
175. | [1] | 016010-0540 | LOCKING WASHER |
177. | [1] | 155402-3800 | SAFETY PIN |
178. | [1] | 154222-5100 | BEARING PIN |
179. | [1] | 029310-5170 | SHIM D8&5.3T0.5 |
181. | [1] | 154236-4100 | TENSIONING LEVER |
182. | [1] | 154237-0100 | BEARING PIN |
190. | [1] | 154309-6120 | CONTROL LEVER |
191. | [1] | 154304-6900 | CONTROL LEVER |
192. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
201. | [1] | 029621-0010 | PACKING RING |
203. | [0] | 029311-0220 | SHIM D18&10.3T0.2 |
203B. | [0] | 029311-0230 | SHIM D18&10.3T0.5 |
207. | [1] | 154326-5220 | CONTROL LEVER |
236. | [1] | 154371-5600 | GASKET |
237. | [1] | 154390-0300 | GASKET |
238. | [1] | 029635-2020 | O-RING |
900S. | [1] | 025803-1310 | WOODRUFF KEY |
901S. | [1] | 025803-1610 | WOODRUFF KEY |
Include in #1:
106661-5400
as GOVERNOR
Cross reference number
Zexel num
Bosch num
Firm num
Name
105427-0380
1910196163 NISSAN-DIESEL
GOVERNOR
K 14JC MECHANICAL GOVERNOR GOV RSUV(D) GOV
K 14JC MECHANICAL GOVERNOR GOV RSUV(D) GOV
