105427-0140 ZEXEL 9 420 610 229 BOSCH GOVERNOR 9420610229 1054270140 1910196018




Information governor

BOSCH 9 420 610 229 9420610229
ZEXEL 105427-0140 1054270140
NISSAN-DIESEL 1910196018 1910196018
105427-0140 GOVERNOR
Rating:
25
Buy GOVERNOR 105427-0140 zexel genuine, new aftermarket engine parts with delivery

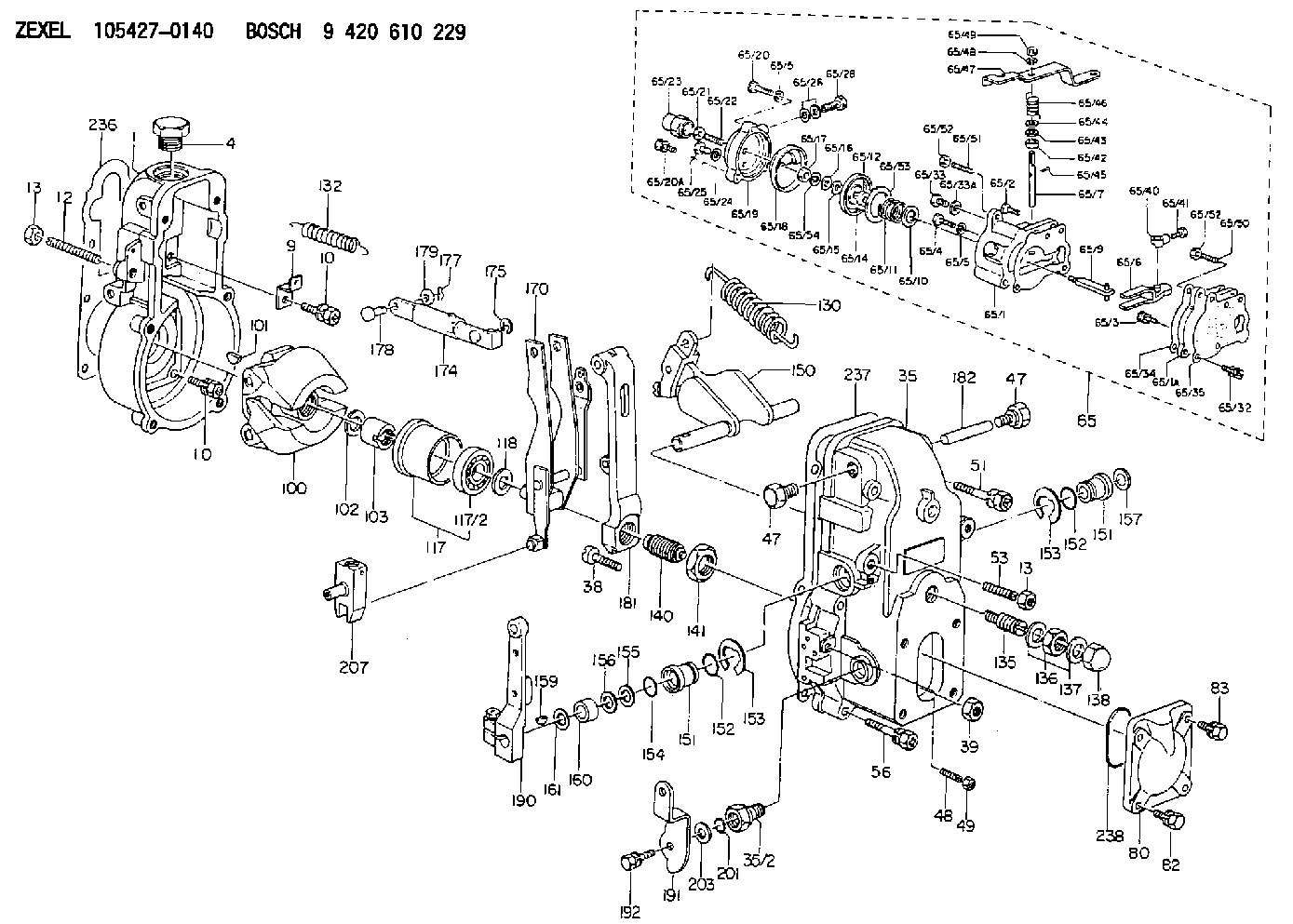

Scheme ###:

GOVERNOR HOUSING
1. [1] 154000-4700 GOVERNOR HOUSING
4. [1] 154007-1600 CAPSULE
9. [1] 154350-6000 PLATE
10. [8] 020106-2040 BLEEDER SCREW M6P1L20
10. [8] 020106-2040 BLEEDER SCREW M6P1L20
12. [1] 154010-0100 FLAT-HEAD SCREW
13. [2] 154011-0100 HEXAGON NUT
13. [2] 154011-0100 HEXAGON NUT
35. [1] 154508-0320 GOVERNOR COVER
35/2. [1] 154321-1200 BUSHING
38. [1] 154031-0100 FLAT-HEAD SCREW
39. [1] 013020-6020 UNION NUT M6P1H5
47. [2] 154036-0300 CAPSULE
47. [2] 154036-0300 CAPSULE
48. [1] 154037-0100 FLAT-HEAD SCREW
49. [1] 154038-0200 HEXAGON NUT
51. [2] 020106-5040 BLEEDER SCREW
53. [1] 154010-1200 FLAT-HEAD SCREW
56. [4] 020106-3840 BLEEDER SCREW
65. [1] 154407-1220 MANIFOLD-PRESSURE COMP.
65/1. [1] 154408-6120 GOVERNOR HOUSING
65/1A. [1] 154408-2400 SPACER BUSHING
65/1B. [1] 134009-0000 SPACER BUSHING
65/2. [2] 021006-2240 FLAT-HEAD SCREW
65/3. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
65/4. [1] 029010-6220 BLEEDER SCREW
65/5. [3] 014110-6440 LOCKING WASHER
65/5. [3] 014110-6440 LOCKING WASHER
65/6. [1] 154408-1100 CONTROL LEVER
65/7. [1] 155004-2700 LEVER SHAFT
65/9. [1] 154400-4720 STOP PIN
65/10. [0] 029312-0180 SHIM D25.5&20T0.5
65/10B. [0] 029312-0210 SHIM D25.5&20T0.2
65/11. [1] 154403-0900 COILED SPRING
65/12. [1] 029300-8260 PLAIN WASHER
65/14. [1] 154400-0120 DIAPHRAGM
65/15. [1] 029310-8560 SHIM D14&8.4T0.7
65/16. [1] 139505-0000 PLAIN WASHER
65/17. [1] 013030-6040 UNION NUT M6P1H3.6
65/18. [1] 154404-3100 PLATE
65/19. [1] 154404-3700 COVER
65/20. [2] 029010-6310 BLEEDER SCREW
65/20A. [1] 020106-2240 BLEEDER SCREW
65/21. [1] 023040-6040 UNION NUT
65/22. [1] 154404-1100 FLAT-HEAD SCREW
65/23. [1] 154035-0320 CAP NUT
65/24. [1] 026506-1040 GASKET D9.9&6.2T1
65/25. [1] 029010-6010 CAPSULE M6P1.0L7
65/26. [2] 026510-1340 GASKET D13.4&10.2T1
65/28. [1] 029731-0180 EYE BOLT
65/32. [1] 029020-6210 BLEEDER SCREW
65/33. [1] 029011-0120 BLEEDER SCREW
65/33A. [1] 026510-1340 GASKET D13.4&10.2T1
65/34. [1] 154390-0800 GASKET
65/35. [1] 154390-0900 GASKET
65/40. [1] 155003-1700 CONTROL LEVER
65/41. [1] 155006-0700 BLEEDER SCREW
65/42. [1] 139608-0000 PACKING RING
65/43. [0] 029310-8040 SHIM D13.5&8T0.2
65/43. [0] 029310-8050 SHIM D13.5&8T0.5
65/44. [2] 029300-8320 SHIM
65/45. [1] 025520-1210 SPLIT PIN
65/46. [1] 155005-1900 COILED SPRING
65/47. [1] 155400-1000 CONTROL LEVER
65/48. [1] 014110-8440 LOCKING WASHER
65/49. [1] 013020-8140 UNION NUT M8P1.25H6.5
65/50. [1] 154037-2400 FLAT-HEAD SCREW
65/51. [1] 154037-0300 FLAT-HEAD SCREW
65/52. [2] 154038-0200 HEXAGON NUT
65/52. [2] 154038-0200 HEXAGON NUT
65/53. [3] 154413-2600 GASKET
65/54. [1] 014110-6440 LOCKING WASHER
80. [1] 154060-7100 COVER
82. [2] 029020-6210 BLEEDER SCREW
83. [2] 020006-1640 BLEEDER SCREW M6P1L16 4T
100. [1] 154100-4020 FLYWEIGHT ASSEMBLY
101. [1] 025803-1310 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-0120 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-0400 GOVERNOR SPRING
132. [1] 154154-0701 COILED SPRING
135. [1] 154157-0120 HEADLESS SCREW
136. [1] 029201-2130 UNION NUT M12P1.0H6
137. [2] 026512-1540 GASKET D15.4&12.2T1.50
138. [1] 154159-0100 CAP NUT
140. [1] 154170-3320 HEADLESS SCREW
141. [1] 029201-6010 UNION NUT
150. [1] 154200-7020 SWIVELLING LEVER
151. [1] 154204-3000 BUSHING
151. [1] 154204-3000 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 016010-1640 LOCKING WASHER
153. [2] 016010-1640 LOCKING WASHER
154. [1] 139611-0000 PACKING RING
155. [1] 139411-0000 SHIM
156. [0] 029311-1070 SHIM D16&11T0.5
157. [1] 154204-3100 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-2800 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
170. [1] 154210-1220 FORK LEVER
174. [1] 154230-5120 STRAP
175. [1] 016010-0540 LOCKING WASHER
177. [1] 155402-3800 SAFETY PIN
178. [1] 154222-5100 BEARING PIN
179. [1] 029310-5170 SHIM D8&5.3T0.5
181. [1] 154236-4100 TENSIONING LEVER
182. [1] 154237-0100 BEARING PIN
190. [1] 154309-6120 CONTROL LEVER
191. [1] 154304-6900 CONTROL LEVER
192. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
201. [1] 029621-0010 PACKING RING
203. [0] 029311-0220 SHIM D18&10.3T0.2
203B. [0] 029311-0230 SHIM D18&10.3T0.5
207. [1] 154326-5220 CONTROL LEVER
236. [1] 154371-5600 GASKET
237. [1] 154390-0300 GASKET
238. [1] 029635-2020 O-RING
900S. [1] 025803-1310 WOODRUFF KEY
901S. [1] 025803-1610 WOODRUFF KEY

Include in #1:

106661-0280 as GOVERNOR
106661-0281
106661-0282

Cross reference number

Zexel num
Bosch num
Firm num
Name
105427-0140
105427-0380
9 420 610 229
NP-EP/RSVD200-1450PQ2/2NP600
1910196018  NISSAN-DIESEL
GOVERNOR
* K 14JC MECHANICAL GOVERNOR GOV RSUV(D) GOV




Information:

1. Disconnect fuel line (1).2. Remove two bolts (2). Remove the fuel transfer pump. The following steps are for the installation of the fuel transfer pump.3. Be sure the O-ring seal is in place on the fuel transfer pump. Lightly lubricate O-ring seal with engine oil before assembly. Install the fuel transfer pump. Install two bolts (2).4. Connect fuel line (1). Connect fuel supply line to fuel transfer pump.Disassemble & Assemble Fuel Transfer Pump
Start By:a. remove fuel transfer pump 1. Remove two bolts (1) and remove cover (2). 2. Remove gear (3).
Before removing input shaft and gear (5) from pump housing, be sure no burrs exist on the input shaft. If the shaft has burrs it could scratch the pump housing and damage it.
3. Install Tooling (A) and remove drive gear (4), then remove gear and shaft (5) from pump housing.4. Inspect and replace if necessary seal group (6). Inspect by-pass valve (7). The following steps are for the assembly of the fuel transfer pump.4. Install shaft and gear (5) in pump housing, then press gear (4) onto shaft until gear (4) is flush with the end of the shaft.5. Install gear (3).6. Be sure the cover is in place, position cover (2) and install two bolts (1).End By:a. install fuel transfer pump

Have questions with 105427-0140?





Group cross 105427-0140 ZEXEL

Nissan-Diesel

105427-0100
F 019 Z2F 324
1910196015
GOVERNOR
105427-0110

105427-0111
F 019 Z1E 610
1910196506
GOVERNOR
105427-0111
9 420 610 539
NP-EP/RSVD200-1450PQ2/2NP12

GOVERNOR

Nissan-Diesel

105427-0130

105427-0131
9 420 610 228
1910196100
GOVERNOR
105427-0131
9 420 610 341
NP-EP/RSVD200-1450PQ2/2NP14

GOVERNOR

Nissan-Diesel

105427-0140

105427-0380
9 420 610 229
NP-EP/RSVD200-1450PQ2/2NP600
1910196018
GOVERNOR
105427-0150

105427-0151
F 019 Z1E 611
1910196107
GOVERNOR
105427-0151
9 420 610 540
NP-EP/RSVD200-1450PQ2/2NP15

GOVERNOR

Nissan-Diesel

105427-0160

1910197010

105427-0171


GOVERNOR

Nissan-Diesel

105427-0172
F 019 Z4E 592
NP-EP/RSVD200-1450PQ2/2NP601
1910197015
GOVERNOR
105427-0190

105427-0192

1910197102
GOVERNOR
105427-0191


GOVERNOR
105427-0192


GOVERNOR
