105419-5170 ZEXEL F 019 Z3E 970 BOSCH GOVERNOR f019z3e970 1054195170 me756105




Information governor

BOSCH F 019 Z3E 970 f019z3e970
ZEXEL 105419-5170 1054195170
MITSUBISHI ME756105 me756105
105419-5170 GOVERNOR
Rating:
22
Buy GOVERNOR 105419-5170 zexel genuine, new aftermarket engine parts with delivery

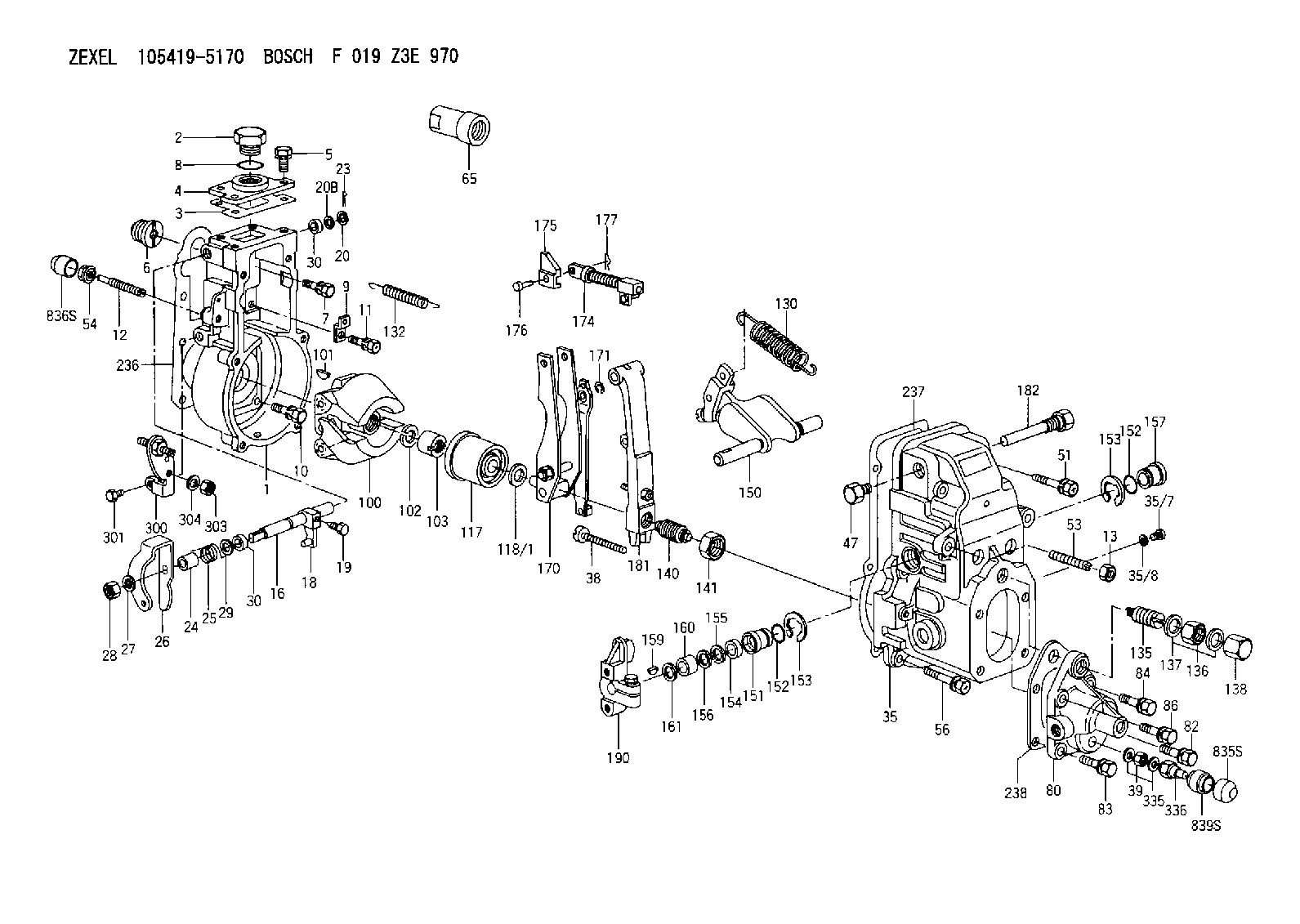

Scheme ###:

1. [1] 154004-6220 GOVERNOR HOUSING
2. [1] 154007-2900 CAPSULE
3. [1] 154390-2000 GASKET
4. [1] 154064-4500 COVER
5. [4] 020006-1640 BLEEDER SCREW M6P1L16 4T
6. [1] 154007-0200 ADAPTOR
7. [1] 020018-1840 BLEEDER SCREW M8P1.25L18
8. [1] 029632-5070 O-RING
9. [1] 154350-1800 PLATE
10. [5] 029010-6810 BLEEDER SCREW
11. [1] 020106-1640 BLEEDER SCREW M6P1.0L14
12. [1] 154013-5000 FLAT-HEAD SCREW
13. [1] 154011-0100 HEXAGON NUT
16. [1] 155004-3200 LEVER SHAFT
18. [1] 155003-2620 CONTROL LEVER
19. [1] 155006-0700 BLEEDER SCREW
20. [1] 139308-0900 PLAIN WASHER D16&8T1
20B. [1] 139308-1000 PLAIN WASHER D16&8T1.5
23. [1] 154373-2200 SAFETY PIN
24. [1] 154206-2000 BUSHING
25. [1] 154327-3600 COILED SPRING
26. [1] 154380-3500 CONTROL LEVER
27. [1] 014110-8440 LOCKING WASHER
28. [1] 013020-8040 UNION NUT M8P1.25H7
29. [1] 139408-1500 SHIM
29B. [0] 139408-1400 SHIM
29C. [0] 139408-1500 SHIM
30. [2] 029620-8050 PACKING RING
30. [2] 029620-8050 PACKING RING
35. [1] 154022-8720 GOVERNOR COVER
35/7. [1] 154222-2700 FLAT-HEAD SCREW
35/8. [1] 014110-3440 LOCKING WASHER
38. [1] 154031-4700 FLAT-HEAD SCREW
39. [1] 139208-0400 UNION NUT
47. [1] 154036-0300 CAPSULE
51. [2] 139006-7100 BLEEDER SCREW
53. [1] 154010-0100 FLAT-HEAD SCREW
54. [1] 154011-4900 UNION NUT
56. [4] 020106-3840 BLEEDER SCREW
65. [1] 154050-6120 STOPPING DEVICE
80. [1] 154064-4620 COVER
82. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
83. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
84. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
86. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
100. [1] 154101-0020 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-2320 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-2700 GOVERNOR SPRING
132. [1] 154154-0500 COILED SPRING
135. [1] 154158-5020 HEADLESS SCREW
136. [1] 029201-2140 UNION NUT
137. [2] 026512-1540 GASKET D15.4&12.2T1.50
138. [1] 154412-5300 CAP NUT
140. [1] 154177-2420 HEADLESS SCREW
141. [1] 029201-6010 UNION NUT
150. [1] 154200-8020 SWIVELLING LEVER
151. [1] 154204-4300 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 016010-1640 LOCKING WASHER
153. [2] 016010-1640 LOCKING WASHER
154. [1] 139611-0000 PACKING RING
155. [1] 139411-0000 SHIM
156. [0] 029311-1070 SHIM D16&11T0.5
157. [1] 154204-4400 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-2800 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
170. [1] 154218-7020 FORK LEVER
171. [1] 016010-0540 LOCKING WASHER
174. [1] 154235-4720 STRAP
175. [1] 154232-3100 CONNECTOR
176. [1] 154222-5800 BEARING PIN
177. [1] 155402-3800 SAFETY PIN
181. [1] 154239-6420 TENSIONING LEVER
182. [1] 154237-1100 BEARING PIN
190. [1] 154340-0120 CONTROL LEVER
236. [1] 154390-1300 GASKET
237. [1] 154390-0300 GASKET
238. [1] 154390-5000 GASKET
300. [1] 154359-1320 BRACKET
301. [1] 020118-1640 BLEEDER SCREW
303. [1] 154011-1100 UNION NUT
304. [1] 029300-8320 SHIM
335. [2] 026508-1140 GASKET D11.4&8.2T1
336. [1] 154035-2900 CAP NUT
835S. [1] 154062-4020 CAP
836S. [1] 154062-3520 CAP
839S. [1] 154062-3900 ADAPTOR

Include in #1:

101608-6530 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105419-5170
105400-9670
F 019 Z3E 970
ME756105  MITSUBISHI
GOVERNOR
* K 14JB GOV RSV GOV




Information:

3. Loosen the clamps on breather tube (1) and pull it back for clearance. 4. Remove bolt (2) from the cover on the side of the cylinder block. 5. Remove the three bolts that hold cover (3) to the water pump. Remove cover (3) from the water pump. 6. Remove the two bolts, and remove elbow (4) from bonnet (5). Remove the two bolts, and remove bonnet (5) from the water pump. It is not necessary to remove bolts (6). These bolts only hold the cover to the timing gear cover.7. Remove six long bolts (7) that hold the water pump to the timing gear cover. Remove water pump (8).Install Water Pump
1. Check the O-ring seals and gaskets, and make replacements if needed. 2. Make sure O-ring seal (9) is in position on the water pump. Put water pump (8) into position in the timing gear cover. Install the bolts that hold the water pump in place. 3. Make sure the gaskets are in place. Connect bonnet (5) to the water pump. Connect elbow (4) to the bonnet. 4. Make sure O-ring seal (10) is in position, and install cover (3) on the water pump. 5. Install bolt (2) on the cover on the side of the engine. 6. Put breather tube (1) in position, and install the clamps that hold it.7. Install the alternator mounting group and alternator on the engine.8. Install the water temperature regulator and manifold. See the topic Install Water Temperature Regulator and Manifold.9. Fill cooling system to the correct level. See the Maintenance Guide.Disassemble And Assemble Water Pump
Start By: The water pump seal can be replaced without removing the water pump from the engine.An intermittent leakage of a small amount of coolant from the hole in the water pump housing is not and indication of a water pump seal failure. This is required to provide lubrication for the seal. Replace the water pump seal only if a large amount of leakage or a constant flow of coolant is observed draining from the water pump housing. 1. Remove O-ring seal (3) from adapter (4). Remove the adapter from housing (7). Remove the O-ring seal from the outside of the adapter.2. Remove bolt (1) an washer (2). Use tooling (A) to remove impeller (6) from shaft (13).3. Remove spring and seal (5) from the shaft.4. Remove four bolts (16) from retainer (12) that hold the shaft assembly to the pump housing. Remove O-ring seal (18) from housing (7).5. Remove gear and shaft assembly (17) from the housing. Remove bolt (15), retainer (14), and retainer (12) from the shaft assembly.6. Use a press to remove shaft (13) from the gear. Remove bearing (9), spacer (10), and bearing (11) from the shaft.7. Remove lip-type seal (8) from the housing.8. Turn the housing over, and remove ceramic ring (20) and seal (19) from the housing. The following steps are for the assembly of the water pump.9. Use 6V1541 Quick Cure Primer and clean shaft (13) and the seal

Have questions with 105419-5170?





Group cross 105419-5170 ZEXEL




Nissan-Diesel

F 019 Z3E 830
NP-EP/RSV200-1200AQ36A301
19109Z9002
GOVERNOR
F 019 Z3E 761

GOVERNOR
F 019 Z9E 283
NP-EP/RSV200-1300AQ44A311

GOVERNOR
F 019 Z3E 851
NP-EP/RSV200-1300AQ39C311K

GOVERNOR
F 019 Z3E 994
NP-EP/RSV200-1100AQ46A301

GOVERNOR
F 019 Z3E 991
NP-EP/RSV200-1350AQ49C311K

GOVERNOR

Mitsubishi

105419-5170

105400-9670
F 019 Z3E 970
ME756105
GOVERNOR

Isuzu

F 019 Z3E 866
NP-EP/RSV200-1300AQ39A301
8973636410
GOVERNOR
F 019 Z4E 585
NP-EP/RSV200-1450AQ43A311
8973647330
GOVERNOR
