105419-3600 ZEXEL 9 420 614 666 BOSCH GOVERNOR 9420614666 1054193600




Information governor

BOSCH 9 420 614 666 9420614666
ZEXEL 105419-3600 1054193600
105419-3600 GOVERNOR
Rating:
17
Buy GOVERNOR 105419-3600 zexel genuine, new aftermarket engine parts with delivery

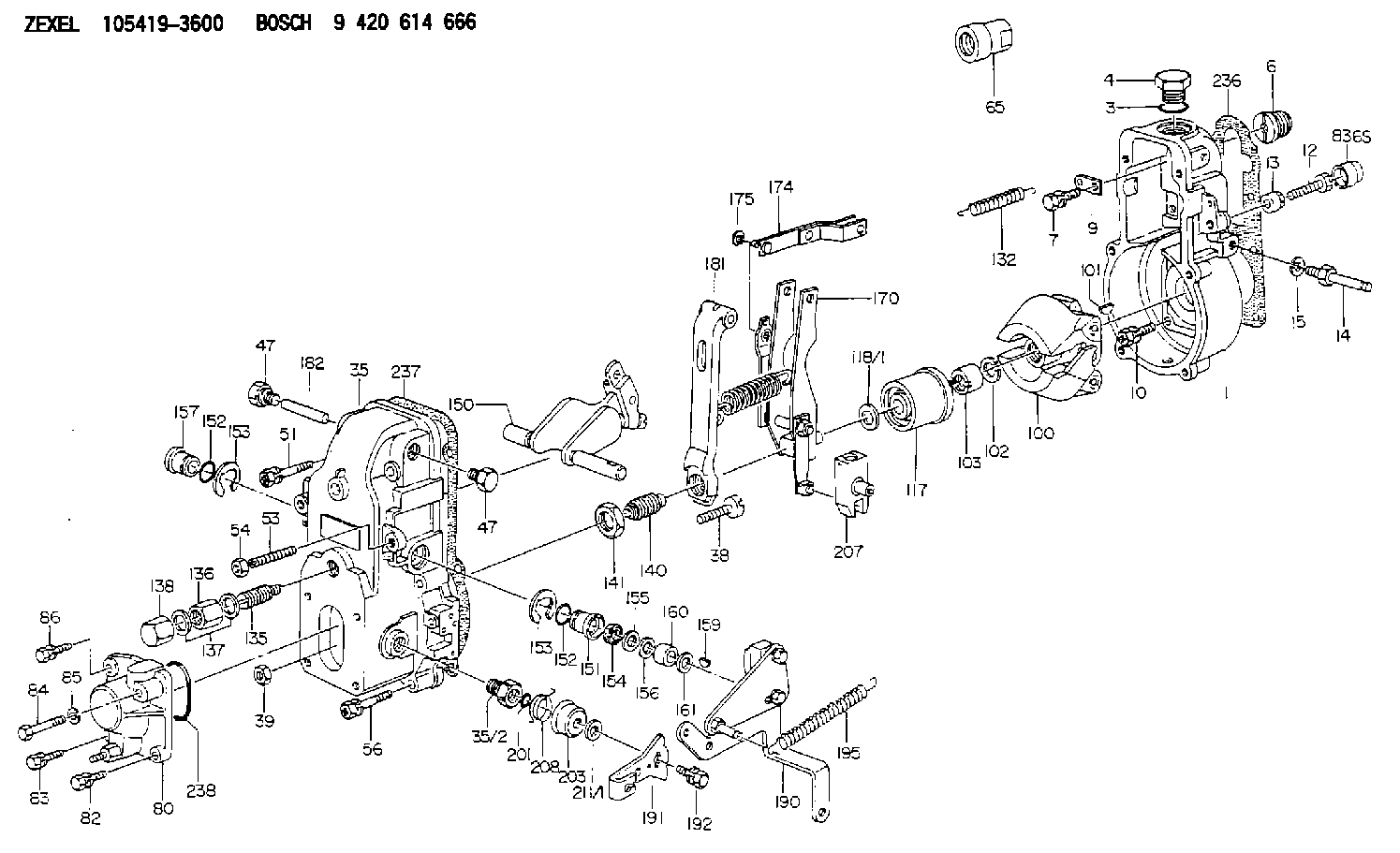

Scheme ###:

1. [1] 154000-6400 GOVERNOR HOUSING
3. [1] 029632-5070 O-RING
4. [1] 154007-2900 CAPSULE
6. [1] 154007-0200 ADAPTOR
7. [1] 020018-1840 BLEEDER SCREW M8P1.25L18
9. [1] 154350-1900 PLATE
10. [6] 029010-6810 BLEEDER SCREW
12. [1] 154010-8100 BLEEDER SCREW M8P1.25L65
12B. [1] 154010-8900 BLEEDER SCREW M8P1.25L67.5
13. [1] 154011-0100 HEXAGON NUT
14. [1] 154012-2220 BLEEDER SCREW
15. [1] 014110-8440 LOCKING WASHER
35. [1] 154500-3020 GOVERNOR COVER
35/2. [1] 154321-0400 BUSHING
38. [1] 154031-0100 FLAT-HEAD SCREW
39. [1] 013020-6020 UNION NUT M6P1H5
47. [2] 154036-0300 CAPSULE
47. [2] 154036-0300 CAPSULE
51. [2] 020106-5040 BLEEDER SCREW
53. [1] 154010-0200 FLAT-HEAD SCREW
54. [1] 154011-2300 UNION NUT
56. [4] 020106-3840 BLEEDER SCREW
65. [1] 155404-0200 CAP
80. [1] 154063-1220 COVER
82. [1] 029020-6210 BLEEDER SCREW
83. [1] 029020-6210 BLEEDER SCREW
84. [1] 010006-3840 BLEEDER SCREW
85. [1] 014110-6440 LOCKING WASHER
86. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
100. [1] 154101-0020 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-0120 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
132. [1] 154154-0800 COILED SPRING
135. [1] 154158-0920 HEADLESS SCREW
136. [1] 154011-2700 UNION NUT
137. [2] 026512-1540 GASKET D15.4&12.2T1.50
138. [1] 154159-1200 CAP NUT
140. [1] 154178-9220 HEADLESS SCREW
141. [1] 029201-6010 UNION NUT
150. [1] 154200-7220 SWIVELLING LEVER
151. [1] 154204-4300 BUSHING
152. [2] 139718-0600 O-RING
152. [2] 139718-0600 O-RING
153. [2] 016010-1640 LOCKING WASHER
153. [2] 016010-1640 LOCKING WASHER
154. [1] 139611-0400 PACKING RING
155. [1] 139411-0000 SHIM
156. [0] 029311-1070 SHIM D16&11T0.5
157. [1] 154204-4400 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-2800 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
170. [1] 154210-7420 FORK LEVER
174. [1] 154230-3920 STRAP
175. [1] 016010-0540 LOCKING WASHER
181. [1] 154239-1720 TENSIONING LEVER
182. [1] 154237-0100 BEARING PIN
190. [1] 154349-8920 CONTROL LEVER
191. [1] 154364-7800 CONTROL LEVER
192. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
195. [1] 154314-2600 COILED SPRING
201. [1] 139710-0300 O-RING
203. [1] 154322-0100 CAP
207. [1] 154326-5120 CONTROL LEVER
208. [1] 154327-7300 COILED SPRING
211/1. [0] 029311-0520 SHIM D20.8&10.3T0.2
211/1. [0] 029311-0530 SHIM D20.8&10.3T0.25
211/1. [0] 029311-0540 SHIM D20.8&10.3T0.3
211/1. [0] 029311-0550 SHIM D20.8&10.3T0.35
211/1. [0] 029311-0560 SHIM D20.8&10.3T0.4
211/1. [0] 029311-0570 SHIM D20.8&10.3T0.5
236. [1] 154390-0000 GASKET
237. [1] 154390-0300 GASKET
238. [1] 139752-0000 O-RING
836S. [1] 154062-1700 CAP D20L32

Include in #1:

101402-7470 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105419-3600
9 420 614 666
NP-EP/RSV200-1450AQ43A311

GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV




Information:

Customer Assistance
When a problem arises concerning the sale, operation or service of your engine, it will normally be handled by the distributor or dealer in your area. Please refer to the Caterpillar Truck Engine Parts & Service Directory which will identify the facility nearest you, the hours of operation, phone number and how to locate the dealer.Caterpillar has authorized parts & service outlets throughout North America to satisfy your needs. These authorized dealers provide:* Factory Trained Service Personnel.* At many locations, 24 hour a day service and parts availability.* Complete offering of Remanufactured Components.* Product information and published service literature.Your satisfaction is a primary concern to Caterpillar, its distributors and their dealers. To assure your complete satisfaction, we suggest the following steps be followed should you have a problem that has not been handled to your satisfaction.Step One
Discuss your problem with a member of management from the distributorship or dealership. If your problem originates with a dealer, explain the matter to a management member of the distributorship with whom the dealer has his parts and service agreement.Step Two
When it appears that your problem cannot be readily resolved at the distributor level without additional assistance, contact your Caterpillar District Office. The phone number is available at the dealer/distributor.Step Three
If you are still not satisfied, call Caterpillar Factory Customer Services (24 hour service) at 1 (800) 447-4986.When contacting Caterpillar direct, please keep in mind that ultimately your problem will likely be resolved at the distributorship/dealership using their facilities, equipment and personnel. Therefore, it is suggested that you follow the above steps in sequence when experiencing a problem.

Have questions with 105419-3600?





Group cross 105419-3600 ZEXEL

105419-3600
9 420 614 666
NP-EP/RSV200-1450AQ43A311

GOVERNOR

Isuzu

9 420 614 753
NP-EP/RSV200-1450AQ43A311
8972176830
GOVERNOR


GOVERNOR

Mitsubishi

9 420 614 678
NP-EP/RSV200-1300AQ39A311
ME755057
GOVERNOR


GOVERNOR

Mitsubishi

9 420 614 679
NP-EP/RSV200-1300AQ39A311
ME755060
GOVERNOR

Isuzu

9 420 614 563
NP-EP/RSV200-1450AQ43A311
1157900260
GOVERNOR
9 420 614 784
NP-EP/RSV200-1350AQ49A311
8972198090
GOVERNOR

Mitsubishi

9 420 614 907
NP-EP/RSV200-1100AQ46A301
ME755115
GOVERNOR
F 019 Z2E 003
NP-EP/RSV200-1300AQ39A311

GOVERNOR

Isuzu

9 420 614 564
NP-EP/RSV200-1450AQ43A311
8972216390
GOVERNOR
9 420 614 565
NP-EP/RSV200-1450AQ43A311
8972216400
GOVERNOR
