105419-3080 ZEXEL 9 420 614 331 BOSCH GOVERNOR 9420614331 1054193080 1157300470




Information governor

BOSCH 9 420 614 331 9420614331
ZEXEL 105419-3080 1054193080
ISUZU 1157300470 1157300470
105419-3080 GOVERNOR
Rating:
26
Buy GOVERNOR 105419-3080 zexel genuine, new aftermarket engine parts with delivery

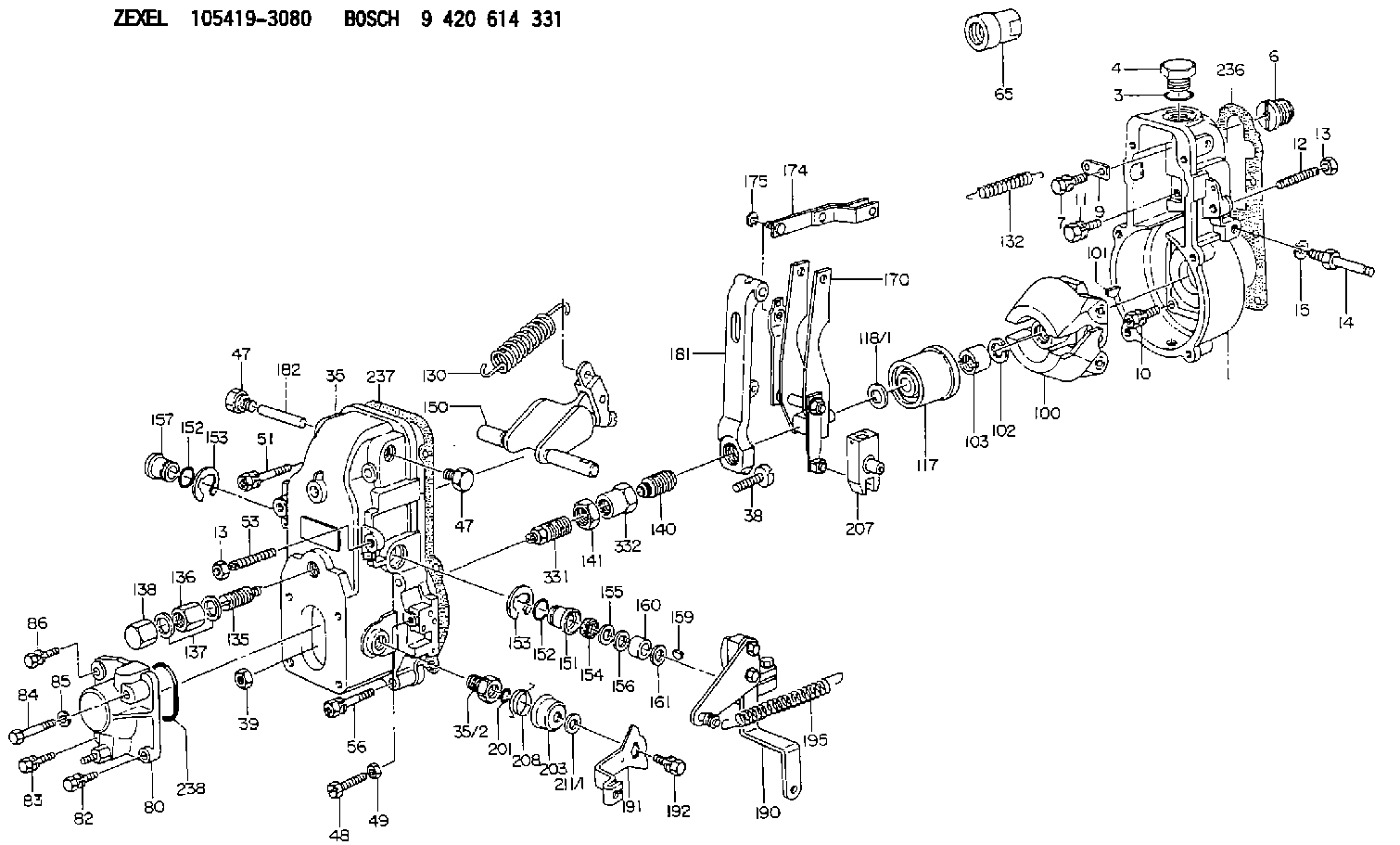

Scheme ###:

1. [1] 154000-6400 GOVERNOR HOUSING
3. [1] 029632-5070 O-RING
4. [1] 154007-2900 CAPSULE
6. [1] 154007-0200 ADAPTOR
7. [1] 020018-1840 BLEEDER SCREW M8P1.25L18
9. [1] 154350-1800 PLATE
10. [5] 029010-6810 BLEEDER SCREW
11. [1] 020106-1640 BLEEDER SCREW M6P1.0L14
12. [1] 154010-0100 FLAT-HEAD SCREW
13. [2] 154011-0100 HEXAGON NUT
13. [2] 154011-0100 HEXAGON NUT
14. [1] 154013-2320 BLEEDER SCREW
15. [1] 014110-8440 LOCKING WASHER
35. [1] 154500-3720 GOVERNOR COVER
35/2. [1] 154321-0400 BUSHING
38. [1] 154031-0100 FLAT-HEAD SCREW
39. [1] 013020-6020 UNION NUT M6P1H5
47. [2] 154036-0300 CAPSULE
47. [2] 154036-0300 CAPSULE
48. [1] 154037-0700 BLEEDER SCREW
49. [1] 154038-0200 HEXAGON NUT
51. [2] 020106-5040 BLEEDER SCREW
53. [1] 154010-0100 FLAT-HEAD SCREW
56. [4] 020106-3840 BLEEDER SCREW
65. [1] 154050-6120 STOPPING DEVICE
80. [1] 154063-1220 COVER
82. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
83. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
84. [1] 029020-6250 BLEEDER SCREW
85. [1] 014110-6440 LOCKING WASHER
86. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
100. [1] 154101-0020 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-0120 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-4100 GOVERNOR SPRING
132. [1] 154154-0701 COILED SPRING
135. [1] 154158-1720 HEADLESS SCREW
136. [1] 154011-2700 UNION NUT
137. [2] 026512-1540 GASKET D15.4&12.2T1.50
138. [1] 154159-1200 CAP NUT
140. [1] 154185-2120 HEADLESS SCREW
141. [1] 029201-6080 UNION NUT
150. [1] 154200-7220 SWIVELLING LEVER
151. [1] 154204-3000 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 016010-1640 LOCKING WASHER
153. [2] 016010-1640 LOCKING WASHER
154. [1] 139611-0000 PACKING RING
155. [1] 139411-0000 SHIM
156. [0] 029311-1070 SHIM D16&11T0.5
157. [1] 154204-3100 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-2800 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
170. [1] 154210-7420 FORK LEVER
174. [1] 154230-3920 STRAP
175. [1] 016010-0540 LOCKING WASHER
181. [1] 154236-1500 TENSIONING LEVER
182. [1] 154237-0100 BEARING PIN
190. [1] 154396-2520 CONTROL LEVER
191. [1] 154304-8900 CONTROL LEVER
192. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
195. [1] 154314-2600 COILED SPRING
201. [1] 029631-0030 O-RING &9.8W2.3
203. [1] 154322-0100 CAP
207. [1] 154326-5120 CONTROL LEVER
208. [1] 154327-7300 COILED SPRING
211/1. [0] 029311-0520 SHIM D20.8&10.3T0.2
211/1. [0] 029311-0530 SHIM D20.8&10.3T0.25
211/1. [0] 029311-0540 SHIM D20.8&10.3T0.3
211/1. [0] 029311-0550 SHIM D20.8&10.3T0.35
211/1. [0] 029311-0560 SHIM D20.8&10.3T0.4
211/1. [0] 029311-0570 SHIM D20.8&10.3T0.5
236. [1] 154390-0000 GASKET
237. [1] 154390-0300 GASKET
238. [1] 029635-2020 O-RING
331. [1] 154179-9220 HEADLESS SCREW
332. [1] 029201-6010 UNION NUT

Include in #1:

101602-8560 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105419-3080
9 420 614 331
NP-EP/RSV200-1500AQ45A311
1157300470  ISUZU
GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV
105419-3080
9 420 614 331
NP-EP/RSV200-1500AQ45A311
1157300450  ISUZU
GOVERNOR
A K 14JB MECHANICAL GOVERNOR GOV RSV GOV




Information:

Owner Warranty Rights and Obligations
The California Air Resources Board (CARB) and Caterpillar Inc. are pleased to explain the emission control system warranty on your 1991 truck engine.In California, new motor vehicle engines must be designed, built and equipped to meet the state's stringent anti-smog standards. Caterpillar Inc. must warrant the emission control system on your truck engine for the duration of time listed below provided there has not been any abuse, neglect or improper maintenance of your truck engine.Your emission control system may include parts such as the fuel injection system and engine computer, if equipped. Also included may be hoses, connectors, clamps and other emission-related components.Where a warrantable condition exists, Caterpillar Inc. will repair the truck engine at no cost to the owner including diagnosis, parts and labor.Manufacturer's Warranty Coverage
* The emissions warranty period for new truck engines is a duration of 60 months, 100,000 miles (161 000 km), or 3,000 hours of operation, whichever occurs first.* If an emission related part or component on your truck engine is defective, the part or component will be repaired or replaced by Caterpillar Inc. This is your emission control system WARRANTY.Owner's Warranty Responsibilities
* As the truck owner, you are responsible for the performance of the required maintenance listed in the truck engine owner's manual (Operation and Maintenance Manual). Caterpillar Inc. recommends that you retain all receipts and records covering the maintenance on your truck engine, but cannot deny warranty solely for the lack of receipts and records or for your failure to ensure the performance of all scheduled maintenance.* You are responsible for presenting your truck engine to a Caterpillar Inc. dealer as soon as a truck engine problem exists. The warranty repairs should be completed in a reasonable amount of time, not to exceed 30 days.* As the truck engine owner, you should also be aware that Caterpillar Inc. may deny you warranty coverage if your truck engine or an emission component or part has failed due to abuse, neglect, improper maintenance or unapproved modifications.If you have questions regarding your warranty rights and responsibilities, contact:Caterpillar Inc.
Manager, Truck Engine Business
Peoria, IL 61629
Phone (309) 578-6288
ORCalifornia Air Resources Board (CARB)
9528 Telstar Ave.
El Monte, CA 91731
Emissions Warranty
Caterpillar Inc. warrants to the initial owner and subsequent owner of a diesel truck engine (powering an on-highway truck), that such engine is ... 1. Designed, built and equipped so as to conform, at the time of sale, with all applicable regulations adopted by the California Air Resources Board (CARB).2. Free from defects in materials and workmanship in specific emission related parts for a period of 60 months, 100,000 miles (161 000 km) or 3,000 hours of operation, whichever occurs first, after date of delivery to the initial owner.If an emission related part fails during the warranty period, it will be repaired or replaced. Any such part repaired or replaced under warranty is warranted for the remainder of the warranty period.During the term of this warranty, Caterpillar Inc. will provide through a Caterpillar dealer or other

Have questions with 105419-3080?





Group cross 105419-3080 ZEXEL

Isuzu

9 420 611 726
NP-EP/RSV200-1600AQ21A301
8971912810
GOVERNOR
9 420 611 727
NP-EP/RSV200-1600AQ21A301
8971912820
GOVERNOR
9 420 614 330
NP-EP/RSV200-1350AQ49A311
8972005840
GOVERNOR
9 420 614 818
NP-EP/RSV200-1450AQ43A311
8971926570
GOVERNOR
9 420 611 728
NP-EP/RSV200-1350AQ49A311
8971924390
GOVERNOR
F 019 Z3E 067
NP-EP/RSV200-1450AQ52A311
1157300430
GOVERNOR

1157300440
GOVERNOR
F 019 Z2E 734
NP-EP/RSV200-1450AQ43A311
1157300441
GOVERNOR
9 420 611 729

GOVERNOR
F 019 Z3E 223
NP-EP/RSV200-1300AQ44C311K

GOVERNOR

Isuzu

105419-3080
9 420 614 331
NP-EP/RSV200-1500AQ45A311
1157300470
GOVERNOR
105419-3080
9 420 614 331
NP-EP/RSV200-1500AQ45A311
1157300450
GOVERNOR
9 420 614 332
NP-EP/RSV200-1500AQ45A311
1157300460
GOVERNOR
