105419-3071 ZEXEL F 019 Z3E 223 BOSCH GOVERNOR f019z3e223 1054193071




Information governor

BOSCH F 019 Z3E 223 f019z3e223
ZEXEL 105419-3071 1054193071
105419-3071 GOVERNOR
Rating:
25
Buy GOVERNOR 105419-3071 zexel genuine, new aftermarket engine parts with delivery

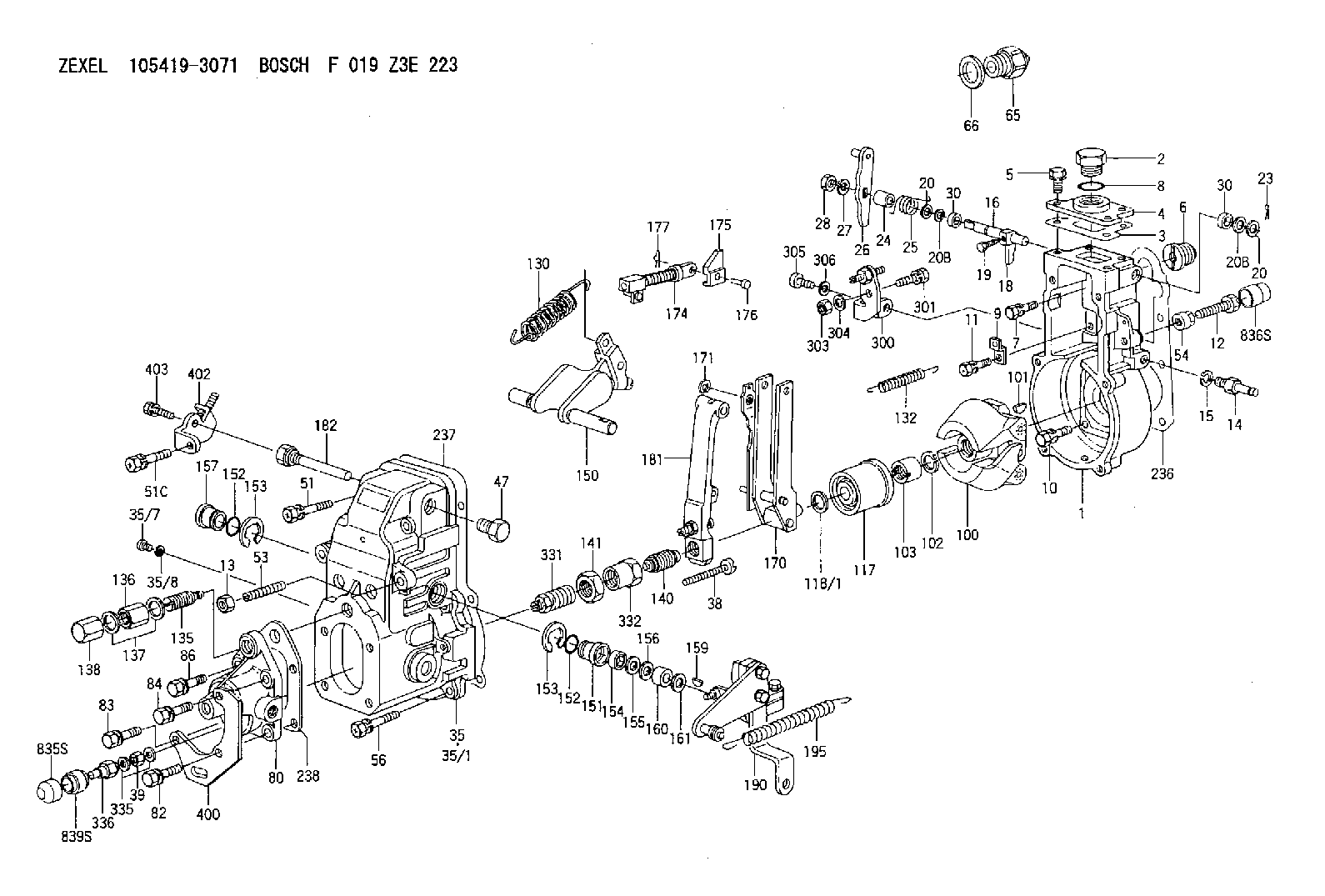

Scheme ###:

1. [1] 154004-5620 GOVERNOR HOUSING
2. [1] 154007-2900 CAPSULE
3. [1] 154390-2000 GASKET
4. [1] 154064-4500 COVER
5. [4] 020006-1640 BLEEDER SCREW M6P1L16 4T
6. [1] 154007-0200 ADAPTOR
7. [1] 020018-1840 BLEEDER SCREW M8P1.25L18
8. [1] 029632-5070 O-RING
9. [1] 154350-1800 PLATE
10. [5] 029010-6810 BLEEDER SCREW
11. [1] 020106-1640 BLEEDER SCREW M6P1.0L14
12. [1] 154012-5600 BLEEDER SCREW
13. [1] 154011-0100 HEXAGON NUT
14. [1] 154013-2320 BLEEDER SCREW
15. [1] 014110-8440 LOCKING WASHER
16. [1] 155004-3301 LEVER SHAFT
18. [1] 155003-2520 CONTROL LEVER
19. [1] 155006-0700 BLEEDER SCREW
20. [1] 139308-0900 PLAIN WASHER D16&8T1
20. [1] 139308-0900 PLAIN WASHER D16&8T1
20B. [1] 139308-1000 PLAIN WASHER D16&8T1.5
20B. [1] 139308-1000 PLAIN WASHER D16&8T1.5
23. [1] 025520-1210 SPLIT PIN
24. [1] 154206-5200 BUSHING
25. [1] 154328-1400 COILED SPRING
26. [1] 154383-2420 CONTROL LEVER
27. [1] 014110-8440 LOCKING WASHER
28. [1] 013020-8040 UNION NUT M8P1.25H7
30. [2] 029620-8050 PACKING RING
30. [2] 029620-8050 PACKING RING
35. [1] 154501-1120 GOVERNOR COVER
35/1. [1] 154501-1100 GOVERNOR COVER
35/7. [1] 154222-2700 FLAT-HEAD SCREW
35/8. [1] 014110-3440 LOCKING WASHER
38. [1] 154031-4700 FLAT-HEAD SCREW
39. [1] 139208-0400 UNION NUT
47. [1] 154036-1200 CAPSULE
51. [1] 139006-7100 BLEEDER SCREW
51C. [1] 020106-5040 BLEEDER SCREW
53. [1] 154010-0100 FLAT-HEAD SCREW
54. [1] 154011-2300 UNION NUT
56. [4] 020106-3840 BLEEDER SCREW
65. [1] 155404-5120 STOPPING DEVICE
66. [1] 026518-2240 GASKET D21.9&18.2T1
80. [1] 154064-4200 COVER
82. [1] 029020-6260 BLEEDER SCREW
83. [1] 029020-6260 BLEEDER SCREW
84. [1] 020006-2040 BLEEDER SCREW M6P1L20 4T
86. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
100. [1] 154101-0020 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-2320 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-2900 GOVERNOR SPRING
132. [1] 154154-0701 COILED SPRING
135. [1] 154158-0920 HEADLESS SCREW
136. [1] 029201-2140 UNION NUT
137. [2] 026512-1540 GASKET D15.4&12.2T1.50
138. [1] 154159-1200 CAP NUT
140. [1] 154185-1320 HEADLESS SCREW
141. [1] 029201-6080 UNION NUT
150. [1] 154200-6920 SWIVELLING LEVER
151. [1] 154204-4300 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 016010-1640 LOCKING WASHER
153. [2] 016010-1640 LOCKING WASHER
154. [1] 139611-0000 PACKING RING
155. [1] 139411-0000 SHIM
156. [0] 029311-1070 SHIM D16&11T0.5
157. [1] 154204-4400 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-2800 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
170. [1] 154218-5220 FORK LEVER
171. [1] 016010-0540 LOCKING WASHER
174. [1] 154235-4820 STRAP
175. [1] 154232-3000 CONNECTOR
176. [1] 154222-5800 BEARING PIN
177. [1] 155402-3800 SAFETY PIN
181. [1] 154239-5120 TENSIONING LEVER
182. [1] 154237-1100 BEARING PIN
190. [1] 154396-3120 CONTROL LEVER
195. [1] 154314-2600 COILED SPRING
236. [1] 154390-1300 GASKET
237. [1] 154390-0300 GASKET
238. [1] 154390-5000 GASKET
300. [1] 154359-1320 BRACKET
301. [1] 020118-1640 BLEEDER SCREW
303. [1] 154011-1100 UNION NUT
304. [1] 029300-8320 SHIM
305. [1] 154010-6100 BLEEDER SCREW
306. [1] 014110-8440 LOCKING WASHER
331. [1] 154188-4520 HEADLESS SCREW
332. [1] 029201-6010 UNION NUT
335. [2] 026508-1140 GASKET D11.4&8.2T1
336. [1] 154035-2900 CAP NUT
400. [1] 154376-3000 BRACKET
402. [1] 154376-3120 BRACKET
403. [1] 020006-1240 BLEEDER SCREW M6P1L12 4T
835S. [1] 154062-4020 CAP
836S. [1] 154062-1700 CAP D20L32
839S. [1] 154062-3900 ADAPTOR

Include in #1:

101402-9792 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105419-3071
F 019 Z3E 223
NP-EP/RSV200-1300AQ44C311K

GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV




Information:

Emissions Warranty
Caterpillar Inc. warrants to the initial owner and subsequent owner of a diesel truck engines (powering on-highway trucks), that such engine is ... 1. Designed, built and equipped so as to conform, at the time of sale, with all applicable regulations adopted by the United States Environmental Protection Agency (EPA).2. Free from defects in materials and workmanship in specific emission related parts for a period of 60 months, 100,000 miles (161 000 km) or 3,000 hours of operation, whichever occurs first, after date of delivery to the initial owner.If an emission related part fails during the warranty period, it will be repaired or replaced. Any such part repaired or replaced under warranty is warranted for the remainder of the warranty period.During the term of this warranty, Caterpillar Inc. will provide through a Caterpillar dealer or other establishment authorized by it, repair or replacement of any warranted part at no charge to the truck engine owner.In an emergency, repairs may be performed at any service establishment, or by the owner, using any replacement part.Caterpillar Inc. will reimburse the owner for their expenses, including diagnostic charges for such emergency repair. These expenses shall not exceed Caterpillar Inc. suggested retail price for all warranted parts replaced, and labor charges based on Caterpillar Inc. recommended time allowance for the warranty repair and the geographically appropriate hourly labor rate.As a condition of reimbursement, replaced parts and receipted invoices must be presented at a place of business of a Caterpillar dealer or other establishment authorized by Caterpillar Inc.Limitations & Responsibilities
The warranty is subject to the following:Caterpillar Inc. Responsibilities
During the emission warranty period, if a defect in material or workmansip of an emission related part or component is found, Caterpillar Inc. will provide: * New, Remanufactured or repaired parts and/or components, approved pursuant to EPA Regulations, required to correct the defect. Items replaced under this warranty become the property of Caterpillar Inc.* Reasonable and customary labor, during normal working hours, required to make the warranty repair. This includes labor to remove and install the engine, if necessary.Owner Responsibilites
During the emission warranty period, the owner is responsible for: * Premium or overtime labor costs, unless essential to prevent loss to perishable goods.* Costs to investigate complaints which are not caused by a defect in Caterpillar Inc. material or workmanship.* Providing timely notice of a warrantable failure and promptly making the product available for repair.Limitations
Caterpillar Inc. is not responsible for resultant damages to an emission related part or component resulting from: * Any application or installalion Caterpillar Inc. deems improper.* Attachments, accessory items or parts not sold nor approved by Caterpillar Inc.* Improper truck engine maintenance, repair or abuse.* Owner's unreasonable delay in making the product available after being notified of a potential product problem.This warranty is in addition to Caterpillar Inc. standard warranty, applicable to the truck engine product involved.Remedies under this warranty are limited to the provision of material and services as specified herein. Caterpillar Inc. is not responsible for incidental or consequential damages.

Have questions with 105419-3071?





Group cross 105419-3071 ZEXEL

Isuzu

9 420 611 726
NP-EP/RSV200-1600AQ21A301
8971912810
GOVERNOR
9 420 611 727
NP-EP/RSV200-1600AQ21A301
8971912820
GOVERNOR
9 420 614 330
NP-EP/RSV200-1350AQ49A311
8972005840
GOVERNOR
9 420 614 818
NP-EP/RSV200-1450AQ43A311
8971926570
GOVERNOR
9 420 611 728
NP-EP/RSV200-1350AQ49A311
8971924390
GOVERNOR
F 019 Z3E 067
NP-EP/RSV200-1450AQ52A311
1157300430
GOVERNOR

1157300440
GOVERNOR
F 019 Z2E 734
NP-EP/RSV200-1450AQ43A311
1157300441
GOVERNOR
9 420 611 729

GOVERNOR
105419-3071
F 019 Z3E 223
NP-EP/RSV200-1300AQ44C311K

GOVERNOR

Isuzu

9 420 614 331
NP-EP/RSV200-1500AQ45A311
1157300470
GOVERNOR
9 420 614 331
NP-EP/RSV200-1500AQ45A311
1157300450
GOVERNOR
9 420 614 332
NP-EP/RSV200-1500AQ45A311
1157300460
GOVERNOR
