105419-2570 ZEXEL 9 420 611 642 BOSCH GOVERNOR 9420611642 1054192570

Information governor

BOSCH 9 420 611 642 9420611642

ZEXEL 105419-2570 1054192570

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105419-2570 zexel genuine, new aftermarket engine parts with delivery

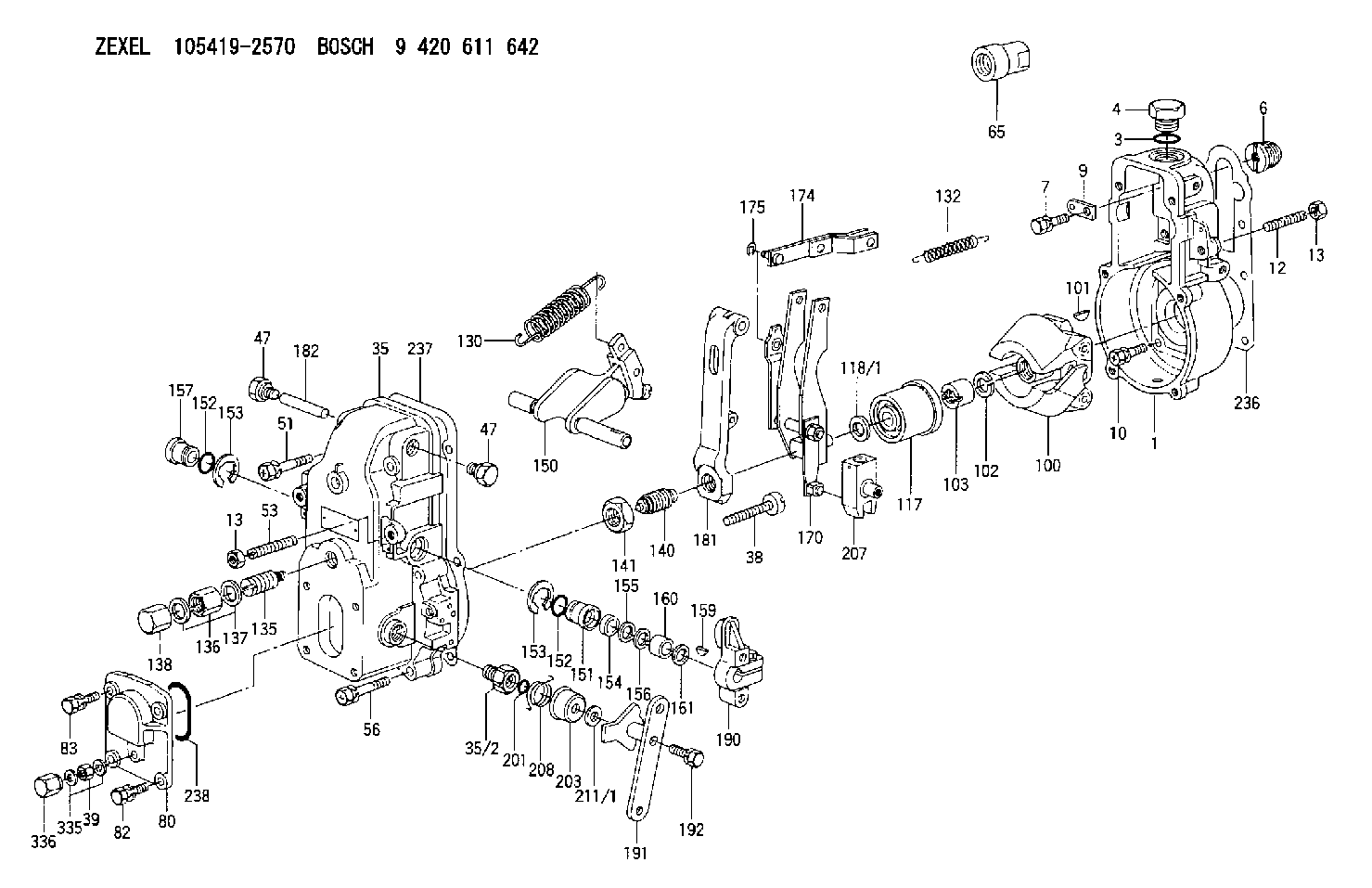

Scheme ###:

1.	[1]	154000-6400	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
6.	[1]	154007-0200	ADAPTOR
7.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
9.	[1]	154350-1900	PLATE
10.	[6]	029010-6810	BLEEDER SCREW
12.	[1]	154010-1100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
35.	[1]	154500-5320	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-2400	FLAT-HEAD SCREW
39.	[1]	139206-0600	UNION NUT
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0100	FLAT-HEAD SCREW
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	154050-6120	STOPPING DEVICE
80.	[1]	154063-1400	COVER
82.	[2]	029020-6210	BLEEDER SCREW
83.	[2]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154101-0320	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-6400	GOVERNOR SPRING
132.	[1]	154154-1200	COILED SPRING
135.	[1]	154158-1020	HEADLESS SCREW
136.	[1]	154011-1700	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154177-0920	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-6920	SWIVELLING LEVER
151.	[1]	154204-4300	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-4400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154210-7420	FORK LEVER
174.	[1]	154230-3920	STRAP
175.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-4100	TENSIONING LEVER
182.	[1]	154237-0100	BEARING PIN
190.	[1]	154340-0120	CONTROL LEVER
191.	[1]	154381-3920	CONTROL LEVER
192.	[1]	020006-4040	BLEEDER SCREW
201.	[1]	029631-0030	O-RING &9.8W2.3
203.	[1]	154322-0100	CAP
207.	[1]	154326-5120	CONTROL LEVER
208.	[1]	154327-7300	COILED SPRING
211/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
211/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
211/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
211/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
211/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
211/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
236.	[1]	154390-0000	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
335.	[2]	026506-1040	GASKET D9.9&6.2T1
336.	[1]	154035-1600	CAP NUT

Include in #1:

101402-9600 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105419-2570

9 420 611 642
NP-EP/RSV200-1350AQ49A311

GOVERNOR
K

Information:

Caterpillar Reference Material
Lubricants
Oil and Your Engine SEBD0640Scheduled Oil Sampling PEDP1129Branded Fluids Question & Answer Booklet PEDP7122Cat Fluids - Molybdenum Grease (MPGM) PEHP0002Cat Fluids - Lithium Grease (MPGL) PEHP0003Cat Fluids - Special Purpose Grease (SPG) PEHP0017How to Take a Good Oil Sample PEHP6001Caterpillar Fluids Selector Dial PEWP9733Fuels
Diesel Fuels and Your Engine SEBD0717Coolants
Know Your Cooling System SEBD0518Coolant and Your Engine SEBD0970Service Manuals
3408 & 3412 Service Manual (9XM & 9XF) SENR4655Engine Supervisory System Operation Manual SEBU6260Special Instructions
The following Special Instructions pertain to the operation, maintenance, diagnostic tooling and programming of the Electronic system. Some of these publications will be included in the tool kits, the others will be available thru your Caterpillar dealer.Storage Procedure for Caterpillar Products SEHS9031Miscellaneous
Index to Guidelines for Reusable Parts and Salvage Operations SEBF8029Guideline for Reusable Parts (Cleaning and Inspection of Air Filters) SEBF8062Tag - DO NOT OPERATE SEHS7332All of the above publications are available through your Caterpillar dealer.Additional Reference Material
ASTM Specs can normally be obtained from your local technological society, library or college or contacting:* American Society for Testing and Materials
1916 Race St.
Philadelphia, PA 19103
(215) 299-5400
Society of Automotive Engineers (SAE) Specs can be found in your SAE handbook or can be obtained from your local library, college or technological society, or contacting:* Society of Automotive Engineers, Inc.
SAE International
400 Commonwealth Drive
Warrendale, PA USA 15096-0001
(412) 776-4841
American Petroleum Institute (API) classification system and oil selection for API Publication No. 1509 can be obtained from your local library, college or technological society, or contact:* American Petroleum Institute
1220 L St.
Washington, DC 20005
(202) 682-8000
Engine Manufacturers Association (EMA) information for lube oil selection can be obtained from your local library, college or technological society, or contact:* Engine Manufacturers Association
Lubricating Oils Data Book
401 N. Michigan Ave. Ste. 2400
Chicago, IL 60611
(312) 644-6610 ext. 3626
