105419-2150 ZEXEL 9 420 611 595 BOSCH GOVERNOR 9420611595 1054192150

Information governor

BOSCH 9 420 611 595 9420611595

ZEXEL 105419-2150 1054192150

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105419-2150 zexel genuine, new aftermarket engine parts with delivery

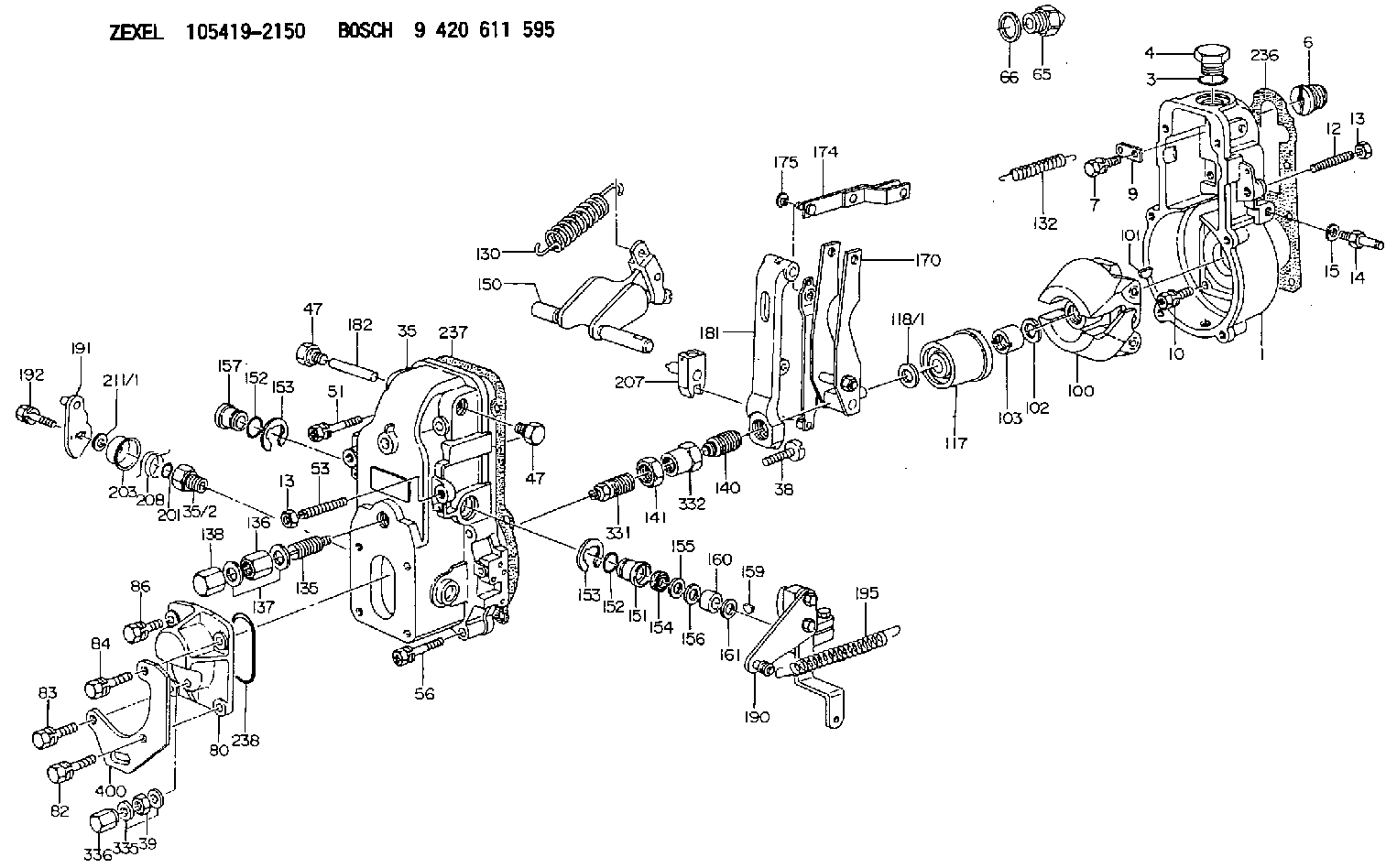

Scheme ###:

1.	[1]	154000-6400	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
6.	[1]	154007-0200	ADAPTOR
7.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
9.	[1]	154350-1900	PLATE
10.	[6]	029010-6810	BLEEDER SCREW
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
14.	[1]	154013-2320	BLEEDER SCREW
15.	[1]	014110-8440	LOCKING WASHER
35.	[1]	154500-1020	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-3000	FLAT-HEAD SCREW
39.	[1]	139206-0600	UNION NUT
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0200	FLAT-HEAD SCREW
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	155404-5120	STOPPING DEVICE
66.	[1]	026518-2240	GASKET D21.9&18.2T1
80.	[1]	154063-5100	COVER
82.	[1]	029020-6260	BLEEDER SCREW
83.	[1]	029020-6260	BLEEDER SCREW
84.	[1]	020006-2040	BLEEDER SCREW M6P1L20 4T
86.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154101-0020	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-0120	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-6400	GOVERNOR SPRING
132.	[1]	154154-0701	COILED SPRING
135.	[1]	154158-0920	HEADLESS SCREW
136.	[1]	154011-1700	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154185-4120	HEADLESS SCREW
141.	[1]	029201-6080	UNION NUT
150.	[1]	154200-6920	SWIVELLING LEVER
151.	[1]	154204-3000	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-3100	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154216-3820	FORK LEVER
174.	[1]	154230-3920	STRAP
175.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-4100	TENSIONING LEVER
182.	[1]	154237-0100	BEARING PIN
190.	[1]	154395-6920	CONTROL LEVER
191.	[1]	154382-6020	CONTROL LEVER
192.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
195.	[1]	154314-2600	COILED SPRING
201.	[1]	029631-0030	O-RING &9.8W2.3
203.	[1]	154322-0100	CAP
207.	[1]	154326-5020	CONTROL LEVER
208.	[1]	154327-7600	COILED SPRING
211/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
211/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
211/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
211/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
211/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
211/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
236.	[1]	154390-0000	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
331.	[1]	154179-5520	HEADLESS SCREW
332.	[1]	029201-6010	UNION NUT
335.	[2]	026506-1040	GASKET D9.9&6.2T1
336.	[1]	154035-1600	CAP NUT
400.	[1]	154358-7200	BRACKET

Include in #1:

101402-9420 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105419-2150
105419-2151

9 420 611 595

GOVERNOR
* K

Information:

Caterpillar Reference Material
The following literature can be obtained through any Caterpillar dealer. The literature specific for your engine can be found in the Information Section, Product Support topic in this manual.Oil
Oil and Your Engine SEBD0640Question & Answer Booklet PEDP7122Cat Lithium Grease (MPGL) PEHP0003Cat Special Purpose Grease (SPG) PEHP0017How to Take a Good Oil Sample PEHP6001Cat Engine Oil Spec Sheets PEHP7504Cat Diesel Engine Oil Spec Sheets PEHP7505Cat Fluids Selector PEWP9733Fuel
Diesel Fuels and Your Engine SEBD0717Coolant
Know Your Cooling System SEBD0518Coolant and Your Engine SEBD0970Miscellaneous
3406B Industrial and Marine Service Manual SENR3023Index to Guidelines for Reusable Parts and Salvage Operations SEBF8029Storage Procedure for Caterpillar Products SEHS9031The Caterpillar Engine Technical Manual (Volume I) LEO0002The Caterpillar Engine Technical Manual (Volume II) LEO0003All of the above publications are available through your Caterpillar dealer.Additional Reference Material
ASTM Specs can normally be obtained from your local technological society, library or college or contacting:* American Society for Testing and Materials
1916 Race St.
Philadelphia, PA 19103
(215) 299-5400
Society of Automotive Engineers (SAE) Specs can be found in your SAE handbook or can be obtained from your local library, college or technological society, or contacting:* Society of Automotive Engineers, Inc.
SAE International
400 Commonwealth Drive
Warrendale, PA USA 15096-0001
(412) 776-4841
American Petroleum Institute (API) classification system and oil selection for API Publication No. 1509 can be obtained from your local library, college or technological society, or contact:* American Petroleum Institute
1220 L St.
Washington, DC 20005
(202) 682-8000
Engine Manufacturers Association (EMA) information for lube oil selection can be obtained from your local library, college or technological society, or contact:* Engine Manufacturers Association
Lubricating Oils Data Book
401 N. Michigan Ave. Ste. 2400
Chicago, IL 60611
(312) 644-6610 ext. 3626
