105419-1230 ZEXEL 9 420 612 882 BOSCH GOVERNOR 9420612882 1054191230 1157706400

Information governor

BOSCH 9 420 612 882 9420612882

ZEXEL 105419-1230 1054191230

ISUZU 1157706400 1157706400

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105419-1230 zexel genuine, new aftermarket engine parts with delivery

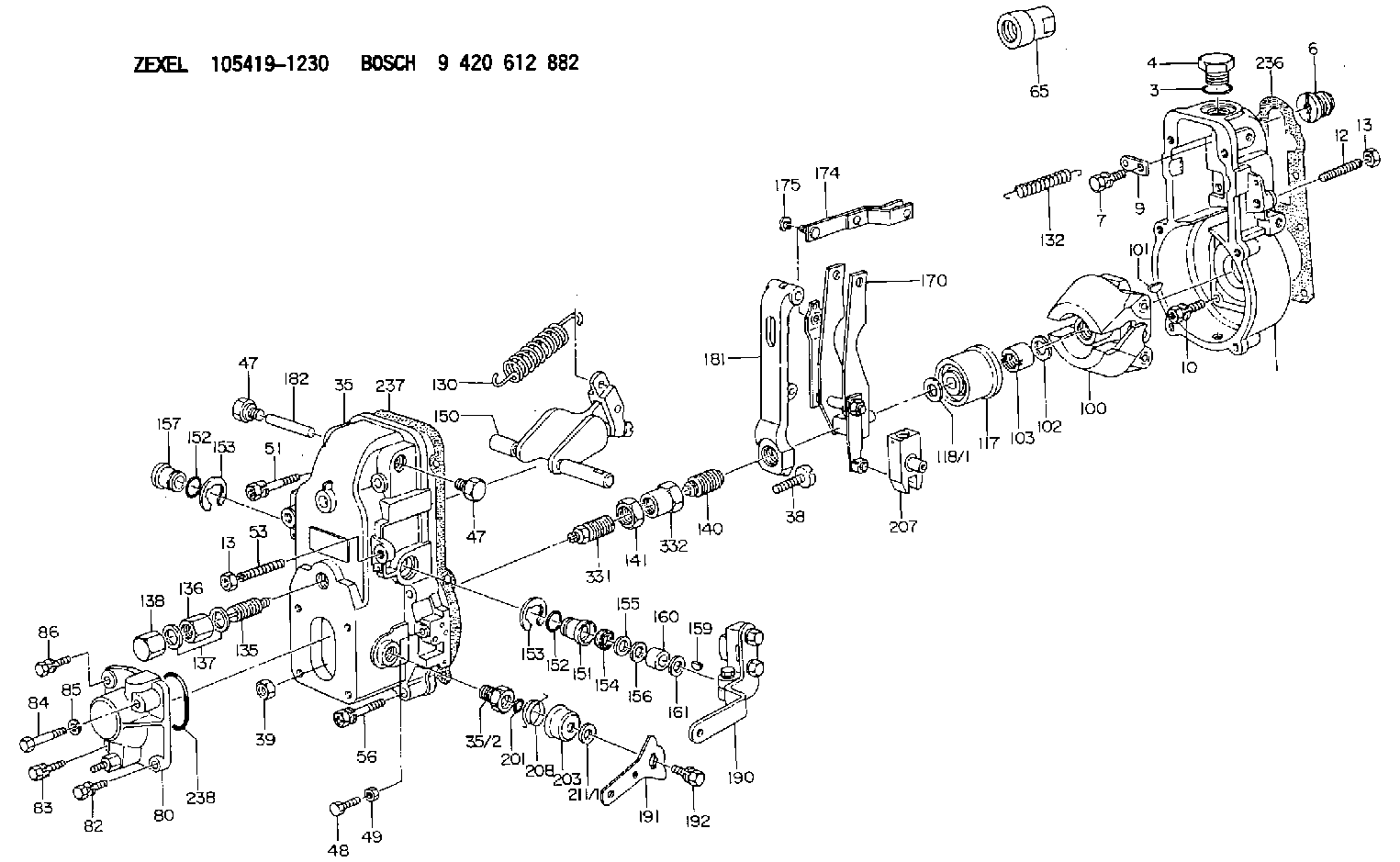

Scheme ###:

1.	[1]	154000-6400	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
6.	[1]	154007-0200	ADAPTOR
7.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
9.	[1]	154350-1900	PLATE
10.	[6]	029010-6810	BLEEDER SCREW
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
35.	[1]	154500-3720	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-0100	FLAT-HEAD SCREW
39.	[1]	013020-6020	UNION NUT M6P1H5
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
48.	[1]	154037-0700	BLEEDER SCREW
49.	[1]	154038-0200	HEXAGON NUT
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0200	FLAT-HEAD SCREW
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	155404-0200	CAP
80.	[1]	154063-0600	COVER
82.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
83.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
84.	[1]	029020-6250	BLEEDER SCREW
85.	[1]	014110-6440	LOCKING WASHER
86.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154101-0020	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-0120	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-2900	GOVERNOR SPRING
132.	[1]	154154-0800	COILED SPRING
135.	[1]	154158-1320	HEADLESS SCREW
136.	[1]	154011-1700	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154185-2120	HEADLESS SCREW
141.	[1]	029201-6080	UNION NUT
150.	[1]	154200-6920	SWIVELLING LEVER
151.	[1]	154204-3000	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-3100	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154210-7420	FORK LEVER
174.	[1]	154230-3920	STRAP
175.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-4100	TENSIONING LEVER
182.	[1]	154237-0100	BEARING PIN
190.	[1]	154342-3720	CONTROL LEVER
191.	[1]	154307-4100	CONTROL LEVER
192.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
201.	[1]	029631-0030	O-RING &9.8W2.3
203.	[1]	154322-0100	CAP
207.	[1]	154326-5120	CONTROL LEVER
208.	[1]	154327-7300	COILED SPRING
211/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
211/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
211/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
211/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
211/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
211/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
236.	[1]	154390-0000	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
331.	[1]	154179-9220	HEADLESS SCREW
332.	[1]	029201-6010	UNION NUT

Include in #1:

101602-7640 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105419-1230

9 420 612 882
NP-EP/RSV200-1300AQ44A311

1157706400 ISUZU

GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV

Information:

Keep all parts clean from contaminants. Contaminants put into the system may cause rapid wear and shortened component life.
1. Remove cover (1) and the O-ring seal from the riming gear plate.
Use care when the trunnion is removed to prevent damage to the crankshaft front seal
2. Remove three bolts (2), trunnion (3) and the O-ring seal. 3. Remove the bolts that hold the timing gear cover in place. Carefully loosen the cover from the dowels and remove cover (4).4. Clean the old gasket from the contact surface of the timing gear cover and the timing gear plate.Install Timing Gear Cover
1. Install a new gasket (1) on the timing gear plate. Cut the gasket even with the bottom face on the cylinder block. 2. Install the timing gear cover (2). The bolts in locations (3) and (4) are tightened to a torque of 23 4 N m (17 3 lb ft). 3. Be sure the O-ring seal (6) is on position on trunnion. Install trunnion (5) and the bolts. Tighten the bolts to a torque of 135 15 N m (100 11 lb ft). 4. Install the O-ring seal and cover (7).End By:a. install crankshaft damper and pulleyb. install water pumpc. install air compressord. install oil pan
