105419-0811 ZEXEL 9 420 612 557 BOSCH GOVERNOR 9420612557 1054190811 8970431281

Information governor

BOSCH 9 420 612 557 9420612557

ZEXEL 105419-0811 1054190811

ISUZU 8970431281 8970431281

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105419-0811 zexel genuine, new aftermarket engine parts with delivery

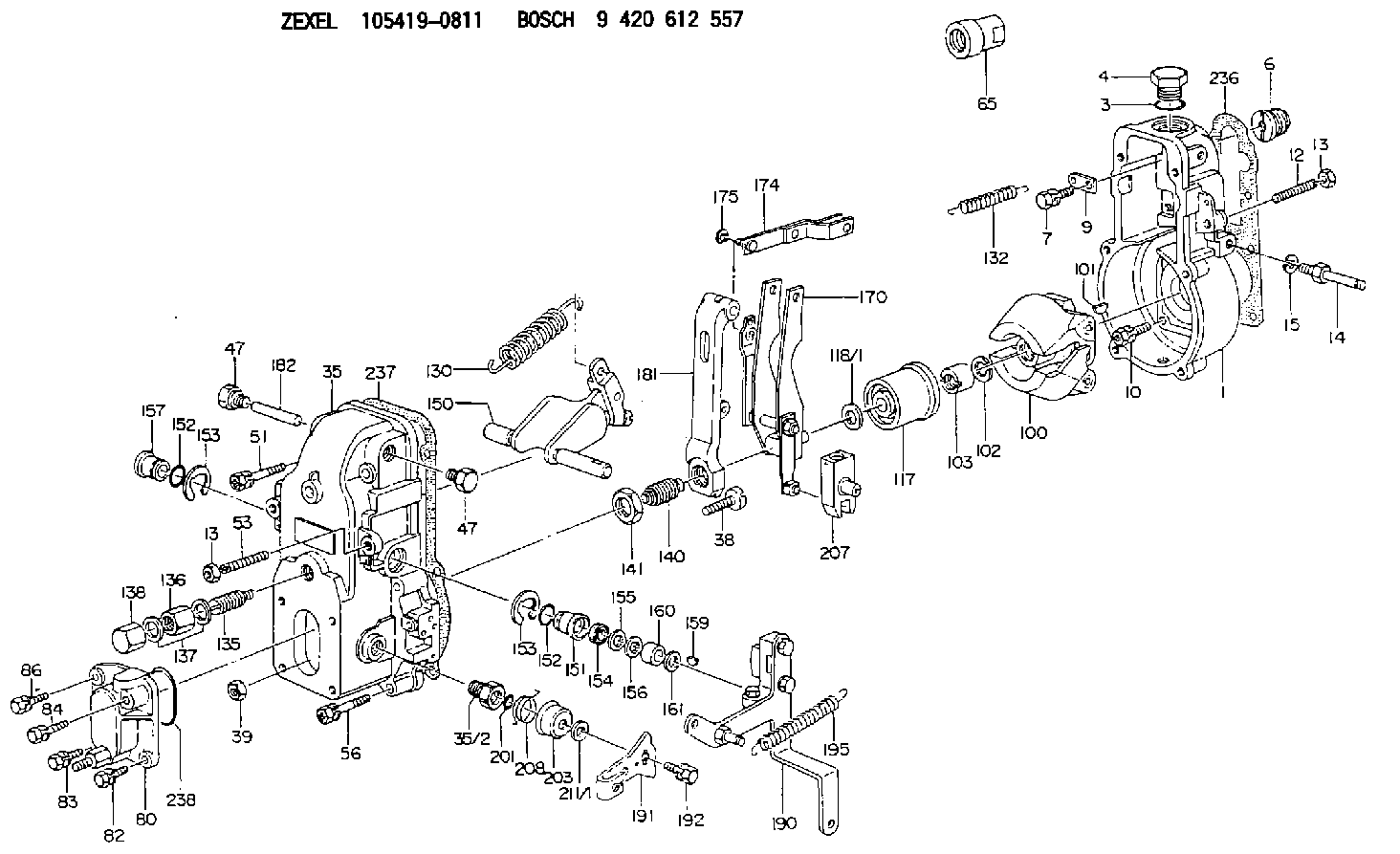

Scheme ###:

1.	[1]	154000-6400	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
6.	[1]	154007-0200	ADAPTOR
7.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
9.	[1]	154350-1900	PLATE
10.	[6]	029010-6810	BLEEDER SCREW
12.	[1]	154010-1100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
14.	[1]	154012-1500	BLEEDER SCREW
15.	[1]	014110-8440	LOCKING WASHER
35.	[1]	154500-3020	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-0100	FLAT-HEAD SCREW
39.	[1]	013020-6020	UNION NUT M6P1H5
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0200	FLAT-HEAD SCREW
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	155404-0200	CAP
80.	[1]	154060-1020	COVER
82.	[1]	029020-6210	BLEEDER SCREW
83.	[1]	029020-6210	BLEEDER SCREW
84.	[1]	029000-6800	BLEEDER SCREW
86.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154101-0020	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-0120	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-2900	GOVERNOR SPRING
132.	[1]	154154-0800	COILED SPRING
135.	[1]	154158-1320	HEADLESS SCREW
136.	[1]	154011-1700	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154185-2120	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-6920	SWIVELLING LEVER
151.	[1]	154204-3000	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-3100	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154210-7420	FORK LEVER
174.	[1]	154230-3920	STRAP
175.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-4100	TENSIONING LEVER
182.	[1]	154237-0100	BEARING PIN
190.	[1]	154342-1420	CONTROL LEVER
191.	[1]	154364-7800	CONTROL LEVER
192.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
195.	[1]	154314-0200	COILED SPRING
201.	[1]	029631-0030	O-RING &9.8W2.3
203.	[1]	154322-0100	CAP
207.	[1]	154326-5120	CONTROL LEVER
208.	[1]	154327-7300	COILED SPRING
211/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
211/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
211/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
211/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
211/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
211/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
236.	[1]	154390-0000	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING

Include in #1:

101402-4171 as GOVERNOR

101402-4660

Cross reference number

Zexel num

Bosch num

Firm num

Name

105419-0811

9 420 612 557
NP-EP/RSV200-1300AQ44A311

8970431281 ISUZU

GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV

Information:

(1) Governor front housing.(2) Joint face between front housing and rear housing.(3) Governor rear housing.(4) Dashpot spring (7C4466). Color code ... one dark green stripeRate test:a. Put a load on spring of ... 20 N (4.5 lb)b. Compress spring an additional ... 5 mm (.197 in)c. Total test force ... 50.0 1.5 N (11.25 .34 lb)d. Free length after test ... 39.5 mm (1.555 in)(5) Tighten 8 bolts to a torque of ... 10 1 N m (90 9 lb in)(6) Shims. Install shims as required to provide dimension (A) between joint face (2) of governor housing and riser groove. Refer to Disassembly and Assembly Section of this Service Manual, for the correct tools and procedure to check dimension (A).Dimension (A) ... 20.00 0.08 mm (.787 .003 in)(7) Riser.(8) Riser lever swivel.(9) Spring group (9Y4027) Inner spring (9Y2589) ... Low idle springColor code ... one violet stripe, one dark blue stripeRate test:a. Put a load on spring of ... 60 N (13.5 lb)b. Compress spring an additional ... 10 mm (.394 in)c. Total test force ... 130.0 2.6 N (29.25 .6 lb)d. Free length after test ... 47.02 0.50 mm (1.851 .02 in)Outer spring (9Y4028) ... High idle springColor code ... one red stripe, one light blue stripeRate test:a. Put a load on spring of ... 100 N (22.5 lb)b. Compress spring an additional ... 10 mm (.394 in)c. Total test force ... 252.0 4.8 N (56.7 1.1 lb)d. Free length after test ... 62.31 0.50 mm (2.453 .02 in)(10) Shims. Install shims as required to provide the correct governor spring preload dimension. Refer to the Diassembly and Assembly Section of this Service Manual, for the correct tools and procedure to check the governor spring preload dimension.
View Into Rear Housing(11) Torque lever.
View A-A(12) Throttle spring (7W9526) (part of governor front housing assembly). Type ... torsionalRate per 360° ... 1.054 N m (9.38 lb in)Preload in assembled position ... 270°(13) Torque cam.
View B-B(8) Riser lever swivel.(11) Torque lever.(13) Torque cam.(15) Torque cam setscrew. Refer to the Disassembly And Assembly Section of this Service Manual, for the complete procedure for setting torque cam. The 1U7310 Torque Cam Adjustment Tool (part of 1U7315 Governor Disassembly And Assembly Tool Group) is required to check/adjust the torque cam.
