105419-0181 ZEXEL F 01G 29N 0FG BOSCH GOVERNOR f01g29n0fg 1054190181




Information governor

BOSCH F 01G 29N 0FG f01g29n0fg
ZEXEL 105419-0181 1054190181
105419-0181 GOVERNOR
Rating:
76
Buy GOVERNOR 105419-0181 zexel genuine, new aftermarket engine parts with delivery

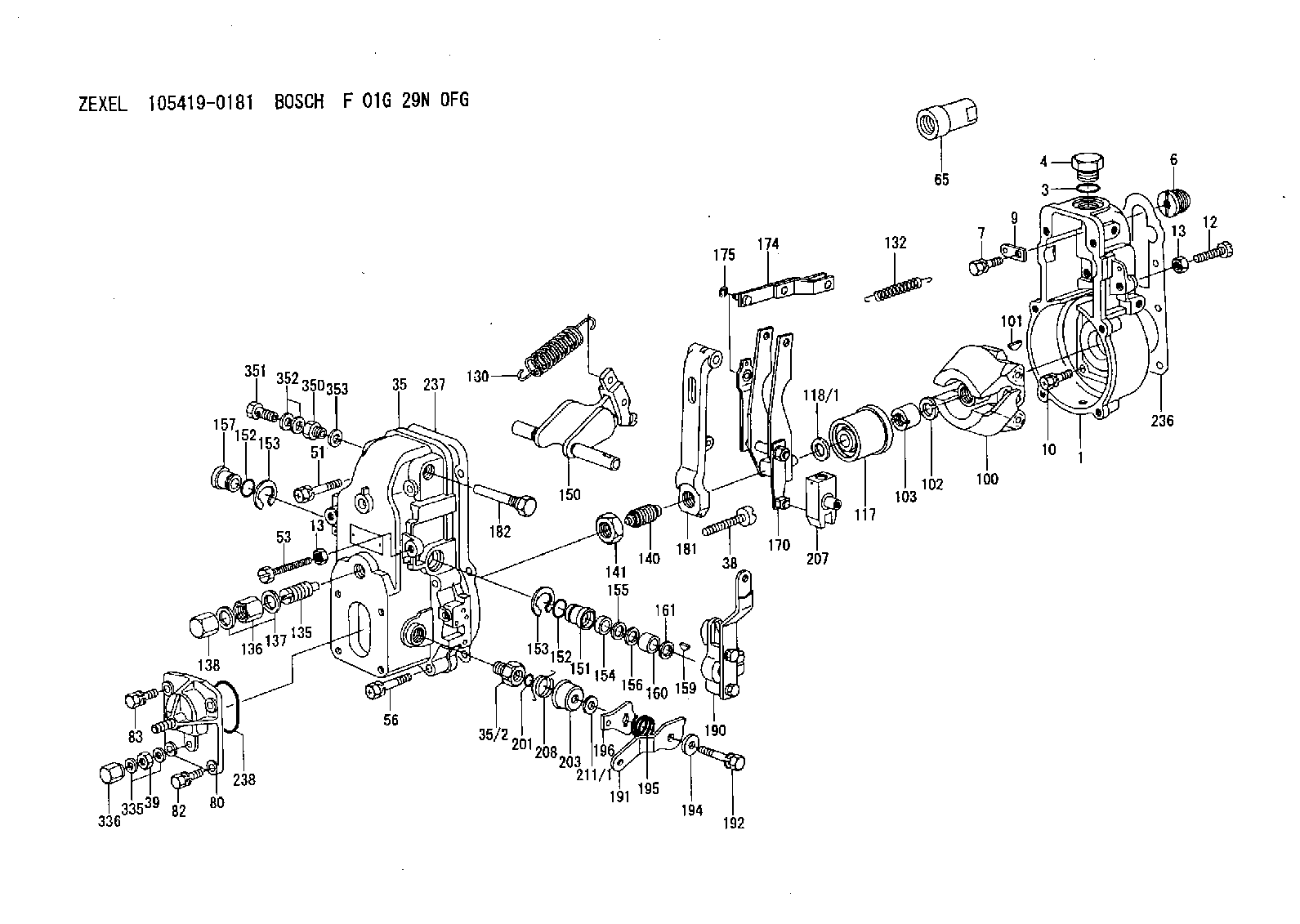

Scheme ###:

1. [1] 154004-6000 GOVERNOR HOUSING
3. [1] 029632-5070 O-RING
4. [1] 154007-2900 CAPSULE
6. [1] 154007-0200 ADAPTOR
7. [1] 020018-1840 BLEEDER SCREW
9. [1] 154350-1900 PLATE
10. [6] 029010-6810 BLEEDER SCREW
12. [1] 154010-2900 BLEEDER SCREW
13. [2] 154011-0100 HEXAGON NUT
13. [2] 154011-0100 HEXAGON NUT
35. [1] 154500-9820 GOVERNOR COVER
35/2. [1] 154321-0400 BUSHING
38. [1] 154031-4300 FLAT-HEAD SCREW
39. [1] 139208-0400 UNION NUT
51. [2] 020106-5040 BLEEDER SCREW
53. [1] 154010-2200 BLEEDER SCREW
56. [4] 020106-3840 BLEEDER SCREW
65. [1] 154050-1720 STOPPING DEVICE
80. [1] 154063-6720 COVER
82. [2] 029020-6210 BLEEDER SCREW
83. [2] 020006-1640 BLEEDER SCREW
100. [1] 154100-9720 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY 16 MM
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-2320 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14&10.1T0.5
118/1. [0] 139410-0100 SHIM D14&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-2700 GOVERNOR SPRING
132. [1] 154154-0800 COILED SPRING
135. [1] 154158-0920 HEADLESS SCREW
136. [1] 154011-1700 UNION NUT
137. [2] 026512-1540 GASKET
138. [1] 154159-1200 CAP NUT
140. [1] 154185-1320 HEADLESS SCREW
141. [1] 029201-6010 UNION NUT
150. [1] 154200-7220 SWIVELLING LEVER
151. [1] 154204-4300 BUSHING
152. [2] 139718-0200 O-RING
152. [2] 139718-0200 O-RING
153. [2] 016010-1640 LOCKING WASHER
153. [2] 016010-1640 LOCKING WASHER
154. [1] 139611-0300 PACKING RING
155. [1] 139411-0000 SHIM
156. [0] 029311-1070 SHIM D16&11T0.5
157. [1] 154204-4400 BUSHING
159. [1] 025803-1310 WOODRUFF KEY 13 MM
160. [1] 154206-2800 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
170. [1] 154210-0820 FORK LEVER
174. [1] 154230-3920 STRAP
175. [1] 016010-0540 LOCKING WASHER
181. [1] 154236-1500 TENSIONING LEVER
182. [1] 154237-1700 BEARING PIN
190. [1] 154303-9920 CONTROL LEVER
191. [1] 154364-5620 CONTROL LEVER
192. [1] 020006-3540 BLEEDER SCREW
194. [1] 029300-6060 PLAIN WASHER
195. [1] 154327-4700 COILED SPRING
196. [1] 154364-5500 CONTROL LEVER
201. [1] 139710-0500 O-RING
203. [1] 154322-0100 CAP
207. [1] 154326-5120 CONTROL LEVER
208. [1] 154327-1500 COILED SPRING
211/1. [0] 029311-0520 SHIM D20.8&10.3T0.2
211/1. [0] 029311-0530 SHIM D20.8&10.3T0.25
211/1. [0] 029311-0540 SHIM D20.8&10.3T0.3
211/1. [0] 029311-0550 SHIM D20.8&10.3T0.35
211/1. [0] 029311-0560 SHIM D20.8&10.3T0.4
211/1. [0] 029311-0570 SHIM D20.8&10.3T0.5
236. [1] 154390-1300 GASKET
237. [1] 154390-0300 GASKET
238. [1] 029635-2020 O-RING
335. [2] 026508-1140 GASKET D11.4&8.2T1.0
336. [1] 154035-2000 CAP NUT
350. [1] 154036-1600 ADAPTOR
351. [1] 139806-0000 EYE BOLT
352. [2] 029340-6120 GASKET
353. [1] 029331-0090 GASKET

Include in #1:

101401-9041 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105419-0181
F 01G 29N 0FG
NP-EP/RSV200-1600AQ21C301

GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV
