Information governor
BOSCH
9 420 614 229
9420614229
ZEXEL
105412-2040
1054122040

Rating:

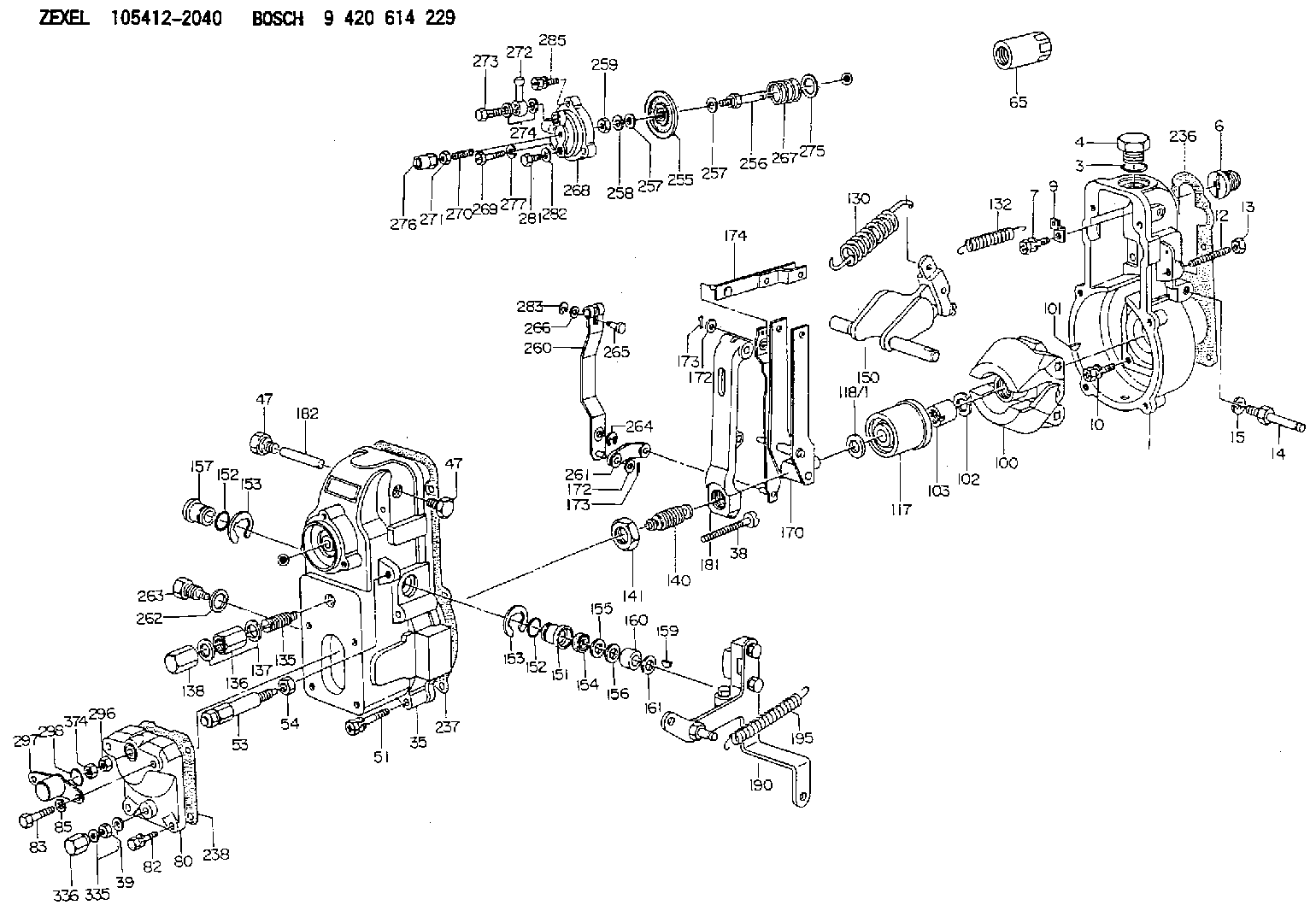

Scheme ###:
1. | [1] | 154000-6400 | GOVERNOR HOUSING |
3. | [1] | 029632-5070 | O-RING |
4. | [1] | 154007-2900 | CAPSULE |
6. | [1] | 154007-0200 | ADAPTOR |
7. | [1] | 020018-1840 | BLEEDER SCREW M8P1.25L18 |
9. | [1] | 154350-1900 | PLATE |
10. | [6] | 029010-6810 | BLEEDER SCREW |
12. | [1] | 154010-0100 | FLAT-HEAD SCREW |
13. | [1] | 154011-0100 | HEXAGON NUT |
14. | [1] | 154012-1500 | BLEEDER SCREW |
15. | [1] | 014110-8440 | LOCKING WASHER |
35. | [1] | 154022-4520 | GOVERNOR COVER |
38. | [1] | 154031-0500 | FLAT-HEAD SCREW |
39. | [1] | 139206-0600 | UNION NUT |
47. | [2] | 154036-0300 | CAPSULE |
47. | [2] | 154036-0300 | CAPSULE |
51. | [6] | 020106-5040 | BLEEDER SCREW |
53. | [1] | 154010-5220 | HEADLESS SCREW |
54. | [1] | 154011-1900 | UNION NUT |
65. | [1] | 155404-3600 | CAP |
80. | [1] | 154060-7820 | COVER |
82. | [2] | 029020-6210 | BLEEDER SCREW |
83. | [2] | 029020-6250 | BLEEDER SCREW |
85. | [2] | 014110-6440 | LOCKING WASHER |
100. | [1] | 154100-3220 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1610 | WOODRUFF KEY |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 029231-2030 | UNION NUT |
117. | [1] | 154123-0120 | SLIDING PIECE |
118/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
118/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
118/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
118/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
118/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
118/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
118/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
118/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
118/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
130. | [1] | 154150-0200 | GOVERNOR SPRING |
132. | [1] | 154154-0800 | COILED SPRING |
135. | [1] | 154158-0820 | HEADLESS SCREW |
136. | [1] | 029201-2290 | UNION NUT |
137. | [2] | 026512-1540 | GASKET D15.4&12.2T1.50 |
138. | [1] | 154159-1200 | CAP NUT |
140. | [1] | 154177-1520 | HEADLESS SCREW |
141. | [1] | 029201-6010 | UNION NUT |
150. | [1] | 154200-6920 | SWIVELLING LEVER |
151. | [1] | 154204-3000 | BUSHING |
152. | [2] | 029631-8020 | O-RING |
152. | [2] | 029631-8020 | O-RING |
153. | [2] | 016010-1640 | LOCKING WASHER |
153. | [2] | 016010-1640 | LOCKING WASHER |
154. | [1] | 139611-0000 | PACKING RING |
155. | [1] | 139411-0000 | SHIM |
156. | [0] | 029311-1070 | SHIM D16&11T0.5 |
157. | [1] | 154204-3100 | BUSHING |
159. | [1] | 025803-1310 | WOODRUFF KEY |
160. | [1] | 154206-2800 | BUSHING |
161. | [0] | 154206-0200 | PLAIN WASHER D19.5&11.2T1.0 |
170. | [1] | 154211-4220 | FORK LEVER |
172. | [3] | 029310-5170 | SHIM D8&5.3T0.5 |
172. | [3] | 029310-5170 | SHIM D8&5.3T0.5 |
173. | [3] | 025520-1210 | SPLIT PIN |
173. | [3] | 025520-1210 | SPLIT PIN |
174. | [1] | 154230-0120 | STRAP |
181. | [1] | 154241-5920 | TENSIONING LEVER |
182. | [1] | 154237-0100 | BEARING PIN |
190. | [1] | 154342-1420 | CONTROL LEVER |
195. | [1] | 154314-0200 | COILED SPRING |
236. | [1] | 154390-0000 | GASKET |
237. | [1] | 154390-0300 | GASKET |
238. | [1] | 154390-3500 | GASKET |
255. | [1] | 154400-0520 | DIAPHRAGM |
256. | [1] | 154400-8800 | STOP PIN |
257. | [1] | 029340-8020 | GASKET |
257. | [1] | 029340-8020 | GASKET |
258. | [1] | 014110-6440 | LOCKING WASHER |
259. | [1] | 023040-6040 | UNION NUT |
260. | [1] | 154401-3520 | CONTROL LEVER |
261. | [1] | 154401-1120 | STRAP |
262. | [1] | 026510-1440 | GASKET D13.9&10.2T1 |
263. | [1] | 154401-2100 | BLEEDER SCREW |
264. | [1] | 016010-0540 | LOCKING WASHER |
265. | [1] | 154222-6200 | BEARING PIN |
266. | [1] | 029300-4010 | PLAIN WASHER |
267. | [1] | 154402-8700 | COILED SPRING |
268. | [1] | 154404-3900 | COVER |
269. | [2] | 020106-2540 | BLEEDER SCREW M6P1L25 |
270. | [1] | 154404-1200 | FLAT-HEAD SCREW |
271. | [1] | 023040-6040 | UNION NUT |
272. | [1] | 029711-0140 | INLET UNION |
273. | [1] | 029731-0180 | EYE BOLT |
274. | [2] | 029341-0010 | GASKET |
275. | [0] | 029312-0180 | SHIM D25.5&20T0.5 |
275B. | [0] | 029312-0210 | SHIM D25.5&20T0.2 |
276. | [1] | 154035-0320 | CAP NUT |
277. | [3] | 014110-6440 | LOCKING WASHER |
281. | [1] | 029010-6010 | CAPSULE M6P1.0L7 |
282. | [1] | 026506-1040 | GASKET D9.9&6.2T1 |
283. | [1] | 016010-0440 | LOCKING WASHER |
285. | [1] | 029010-6310 | BLEEDER SCREW |
296. | [1] | 013020-6040 | UNION NUT M6P1H5 |
297. | [1] | 154062-0120 | CAP |
298. | [1] | 029631-8010 | O-RING |
335. | [2] | 026506-1040 | GASKET D9.9&6.2T1 |
336. | [1] | 154035-1600 | CAP NUT |
374. | [1] | 013030-6040 | UNION NUT M6P1H3.6 |
Cross reference number
Zexel num
Bosch num
Firm num
Name
105412-2040
9 420 614 229
GOVERNOR
* K
* K
