105412-1990 ZEXEL 9 420 610 141 BOSCH GOVERNOR 9420610141 1054121990 me717200

Information governor

BOSCH 9 420 610 141 9420610141

ZEXEL 105412-1990 1054121990

MITSUBISHI ME717200 me717200

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105412-1990 zexel genuine, new aftermarket engine parts with delivery

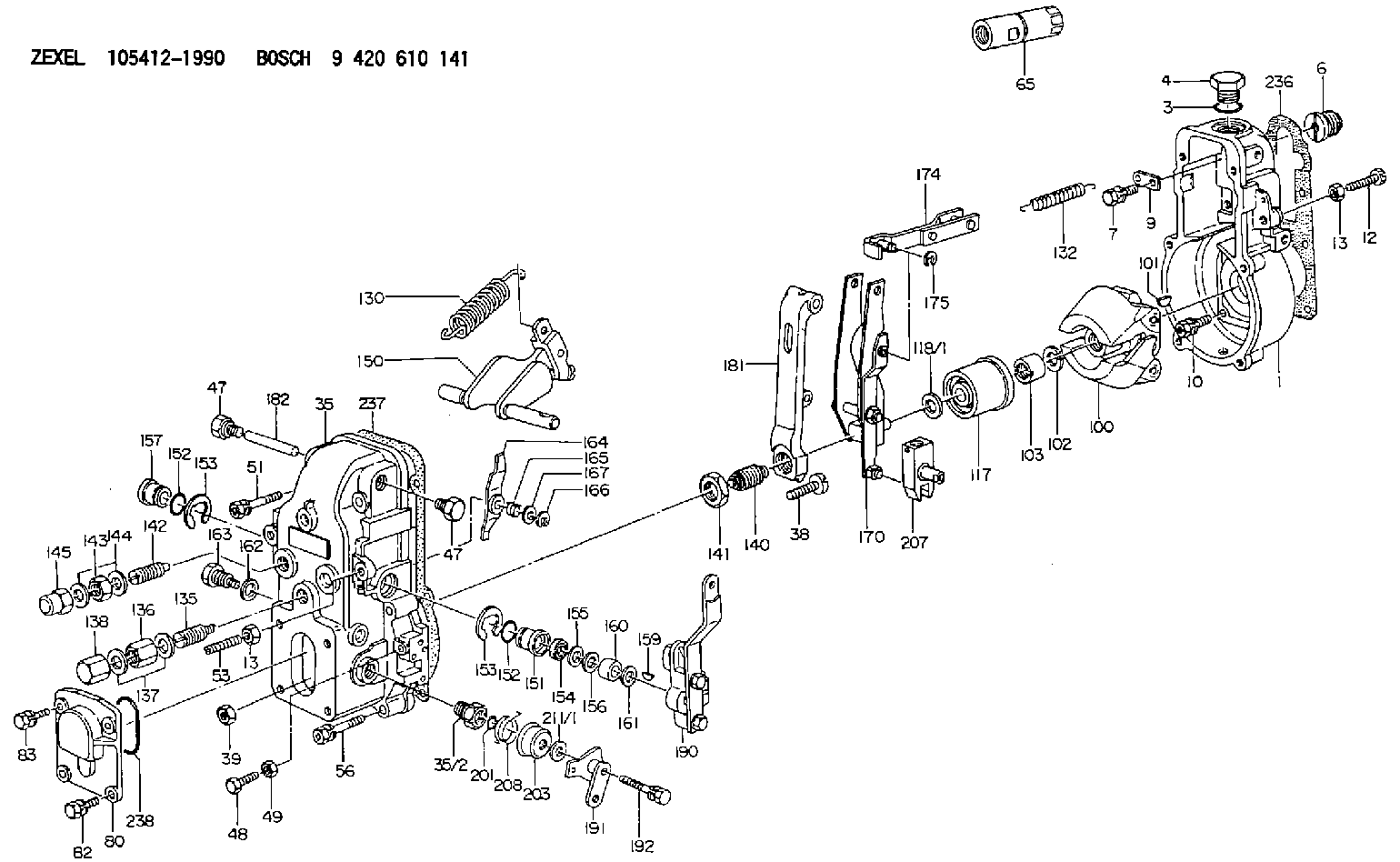

Scheme ###:

1.	[1]	154000-7000	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
6.	[1]	154007-0200	ADAPTOR
7.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
9.	[1]	154350-1900	PLATE
10.	[6]	029010-6810	BLEEDER SCREW
12.	[1]	154010-2900	BLEEDER SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
35.	[1]	154500-3120	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-0100	FLAT-HEAD SCREW
39.	[1]	013020-6020	UNION NUT M6P1H5
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
48.	[1]	154037-0700	BLEEDER SCREW
49.	[1]	154038-0200	HEXAGON NUT
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0100	FLAT-HEAD SCREW
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	153020-0320	STOPPING DEVICE
80.	[1]	154063-4600	COVER
82.	[2]	029020-6210	BLEEDER SCREW
83.	[2]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154101-0020	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-0120	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-2900	GOVERNOR SPRING
132.	[1]	154154-0701	COILED SPRING
135.	[1]	154158-1320	HEADLESS SCREW
136.	[1]	154011-1700	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154177-1220	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
142.	[1]	154242-1220	HEADLESS SCREW
143.	[1]	029201-6150	UNION NUT
144.	[2]	026516-2040	GASKET D19.9&16.2T1
145.	[1]	154159-1100	CAP NUT
150.	[1]	154200-6920	SWIVELLING LEVER
151.	[1]	154204-3000	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-3100	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
162.	[1]	029331-0240	GASKET
163.	[1]	154401-2700	BLEEDER SCREW
164.	[1]	154243-0220	CONTROL LEVER
165.	[1]	154327-1900	COILED SPRING
166.	[1]	016010-0710	LOCKING WASHER
167.	[1]	029310-8020	PLAIN WASHER D15&8.4T0.3
170.	[1]	154217-4820	FORK LEVER
174.	[1]	154230-3920	STRAP
175.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-3220	TENSIONING LEVER
182.	[1]	154237-0100	BEARING PIN
190.	[1]	154303-9920	CONTROL LEVER
191.	[1]	154308-4020	CONTROL LEVER
192.	[1]	020006-3240	BLEEDER SCREW
201.	[1]	029631-0030	O-RING &9.8W2.3
203.	[1]	154322-0100	CAP
207.	[1]	154326-5820	CONTROL LEVER
208.	[1]	154327-7300	COILED SPRING
211/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
211/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
211/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
211/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
211/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
211/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
236.	[1]	154390-1300	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING

Include in #1:

101801-9010 as GOVERNOR

101801-9020

101803-1740

Cross reference number

Zexel num

Bosch num

Firm num

Name

105412-1990

9 420 610 141
NP-EP/RSV200-1300AQ44A311

ME717200 MITSUBISHI

GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV

Information:

(1) Diameter of the valve seat insert ... 54.610 0.013 mm (2.1500 .0005 in) Bore in head for valve seat insert ... 54.534 0.013 mm (2.1470 .0005 in)(2) Depth of bore in head for valve seat insert ... 11.23 0.05 mm (.442 .002 in)(3) Maximum permissible width of the face of the valve seat insert ... 3.05 mm (.120 in)(4) Distance from head of valve to cylinder head face: Maximum permissible (valve closed) ... 1.73 mm (.068 in)Minimum permissible (valve closed) ... 0.91 mm (.036 in)(5) Angle of the face of the valve seat insert ... 30 1/2 1/2°(6) Outside diameter of the face of the valve seat insert ... 52.23 0.13 mm (2.045 .005 in) Maximum permissible ... 52.45 mm (2.065 in)(7) Angle to grind face of seat insert (to get a reduction of maximum seat diameter) ... 15°Intake Valve (without valve seat insert)
(1) Distance from head of valve to cylinder head face: Maximum permissible (valve closed) ... 1.73 mm (.068 in)Minimum permissible (valve closed) ... 0.91 mm (.036 in)(2) Maximum permissible width of the face of the valve seat ... 3.05 mm (.120 in)(3) Outside diameter of the valve seat ... 52.23 0.13 mm (2.045 .005 in) Maximum permissible ... 52.45 mm (2.065 in)(4) Angle of the face of the valve seat ... 30 1/2 1/2°(5) Diameter of the bore ... 54.61 mm (2.150 in)(6) Maximum permissible depth of the bore to make the face of the valve seat smaller ... 4.32 mm (.170 in)Exhaust Valve
(1) Depth of bore in head for valve seat insert ... 11.23 0.13 mm (.442 .005 in)(2) Diameter of valve seat insert ... 48.565 0.013 mm (1.9120 .0005 in) Bore in head for valve seat insert ... 48.489 0.013 mm (1.9090 .0005 in)(3) Maximum permissible width of the face of the valve seat insert ... 2.67 mm (.105 in)(4) Distance from head of valve to cylinder head face: Maximum permissible (valve closed) ... 2.16 mm (.085 in)Minimum permissible (valve closed) ... 1.27 mm (.050 in)(5) Angle of the face of the valve seat insert ... 45 1/2 1/2°(6) Outside diameter of the face of the valve seat insert ... 44.07 0.13 mm (1.735 .005 in) Maximum permissible ... 44.70 mm (1.760 in)(7) Angle to grind face of seat insert (to get a reduction of maximum seat diameter) ... 15°
