105412-1982 ZEXEL 9 420 614 228 BOSCH GOVERNOR 9420614228 1054121982

Information governor

BOSCH 9 420 614 228 9420614228

ZEXEL 105412-1982 1054121982

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105412-1982 zexel genuine, new aftermarket engine parts with delivery

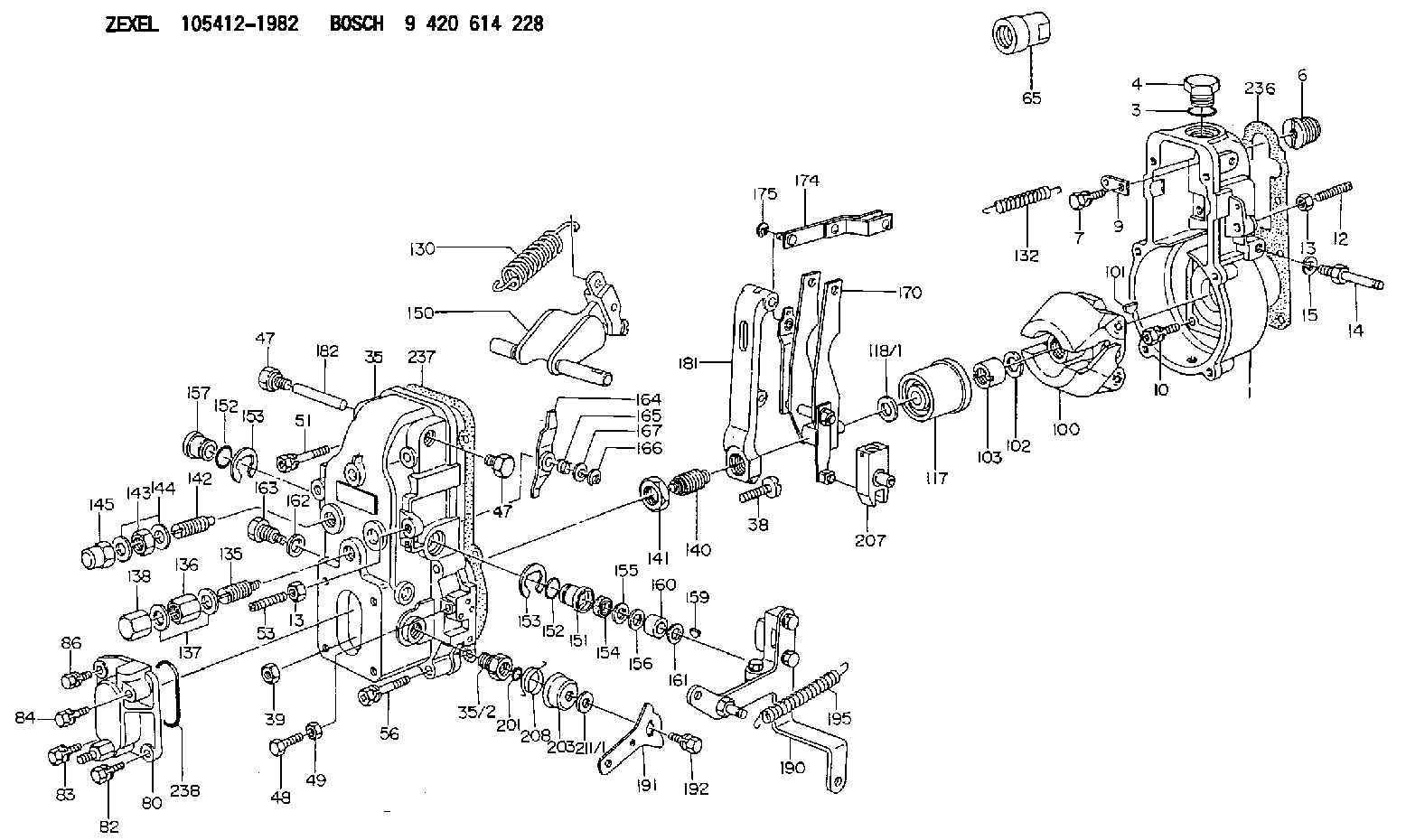

Scheme ###:

1.	[1]	154000-6400	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
6.	[1]	154007-0200	ADAPTOR
7.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
9.	[1]	154350-1900	PLATE
10.	[6]	029010-6810	BLEEDER SCREW
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
14.	[1]	154012-1720	BLEEDER SCREW
15.	[1]	014110-8440	LOCKING WASHER
35.	[1]	154500-3120	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-0100	FLAT-HEAD SCREW
39.	[1]	013020-6020	UNION NUT M6P1H5
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
48.	[1]	154037-0700	BLEEDER SCREW
49.	[1]	154038-0200	HEXAGON NUT
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0200	FLAT-HEAD SCREW
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	155404-0200	CAP
80.	[1]	154060-1020	COVER
82.	[1]	029020-6210	BLEEDER SCREW
83.	[1]	029020-6210	BLEEDER SCREW
84.	[1]	029000-6800	BLEEDER SCREW
86.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154100-9720	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-0120	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-0400	GOVERNOR SPRING
132.	[1]	154154-0800	COILED SPRING
135.	[1]	154158-0920	HEADLESS SCREW
136.	[1]	154011-2700	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154178-7520	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
142.	[1]	154242-0420	HEADLESS SCREW
143.	[1]	029201-6150	UNION NUT
144.	[2]	026516-2040	GASKET D19.9&16.2T1
145.	[1]	154159-1100	CAP NUT
150.	[1]	154200-6920	SWIVELLING LEVER
151.	[1]	154204-3000	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-3100	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
162.	[1]	029331-0240	GASKET
163.	[1]	154401-2700	BLEEDER SCREW
164.	[1]	154243-0220	CONTROL LEVER
165.	[1]	154327-1900	COILED SPRING
166.	[1]	016010-0710	LOCKING WASHER
167.	[1]	029310-8020	PLAIN WASHER D15&8.4T0.3
170.	[1]	154211-0120	FORK LEVER
174.	[1]	154230-3920	STRAP
175.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-3220	TENSIONING LEVER
182.	[1]	154237-0100	BEARING PIN
190.	[1]	154395-0820	CONTROL LEVER
191.	[1]	154307-4100	CONTROL LEVER
192.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
195.	[1]	154314-0200	COILED SPRING
201.	[1]	029631-0030	O-RING &9.8W2.3
203.	[1]	154322-0100	CAP
207.	[1]	154326-5820	CONTROL LEVER
208.	[1]	154327-7300	COILED SPRING
211/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
211/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
211/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
211/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
211/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
211/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
236.	[1]	154390-0000	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING

Include in #1:

101602-9432 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105412-1982

9 420 614 228
NP-EP/RSV200-1450AQ2A301

GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV

Information:

(1) 9N5496 Spring for valves (outer): Length under test force ... 45.47 mm (1.790 in)Test force ... 185.0 18.0 N (41.6 4 lb)Use again minimum load at length under test force ... 166 N (37.3 lb)Length of spring at valve open position ... 30.23 mm (1.190 in)Use again minimum load at valve open position ... 600 N (135 lb)Free length after test ... 51.77 mm (2.038 in)Outside diameter ... 39.62 mm (1.560 in)Spring must not be bent more than ... 1.80 mm (.071 in)(1) 9N5495 Spring for valves (inner): Length under test force ... 42.47 mm (1.672 in)Test force ... 91.2 9.0 N (20.5 2 lb)Use again minimum load at length under test force ... 81.9 N (18.4 lb)Length of spring at valve open position ... 27.23 mm (1.072 in)Use again minimum load at valve open position ... 295 N (66.3 lb)Free length after test ... 48.77 mm (1.920 in)Outside diameter ... 26.67 mm (1.050 in)Spring must not be bent more than ... 1.70 mm (.067 in)(2) Distance from the end of the valve to the valve spring spacer seat ... 52.40 0.38 mm (2.063 .015 in)(3) Diameter of valve stem: 7C362 and 9L7682 Intake Valve ... 9.462 0.013 mm (.3725 .0005 in)Use again minimum diameter of the valve stem ... 9.42 mm (.371 in)9L7683 and 9N5125 Exhaust Valve (tapered stem):Head end of valve stem ... 9.411 0.013 mm (.3705 .0005 in)Use again minimum diameter of the head end of valve stem ... 9.37 mm (.369 in)Lock end of valve stem ... 9.436 0.013 mm (.3715 .0005 in)Use again minimum diameter of the lock end of valve stem ... 9.408 mm (.3704 in)Bore in the valve guides (intake and exhaust) ... 9.512 0.013 mm (.3745 .0005 in)Maximum permissible bore in the valve guides (worn): Measure 19.0 mm (.75 in) deep in valve guide bore from both ends of the valve guide ... 9.550 mm (.3760 in)(4) Angle of valve face: Intake valve ... 30° 15'Exhaust valve ... 45° 15'(5) Diameter of valve head (intake valve) ... 53.19 0.13 mm (2.094 .005 in) Diameter of valve head (exhaust valve) ... 45.82 0.13 mm (1.804 .005 in)(6) Thickness of valve lip: Intake valve ... 2.31 mm (.091 in)Use again minimum valve lip thickness ... 1.78 mm (.070 in)Exhaust valve ... 1.60 mm (.063 in)Use again minimum valve lip thickness ... 1.27 mm (.050 in)
