105411-2480 ZEXEL F 019 Z3E 299 BOSCH GOVERNOR f019z3e299 1054112480

Information governor

BOSCH F 019 Z3E 299 f019z3e299

ZEXEL 105411-2480 1054112480

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105411-2480 zexel genuine, new aftermarket engine parts with delivery

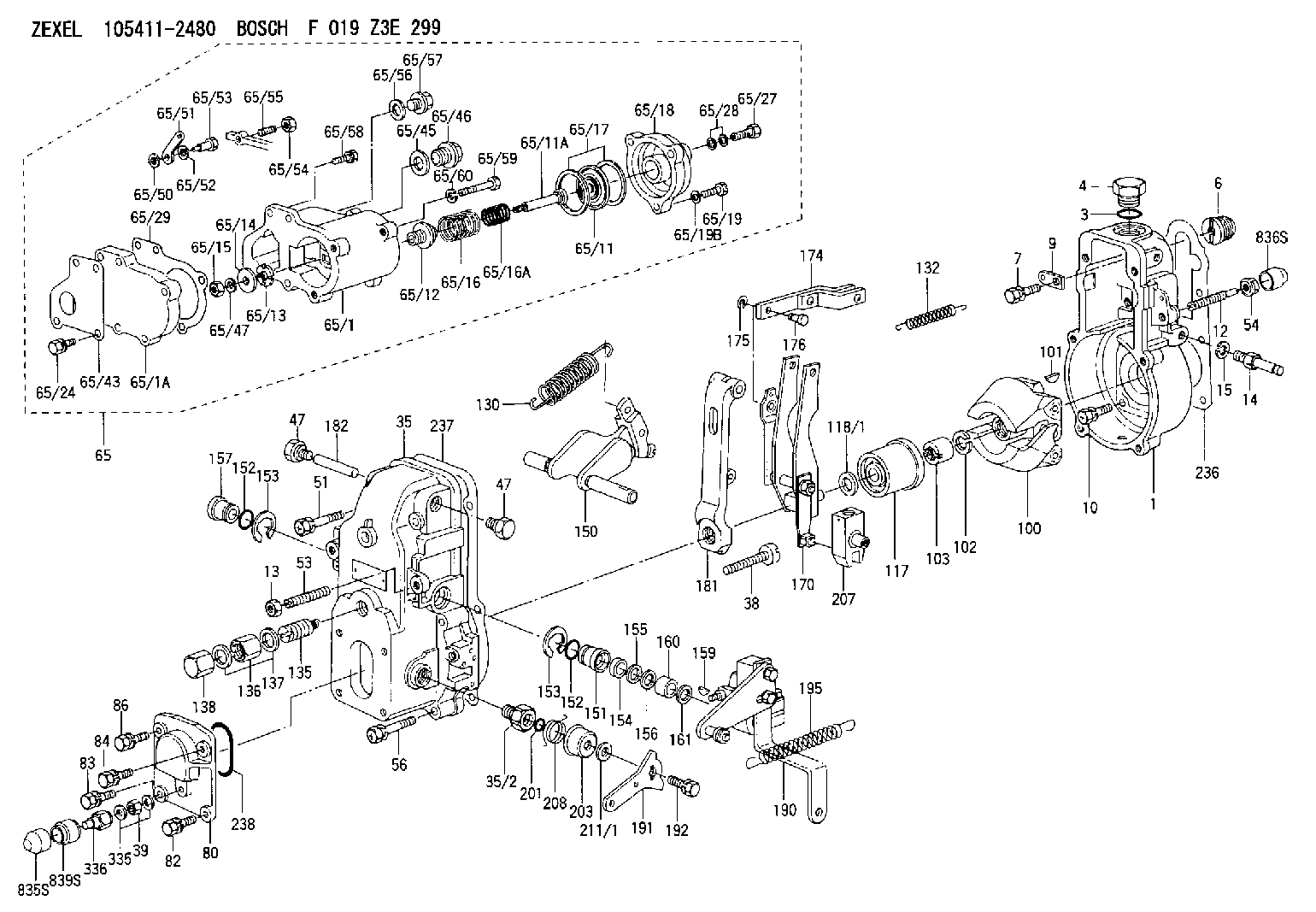

Scheme ###:

1.	[1]	154000-6400	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
6.	[1]	154007-0200	ADAPTOR
7.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
9.	[1]	154350-1900	PLATE
10.	[6]	029010-6810	BLEEDER SCREW
12.	[1]	154013-5000	FLAT-HEAD SCREW
13.	[1]	154011-0100	HEXAGON NUT
14.	[1]	154013-2320	BLEEDER SCREW
15.	[1]	014110-8440	LOCKING WASHER
35.	[1]	154500-3020	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-2400	FLAT-HEAD SCREW
39.	[1]	139206-0600	UNION NUT
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0200	FLAT-HEAD SCREW
54.	[1]	154011-4900	UNION NUT
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	154423-0720	MANIFOLD-PRESSURE COMP.
65/1.	[1]	154408-7521	GOVERNOR HOUSING
65/1A.	[1]	154408-2801	SPACER BUSHING
65/11.	[1]	154400-7020	DIAPHRAGM
65/11A.	[1]	154400-6101	STOP PIN
65/12.	[1]	154406-5300	GUIDE SLEEVE
65/13.	[1]	154406-5400	UNION NUT
65/14.	[1]	154406-5500	SLOTTED WASHER
65/15.	[1]	013020-6040	UNION NUT M6P1H5
65/16.	[1]	154403-8600	COILED SPRING
65/16A.	[1]	154403-7800	COILED SPRING
65/17.	[2]	154413-2600	GASKET
65/18.	[1]	154404-4920	COVER
65/19.	[3]	154062-2900	BLEEDER SCREW
65/19B.	[3]	014110-6440	LOCKING WASHER
65/24.	[2]	020106-1640	BLEEDER SCREW M6P1.0L14
65/27.	[1]	029731-0180	EYE BOLT
65/28.	[2]	026510-1340	GASKET D13.4&10.2T1
65/29.	[1]	154390-5200	GASKET
65/43.	[1]	154390-3400	GASKET
65/45.	[1]	029331-8040	GASKET
65/46.	[1]	154062-7700	CAPSULE
65/47.	[1]	014110-6440	LOCKING WASHER
65/50.	[1]	154406-6200	SPACER BUSHING
65/51.	[1]	154406-6300	CONTROL LEVER
65/52.	[1]	014110-6440	LOCKING WASHER
65/53.	[1]	154406-6400	BLEEDER SCREW
65/54.	[1]	013020-6040	UNION NUT M6P1H5
65/55.	[1]	154404-1700	FLAT-HEAD SCREW L30.00
65/56.	[1]	029331-2130	GASKET
65/57.	[1]	154406-6500	FLAT-HEAD SCREW
65/58.	[2]	020106-2240	BLEEDER SCREW
65/59.	[2]	139006-1600	BLEEDER SCREW
65/60.	[2]	014110-6440	LOCKING WASHER
80.	[1]	154063-1400	COVER
82.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
83.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
84.	[1]	029020-6210	BLEEDER SCREW
86.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154101-0020	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-0120	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-7700	GOVERNOR SPRING
132.	[1]	154154-0800	COILED SPRING
135.	[1]	154158-1320	HEADLESS SCREW
136.	[1]	154011-2700	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
150.	[1]	154200-7220	SWIVELLING LEVER
151.	[1]	154204-4300	BUSHING
152.	[2]	139718-0600	O-RING
152.	[2]	139718-0600	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0400	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-4400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154210-7420	FORK LEVER
174.	[1]	154230-7520	STRAP
175.	[2]	016010-0540	LOCKING WASHER
176.	[1]	154222-4300	BEARING PIN
181.	[1]	154236-1500	TENSIONING LEVER
182.	[1]	154237-0100	BEARING PIN
190.	[1]	154395-6220	CONTROL LEVER
191.	[1]	154307-0100	CONTROL LEVER
192.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
195.	[1]	154314-2600	COILED SPRING
201.	[1]	139710-0300	O-RING
203.	[1]	154322-0100	CAP
207.	[1]	154326-5120	CONTROL LEVER
208.	[1]	154327-7300	COILED SPRING
211/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
211/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
211/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
211/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
211/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
211/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
236.	[1]	154390-0000	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	139752-0000	O-RING
335.	[2]	026506-1040	GASKET D9.9&6.2T1
336.	[1]	154035-2800	CAP NUT
835S.	[1]	154062-4020	CAP
836S.	[1]	154062-3520	CAP
839S.	[1]	154062-3800	ADAPTOR

Include in #1:

101602-8881 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105411-2480

F 019 Z3E 299
NP-EP/RSV200-1450AQ52A311

GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV
