Information governor
BOSCH
F 019 Z2E 685
f019z2e685
ZEXEL
105411-2391
1054112391
ISUZU
8973086790
8973086790

Rating:

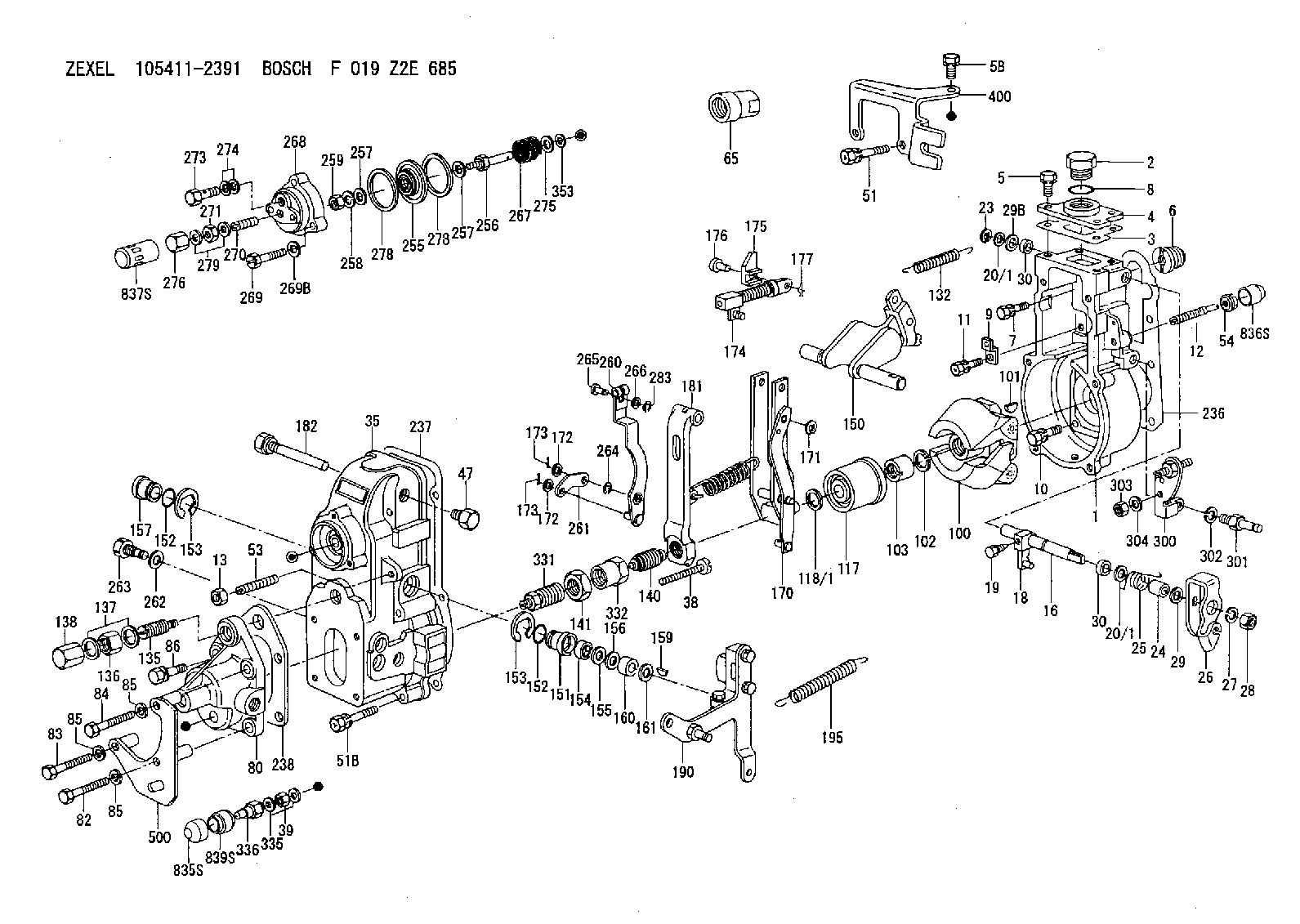

Scheme ###:
1. | [1] | 154004-7920 | GOVERNOR HOUSING |
2. | [1] | 154007-2900 | CAPSULE |
3. | [1] | 154390-2000 | GASKET |
4. | [1] | 154064-4500 | COVER |
5. | [3] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
5B. | [1] | 020006-2040 | BLEEDER SCREW M6P1L20 4T |
6. | [1] | 154007-0200 | ADAPTOR |
7. | [1] | 020018-1840 | BLEEDER SCREW M8P1.25L18 |
8. | [1] | 029632-5070 | O-RING |
9. | [1] | 154350-1800 | PLATE |
10. | [5] | 029010-6810 | BLEEDER SCREW |
11. | [1] | 020106-1640 | BLEEDER SCREW M6P1.0L14 |
12. | [1] | 154013-5000 | FLAT-HEAD SCREW |
13. | [1] | 154011-0100 | HEXAGON NUT |
16. | [1] | 155004-5600 | LEVER SHAFT |
18. | [1] | 155003-2520 | CONTROL LEVER |
19. | [1] | 155006-0700 | BLEEDER SCREW |
20/1. | [0] | 139408-1000 | SHIM D16&8T0.5 |
20/1. | [0] | 139408-1000 | SHIM D16&8T0.5 |
20/1. | [0] | 139408-1300 | SHIM D16&8T0.2 |
23. | [1] | 159238-4200 | LOCKING WASHER |
24. | [1] | 154206-2000 | BUSHING |
25. | [1] | 154327-4200 | COILED SPRING |
26. | [1] | 154382-5400 | CONTROL LEVER |
27. | [1] | 014110-8440 | LOCKING WASHER |
28. | [1] | 013020-8040 | UNION NUT M8P1.25H7 |
29. | [2] | 154375-8900 | PLAIN WASHER |
29B. | [0] | 139408-1400 | SHIM |
29C. | [0] | 139408-1500 | SHIM |
30. | [2] | 139608-0000 | PACKING RING |
30. | [2] | 139608-0000 | PACKING RING |
35. | [1] | 154022-9120 | GOVERNOR COVER |
38. | [1] | 154031-4700 | FLAT-HEAD SCREW |
39. | [1] | 139208-0400 | UNION NUT |
47. | [1] | 154036-0300 | CAPSULE |
51. | [2] | 020106-5040 | BLEEDER SCREW |
51B. | [4] | 020106-5040 | BLEEDER SCREW |
53. | [1] | 154010-0100 | FLAT-HEAD SCREW |
54. | [1] | 154011-4900 | UNION NUT |
65. | [1] | 154050-6120 | STOPPING DEVICE |
80. | [1] | 154064-4800 | COVER |
82. | [1] | 010006-3840 | BLEEDER SCREW |
83. | [1] | 010006-3840 | BLEEDER SCREW |
84. | [1] | 020506-3840 | BLEEDER SCREW |
85. | [3] | 014110-6440 | LOCKING WASHER |
85. | [3] | 014110-6440 | LOCKING WASHER |
85. | [3] | 014110-6440 | LOCKING WASHER |
86. | [1] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
100. | [1] | 154101-0020 | FLYWEIGHT ASSEMBLY |
101. | [1] | 025803-1610 | WOODRUFF KEY |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 029231-2030 | UNION NUT |
117. | [1] | 154123-2320 | SLIDING PIECE |
118/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
118/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
118/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
118/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
118/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
118/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
118/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
118/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
118/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
132. | [1] | 154154-0701 | COILED SPRING |
135. | [1] | 154158-1320 | HEADLESS SCREW |
136. | [1] | 029201-2130 | UNION NUT M12P1.0H6 |
137. | [2] | 026512-1540 | GASKET D15.4&12.2T1.50 |
138. | [1] | 154159-1200 | CAP NUT |
140. | [1] | 154178-9220 | HEADLESS SCREW |
141. | [1] | 029201-6080 | UNION NUT |
150. | [1] | 154200-7220 | SWIVELLING LEVER |
151. | [1] | 154204-4300 | BUSHING |
152. | [2] | 139718-0600 | O-RING |
152. | [2] | 139718-0600 | O-RING |
153. | [2] | 016010-1640 | LOCKING WASHER |
153. | [2] | 016010-1640 | LOCKING WASHER |
154. | [1] | 139611-0400 | PACKING RING |
155. | [1] | 139411-0000 | SHIM |
156. | [0] | 029311-1070 | SHIM D16&11T0.5 |
157. | [1] | 154204-4400 | BUSHING |
159. | [1] | 025803-1310 | WOODRUFF KEY |
160. | [1] | 154206-2800 | BUSHING |
161. | [0] | 154206-0200 | PLAIN WASHER D19.5&11.2T1.0 |
170. | [1] | 154218-6620 | FORK LEVER |
171. | [1] | 016010-0540 | LOCKING WASHER |
172. | [3] | 029310-5170 | SHIM D8&5.3T0.5 |
172. | [3] | 029310-5170 | SHIM D8&5.3T0.5 |
173. | [2] | 025520-1210 | SPLIT PIN |
173. | [2] | 025520-1210 | SPLIT PIN |
174. | [1] | 154234-4020 | STRAP |
175. | [1] | 154232-3000 | CONNECTOR |
176. | [1] | 154222-5800 | BEARING PIN |
177. | [1] | 155402-3800 | SAFETY PIN |
181. | [1] | 154239-5420 | TENSIONING LEVER |
182. | [1] | 154237-1100 | BEARING PIN |
190. | [1] | 154396-4720 | CONTROL LEVER |
195. | [1] | 154314-0200 | COILED SPRING |
236. | [1] | 154390-1300 | GASKET |
237. | [1] | 154390-0300 | GASKET |
238. | [1] | 154390-5000 | GASKET |
255. | [1] | 154400-7420 | DIAPHRAGM |
256. | [1] | 154400-4800 | STOP PIN |
257. | [2] | 029330-8050 | GASKET |
257. | [2] | 029330-8050 | GASKET |
258. | [1] | 139308-0700 | LOCKING WASHER |
259. | [1] | 013030-6040 | UNION NUT M6P1H3.6 |
260. | [1] | 154401-3720 | CONTROL LEVER |
261. | [1] | 154401-1120 | STRAP |
262. | [1] | 026510-1440 | GASKET D13.9&10.2T1 |
263. | [1] | 154401-2100 | BLEEDER SCREW |
264. | [1] | 016010-0540 | LOCKING WASHER |
265. | [1] | 154222-6200 | BEARING PIN |
266. | [1] | 029300-4010 | PLAIN WASHER |
267. | [1] | 154416-9600 | COILED SPRING |
268. | [1] | 154404-5600 | COVER |
269. | [3] | 154062-2900 | BLEEDER SCREW |
269B. | [3] | 014110-6440 | LOCKING WASHER |
270. | [1] | 154034-1900 | FLAT-HEAD SCREW |
271. | [1] | 013030-6040 | UNION NUT M6P1H3.6 |
273. | [1] | 029731-0180 | EYE BOLT |
274. | [2] | 026510-1340 | GASKET D13.4&10.2T1 |
275. | [0] | 029312-0180 | SHIM D25.5&20T0.5 |
275B. | [0] | 029312-0210 | SHIM D25.5&20T0.2 |
276. | [1] | 154035-1600 | CAP NUT |
278. | [2] | 154413-2600 | GASKET |
278. | [2] | 154413-2600 | GASKET |
279. | [2] | 026506-1040 | GASKET D9.9&6.2T1 |
283. | [1] | 016010-0440 | LOCKING WASHER |
300. | [1] | 154358-9420 | BRACKET |
301. | [1] | 154013-6420 | BLEEDER SCREW |
302. | [1] | 014110-8440 | LOCKING WASHER |
303. | [1] | 154011-1100 | UNION NUT |
304. | [1] | 029300-8320 | SHIM |
331. | [1] | 154188-4320 | HEADLESS SCREW |
332. | [1] | 029201-6010 | UNION NUT |
335. | [2] | 026508-1140 | GASKET D11.4&8.2T1 |
336. | [1] | 154035-2900 | CAP NUT |
353. | [4] | 029310-9080 | SHIM D16&9T1.7 |
400. | [1] | 154375-8320 | BRACKET |
500. | [1] | 154376-6320 | BRACKET |
835S. | [1] | 154062-4020 | CAP |
836S. | [1] | 154062-3520 | CAP |
837S. | [1] | 154062-2720 | CAP |
839S. | [1] | 154062-3900 | ADAPTOR |
