105411-2390 ZEXEL F 019 Z2E 577 BOSCH GOVERNOR f019z2e577 1054112390 8973000030

Information governor

BOSCH F 019 Z2E 577 f019z2e577

ZEXEL 105411-2390 1054112390

ISUZU 8973000030 8973000030

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105411-2390 zexel genuine, new aftermarket engine parts with delivery

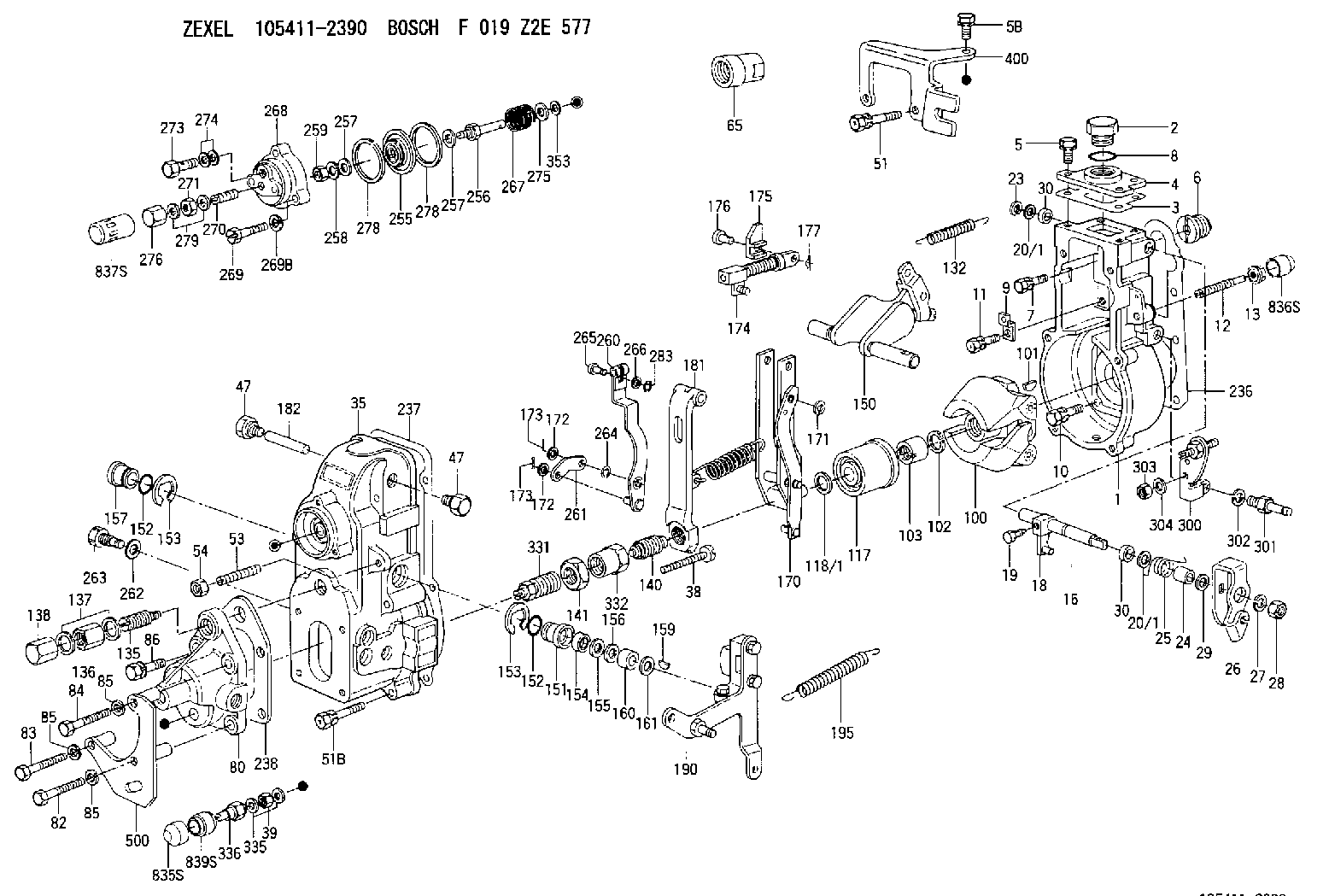

Scheme ###:

1.	[1]	154004-7920	GOVERNOR HOUSING
2.	[1]	154007-2900	CAPSULE
3.	[1]	154390-2000	GASKET
4.	[1]	154064-4500	COVER
5.	[3]	020006-1640	BLEEDER SCREW M6P1L16 4T
5B.	[1]	020006-2040	BLEEDER SCREW M6P1L20 4T
6.	[1]	154007-0200	ADAPTOR
7.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
8.	[1]	029632-5070	O-RING
9.	[1]	154350-1800	PLATE
10.	[5]	029010-6810	BLEEDER SCREW
11.	[1]	020106-1640	BLEEDER SCREW M6P1.0L14
12.	[1]	154013-5000	FLAT-HEAD SCREW
13.	[1]	154011-0100	HEXAGON NUT
16.	[1]	155004-5600	LEVER SHAFT
18.	[1]	155003-2520	CONTROL LEVER
19.	[1]	155006-0700	BLEEDER SCREW
20/1.	[0]	139408-1000	SHIM D16&8T0.5
20/1.	[0]	139408-1300	SHIM D16&8T0.2
20/1.	[0]	139408-1300	SHIM D16&8T0.2
23.	[1]	159238-4200	LOCKING WASHER
24.	[1]	154206-2000	BUSHING
25.	[1]	154327-4200	COILED SPRING
26.	[1]	154382-5400	CONTROL LEVER
27.	[1]	014110-8440	LOCKING WASHER
28.	[1]	013020-8040	UNION NUT M8P1.25H7
29.	[2]	154375-8900	PLAIN WASHER
29B.	[0]	139408-1400	SHIM
29C.	[0]	139408-1500	SHIM
30.	[2]	139608-0000	PACKING RING
30.	[2]	139608-0000	PACKING RING
35.	[1]	154022-8820	GOVERNOR COVER
38.	[1]	154031-4700	FLAT-HEAD SCREW
39.	[1]	139208-0400	UNION NUT
47.	[1]	154036-0300	CAPSULE
47.	[1]	154036-0300	CAPSULE
51.	[2]	020106-5040	BLEEDER SCREW
51B.	[4]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0100	FLAT-HEAD SCREW
54.	[1]	154011-4900	UNION NUT
65.	[1]	154050-6120	STOPPING DEVICE
80.	[1]	154064-4800	COVER
82.	[1]	010006-3840	BLEEDER SCREW
83.	[1]	010006-3840	BLEEDER SCREW
84.	[1]	020506-3840	BLEEDER SCREW
85.	[3]	014110-6440	LOCKING WASHER
85.	[3]	014110-6440	LOCKING WASHER
85.	[3]	014110-6440	LOCKING WASHER
86.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154101-0020	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
132.	[1]	154154-0701	COILED SPRING
135.	[1]	154158-1320	HEADLESS SCREW
136.	[1]	029201-2130	UNION NUT M12P1.0H6
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154178-9220	HEADLESS SCREW
141.	[1]	029201-6080	UNION NUT
150.	[1]	154200-7220	SWIVELLING LEVER
151.	[1]	154204-4300	BUSHING
152.	[2]	139718-0600	O-RING
152.	[2]	139718-0600	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0400	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-4400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154218-6620	FORK LEVER
171.	[1]	016010-0540	LOCKING WASHER
172.	[3]	029310-5170	SHIM D8&5.3T0.5
172.	[3]	029310-5170	SHIM D8&5.3T0.5
173.	[2]	025520-1210	SPLIT PIN
173.	[2]	025520-1210	SPLIT PIN
174.	[1]	154234-4020	STRAP
175.	[1]	154232-3000	CONNECTOR
176.	[1]	154222-5800	BEARING PIN
177.	[1]	155402-3800	SAFETY PIN
181.	[1]	154239-5420	TENSIONING LEVER
182.	[1]	154237-1100	BEARING PIN
190.	[1]	154396-4720	CONTROL LEVER
195.	[1]	154314-0200	COILED SPRING
236.	[1]	154390-1300	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	154390-5000	GASKET
255.	[1]	154400-7420	DIAPHRAGM
256.	[1]	154400-4800	STOP PIN
257.	[2]	029330-8050	GASKET
257.	[2]	029330-8050	GASKET
258.	[1]	139308-0700	LOCKING WASHER
259.	[1]	013030-6040	UNION NUT M6P1H3.6
260.	[1]	154401-3720	CONTROL LEVER
261.	[1]	154401-1120	STRAP
262.	[1]	026510-1440	GASKET D13.9&10.2T1
263.	[1]	154401-2100	BLEEDER SCREW
264.	[1]	016010-0540	LOCKING WASHER
265.	[1]	154222-6200	BEARING PIN
266.	[1]	029300-4010	PLAIN WASHER
267.	[1]	154416-9600	COILED SPRING
268.	[1]	154404-5600	COVER
269.	[3]	154062-2900	BLEEDER SCREW
269B.	[3]	014110-6440	LOCKING WASHER
270.	[1]	154034-1900	FLAT-HEAD SCREW
271.	[1]	013030-6040	UNION NUT M6P1H3.6
273.	[1]	029731-0180	EYE BOLT
274.	[2]	026510-1340	GASKET D13.4&10.2T1
275.	[0]	029312-0180	SHIM D25.5&20T0.5
275B.	[0]	029312-0210	SHIM D25.5&20T0.2
276.	[1]	154035-1600	CAP NUT
278.	[2]	154413-2600	GASKET
278.	[2]	154413-2600	GASKET
279.	[2]	026506-1040	GASKET D9.9&6.2T1
283.	[1]	016010-0440	LOCKING WASHER
300.	[1]	154358-9420	BRACKET
301.	[1]	154013-6420	BLEEDER SCREW
302.	[1]	014110-8440	LOCKING WASHER
303.	[1]	154011-1100	UNION NUT
304.	[1]	029300-8320	SHIM
331.	[1]	154188-4320	HEADLESS SCREW
332.	[1]	029201-6010	UNION NUT
335.	[2]	026508-1140	GASKET D11.4&8.2T1
336.	[1]	154035-2900	CAP NUT
353.	[4]	029310-9080	SHIM D16&9T1.7
400.	[1]	154375-8320	BRACKET
500.	[1]	154376-6320	BRACKET
835S.	[1]	154062-4020	CAP
836S.	[1]	154062-3520	CAP
837S.	[1]	154062-2720	CAP
839S.	[1]	154062-3900	ADAPTOR

Include in #1:

101402-7890 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105411-2390
105411-2391

F 019 Z2E 577

8973000030 ISUZU

GOVERNOR
* K

Information:

Before any service work is to be done on the fuel system the outer surface of the injection pump housing must be clean.
1. Remove cover assembly (1) from the pump housing. Remove the spring for the bypass valve. 2. Loosen bushing (2) from the pump housing with tool (A). Do not loosen screws (3) when removing or installing the pumps. If the levers are moved, the fuel pump adjustment will be changed.3. Remove the fuel injection pump from the pump housing. The sleeve on the plunger will slide off the lever as the pump is removed.Install Fuel Injection Pumps
1. Put fuel injection pump (1) in the bore of the pump housing.2. Sleeve (2) must be engaged with lever (3) when installed correctly.
If the levers (3) have been moved on the shaft, fuel pump adjustment must be made. (See TESTING AND ADJUSTING).
3. Tighten the bushing with tool (A) to a torque of 70 5 lb.ft. (95 7 N m). 4. Put the spring and bypass valve in place. Install the cover assembly on the pump housing. Be sure spring (4) is in position in the cover.Disassemble Fuel Injection Pumps
start by: a) remove fuel injection pumps1. Remove bushing (1) from bonnet (2).2. Remove ring (3) from the bonnet and barrel (7). Remove check valve (6) and spring (4) from the bonnet.3. Remove spring (8) and washer (5). Remove plunger (9) and sleeve (10). Keep the plunger and sleeve with their respective barrel for installation. Do not use plungers, sleeves or barrels with other plungers, sleeves or barrels.Assemble Fuel Injection Pumps
1. Install sleeve (4), plunger (5), spring (2) and washer (3) on barrel (1).
Make sure the sleeve is installed with the thin edge up.
Be sure the sleeve and plunger are installed in their original barrel. Make sure the large hole in the plunger is up.2. Install the check valve and spring in the bonnet. Connect the barrel and bonnet and install the ring. Install the bushing on the bonnet.end by: a) install fuel injection pumps
