105411-1570 ZEXEL F 019 Z9E 518 BOSCH GOVERNOR f019z9e518 1054111570

Information governor

BOSCH F 019 Z9E 518 f019z9e518

ZEXEL 105411-1570 1054111570

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105411-1570 zexel genuine, new aftermarket engine parts with delivery

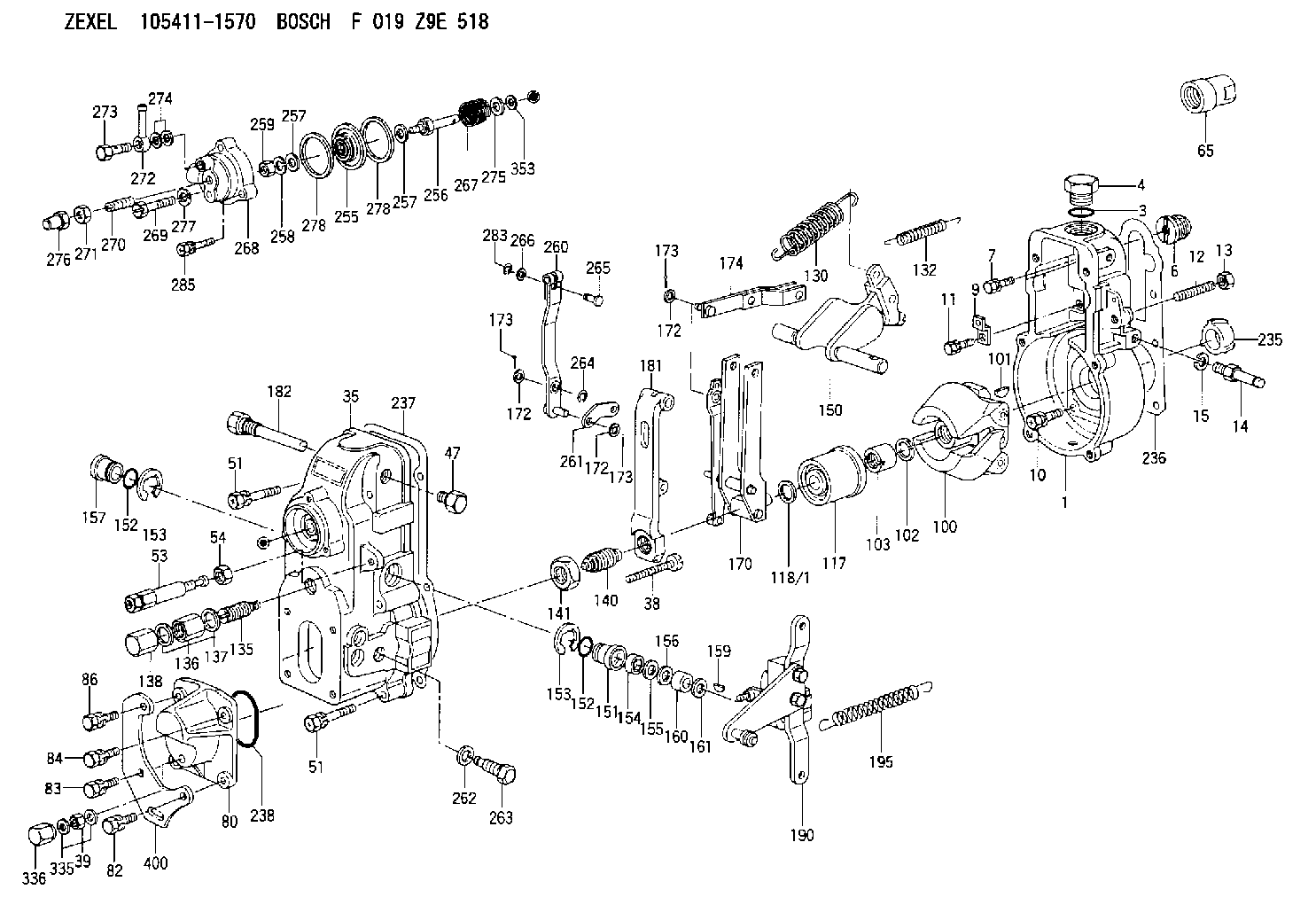

Scheme ###:

1.	[1]	154000-7000	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
6.	[1]	154007-0200	ADAPTOR
7.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
9.	[1]	154350-1800	PLATE
10.	[5]	029010-6810	BLEEDER SCREW
11.	[1]	020106-1640	BLEEDER SCREW M6P1.0L14
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[1]	154011-0100	HEXAGON NUT
14.	[1]	154012-2220	BLEEDER SCREW
15.	[1]	014110-8440	LOCKING WASHER
35.	[1]	154022-8420	GOVERNOR COVER
38.	[1]	154031-4400	FLAT-HEAD SCREW
39.	[1]	139206-0600	UNION NUT
47.	[1]	154036-0300	CAPSULE
51.	[6]	020106-5040	BLEEDER SCREW
51.	[6]	020106-5040	BLEEDER SCREW
53.	[1]	154010-5220	HEADLESS SCREW
54.	[1]	154011-1900	UNION NUT
65.	[1]	154050-1720	STOPPING DEVICE
80.	[1]	154063-5100	COVER
82.	[1]	029020-6260	BLEEDER SCREW
83.	[1]	029020-6260	BLEEDER SCREW
84.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
86.	[1]	020006-2040	BLEEDER SCREW M6P1L20 4T
100.	[1]	154101-0020	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-0400	GOVERNOR SPRING
132.	[1]	154154-0701	COILED SPRING
135.	[1]	154158-0820	HEADLESS SCREW
136.	[1]	029201-2140	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154177-0820	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-6920	SWIVELLING LEVER
151.	[1]	154204-4300	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-4400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154217-0520	FORK LEVER
172.	[3]	029310-5170	SHIM D8&5.3T0.5
172.	[3]	029310-5170	SHIM D8&5.3T0.5
172.	[3]	029310-5170	SHIM D8&5.3T0.5
173.	[3]	025520-1210	SPLIT PIN
173.	[3]	025520-1210	SPLIT PIN
173.	[3]	025520-1210	SPLIT PIN
174.	[1]	154230-0120	STRAP
181.	[1]	154236-4100	TENSIONING LEVER
182.	[1]	154237-1100	BEARING PIN
190.	[1]	154349-6620	CONTROL LEVER
195.	[1]	154314-0200	COILED SPRING
235.	[1]	155412-5200	IMPELLER WHEEL
236.	[1]	154390-1300	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
255.	[1]	154400-7420	DIAPHRAGM
256.	[1]	154400-4800	STOP PIN
257.	[2]	029330-8050	GASKET
257.	[2]	029330-8050	GASKET
258.	[1]	139308-0700	LOCKING WASHER
259.	[1]	013030-6040	UNION NUT M6P1H3.6
260.	[1]	154401-3720	CONTROL LEVER
261.	[1]	154401-1120	STRAP
262.	[1]	026510-1440	GASKET D13.9&10.2T1
263.	[1]	154401-2100	BLEEDER SCREW
264.	[1]	016010-0540	LOCKING WASHER
265.	[1]	154222-6200	BEARING PIN
266.	[1]	029300-4010	PLAIN WASHER
267.	[1]	154411-3900	COILED SPRING
268.	[1]	154404-5000	COVER
269.	[2]	020106-2540	BLEEDER SCREW M6P1L25
270.	[1]	154404-1100	FLAT-HEAD SCREW
271.	[1]	023040-6040	UNION NUT
272.	[1]	029711-0140	INLET UNION
273.	[1]	029731-0180	EYE BOLT
274.	[2]	029341-0110	GASKET
275.	[0]	029312-0180	SHIM D25.5&20T0.5
275B.	[0]	029312-0210	SHIM D25.5&20T0.2
276.	[1]	154035-0320	CAP NUT
277.	[1]	029320-6010	LOCKING WASHER
278.	[2]	154413-2600	GASKET
278.	[2]	154413-2600	GASKET
283.	[1]	016010-0440	LOCKING WASHER
285.	[1]	154354-1700	BLEEDER SCREW
335.	[2]	026506-1040	GASKET D9.9&6.2T1
336.	[1]	154035-1600	CAP NUT
353.	[3]	029310-9080	SHIM D16&9T1.7
400.	[1]	154372-8000	BRACKET

Include in #1:

101609-3000 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105411-1570

F 019 Z9E 518

GOVERNOR
* K

Information:

Caterpillar: Confidential Yellow
PARTS STOCK ACTION ONLY - THE DEFLECTOR SHIELDS ON CERTAIN UNIT INJECTORS IN PARTS STOCK MAY FAIL - PI7278 - MAILED US AND CANADA, CACO, COFA, BRAZIL, CFEL, COSA, MARINE TEPS - REVISED 04/92
The information supplied in this service letter may not be valid after the termination date of this program. Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
March 6, 1992 (Revised April 1992) U-41 A-29 AU-24 B-19 E-23 O-37 TM-3 PARTS STOCK THE DEFLECTOR SHIELDS ON CERTAIN UNIT ACTION ONLY INJECTORS IN PARTS STOCK MAY FAIL 1290 PI7278 This Revised Service Letter replaces the March 6, 1992 Service Letter. Changes have been made to the injector group part numbers listed under Action Required. Termination Date
June 30, 1992
Problem
The deflector shields on certain unit injectors in parts stock may fail. All unit injectors in parts stock need to be inspected for the date code "BO".
Action Required
Remove all of
