105411-1300 ZEXEL F 019 Z2F 041 BOSCH GOVERNOR f019z2f041 1054111300




Information governor

BOSCH F 019 Z2F 041 f019z2f041
ZEXEL 105411-1300 1054111300
105411-1300 GOVERNOR
Rating:
23
Buy GOVERNOR 105411-1300 zexel genuine, new aftermarket engine parts with delivery

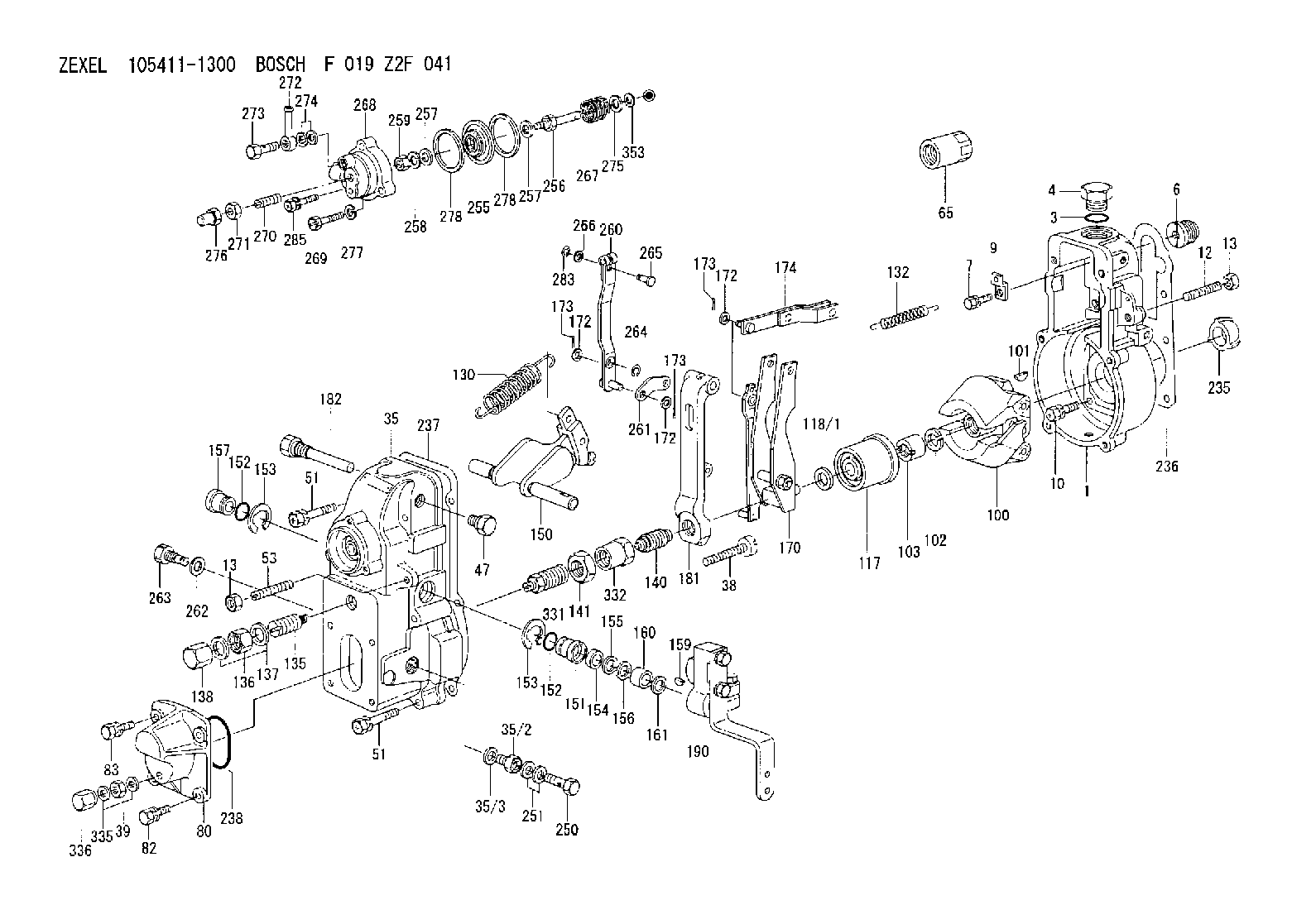

Scheme ###:

GOVERNOR HOUSING
1. [1] 154000-6400 GOVERNOR HOUSING
3. [1] 029632-5070 O-RING
4. [1] 154007-2900 CAPSULE
6. [1] 154007-0200 ADAPTOR
7. [1] 020018-1840 BLEEDER SCREW M8P1.25L18
9. [1] 154350-1900 PLATE
10. [6] 029010-6810 BLEEDER SCREW
12. [1] 154010-0100 FLAT-HEAD SCREW
13. [2] 154011-0100 HEXAGON NUT
13. [2] 154011-0100 HEXAGON NUT
35. [1] 154022-6520 GOVERNOR COVER
35/2. [1] 154316-6600 ADAPTOR
35/3. [1] 026516-2040 GASKET D19.9&16.2T1
38. [1] 154031-4400 FLAT-HEAD SCREW
39. [1] 139206-0600 UNION NUT
47. [1] 154036-0300 CAPSULE
51. [6] 020106-5040 BLEEDER SCREW
51. [6] 020106-5040 BLEEDER SCREW
53. [1] 154010-0300 FLAT-HEAD SCREW
65. [1] 155404-5700 CAP
80. [1] 154063-5100 COVER
82. [2] 029020-6210 BLEEDER SCREW
83. [2] 020006-1640 BLEEDER SCREW M6P1L16 4T
100. [1] 154100-9720 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-0120 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-6400 GOVERNOR SPRING
132. [1] 154154-0701 COILED SPRING
135. [1] 154158-0820 HEADLESS SCREW
136. [1] 029201-2140 UNION NUT
137. [2] 026512-1540 GASKET D15.4&12.2T1.50
138. [1] 154159-1200 CAP NUT
140. [1] 154185-0620 HEADLESS SCREW
141. [1] 029201-6080 UNION NUT
150. [1] 154200-6920 SWIVELLING LEVER
151. [1] 154204-4300 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 016010-1640 LOCKING WASHER
153. [2] 016010-1640 LOCKING WASHER
154. [1] 139611-0000 PACKING RING
155. [1] 139411-0000 SHIM
156. [0] 029311-1070 SHIM D16&11T0.5
157. [1] 154204-4400 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-2800 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
170. [1] 154211-4220 FORK LEVER
172. [3] 029310-5170 SHIM D8&5.3T0.5
172. [3] 029310-5170 SHIM D8&5.3T0.5
172. [3] 029310-5170 SHIM D8&5.3T0.5
173. [3] 025520-1210 SPLIT PIN
173. [3] 025520-1210 SPLIT PIN
173. [3] 025520-1210 SPLIT PIN
174. [1] 154230-0120 STRAP
181. [1] 154236-4100 TENSIONING LEVER
182. [1] 154237-1100 BEARING PIN
190. [1] 154343-4220 CONTROL LEVER
235. [1] 155412-5200 IMPELLER WHEEL
236. [1] 154390-0000 GASKET
237. [1] 154390-0300 GASKET
238. [1] 029635-2020 O-RING
250. [1] 029731-2040 EYE BOLT
251. [2] 029341-2140 GASKET
255. [1] 154400-0520 DIAPHRAGM
256. [1] 154400-4800 STOP PIN
257. [2] 029330-8050 GASKET
257. [2] 029330-8050 GASKET
258. [1] 139308-0700 LOCKING WASHER
259. [1] 013030-6040 UNION NUT M6P1H3.6
260. [1] 154401-0120 CONTROL LEVER
261. [1] 154401-1120 STRAP
262. [1] 026510-1440 GASKET D13.9&10.2T1
263. [1] 154401-2100 BLEEDER SCREW
264. [1] 016010-0540 LOCKING WASHER
265. [1] 154222-6200 BEARING PIN
266. [1] 029300-4010 PLAIN WASHER
267. [1] 154402-9600 COILED SPRING
268. [1] 154404-5000 COVER
269. [2] 020106-2540 BLEEDER SCREW M6P1L25
270. [1] 154404-1100 FLAT-HEAD SCREW
271. [1] 023040-6040 UNION NUT
272. [1] 029711-0140 INLET UNION
273. [1] 029731-0180 EYE BOLT
274. [2] 029341-0110 GASKET
275. [0] 029312-0180 SHIM D25.5&20T0.5
275B. [0] 029312-0210 SHIM D25.5&20T0.2
276. [1] 154035-0320 CAP NUT
277. [1] 029320-6010 LOCKING WASHER
278. [2] 154413-2600 GASKET
278. [2] 154413-2600 GASKET
283. [1] 016010-0440 LOCKING WASHER
285. [1] 154354-1700 BLEEDER SCREW
331. [1] 154172-3920 HEADLESS SCREW
332. [1] 029201-6010 UNION NUT
335. [2] 026506-1040 GASKET D9.9&6.2T1
336. [1] 154035-1600 CAP NUT
353. [2] 029310-9080 SHIM D16&9T1.7

Include in #1:

101605-3650 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105411-1300
F 019 Z2F 041

GOVERNOR
* K




Information:


Illustration 6 g06375966
Current hose routing
(E) 3U-2752 Clip
Illustration 7 g06375968
(D3) 32.31 mm (1.272 inch)
(D4) 80.00 mm (3.150 inch)
(1) 178-7023 Boss
Illustration 8 g06375967
New hose routing
(1) 178-7023 Boss
(2) 420-5299 Clip
Remove clip (E) and install boss (1) per the dimensions and secure the hose using two double clips (2), as shown in Illustration 6, Illustration 7, and Illustration 8.Changes to CEM Line Routing for 730C2, 730C2 EJ, 730, and 735 Articulated Trucks
Illustration 9 g06376002
Current hose routing
(F) 421-9627 Bracket As
(G) 3U-2752 Clip
(H) 7K-1181 Cable Strap
Remove bracket assembly (F), clips (G), strap cable (H), and other mounting hardware, as shown in Illustration 9.
Illustration 10 g06376255
New hose routing
(2) 420-5299 Clip
Install two double clips (2) as shown in Illustration 10.Note: The hose routing simplifies the installation and provides additional clearance to the oil gallery on the right-hand side of the machine.Changes to DEF cooling Lines Routing (To/From Tank) for all High Regulated Countries (HRC) Machines
Illustration 11 g06376256
Current hose routing
(J) 312-0288 Clamp
Illustration 12 g06376257
New hose routing
(3) 520-7003 ClampRemove old clamps (J) and replace with the new clamps (3), as shown in Illustration 11 and Illustration 12.Changes to DEF Cooling Lines Routing (To Pump- Both ends) for all HRC Machines
Illustration 13 g06376263
Current clamp
(J) 312-0288 Clamp
Illustration 14 g06376264
New clamp
(3) 520-7003 Clamp
Illustration 15 g06376266
Current clamp
(J) 312-0288 Clamp
Illustration 16 g06376267
New clamp
(3) 520-7003 ClampRemove old clamps (J) and replace with the new clamps (3), as shown in Illustration 13, Illustration 14, Illustration 15, and Illustration 16.Changes to DEF Cooling Lines (From Pump- Both ends) Routing for all HRC Machines
Illustration 17 g06376285
Current clamp
(K) 433-0933 Clamp
Illustration 18 g06376288
New clamp
(4) 520-7002 ClampRemove existing clamps (K) and replace with the new clamps (4), as shown in Illustration 17 and Illustration 18.

Have questions with 105411-1300?





Group cross 105411-1300 ZEXEL

105411-1300
F 019 Z2F 041

GOVERNOR
105411-1311
F 019 Z2F 042
NP-EP/RSV200-1450AQ2A11

GOVERNOR
105411-1320
F 019 Z2F 161

GOVERNOR
105411-1331
F 019 Z1E 798
NP-EP/RSV200-1400AQ24A311

GOVERNOR
105411-1341
F 019 Z1E 799
NP-EP/RSV200-1600AQ21A311

GOVERNOR
105411-1351
F 019 Z1E 800
NP-EP/RSV200-1400AQ24A311

GOVERNOR
105411-1361
9 420 610 204
NP-EP/RSV200-1500AQ34A311

GOVERNOR
105411-1370
F 019 Z2F 043
NP-EP/RSV200-1400AQ24A311

GOVERNOR
105411-1380
F 019 Z2F 044

GOVERNOR
105411-1390
F 019 Z9E 218
NP-EP/RSV200-1500AQ34A311

GOVERNOR
