105411-0880 ZEXEL F 019 Z1E 836 BOSCH GOVERNOR f019z1e836 1054110880

Information governor

BOSCH F 019 Z1E 836 f019z1e836

ZEXEL 105411-0880 1054110880

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105411-0880 zexel genuine, new aftermarket engine parts with delivery

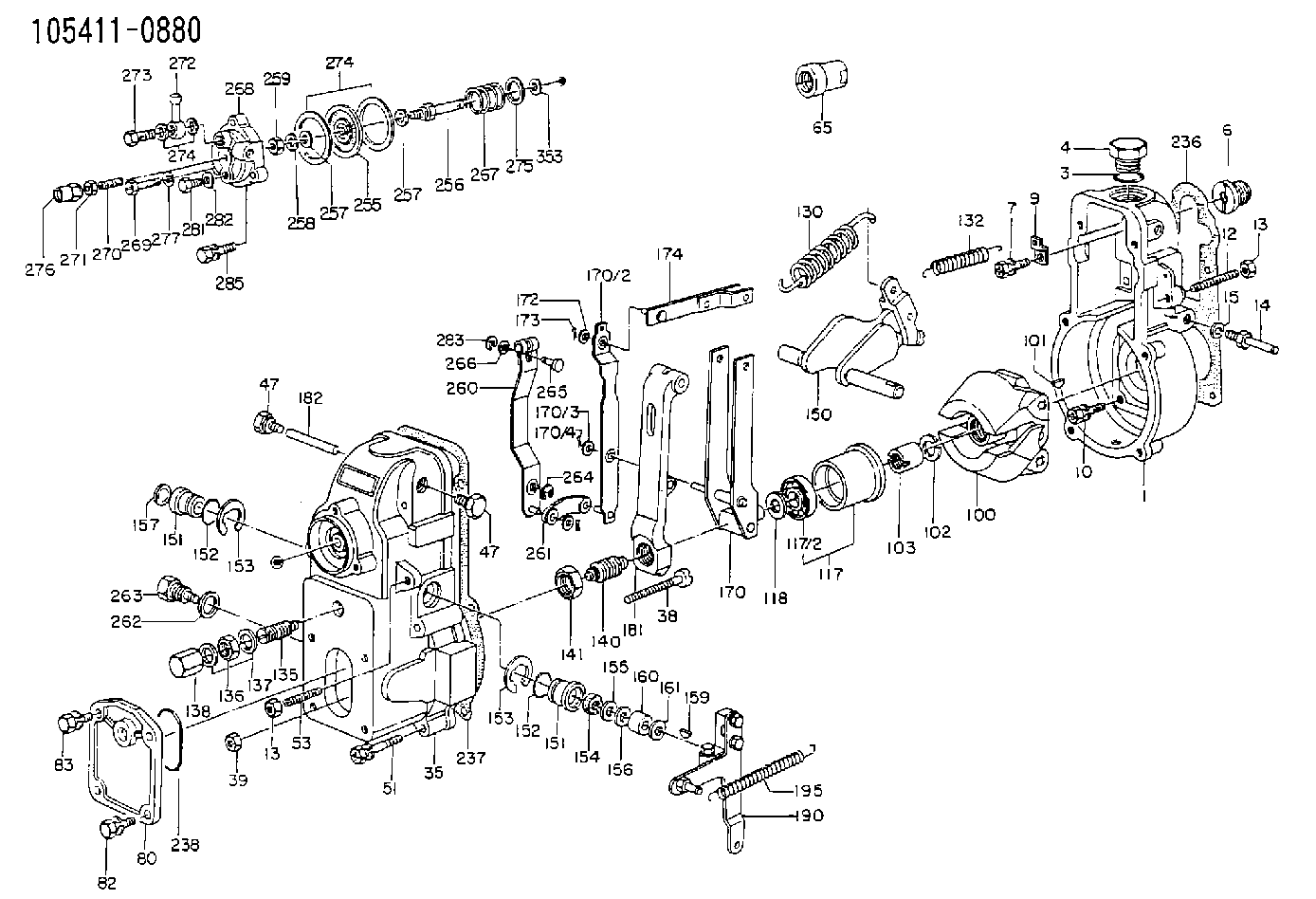

Scheme ###:

1.	[1]	154000-6400	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
6.	[1]	154007-0200	ADAPTOR
7.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
9.	[1]	154350-1900	PLATE
10.	[6]	029010-6810	BLEEDER SCREW
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
14.	[1]	154012-1500	BLEEDER SCREW
15.	[1]	014110-8440	LOCKING WASHER
35.	[1]	154509-2020	GOVERNOR COVER
38.	[1]	154031-0100	FLAT-HEAD SCREW
39.	[1]	013020-6020	UNION NUT M6P1H5
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
51.	[6]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0100	FLAT-HEAD SCREW
65.	[1]	155404-5300	CAP
80.	[1]	154060-4900	COVER
82.	[2]	029020-6210	BLEEDER SCREW
83.	[2]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154100-3220	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-0120	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-2900	GOVERNOR SPRING
132.	[1]	154154-0701	COILED SPRING
135.	[1]	154157-5120	HEADLESS SCREW
136.	[1]	029201-2030	UNION NUT M12P1.0H4
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154177-1020	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-6920	SWIVELLING LEVER
151.	[1]	154204-4300	BUSHING
151.	[1]	154204-4300	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-4400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154211-4220	FORK LEVER
172.	[3]	029310-5170	SHIM D8&5.3T0.5
173.	[3]	025520-1210	SPLIT PIN
174.	[1]	154230-0120	STRAP
181.	[1]	154236-4100	TENSIONING LEVER
182.	[1]	154237-0100	BEARING PIN
190.	[1]	154342-1521	CONTROL LEVER
195.	[1]	154314-0200	COILED SPRING
236.	[1]	154390-0000	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
254.	[2]	154413-2600	GASKET
255.	[1]	154400-0520	DIAPHRAGM
256.	[1]	154400-4800	STOP PIN
257.	[2]	029330-8050	GASKET
257.	[2]	029330-8050	GASKET
258.	[1]	139308-0700	LOCKING WASHER
259.	[1]	013030-6040	UNION NUT M6P1H3.6
260.	[1]	154401-0120	CONTROL LEVER
261.	[1]	154401-1120	STRAP
262.	[1]	026510-1440	GASKET D13.9&10.2T1
263.	[1]	154401-2100	BLEEDER SCREW
264.	[1]	016010-0540	LOCKING WASHER
265.	[1]	154222-6200	BEARING PIN
266.	[1]	029300-4010	PLAIN WASHER
267.	[1]	154403-3200	COILED SPRING
268.	[1]	154404-3900	COVER
269.	[2]	020106-2540	BLEEDER SCREW M6P1L25
270.	[1]	154404-1100	FLAT-HEAD SCREW
271.	[1]	023040-6040	UNION NUT
272.	[1]	029711-0140	INLET UNION
273.	[1]	029731-0180	EYE BOLT
274.	[2]	029341-0010	GASKET
274.	[2]	029341-0010	GASKET
275.	[0]	029312-0180	SHIM D25.5&20T0.5
275B.	[0]	029312-0210	SHIM D25.5&20T0.2
276.	[1]	154035-0320	CAP NUT
277.	[3]	014110-6440	LOCKING WASHER
278.	[2]	154413-2600	GASKET
281.	[1]	029010-6010	CAPSULE M6P1.0L7
282.	[1]	026506-1040	GASKET D9.9&6.2T1
283.	[1]	016010-0440	LOCKING WASHER
285.	[1]	029010-6310	BLEEDER SCREW

Include in #1:

101452-9221 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105411-0880

F 019 Z1E 836

GOVERNOR
* K

Information:

Illustration 1 g06221137
(1) Back flow connector
Illustration 2 g06221138
(2) 423-3253 Connector (Old back flow connector with check valve)
(3) 516-2663 Connector As (PCA connector without check valve)The new and the former connector assembly part numbers are listed in the Table 1.
Table 1
Qty New Part Number Description Former Part Number
1 516-2663 Connector As 423-3253
Illustration 3 g06224488
Bosch Diesel Exhaust Fluid Pump with the part number stamping
The Bosch part number is stamped on the pump, refer to Illustration 3. The Cat® part number equivalent to the Bosch part number for the pump is given in Table 2.
Table 2
Qty Cat® Part Number Description Bosch Part Number
1 485-9753 Diesel Exhaust Fluid Pump Gp (24V) 0 444042168
1 398-4746 Diesel Exhaust Fluid Pump Gp (14 V) 0 444042166 Note: The change is effective on the PETU and DEF pump serial numbers listed in Table 3.
Table 3
PETU Serial No: PET034589M
PUMP Serial No: 0171013500
