Information governor
ZEXEL
105411-0850
1054110850
MITSUBISHI
ME032815
me032815

Rating:

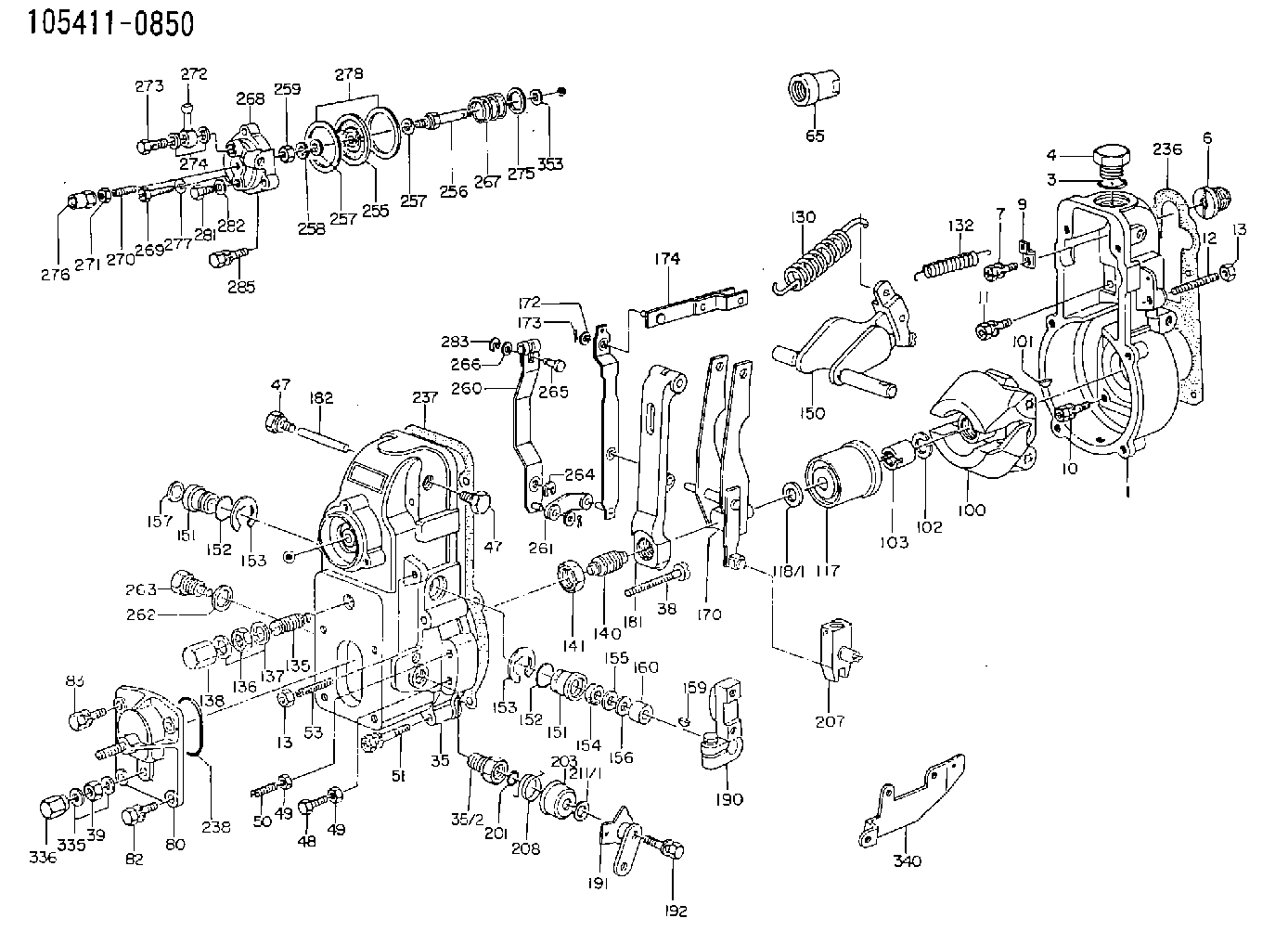

Scheme ###:
1. | [1] | 154000-6400 | GOVERNOR HOUSING |
3. | [1] | 029632-5070 | O-RING |
4. | [1] | 154007-2900 | CAPSULE |
6. | [1] | 154007-0200 | ADAPTOR |
7. | [1] | 020018-1840 | BLEEDER SCREW |
9. | [1] | 154350-1800 | PLATE |
10. | [5] | 020006-1440 | BLEEDER SCREW |
11. | [1] | 020106-1640 | BLEEDER SCREW |
12. | [1] | 154010-0100 | FLAT-HEAD SCREW |
13. | [2] | 154011-0100 | HEXAGON NUT |
13. | [2] | 154011-0100 | HEXAGON NUT |
35. | [1] | 154509-1920 | GOVERNOR COVER |
35/2. | [1] | 154321-0400 | BUSHING |
38. | [1] | 154031-0500 | FLAT-HEAD SCREW |
39. | [1] | 029240-6010 | UNION NUT |
47. | [2] | 154036-0300 | CAPSULE |
47. | [2] | 154036-0300 | CAPSULE |
48. | [1] | 154037-0700 | BLEEDER SCREW |
49. | [2] | 154038-0200 | HEXAGON NUT |
49. | [2] | 154038-0200 | HEXAGON NUT |
50. | [1] | 154037-0100 | FLAT-HEAD SCREW |
51. | [6] | 020106-5040 | BLEEDER SCREW |
53. | [1] | 154010-0100 | FLAT-HEAD SCREW |
65. | [1] | 155404-0200 | CAP |
80. | [1] | 154063-6420 | COVER |
80/2. | [1] | 154357-1500 | BLEEDER SCREW |
82. | [2] | 029020-6210 | BLEEDER SCREW |
83. | [2] | 020006-1640 | BLEEDER SCREW |
100. | [1] | 154101-0520 | FLYWEIGHT |
101. | [1] | 025803-1610 | WOODRUFF KEY |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 029231-2030 | UNION NUT |
117. | [1] | 154123-2320 | SLIDING PIECE |
118. | [1] | 029998-1000 | SHIM |
118/1. | [0] | 029311-0010 | SHIM |
118/1. | [0] | 029311-0180 | SHIM |
118/1. | [0] | 029311-0190 | SHIM |
118/1. | [0] | 029311-0210 | SHIM |
118/1. | [0] | 139410-0000 | SHIM |
118/1. | [0] | 139410-0100 | SHIM |
130. | [1] | 154150-2700 | GOVERNOR SPRING |
132. | [1] | 154154-1200 | COILED SPRING |
135. | [1] | 154158-1020 | HEADLESS SCREW |
136. | [1] | 029201-2290 | UNION NUT |
137. | [2] | 026512-1540 | GASKET |
138. | [1] | 154159-1200 | CAP NUT |
140. | [1] | 154170-0120 | HEADLESS SCREW |
141. | [1] | 029201-6010 | UNION NUT |
150. | [1] | 154200-3120 | SWIVELLING LEVER |
151. | [2] | 154204-1900 | BUSHING |
151. | [2] | 154204-1900 | BUSHING |
152. | [2] | 029631-8020 | O-RING |
152. | [2] | 029631-8020 | O-RING |
153. | [2] | 016010-1640 | LOCKING WASHER |
153. | [2] | 016010-1640 | LOCKING WASHER |
154. | [1] | 139611-0000 | PACKING RING |
155. | [1] | 139411-0000 | SHIM |
156. | [0] | 029311-1090 | SHIM |
157. | [1] | 029141-7010 | CAPSULE |
159. | [1] | 025803-1310 | WOODRUFF KEY |
160. | [1] | 154206-2800 | BUSHING |
170. | [1] | 154211-5620 | FORK LEVER |
172. | [3] | 029310-5170 | SHIM |
173. | [3] | 025520-1210 | SPLIT PIN |
174. | [1] | 154230-0120 | STRAP |
181. | [1] | 154236-1500 | TENSIONING LEVER |
182. | [1] | 154237-0100 | BEARING PIN |
190. | [1] | 154340-0020 | CONTROL LEVER |
191. | [1] | 154365-2020 | CONTROL LEVER |
192. | [1] | 020006-3240 | BLEEDER SCREW |
201. | [1] | 029631-0030 | O-RING |
203. | [1] | 154322-0100 | CAP |
207. | [1] | 154326-5020 | CONTROL LEVER |
208. | [1] | 154327-0100 | |
211. | [1] | 029998-1040 | SHIM |
211/1. | [0] | 029311-0520 | SHIM |
211/1. | [0] | 029311-0530 | SHIM |
211/1. | [0] | 029311-0540 | SHIM |
211/1. | [0] | 029311-0550 | SHIM |
211/1. | [0] | 029311-0560 | SHIM |
211/1. | [0] | 029311-0570 | SHIM |
236. | [1] | 154390-0000 | GASKET |
237. | [1] | 154390-0300 | GASKET |
238. | [1] | 029635-2020 | O-RING |
254. | [2] | 154413-2600 | GASKET |
255. | [1] | 154400-0520 | DIAPHRAGM |
256. | [1] | 154400-4800 | STOP PIN |
257. | [2] | 029330-8050 | GASKET |
257. | [2] | 029330-8050 | GASKET |
258. | [1] | 139308-0700 | LOCKING WASHER |
259. | [1] | 013030-6040 | UNION NUT |
260. | [1] | 154401-0120 | CONTROL LEVER |
261. | [1] | 154401-1220 | STRAP |
262. | [1] | 026510-1440 | GASKET |
263. | [1] | 154401-2100 | BLEEDER SCREW |
264. | [1] | 016010-0540 | LOCKING WASHER |
265. | [1] | 154222-6200 | BEARING PIN |
266. | [1] | 029300-4010 | PLAIN WASHER |
267. | [1] | 154402-5400 | COILED SPRING |
268. | [1] | 154404-3900 | COVER |
269. | [2] | 020106-2540 | BLEEDER SCREW |
270. | [1] | 154404-1100 | FLAT-HEAD SCREW |
271. | [1] | 013030-6040 | UNION NUT |
272. | [1] | 029711-0140 | INLET UNION |
273. | [1] | 029731-0120 | EYE BOLT |
274. | [2] | 026510-1340 | GASKET |
275. | [0] | 029312-0180 | SHIM |
275B. | [0] | 029312-0210 | SHIM |
276. | [1] | 154035-1900 | CAP NUT |
277. | [1] | 014110-6440 | LOCKING WASHER |
278. | [2] | 026506-1040 | GASKET |
281. | [1] | 029010-6010 | CAPSULE |
282. | [1] | 026506-1040 | GASKET |
283. | [1] | 016010-0440 | LOCKING WASHER |
285. | [1] | 029010-6310 | BLEEDER SCREW |
335. | [2] | 026506-1040 | GASKET |
336. | [1] | 154035-1600 | CAP NUT |
340. | [1] | 154355-9200 | BRACKET |
353. | [2] | 029310-9080 | SHIM |
