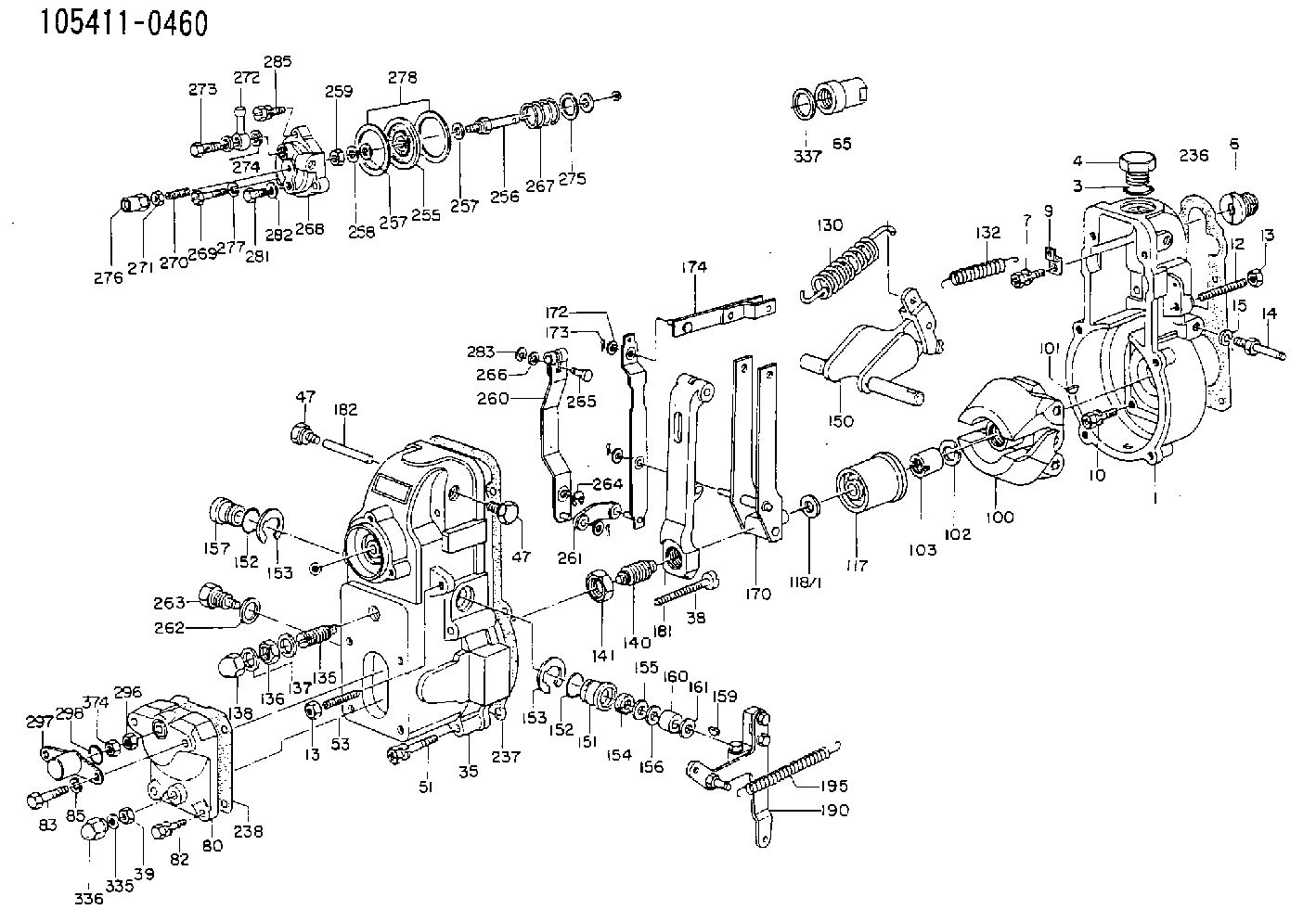

105411-0460 ZEXEL F 019 Z1E 137 BOSCH GOVERNOR f019z1e137 1054110460 9813203922

If there has been a previous repair, part age/hours will apply. Retain a copy of the previous repair invoice in the dealer's records for audit purposes, and specify repair date and machine hours in the "Additional Comments" section of the warranty claim.
Dealer to perform most economical repair.
Description____________________________SMCS Code___Hours
Wash___________________________________1091-074 ___0.2
Inner fender __________________________7252-010 ___0.2
R&I DPF _______________________________108F-010 ___1.2
program ECM - program DPF serial # ,
ASH reset, factory passwords __________1901-591 ___0.2
Test after Repair _____________________108F-030 ___0.2
This letter is to be performed during a recommended ash service as stated in Media number SEBU8087. Ash cleaning is a part of the recommended maintenance of the engine, customer is responsible for the labor required to remove and install the DPF.
PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
Rework Procedure
1. Wash debris from Diesel Particulate Filter (DPF) as necessary.
Image1.1.1
2. Remove the Fender (A): Loosen and remove the nuts and bolts from the fender of the truck. Retain the fender and fasteners for reuse. Refer to Image 1.1.1.
Image1.2.1
3. Remove the Step (B): Loosen and remove fasteners from the step of the truck. Retain the step and fasteners for reuse. Refer to Image 1.2.1.
Image1.3.1
Image1.3.2
4. Remove the Pipe Clamps: Loosen and remove clamps from the Inlet Pipe (C)& Outlet Pipe (D) of the DPF?s. Refer to Image 1.3.1 & Image 1.3.2
Image1.4.1
5. Remove tubes (E) and sensor box mounting bolts (F) to unplug sensor box connection. Refer to Image 1.4.1.
Image1.5.1
6. Remove DPF mounting bolts: Loosen and remove fasteners from the mounting of the DPF. Retain the mounting and fasteners for reuse. No jack will be used to hold DPF, DPF is supported by air tank brackets. Properly support DPF until it rests on the bracket. Refer to Image 1.5.1.
Image1.6.1
7. Slide the DPF forward and remove. Remove the CGI pipe (G) after the DPF has been removed. Refer to Image 1.6.1.
Image 1.7.1 shows the chassis after the welded DPF has been removed.
Image1.7.1
Image1.7.2
8. Install the Clamped DPF with mounting bolts (reuse the bolts). Install the new 330-4036 CGI Pipe for Group 1 & Group 2 with the 304-3048 Clamp. Check Inlet, Outlet and CGI pipes alignment, mounting brackets should be aligned with OEM brackets.
Refer OEM guidelines for connecting Inlet & CGI connections.
Image 1.7.2 shows the clamped DPF after it has been installed in the chassis.
9. Install the step and fender that were removed in Step 2 and Step 3.
10. Reset the engine ash model. Refer Media Number RENR9705.
11. Start the engine and use CAT ET to ensure that the status parameter Diesel Particulate Trap #1 Differential Pressure has a value greater than zero. Also ensure status parameters Diesel Particulate Trap #1 Intake Temperature, and Diesel Particulate Trap #1 Outlet Temperature show reasonable values and increase with the rising exhaust temperatures.
