105410-9920 ZEXEL F 019 Z4E 513 BOSCH GOVERNOR f019z4e513 1054109920 1157700710

Information governor

BOSCH F 019 Z4E 513 f019z4e513

ZEXEL 105410-9920 1054109920

ISUZU 1157700710 1157700710

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105410-9920 zexel genuine, new aftermarket engine parts with delivery

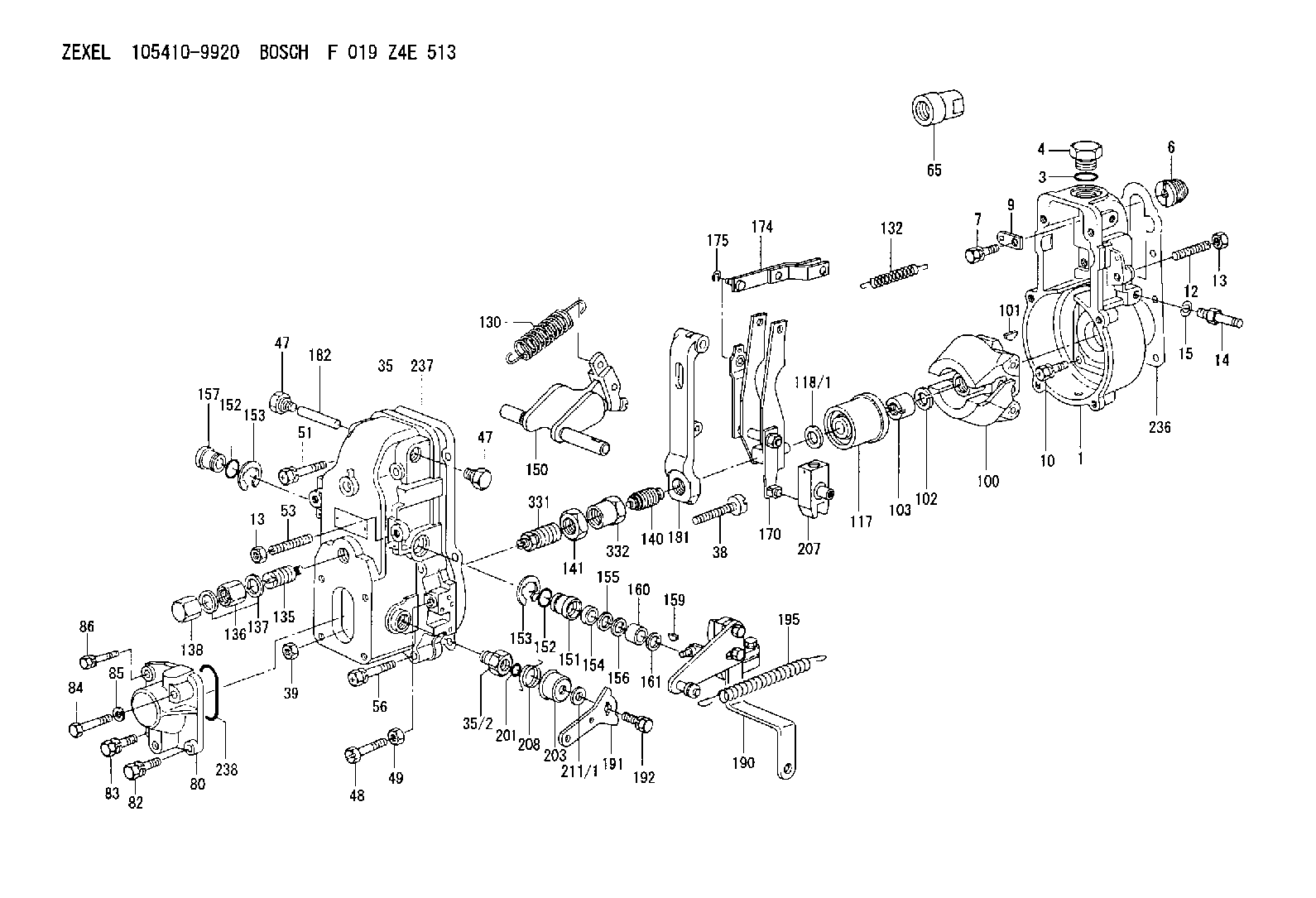

Scheme ###:

1.	[1]	154000-6400	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
6.	[1]	154007-0200	ADAPTOR
7.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
9.	[1]	154350-1900	PLATE
10.	[6]	029010-6810	BLEEDER SCREW
12.	[1]	154010-1100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
14.	[1]	154012-2220	BLEEDER SCREW
15.	[1]	014110-8440	LOCKING WASHER
35.	[1]	154500-3720	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-0100	FLAT-HEAD SCREW
39.	[1]	013020-6020	UNION NUT M6P1H5
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
48.	[1]	154037-0700	BLEEDER SCREW
49.	[1]	154038-0200	HEXAGON NUT
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0200	FLAT-HEAD SCREW
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	155404-0200	CAP
80.	[1]	154063-0600	COVER
82.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
83.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
84.	[1]	029020-6250	BLEEDER SCREW
85.	[1]	014110-6440	LOCKING WASHER
86.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154101-0020	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-0120	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-7700	GOVERNOR SPRING
132.	[1]	154154-0800	COILED SPRING
135.	[1]	154158-0820	HEADLESS SCREW
136.	[1]	154011-1700	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154185-2120	HEADLESS SCREW
141.	[1]	029201-6080	UNION NUT
150.	[1]	154200-7220	SWIVELLING LEVER
151.	[1]	154204-4300	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-4400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154210-7420	FORK LEVER
174.	[1]	154230-3920	STRAP
175.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-1500	TENSIONING LEVER
182.	[1]	154237-0100	BEARING PIN
190.	[1]	154342-4720	CONTROL LEVER
191.	[1]	154307-0100	CONTROL LEVER
192.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
195.	[1]	154314-2600	COILED SPRING
201.	[1]	029631-0030	O-RING &9.8W2.3
203.	[1]	154322-0100	CAP
207.	[1]	154326-5120	CONTROL LEVER
208.	[1]	154327-7300	COILED SPRING
211/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
211/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
211/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
211/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
211/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
211/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
236.	[1]	154390-0000	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
331.	[1]	154179-3420	HEADLESS SCREW
332.	[1]	029201-6010	UNION NUT

Include in #1:

101602-7200 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105410-9920

F 019 Z4E 513
NP-EP/RSV200-1450AQ52A311

1157700710 ISUZU

GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV

Information:

U-457
TT-31
Before/After
PRODUCT SUPPORT PROGRAM FOR REWORKING INTERNAL INJECTOR HARNESS TRAYS ON 2007 C9 ENGINES
1408 PS42515
This Program must be administered either before or after failure.In either case the decision whether to apply the Program is made by the dealer. When reporting the repair, use "PS42515" as the Part Numberand "7755" as the Group Number. If administered before failure, use "56" as the Warranty Claim Description Code and "T" as the SIMS Description code.If administered after failure, use "96" as the Warranty Claim Description Code, and "Z" as the SIMS Description Code.
The information supplied in this service letter may not be valid after the termination date of this program.Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
TERMINATION DATE
30Sep2009
PROBLEM
The existing internal injector harness tray can fracture on certain 2007 C9 engines. If the existing internal injector harness tray fails it can cause metal debris to enter the system.
AFFECTED PRODUCT
Model Identification Number
C9 C9S00500-00507, 522-523, 527, 531, 534-576, 578-633, 635-654, 656-657
PARTS NEEDED
Qty
Part Number Description
5 9L9132 WASHER-HARD
ACTION REQUIRED
Follow Special Instructions REHS3812 for rework procedure.
SERVICE CLAIM ALLOWANCES
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
0-250000 miles,
0-24 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
This is a 2.0-hour job
Dealer to perform most economical repair
Description____________SMCS CODE________Hours
Engine Wash____________1000-074_________0.3
R&I Valve Cover________1107-010_________0.5
Valve Cover Wash_______1107-074_________0.3
Troubleshoot Harness___1408-035_________0.6
Minor Road Test________1000-530_________0.3
Exception may be be considered and claimed depending on chassis type.
PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
