105410-9610 ZEXEL 9 420 614 603 BOSCH GOVERNOR 9420614603 1054109610 me723854

Information governor

BOSCH 9 420 614 603 9420614603

ZEXEL 105410-9610 1054109610

MITSUBISHI ME723854 me723854

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105410-9610 zexel genuine, new aftermarket engine parts with delivery

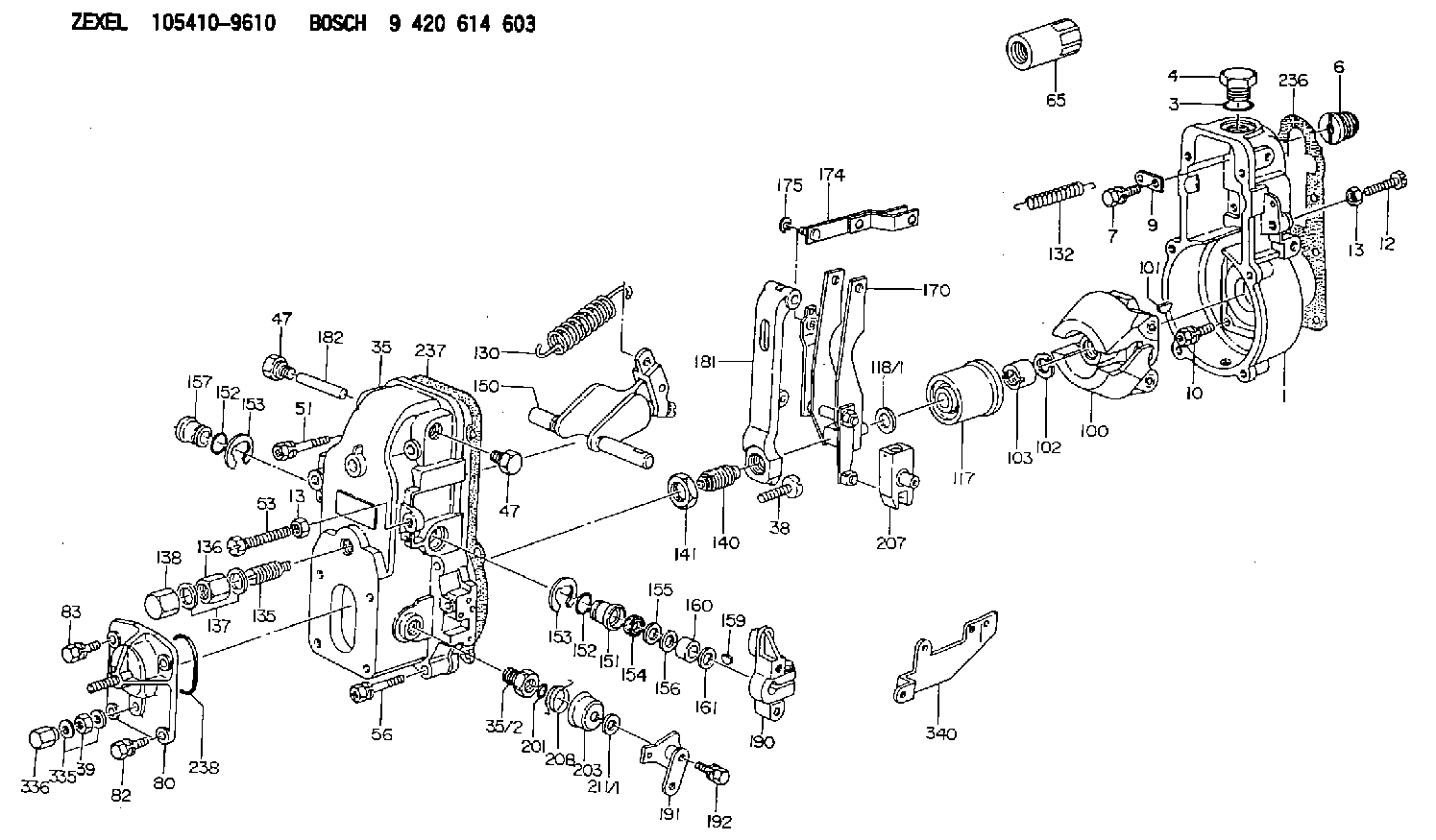

Scheme ###:

1.	[1]	154000-8300	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
6.	[1]	154007-0200	ADAPTOR
7.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
9.	[1]	154350-1900	PLATE
10.	[6]	029010-6810	BLEEDER SCREW
12.	[1]	154010-2900	BLEEDER SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
35.	[1]	154500-3020	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-2400	FLAT-HEAD SCREW
39.	[1]	139206-0600	UNION NUT
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-3100	BLEEDER SCREW
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	155404-3800	CAP
80.	[1]	154063-5420	COVER
82.	[2]	029020-6210	BLEEDER SCREW
83.	[2]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154101-0020	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-0120	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-6400	GOVERNOR SPRING
132.	[1]	154154-0800	COILED SPRING
135.	[1]	154158-1020	HEADLESS SCREW
136.	[1]	154011-1700	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154177-0920	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-6920	SWIVELLING LEVER
151.	[1]	154204-3000	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-3100	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154210-7420	FORK LEVER
174.	[1]	154230-3920	STRAP
175.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-4100	TENSIONING LEVER
182.	[1]	154237-0100	BEARING PIN
190.	[1]	154340-0120	CONTROL LEVER
191.	[1]	154308-4020	CONTROL LEVER
192.	[1]	020006-3240	BLEEDER SCREW
201.	[1]	029631-0030	O-RING &9.8W2.3
203.	[1]	154322-0100	CAP
207.	[1]	154326-5120	CONTROL LEVER
208.	[1]	154327-7300	COILED SPRING
211/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
211/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
211/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
211/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
211/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
211/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
236.	[1]	154390-0000	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
335.	[2]	026506-1040	GASKET D9.9&6.2T1
336.	[1]	154035-1600	CAP NUT
340.	[1]	154213-5800	BRACKET

Include in #1:

101602-1120 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105410-9610

9 420 614 603
NP-EP/RSV200-1350AQ49A311

ME723854 MITSUBISHI

GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV

Information:

Introduction
The problem identified below does not have a permanent solution. Until a permanent solution is known, use the solution that is identified below.Problem
There have been some instances of faults with the 459-7216 DEF Injector & Mounting Gp. The faults can lead to the Diesel Exhaust Fluid (DEF) injector not dosing correctly. Diagnostic trouble codes and operator inducements may become active due to these faults.Solution
Follow the correct troubleshooting procedure for any diagnostic codes related to the DEF system. Refer to Troubleshooting for the correct procedure. Diagnostic code 3361–5 Aftertreatment #1 DEF Dosing Unit : Current Below Normal has been reported, which may lead to operator inducement diagnostic codes 5246-15 Aftertreatment SCR Operator Inducement : Severity : High - least severe (1) and 5246-16 Aftertreatment SCR Operator Inducement : Severity : High - moderate severity.If the troubleshooting procedure indicates a DEF injector fault, perform the following procedure:
Ensure that the latest engine software is installed on the engine ECM. Refer to Troubleshooting, ECM Software - Install for the correct procedure.
Illustration 1 g06123677
View of the 459-7216 DEF Injector & Mounting Gp
(1) DEF injector part number
(2) Cavity number
Record the DEF injector part number (1), serial number, and cavity number (2).Note: The cavity number will be either a "1", a "2", or a "3".
If the DEF injector serial number is between "SN150702094314" and "SN160722000000" and the cavity number is "1", continue with this procedure.If the DEF injector serial number is outside of the range specified above, proceed to Test Step 4.If the cavity number is "2" or a "3", proceed to Test Step 4.
Install a replacement DEF injector. Refer to
