105410-9421 ZEXEL F 019 Z1E 788 BOSCH GOVERNOR f019z1e788 1054109421




Information governor

BOSCH F 019 Z1E 788 f019z1e788
ZEXEL 105410-9421 1054109421
105410-9421 GOVERNOR
Rating:
53
Buy GOVERNOR 105410-9421 zexel genuine, new aftermarket engine parts with delivery

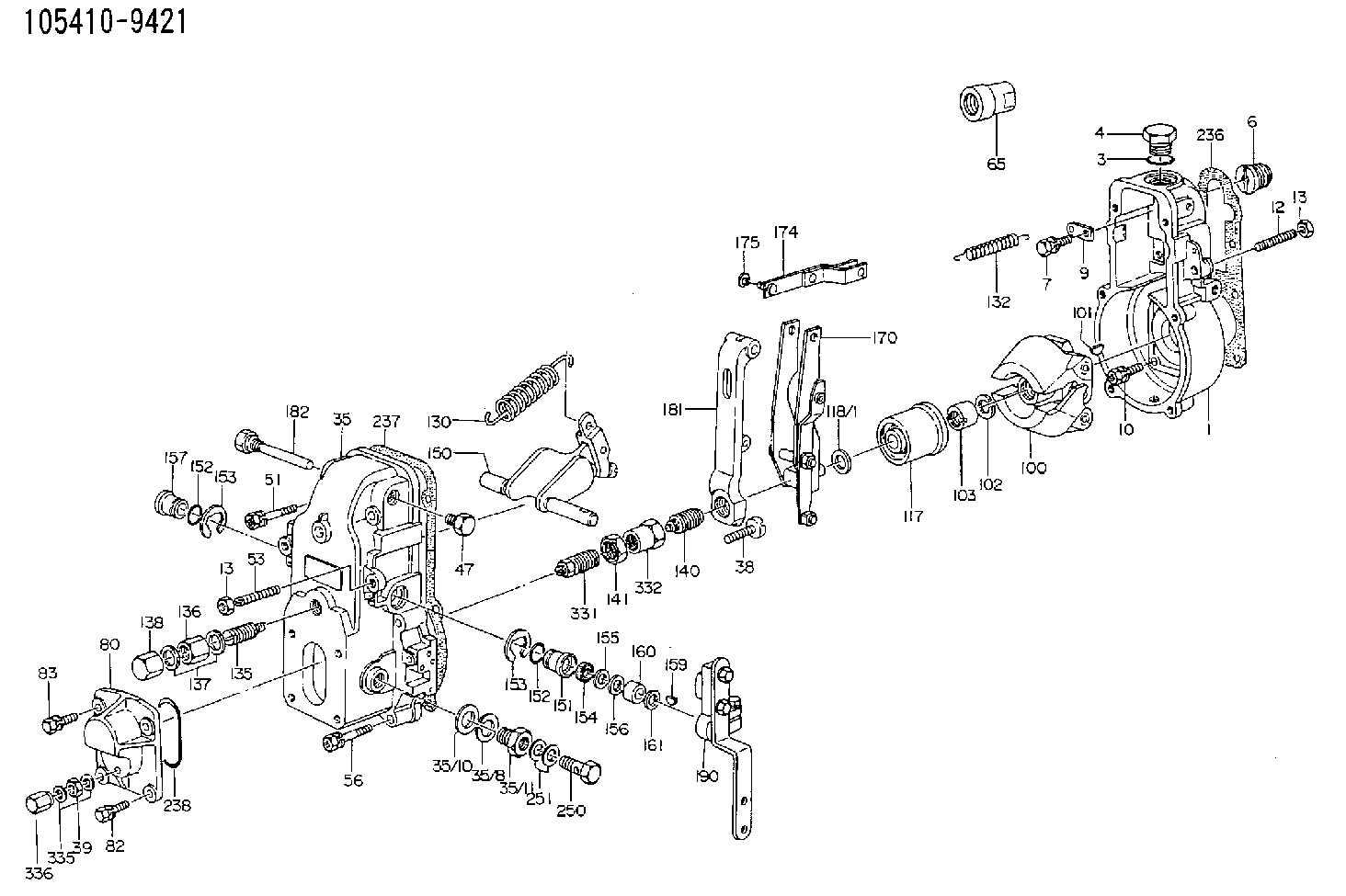

Scheme ###:

1. [1] 154000-6400 GOVERNOR HOUSING
3. [1] 029632-5070 O-RING
4. [1] 154007-2900 CAPSULE
6. [1] 154007-0200 ADAPTOR
7. [1] 020018-1840 BLEEDER SCREW M8P1.25L18
9. [1] 154350-1900 PLATE
10. [6] 029010-6810 BLEEDER SCREW
12. [1] 154010-0100 FLAT-HEAD SCREW
13. [2] 154011-0100 HEXAGON NUT
13. [2] 154011-0100 HEXAGON NUT
35. [1] 154500-7520 GOVERNOR COVER
35/7. [1] 154222-2700 FLAT-HEAD SCREW
35/8. [1] 014110-3440 LOCKING WASHER
35/10. [1] 026516-2040 GASKET D19.9&16.2T1
35/11. [1] 154316-6600 ADAPTOR
38. [1] 154031-3000 FLAT-HEAD SCREW
39. [1] 139206-0600 UNION NUT
47. [1] 154036-0300 CAPSULE
51. [2] 020106-5040 BLEEDER SCREW
53. [1] 154010-0300 FLAT-HEAD SCREW
56. [4] 020106-3840 BLEEDER SCREW
65. [1] 154050-1720 STOPPING DEVICE
80. [1] 154063-5100 COVER
82. [2] 029020-6210 BLEEDER SCREW
83. [2] 020006-1640 BLEEDER SCREW M6P1L16 4T
100. [1] 154100-9720 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-0120 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-2700 GOVERNOR SPRING
132. [1] 154154-0701 COILED SPRING
135. [1] 154158-0820 HEADLESS SCREW
136. [1] 154011-1700 UNION NUT
137. [2] 026512-1540 GASKET D15.4&12.2T1.50
138. [1] 154159-1200 CAP NUT
140. [1] 154185-2220 HEADLESS SCREW
141. [1] 029201-6080 UNION NUT
150. [1] 154200-7220 SWIVELLING LEVER
151. [1] 154204-4300 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 016010-1640 LOCKING WASHER
153. [2] 016010-1640 LOCKING WASHER
154. [1] 139611-0000 PACKING RING
155. [1] 139411-0000 SHIM
156. [0] 029311-1070 SHIM D16&11T0.5
157. [1] 154204-4400 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-2800 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
170. [1] 154211-3820 FORK LEVER
174. [1] 154230-0120 STRAP
175. [1] 016010-0540 LOCKING WASHER
181. [1] 154236-1500 TENSIONING LEVER
182. [1] 154237-1100 BEARING PIN
190. [1] 154341-7820 CONTROL LEVER
236. [1] 154390-0000 GASKET
237. [1] 154390-0300 GASKET
238. [1] 029635-2020 O-RING
250. [1] 029731-2040 EYE BOLT
251. [2] 029341-2140 GASKET
331. [1] 154179-5620 HEADLESS SCREW
332. [1] 029201-6010 UNION NUT
335. [2] 026506-1040 GASKET D9.9&6.2T1
336. [1] 154035-1600 CAP NUT

Include in #1:

101605-3691 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105410-9421
F 019 Z1E 788
NP-EP/RSV200-1600AQ21A11

GOVERNOR
K




Information:


These recommendations are subject to change without notice. Consult your local Cat dealer for the most up to date recommendations.
Diesel engines may burn a wide variety of fuels. These fuels are divided into two general groups. The two groups are called the preferred fuels and the permissible fuels.The preferred fuels provide maximum engine service life and performance. The preferred fuels are distillate fuels. These fuels are commonly called diesel fuel, furnace oil, gas oil, or kerosene. These fuels must meet the “Cat Specification for Distillate Diesel Fuel for Off-Highway Diesel Engines” found in this Special Publication, "Distillate Diesel Fuel" article.The permissible fuels are some crude oils, some blends of crude oil with distillate fuel, and some marine diesel fuel. These fuels are not suitable for use in all engine applications. The acceptability of these fuels for use is determined on a case by case basis. A complete fuel analysis is required. Consult your Cat dealer for further information. Biodiesel fuel is permissible for use in Cat engines. Follow all the recommendations and guidelines given in this Special Publication, "Biodiesel" article.Note: Except for some biodiesel, permissible fuels are not acceptable for use in on-highway applications.
Use of permissible fuels can result in higher maintenance costs and reduced engine service life.
Note: Use of fuels that do not meet at least the minimum performance recommendations and/or requirements may lead to lower compartment performance and/or compartment failure. Problems/failures that are caused by using fuels that do not meet the minimum recommended and/or required performance level are not Cat factory defects and therefore are NOT covered by the Cat warranty. The fuel supplier and customer are responsible.

Have questions with 105410-9421?





Group cross 105410-9421 ZEXEL

9 420 614 286
NP-EP/RSV200-1050AQ37A311

GOVERNOR

Isuzu

F 019 Z1E 125
NP-EP/RSV200-1300AQ39A11
8943254670
GOVERNOR
105410-9421
F 019 Z1E 788
NP-EP/RSV200-1600AQ21A11

GOVERNOR
F 019 Z1E 789
NP-EP/RSV200-1600AQ21A11

GOVERNOR

Isuzu


8943128960
GOVERNOR
F 019 Z1E 126
NP-EP/RSV200-1450AQ43A311

GOVERNOR

Isuzu


8943128940
GOVERNOR
F 019 Z1E 127
NP-EP/RSV200-1450AQ43A311
8943128941
GOVERNOR
F 019 Z1E 128
NP-EP/RSV200-1600AQ21A301
8943178670
GOVERNOR
F 019 Z1E 129
NP-EP/RSV200-1200AQ36A311
1157209491
GOVERNOR
F 019 Z1E 130
NP-EP/RSV200-1450AQ52A311
1157209540
GOVERNOR

8943104900
GOVERNOR

8943104901
GOVERNOR
