105410-8251 ZEXEL 9 420 610 153 BOSCH GOVERNOR 9420610153 1054108251 1157707650




Information governor

BOSCH 9 420 610 153 9420610153
ZEXEL 105410-8251 1054108251
ISUZU 1157707650 1157707650
105410-8251 GOVERNOR
Rating:
10
Buy GOVERNOR 105410-8251 zexel genuine, new aftermarket engine parts with delivery

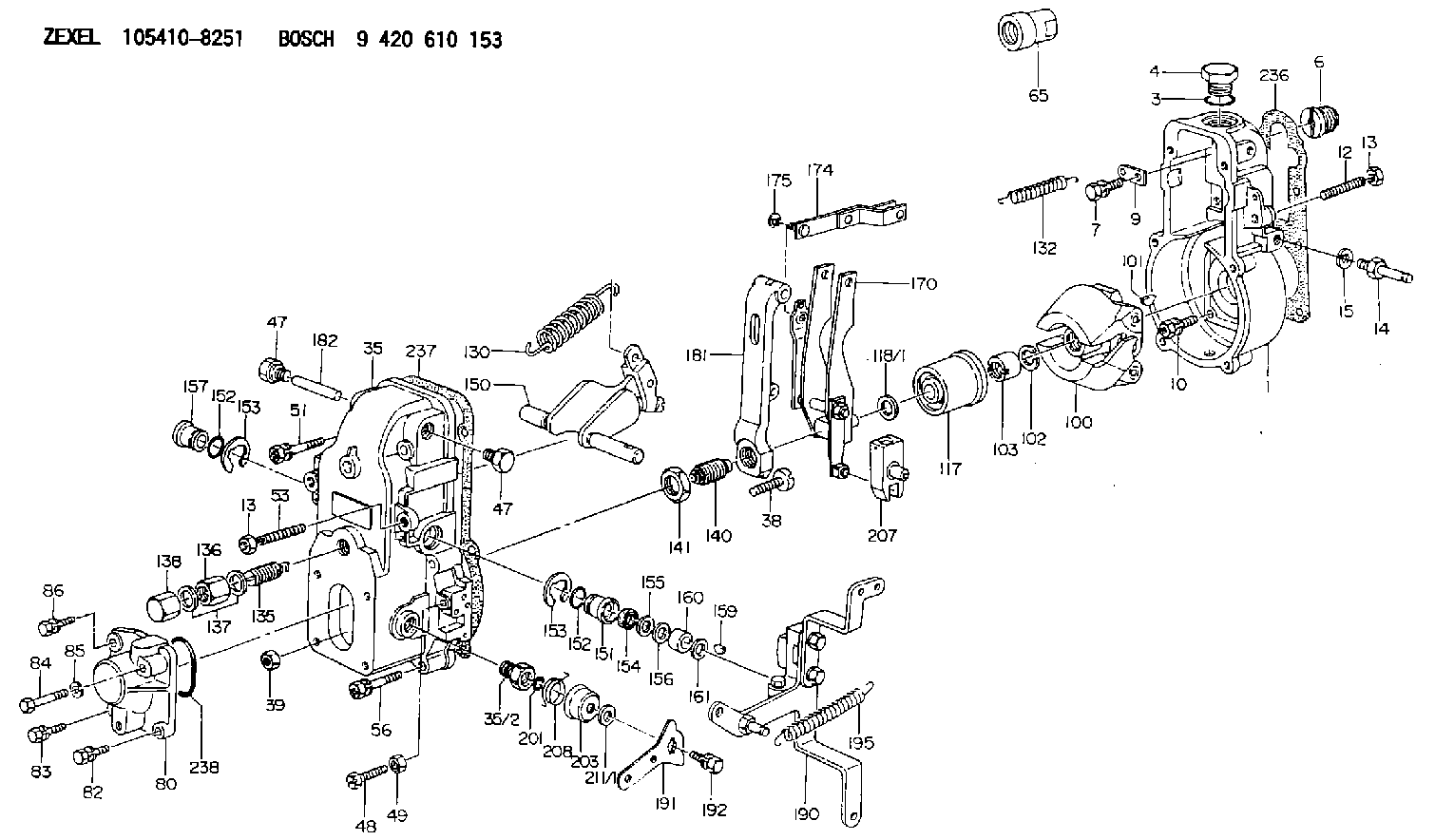

Scheme ###:

1. [1] 154000-6400 GOVERNOR HOUSING
3. [1] 029632-5070 O-RING
4. [1] 154007-2900 CAPSULE
6. [1] 154007-0200 ADAPTOR
7. [1] 020018-1840 BLEEDER SCREW
9. [1] 154350-1900 PLATE
10. [6] 029010-6810 BLEEDER SCREW
12. [1] 154010-1100 FLAT-HEAD SCREW
13. [2] 154011-0100 HEXAGON NUT
13. [2] 154011-0100 HEXAGON NUT
14. [1] 154012-1500 BLEEDER SCREW
15. [1] 014110-8440 LOCKING WASHER D15.4&8.2T2
35. [1] 154500-3720 GOVERNOR COVER
35/2. [1] 154321-0400 BUSHING
38. [1] 154031-0100 FLAT-HEAD SCREW
39. [1] 013020-6020 UNION NUT
47. [2] 154036-0300 CAPSULE
47. [2] 154036-0300 CAPSULE
48. [1] 154037-0700 BLEEDER SCREW
49. [1] 154038-0200 HEXAGON NUT
51. [2] 020106-5040 BLEEDER SCREW
53. [1] 154010-0200 FLAT-HEAD SCREW
56. [4] 020106-3840 BLEEDER SCREW
65. [1] 155404-0200 CAP
80. [1] 154063-0600 COVER
82. [1] 020006-1640 BLEEDER SCREW
83. [1] 020006-1640 BLEEDER SCREW
84. [1] 029020-6250 BLEEDER SCREW
85. [1] 014110-6440 LOCKING WASHER D12.2&6.1T1.5
86. [1] 020006-1640 BLEEDER SCREW
100. [1] 154101-0020 FLYWEIGHT ASSEMBLY
101. [1] 025803-1610 WOODRUFF KEY 16 MM
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-0120 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-7700 GOVERNOR SPRING
132. [1] 154154-0800 COILED SPRING
135. [1] 154158-0920 HEADLESS SCREW
136. [1] 154011-1700 UNION NUT
137. [2] 026512-1540 GASKET
138. [1] 154159-1200 CAP NUT
140. [1] 154178-9220 HEADLESS SCREW
141. [1] 029201-6010 UNION NUT
150. [1] 154200-7220 SWIVELLING LEVER
151. [1] 154204-3000 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 016010-1640 LOCKING WASHER
153. [2] 016010-1640 LOCKING WASHER
154. [1] 139611-0000 PACKING RING
155. [1] 139411-0000 SHIM
156. [0] 029311-1070 SHIM D16&11T0.5
157. [1] 154204-3100 BUSHING
159. [1] 025803-1310 WOODRUFF KEY 13 MM
160. [1] 154206-2800 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
170. [1] 154210-7420 FORK LEVER
174. [1] 154230-3920 STRAP
175. [1] 016010-0540 LOCKING WASHER
181. [1] 154236-1500 TENSIONING LEVER
182. [1] 154237-0100 BEARING PIN
190. [1] 154342-7120 CONTROL LEVER
191. [1] 154307-0100 CONTROL LEVER
192. [1] 020006-1640 BLEEDER SCREW
195. [1] 154314-0200 COILED SPRING
201. [1] 029631-0030 O-RING
203. [1] 154322-0100 CAP
207. [1] 154326-5120 CONTROL LEVER
208. [1] 154327-7300 COILED SPRING
211/1. [0] 029311-0520 SHIM D20.8&10.3T0.2
211/1. [0] 029311-0530 SHIM D20.8&10.3T0.25
211/1. [0] 029311-0540 SHIM D20.8&10.3T0.3
211/1. [0] 029311-0550 SHIM D20.8&10.3T0.35
211/1. [0] 029311-0560 SHIM D20.8&10.3T0.4
211/1. [0] 029311-0570 SHIM D20.8&10.3T0.5
236. [1] 154390-0000 GASKET
237. [1] 154390-0300 GASKET
238. [1] 029635-2020 O-RING

Include in #1:

101602-4512 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105410-8251
9 420 610 153
NP-EP/RSV200-1450AQ52A311
1157707650  ISUZU
GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV




Information:

Checking Backpressure with Manometer/Gauge
Remove the plug from the pressure tap coupling located on the manifold immediately after the engine and install a manometer or pressure gauge. Use a gauge with a minimum range of 0 to 20 kpa (0 to 80 inch of H2O).
After completely warming up the engine, run at no load, wide open throttle (W.O.T.) for 2 to 3 minutes. Record the pressure reading while the engine is running at no load, W.O.T. Repeat 2 to 3 times.
If the observed backpressure is less than 10.20 kPa (41 inch of H2O), the DPF can continue to be operated without further maintenance.
If the backpressure is greater than 10.20 kPa (41 inch of H2O) at the time of installation, contact your Caterpillar dealer. If the backpressure is greater than 10.20 kPa (41 inch of H2O) during a maintenance check, contact your Caterpillar dealer. Your Warranty Rights And Obligations
VERIFIED PRODUCT WARRANTY
Caterpillar Inc. warrants the diesel emission control system in the application for which it is sold or leased to be free from defects in design, materials, workmanship, or operation of the diesel emission control system which cause the diesel emission control system to fail to conform to the emission control performance level it was verified to, or to the requirements in the California Code of Regulations, Title 13, Sections 2700 to 2706, and 2710, for the periods of time listed below, provided there has been no abuse, neglect, or improper maintenance of your diesel emission control system, vehicle or equipment, as specified in the owners manuals. Where a warrantable condition exists, this warranty also covers the engine from damage caused by the diesel emission control system, subject to the same exclusions for abuse, neglect or improper maintenance of your vehicle or equipment. Please review your owners manual for other warranty information. Your diesel emission control system may include a core part (e.g., particulate filter, diesel oxidation catalyst, selective catalytic reduction converter) as well as hoses, connectors, a backpressure monitor (if applicable), and other emission-related assemblies. Where a warrantable condition exists, Caterpillar will repair or replace your diesel emission control system at no cost to you including diagnosis, parts, and labor.WARRANTY COVERAGE
For engines used in verified applications, the warranty period will be in years or hours or miles of operation, whichever occurs first, based on the following chart:
Table 1
Engine Type Engine Size Minimum Warranty Period
On-Road Light heavy-duty, 70 to 170 hp, Gross Vehicle Weight Rating (GVWR) less than 19,500 lbs. 5 years or 60,000 miles
Medium heavy-duty, 170 to 250 hp, GVWR from 19,500 lbs. to 33,000 lbs. 5 years or 100,000 miles
Heavy heavy-duty, exceeds 250 hp, GVWR exceeds 33,000 lbs. 5 years or 150,000 miles
Heavy heavy-duty, exceeds 250 hp, GVWR exceeds 33,000 lbs., and trucks are:
1. Typically driven over 100,000 miles per year, and
2. Have less than 300,000 miles on the odometer at the time of installation. 2 years, unlimited miles
Off-Road (includes portable engines) and Stationary Under 25 hp, and for constant speed engines rated under 50 hp with rated speeds
