105410-6421 ZEXEL 9 420 612 442 BOSCH GOVERNOR 9420612442 1054106421

Information governor

BOSCH 9 420 612 442 9420612442

ZEXEL 105410-6421 1054106421

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105410-6421 zexel genuine, new aftermarket engine parts with delivery

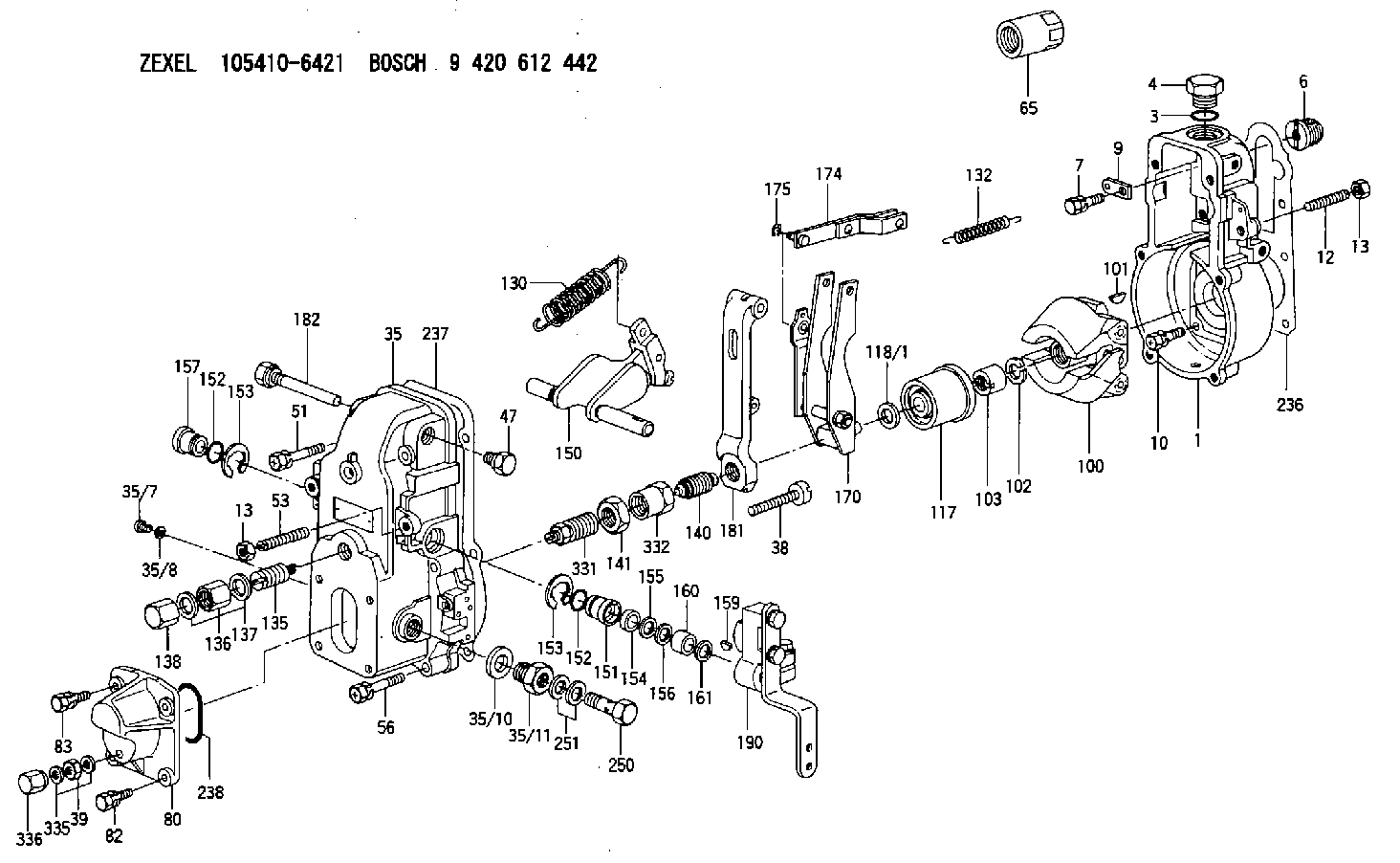

Scheme ###:

1.	[1]	154000-6400	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
6.	[1]	154007-0200	ADAPTOR
7.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
9.	[1]	154350-1900	PLATE
10.	[6]	029010-6810	BLEEDER SCREW
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
35.	[1]	154500-7520	GOVERNOR COVER
35/7.	[1]	154222-2700	FLAT-HEAD SCREW
35/8.	[1]	014110-3440	LOCKING WASHER
35/10.	[1]	026516-2040	GASKET D19.9&16.2T1
35/11.	[1]	154316-6600	ADAPTOR
38.	[1]	154031-3000	FLAT-HEAD SCREW
39.	[1]	139206-0600	UNION NUT
47.	[1]	154036-0300	CAPSULE
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0300	FLAT-HEAD SCREW
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	155404-5700	CAP
80.	[1]	154063-5100	COVER
82.	[2]	029020-6210	BLEEDER SCREW
83.	[2]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154100-9720	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-0120	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-2700	GOVERNOR SPRING
132.	[1]	154154-0701	COILED SPRING
135.	[1]	154158-0820	HEADLESS SCREW
136.	[1]	154011-1700	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154185-1020	HEADLESS SCREW
141.	[1]	029201-6080	UNION NUT
150.	[1]	154200-7220	SWIVELLING LEVER
151.	[1]	154204-4300	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-4400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154211-3820	FORK LEVER
174.	[1]	154230-0120	STRAP
175.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-1500	TENSIONING LEVER
182.	[1]	154237-1100	BEARING PIN
190.	[1]	154341-6220	CONTROL LEVER
236.	[1]	154390-0000	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
250.	[1]	029731-2040	EYE BOLT
251.	[2]	029341-2140	GASKET
331.	[1]	154172-6820	HEADLESS SCREW
332.	[1]	029201-6010	UNION NUT
335.	[2]	026506-1040	GASKET D9.9&6.2T1
336.	[1]	154035-1600	CAP NUT

Include in #1:

101602-3581 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105410-6421

9 420 612 442
NP-EP/RSV200-1600AQ21A11NP399D

GOVERNOR
K

Information:

Introduction
The design of the groove for the O-ring has changed. The proper O-ring should be used in order to match the design of the groove.
Illustration 1 g00715900
(1) O-Ring seal
Illustration 2 g00716166
Old O-Ring grooveUse with 9X-7680 O-Ring Seal
Illustration 3 g00716168
New O-Ring grooveUse with 033-6039 O-Ring Seal
Table 1
O-Ring Part Numbers
New Part Number Old Part Number
033-6039 9X-7680 Improved Kits
One extra O-ring of the new size will be included within each kit. The affected kits are listed in table 2.
Table 2
Part Number Description
138-6256 Seal Kit
154-6732 Fuel Injection Pump Kit
166-5985 Unit Injector Hydraulic Pump Compensator
