105410-4180 ZEXEL F 019 Z4E 442 BOSCH GOVERNOR f019z4e442 1054104180 5157201452

Information governor

BOSCH F 019 Z4E 442 f019z4e442

ZEXEL 105410-4180 1054104180

ISUZU 5157201452 5157201452

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105410-4180 zexel genuine, new aftermarket engine parts with delivery

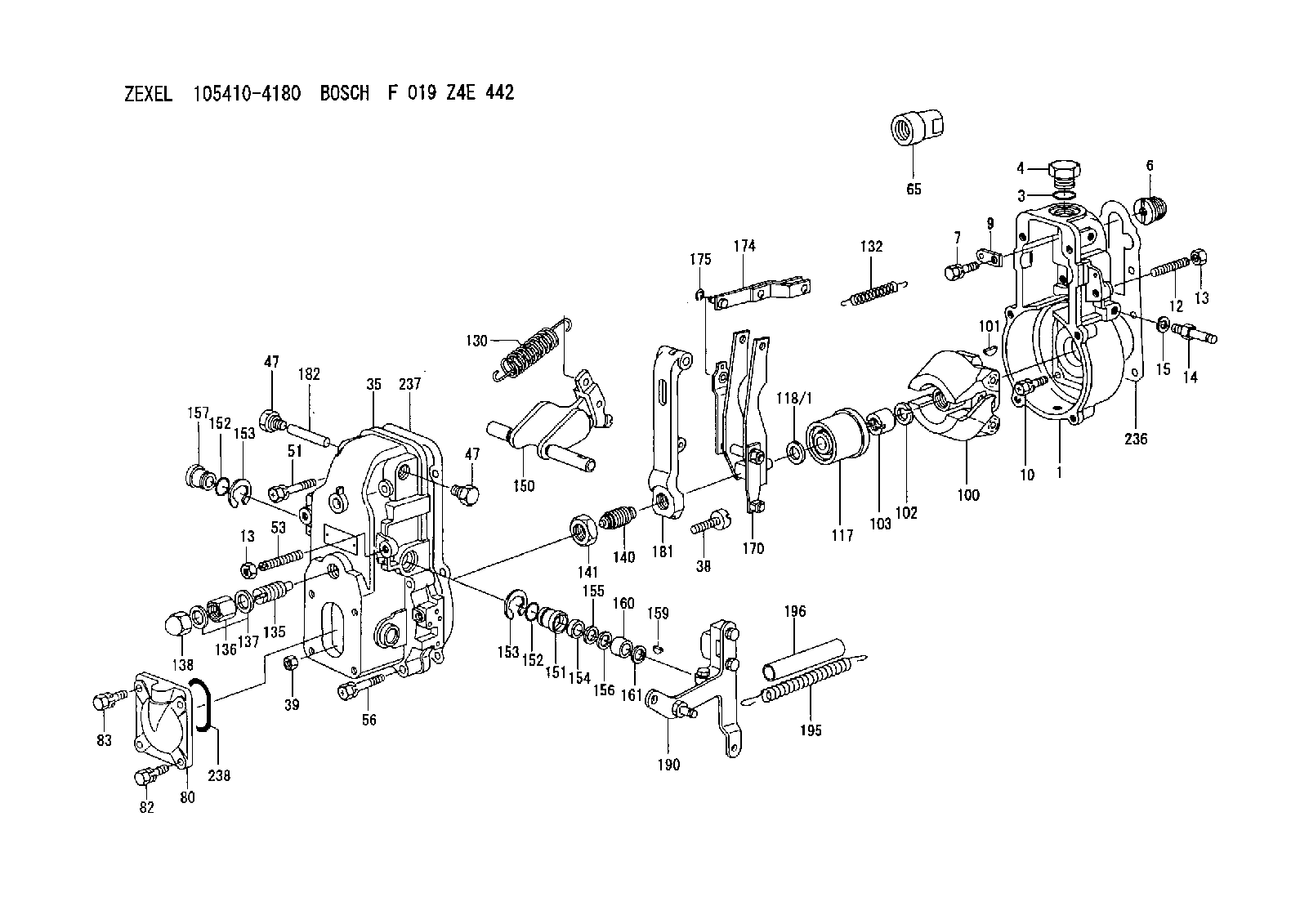

Scheme ###:

1.	[1]	154000-6400	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
6.	[1]	154007-0200	ADAPTOR
7.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
9.	[1]	154350-1900	PLATE
10.	[6]	029010-6810	BLEEDER SCREW
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
14.	[1]	154012-1500	BLEEDER SCREW
15.	[1]	014110-8440	LOCKING WASHER
35.	[1]	154500-2020	GOVERNOR COVER
38.	[1]	154031-0100	FLAT-HEAD SCREW
39.	[1]	013020-6020	UNION NUT M6P1H5
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0200	FLAT-HEAD SCREW
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	155404-0200	CAP
80.	[1]	154063-1800	COVER
82.	[2]	029020-6210	BLEEDER SCREW
83.	[2]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154100-4820	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-1420	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-7700	GOVERNOR SPRING
132.	[1]	154154-0500	COILED SPRING
135.	[1]	154157-5220	HEADLESS SCREW
136.	[1]	029201-2030	UNION NUT M12P1.0H4
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-0100	CAP NUT
140.	[1]	154185-1320	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-7220	SWIVELLING LEVER
151.	[1]	154204-4300	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-4400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154211-6920	FORK LEVER
174.	[1]	154230-0120	STRAP
175.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-1500	TENSIONING LEVER
182.	[1]	154237-0100	BEARING PIN
190.	[1]	154303-5220	CONTROL LEVER
195.	[1]	154314-0200	COILED SPRING
196.	[1]	154156-1100	TUBE
236.	[1]	154390-0000	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING

Include in #1:

101421-4970 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105410-4180

F 019 Z4E 442
NP-EP/RSV300-1850AQ51A11NP344

5157201452 ISUZU

GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV

Information:

(1) Bore in bearing of idler gear ... 28.600 0.048 mm (1.1260 .0019 in) Diameter of shaft for the idler gear ... 28.512 0.013 mm (1.1225 .0005 in)Clearance between bearing and shaft ... 0.028 to 0.150 mm (.0011 to .0059 in)(2) Clearance between gear and body of pump ... 0.05 to 0.66 mm (.002 to .026 in)(3) Diameter of shafts for pump ... 22.217 0.005 mm (.8747 .0002 in) Bore in bearings for shafts (2P1785) ... 22.258 0.008 mm (.8763 .0003 in)Bore in bearings for shafts (4W2448) ... 22.286 0.051 mm (.8774 .0020 in)Clearance between shafts and bearings (2P1785) ... 0.028 to 0.053 mm (.0011 to .0021 in)Clearance between shafts and bearings (4W2448) ... 0.025 to 0.127 mm (.0010 to .0050 in)(4) Depth that bearings are installed in pump bodies ... 1.50 0.25 mm (.060 .010 in)(5) Gear. Length of gears ... 50.808 0.025 mm (2.0003 .0010 in) Depth of bore in pump body for gears ... 50.935 0.020 mm (2.0053 .0008 in)Clearance between end of gears and pump body ... 0.081 to 0.173 mm (.0032 to .0068 in)(6) Length of gears ... 38.070 0.025mm (1.4988 .0010 in) Depth of bore in pump body for gears ... 38.197 0.020 mm (1.5038 .0008 in)Clearance between end of gears and pump body ... 0.081 to 0.173 mm (.0032 to .0068 in)(7) Distance from the end of the idler shafts to gear faces ... 21.03 0.13 mm (.828 .005 in) Maximum temperature of gear when shrinking in place ... 398° C (750° F)(8) Distance from the end of the drive shaft to gear face ... 38.2 0.13 mm (1.505 .005 in) Maximum temperature of gear when shrinking in place ... 398° C (750° F)(9) Torque for bolt holding drive gear to drive shaft ... 43 7 N m (32 5 lb ft) Install the bearings in the cover and body for the oil pump so the bearing junctions (joints) are in the position shown.(10) Distance dowel extends from body ... 6.0 0.5 mm (.24 .02 in)(11) Shaft assembly. Distance shaft assembly extends from body ... 30.50 0.25 mm (1.200 .010 in) Before running, lubricate pump with oil. Pump must rotate freely by hand.
