105410-3900 ZEXEL F 019 Z1E 054 BOSCH GOVERNOR f019z1e054 1054103900 5157201790

Information governor

BOSCH F 019 Z1E 054 f019z1e054

ZEXEL 105410-3900 1054103900

ISUZU 5157201790 5157201790

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105410-3900 zexel genuine, new aftermarket engine parts with delivery

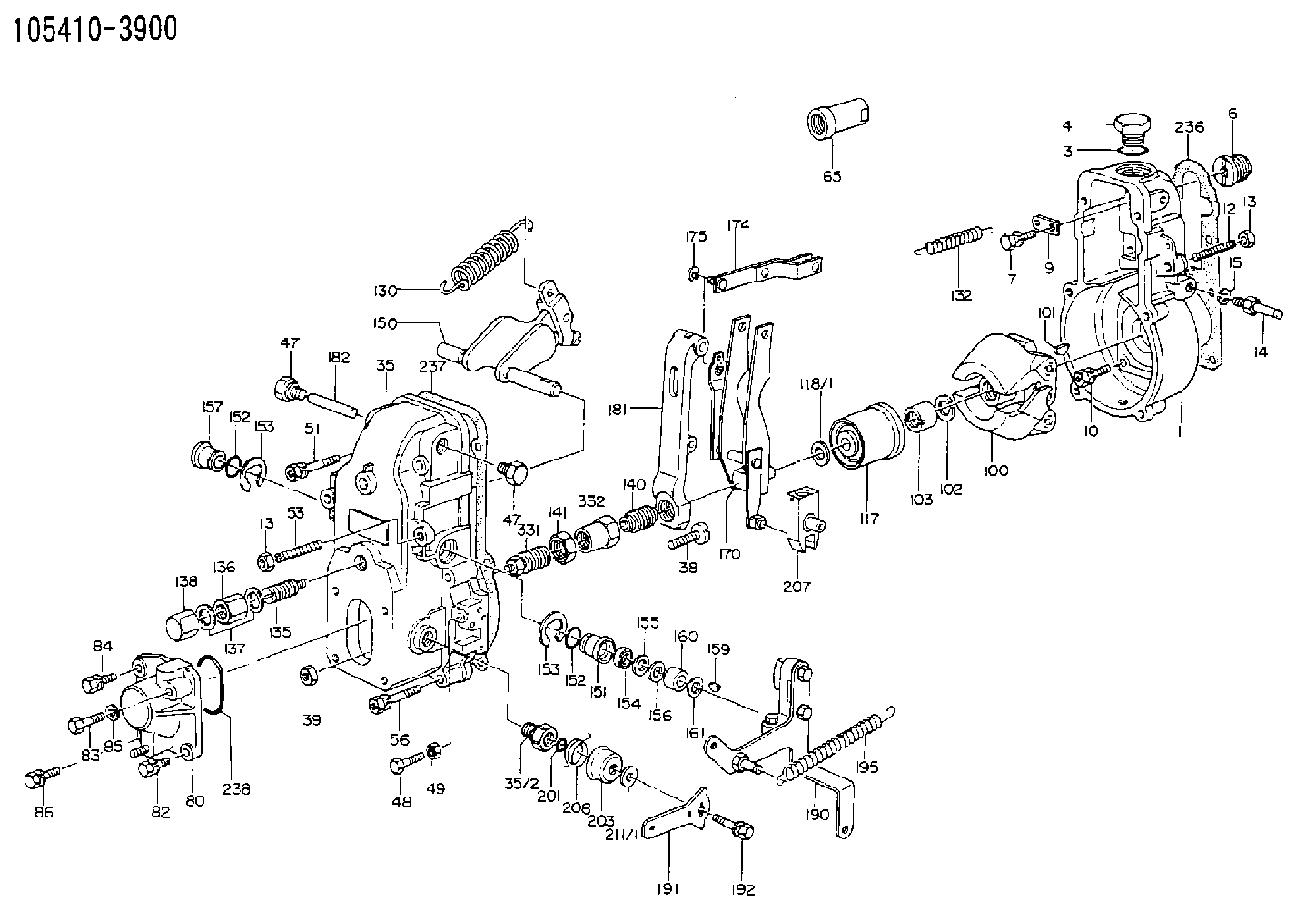

Scheme ###:

1.	[1]	154000-6400	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
6.	[1]	154007-0200	ADAPTOR
7.	[1]	020018-1840	BLEEDER SCREW M8P1.25L18
9.	[1]	154350-1900	PLATE
10.	[6]	029010-6810	BLEEDER SCREW
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
14.	[1]	154012-1500	BLEEDER SCREW
15.	[1]	014110-8440	LOCKING WASHER
35.	[1]	154500-3720	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-0100	FLAT-HEAD SCREW
39.	[1]	013020-6020	UNION NUT M6P1H5
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
48.	[1]	154037-0700	BLEEDER SCREW
49.	[1]	154038-0200	HEXAGON NUT
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0200	FLAT-HEAD SCREW
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	155404-0200	CAP
80.	[1]	154063-1220	COVER
82.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
83.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
84.	[1]	029020-6250	BLEEDER SCREW
85.	[1]	014110-6440	LOCKING WASHER
86.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154101-0020	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1610	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-0120	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-2700	GOVERNOR SPRING
132.	[1]	154154-0800	COILED SPRING
135.	[1]	154158-0920	HEADLESS SCREW
136.	[1]	154011-1700	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154185-2120	HEADLESS SCREW
141.	[1]	029201-6080	UNION NUT
150.	[1]	154200-7220	SWIVELLING LEVER
151.	[1]	154204-4300	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-4400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154210-7420	FORK LEVER
174.	[1]	154230-3920	STRAP
175.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-1500	TENSIONING LEVER
182.	[1]	154237-0100	BEARING PIN
190.	[1]	154342-1420	CONTROL LEVER
191.	[1]	154307-0100	CONTROL LEVER
192.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
195.	[1]	154314-0200	COILED SPRING
201.	[1]	029631-0030	O-RING &9.8W2.3
203.	[1]	154322-0100	CAP
207.	[1]	154326-5120	CONTROL LEVER
208.	[1]	154327-7300	COILED SPRING
211/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
211/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
211/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
211/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
211/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
211/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
236.	[1]	154390-0000	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
331.	[1]	154172-2920	HEADLESS SCREW
332.	[1]	029201-6010	UNION NUT

Include in #1:

101602-0350 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105410-3900

F 019 Z1E 054
NP-EP/RSV200-1450AQ43A311NP193

5157201790 ISUZU

GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV

Information:

(1) 7S7144 Spring for valves (new): Length under test force ... 44.86 mm (1.766 in)Test force ... 257 25 N (57.7 4.5 lb)Length of spring at valve open position ... 32.28 mm (1.271 in)Load at minimum operating length ... 708 35 N (160 8 lb)Free length after test ... 52.07 mm (2.05 in)Outside diameter ... 35.21 mm (1.386 in)Spring must not be bent more than ... 1.82 mm (.072 in)(2) Height to top of valve guide ... 22.23 0.25 mm (.875 .010 in)(3) Diameter of valve stem (new) ... 9.441 0.008 mm (.3717 .0003 in) Use again minimum diameter ... 9.408 mm (.3704 in)Bore in valve guide with guide installed in the head.Minimum permissible (new) ... 9.456 mm (.3723 in)Maximum permissible (worn) ... 9.581 mm (.3772 in)(4) Valve lip thickness: 6N9916 Exhaust Valve Use again minimum ... 2.69 mm (.106 in)2W2620 Intake Valve Use again minimum ... 2.69 mm (.106 in)6N9915 Intake Valve Use again minimum ... 2.44 mm (.096 in)(5) Diameter of valve head: Exhaust valve ... 48.16 0.13 mm (1.896 .005 in)Intake valve ... 51.31 0.13 mm (2.020 .005 in)(6) Angle of valve face ... 29 1/4 1/4° (7) Depth of bore in head for valve seat insert ... 12.28 0.13 mm (.483 .005 in)(8) Diameter of valve seat insert for exhaust valve ... 50.889 0.013 mm (2.0035 .0005 in) Bore in head for valve seat insert for exhaust valve ... 50.813 0.030 mm (2.0005 .0012 in)Diameter of valve seat insert for intake valve ... 52.032 0.013 mm (2.0485 .0005 in)Bore in head for valve seat insert for intake valve ... 51.956 0.030 mm (2.0455 .0012 in)(9) Angle of face of valve seat insert ... 30 1°(10) Maximum permissible width of valve seat (intake and exhaust) ... 1.93 mm (.076 in) Minimum permissible width of valve seat (intake and exhaust) ... 1.14 mm (.045 in)(11) Dimension from top of closed valve to face of head: Minimum permissible dimension for 6N9916 Exhaust Valve ... 0.66 mm (.026 in)Minimum permissible dimension for 6N9915 or 2W2620 Intake Valve ... 0.15 mm (.006 in)(12) Outside diameter of the face of the valve seat insert: Exhaust seat ... 46.02 mm (1.812 in)Maximum permissible, exhaust seat ... 47.29 mm (1.862 in)Intake seat ... 49.28 mm (1.940 in)Maximum permissible, intake seat ... 50.55 mm (1.990 in)(13) Angle to grind seat face of the insert to get a reduction of maximum seat diameter ... 15°
