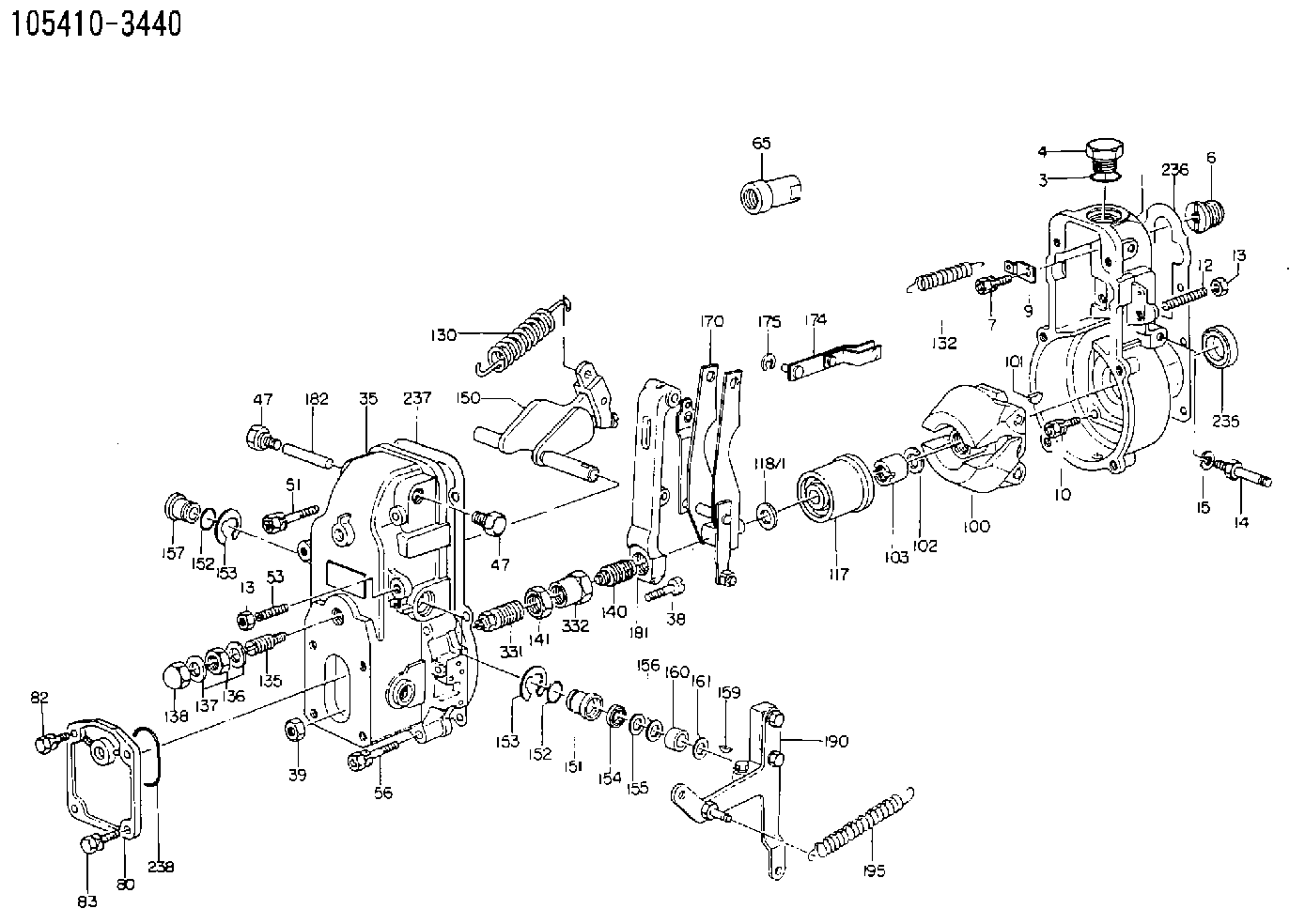

105410-3440 ZEXEL F 019 Z1E 045 BOSCH GOVERNOR f019z1e045 1054103440 5157201490

307-OR to S Terminal of Key Switch, 308-YL to R Terminal of Key Switch, 105-BR to B Terminal of Key Switch,7. Connect additional leads to the key switch by loosening the screws and placing 307-OR, 308-YL and 105-BR leads under the screws and tighten. Make sure to match existing wire codes and color.8. Clip EPTC-II data link extension of EUI Retro harness (used for EPTC II) with 3T3048 clip assembly. 9. Remove existing console panel located towards rear of console directly above transmission control box (EPTC).
1053652 Panel Group. 1. 1052038 Plate. 2. 1052484 Film. 3. 6T6066 Switch Assembly. 4. Two 6T6329 Bezel. 5. Four 5P7590 Bolt. 6. 6T3990 Switch Assembly. 7. Four 3E8043 Screw. 8. 8C6354 Cap. 9. Four 5P1075 Washer. 10. 7T0493 Plug. 11. Four 6V8801 Nut. 12. Two 3T0304 Base. 13. Two 7N1996 Lamp. 14. Two 6T7058 Lens. 15. Two 6T2774 Clip. 16. Four 6B4540 Nut. 17. Four 6D3033 Screw. 18. Four 6V9497 Washer. 19. 1049543 Harness Assembly. 20. 1052045 Panel. 1 10. Assemble the 1053652 Panel Group as shown in the illustrations above.
1049543 Harness Assembly11. Connect the harness and individual wires as shown. Clip 1049543 Harness to the panel with 8M2773 Clip.12. Connect the EUI Retro harness to 1049543 Harness Assembly. Clip the connection with a 3T3046 Clip Assembly. Position the panel group back in place on the console with the existing hardware.Cab EUI Retrofit Harness (Front of Cab)
A major portion of the EUI Retro harness will extend through the tunnel to the front of the cab where connections must be made to the:* Overspeed warning light* Throttle pedal* Warning hornOverspeed warning light
Route the front portion of the Retro Harness through the tunnel under the cab. The plate under the cab may be removed for easier access.All trucks after 9ZC133 were equipped with an engine overspeed control module located in the front of the cab. This function is now handled by the EUI-Electronic Control Module. Part of this old system (8W0584 Wiring Group-Cab) must be disconnected and removed.Remove the following items.
8W0584 Wiring Group. 1. 8W7193 Harness Assembly. 2. 7T3821 Control Group. 3. 9D3721 Switch. 4. Two 7N8419 Terminals. 5. Three 4M5282 Bolts. 6. Three 5P4115 Washers.Overspeed Warning Group
All trucks with PINS 9ZC1 thru 9ZC132, a Special Instruction SEHS8863 Installation of Off-Highway Truck Engine Overspeed Warning Indicator Group was available to update these trucks with the stand alone engine overspeed system.This Special Instruction should be used for all trucks within this PIN range.* Trucks that was not retro-fitted with engine overspeed.* Trucks that had been retro-fitted with Special Instruction SEHS8863.Trucks That Was Not Retro-fitted
Install just the items given in the following chart on these trucks. The 12 items in the chart above must be installed to complete the EUI Retro-fit on those trucks that had no overspeed warning installed. The following Steps were taken from Special Instruction SEHS8863. The following Steps are similar to the Steps in SEHS8863. Do only those things that are spelled out in these 12 Steps, which were taken from SEHS8863.1. Disconnect
