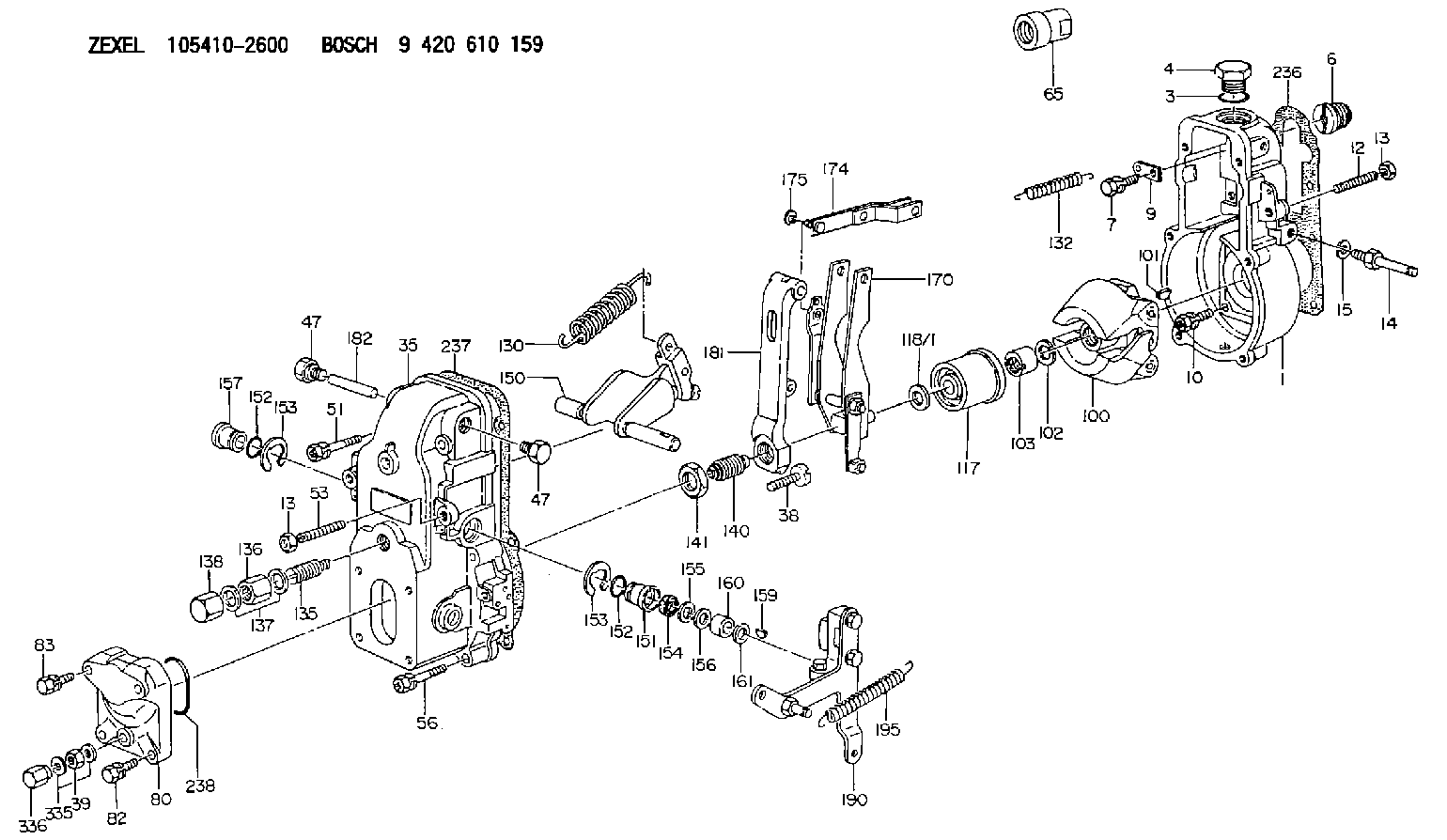

105410-2600 ZEXEL 9 420 610 159 BOSCH GOVERNOR 9420610159 1054102600

3.1 Service Standards Table
3.2 Tightening torque table
4. Special Tool
5. Service Procedures
5.1 Removal and Installation
(1) Removal (a) When removing the pressure plate and lever assembly, fix the pressure plate using the special tools, Stopper Bolt and Washer. (C4 and C8 only) (b) Install the special tool, Clutch Alignment Arbor to prevent drop of the clutch disc and then remove the pressure plate and lever assembly.(2) Installation (a) Install the clutch disc using the special tool, Clutch Alignment Arbor. When installing the clutch disc, use care not to confuse the front and reverse sides. Install with the side bearing the part No. facing outside. (b) Install the pressure plate and lever assembly, aligning with the knock pins of the fly wheel. In the case of C4 and C8, install after fixing the pressure plate using special tools, Stopper Bolt and Washer. 1. Before installing the clutch, check and clean the flywheel. If faulty, correct or replace.2. When tightening the bolts, do so in diagonal order and uniformly.3. After installation, be sure to remove the Stopper Bolt and Washer. (C4 and C8 only)(c) Inspection of release lever plate height (at clutch disc replacement only) Using special tool, Clutch Release Lever Aligner, check the height of the clutch cover and release lever plate.If adjustment is necessary, adjust referring to 5.2.2 (3).(d) Adjustment after installation of bearing case. After installation, adjust the free travel (clearance between the release bearing and release lever). 1) Move the lever in the direction to engage the clutch. At a position where a click is heard in the clutch, turn the adjusting bolt A until it is blocked by the stopper, and lock it by turning down the bolt another two or three threads.2) From the position where the release bearing has touched the release lever, turn the adjusting screw B in the direction to disengage the clutch and check to see that the clutch is in disengaged position. Then lock the bolt. When making adjustment, lock in position the ratchet of the lever of the opposite side. 1) Loosen the control ling lock nut and from the position where the release bearing is in contact with the release lever, move back by B1 mm and lock in position (clutch lever setting position when clutch is engaged).2) In the direction to disengage the clutch, lock the air cylinder adjusting bolt at a position B2 mm from the position where the release bearing is in contact with the release lever.5.2 Clutch Proper
Disassembly and inspection
Disassembly and Inspection(1) Removal of clutch cover (a) Matchmark the clutch cover and pressure plate and using special tool, Clutch Installer, compress the pressure spring and remove support lever nut, strap bolt, etc.(b) Slowly loosen the handle of the Clutch Installer to remove the clutch cover.(2) Wear of facing Measure the depth from facing surface to rivet head. If the depth is smaller than the limit, replace the clutch disc assembly.(3) Runout of clutch disc Using a runout tester, measure the runout of the clutch
