105408-1010 ZEXEL F 019 Z9E 030 BOSCH GOVERNOR f019z9e030 1054081010 223205540a




Information governor

BOSCH F 019 Z9E 030 f019z9e030
ZEXEL 105408-1010 1054081010
HINO 223205540A 223205540a
105408-1010 GOVERNOR
Rating:
64
Buy GOVERNOR 105408-1010 zexel genuine, new aftermarket engine parts with delivery

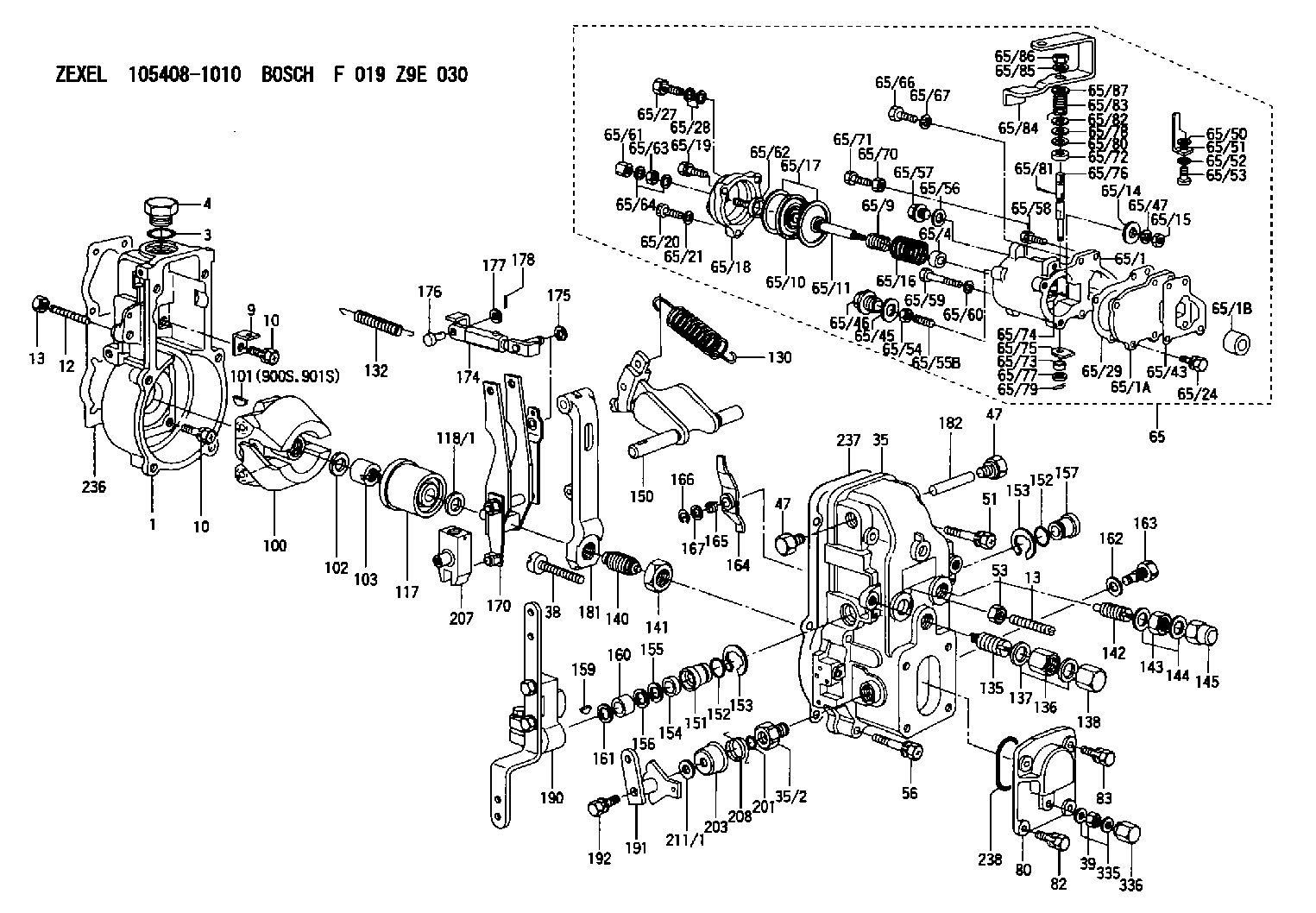

Scheme ###:

GOVERNOR HOUSING
1. [1] 154000-4700 GOVERNOR HOUSING
3. [1] 029632-5070 O-RING
4. [1] 154007-2900 CAPSULE
9. [1] 154350-6000 PLATE
10. [8] 020106-2040 BLEEDER SCREW M6P1L20
10. [8] 020106-2040 BLEEDER SCREW M6P1L20
12. [1] 154010-1100 FLAT-HEAD SCREW
13. [2] 154011-0100 HEXAGON NUT
13. [2] 154011-0100 HEXAGON NUT
35. [1] 154500-1220 GOVERNOR COVER
35/2. [1] 154321-0400 BUSHING
38. [1] 154031-5600 FLAT-HEAD SCREW
39. [1] 139206-0600 UNION NUT
47. [2] 154036-0300 CAPSULE
47. [2] 154036-0300 CAPSULE
51. [2] 020106-5040 BLEEDER SCREW
53. [1] 154010-0100 FLAT-HEAD SCREW
56. [4] 020106-3840 BLEEDER SCREW
65. [1] 154422-3220 MANIFOLD-PRESSURE COMP.
65/1. [1] 154412-7820 DIAPHRAGM HOUSING
65/1A. [1] 154408-2901 SPACER BUSHING
65/1B. [1] 134009-0000 SPACER BUSHING
65/4. [1] 154413-0500 BUSHING
65/9. [1] 154412-4300 COILED SPRING
65/10. [1] 154400-8220 DIAPHRAGM
65/11. [1] 154400-6101 STOP PIN
65/14. [1] 154406-5500 SLOTTED WASHER
65/15. [1] 013020-6040 UNION NUT M6P1H5
65/16. [1] 154425-3700 COILED SPRING
65/17. [2] 154413-2600 GASKET
65/18. [1] 154404-5000 COVER
65/19. [1] 020106-2040 BLEEDER SCREW M6P1L20
65/20. [2] 029010-6310 BLEEDER SCREW
65/21. [2] 014110-6440 LOCKING WASHER
65/24. [2] 020106-2040 BLEEDER SCREW M6P1L20
65/27. [1] 029731-0180 EYE BOLT
65/28. [2] 026510-1340 GASKET D13.4&10.2T1
65/29. [1] 154390-1700 GASKET
65/43. [1] 154390-1800 GASKET
65/45. [1] 029331-8040 GASKET
65/46. [1] 154406-5800 FLAT-HEAD SCREW
65/47. [1] 014110-6440 LOCKING WASHER
65/50. [1] 154406-6800 PLAIN WASHER
65/51. [1] 154406-6901 CONTROL LEVER
65/52. [1] 014110-4440 LOCKING WASHER
65/53. [1] 010234-0820 HEX-SOCKET-HEAD CAP SCREW
65/54. [1] 013030-6040 UNION NUT M6P1H3.6
65/55B. [1] 154404-1600 FLAT-HEAD SCREW L26.00
65/56. [1] 029331-2130 GASKET
65/57. [1] 154406-6500 FLAT-HEAD SCREW
65/58. [1] 020106-2540 BLEEDER SCREW M6P1L25
65/59. [2] 010006-7040 BLEEDER SCREW M6P1L70
65/60. [2] 014110-6440 LOCKING WASHER
65/61. [1] 154035-1600 CAP NUT
65/62. [1] 154404-4400 FLAT-HEAD SCREW
65/63. [1] 013030-6040 UNION NUT M6P1H3.6
65/64. [2] 026506-1040 GASKET D9.9&6.2T1
65/66. [1] 139006-0900 BLEEDER SCREW
65/67. [1] 014110-6440 LOCKING WASHER
65/70. [1] 029240-6010 UNION NUT M6P1.0H5*
65/71. [1] 153141-1500 BLEEDER SCREW
65/72. [1] 139608-0000 PACKING RING
65/73. [1] 139605-0100 PACKING RING
65/74. [1] 154408-9000 CONTROL LEVER
65/75. [1] 154406-7500 CONTROL LEVER
65/76. [1] 154406-8000 LEVER SHAFT
65/77. [1] 029310-5200 SHIM
65/78. [1] 014020-8120 PLAIN WASHER D16&8.5T1.2
65/79. [1] 154372-6500 SAFETY PIN
65/80. [0] 029310-8040 SHIM D13.5&8T0.2
65/80B. [0] 029310-8050 SHIM D13.5&8T0.5
65/81. [1] 025520-1210 SPLIT PIN
65/82. [2] 029300-8320 SHIM
65/83. [1] 154403-9900 COILED SPRING
65/84. [1] 154413-6700 CONTROL LEVER
65/85. [1] 139308-1800 PLAIN WASHER
65/86. [1] 013020-8140 UNION NUT M8P1.25H6.5
65/87. [1] 139308-1800 PLAIN WASHER
80. [1] 154063-1400 COVER
82. [2] 029020-6210 BLEEDER SCREW
83. [2] 020006-1640 BLEEDER SCREW M6P1L16 4T
100. [1] 154101-0020 FLYWEIGHT ASSEMBLY
101. [1] 025803-1310 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-0120 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-2900 GOVERNOR SPRING
132. [1] 154154-0500 COILED SPRING
135. [1] 154158-0820 HEADLESS SCREW
136. [1] 154011-2700 UNION NUT
137. [2] 026512-1540 GASKET D15.4&12.2T1.50
138. [1] 154159-1200 CAP NUT
140. [1] 154185-1320 HEADLESS SCREW
141. [1] 029201-6010 UNION NUT
142. [1] 154242-0220 HEADLESS SCREW
143. [1] 029201-6150 UNION NUT
144. [2] 026516-2040 GASKET D19.9&16.2T1
145. [1] 154159-1100 CAP NUT
150. [1] 154200-7020 SWIVELLING LEVER
151. [1] 154204-4300 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 016010-1640 LOCKING WASHER
153. [2] 016010-1640 LOCKING WASHER
154. [1] 139611-0000 PACKING RING
155. [1] 139411-0000 SHIM
156. [0] 029311-1070 SHIM D16&11T0.5
157. [1] 154204-4400 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-2800 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
162. [1] 029331-0240 GASKET
163. [1] 154401-2700 BLEEDER SCREW
164. [1] 154243-0320 CONTROL LEVER
165. [1] 154327-2000 COILED SPRING
166. [1] 016010-0710 LOCKING WASHER
167. [1] 029310-8020 PLAIN WASHER D15&8.4T0.3
170. [1] 154217-3720 FORK LEVER
174. [1] 154230-5120 STRAP
175. [1] 016010-0540 LOCKING WASHER
176. [1] 159231-4900 BEARING PIN
177. [1] 029310-5170 SHIM D8&5.3T0.5
178. [1] 155402-3800 SAFETY PIN
181. [1] 154236-3320 TENSIONING LEVER
182. [1] 154237-0100 BEARING PIN
190. [1] 154341-8120 CONTROL LEVER
191. [1] 154380-6120 CONTROL LEVER
192. [1] 020006-3540 BLEEDER SCREW
201. [1] 029631-0030 O-RING &9.8W2.3
203. [1] 154322-0100 CAP
207. [1] 154326-8920 LEVER GROUP
208. [1] 154327-7600 COILED SPRING
211/1. [0] 029311-0520 SHIM D20.8&10.3T0.2
211/1. [0] 029311-0530 SHIM D20.8&10.3T0.25
211/1. [0] 029311-0540 SHIM D20.8&10.3T0.3
211/1. [0] 029311-0550 SHIM D20.8&10.3T0.35
211/1. [0] 029311-0560 SHIM D20.8&10.3T0.4
211/1. [0] 029311-0570 SHIM D20.8&10.3T0.5
236. [1] 154371-5600 GASKET
237. [1] 154390-0300 GASKET
238. [1] 029635-2020 O-RING
335. [2] 026506-1040 GASKET D9.9&6.2T1
336. [1] 154035-1600 CAP NUT
900S. [1] 025803-1310 WOODRUFF KEY
901S. [1] 025803-1610 WOODRUFF KEY

Include in #1:

106673-3390 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105408-1010
F 019 Z9E 030
NP-EP/RSV200-1300PQ44/312
223205540A  HINO
GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV




Information:


PARTS NEEDED
Qty
Part Number Description
*******Group 1*******
1 4716029 MTG GP-INJECTOR
1 ENGSOFTWARE ENGINE SOFTWARE
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 3% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
*******Group 2*******
1 4716029 MTG GP-INJECTOR
1 ENGSOFTWARE ENGINE SOFTWARE
In order to allow equitable parts availability to all participating dealers, please limit your initial parts order to not exceed 2% of dealership population. This is an initial order recommendation only, and the ultimate responsibility for ordering the total number of parts needed to satisfy the program lies with the dealer.
ACTION REQUIRED
If the engine software is not the latest version, update the Engine Software first.
If needed, update the engine software with the latest available in SIS Web.
For flash programming of the ECM software, refer to Troubleshooting "ECM Software - Install".
Ensure the appropriate steps have been followed when diagnosing a DEF injector failure. Refer to UENR0662.
If it is determined that replacement of DEF injector is required, refer to Disassembly and Assembly Manual - Diesel Exhaust Fluid Injector - Remove and Install.
SERVICE CLAIM ALLOWANCES
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
*******Group 1*******
0-5000 hrs,
0-60 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
This is a 1.0-hour job for Group 1
Product smu/age whichever comes first Caterpillar Dealer Suggested Customer Suggested
Parts % Labor Hrs% Parts % Labor Hrs% Parts % Labor Hrs%
*******Group 2*******
0-5000 hrs,
0-60 mo 100.0% 100.0% 0.0% 0.0% 0.0% 0.0%
This is a 1.0-hour job for Group 2
PARTS DISPOSITION
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.

Have questions with 105408-1010?





Group cross 105408-1010 ZEXEL

Mitsubishi

105408-1000
F 019 Z3E 828
NP-EP/RSV200-1350PQ49/311
ME755945
GOVERNOR

Hino

105408-1010
F 019 Z9E 030
NP-EP/RSV200-1300PQ44/312
223205540A
GOVERNOR
