105408-0160 ZEXEL F 019 Z1E 383 BOSCH GOVERNOR f019z1e383 1054080160 me059516




Information governor

BOSCH F 019 Z1E 383 f019z1e383
ZEXEL 105408-0160 1054080160
MITSUBISHI ME059516 me059516
105408-0160 GOVERNOR
Rating:
61
Buy GOVERNOR 105408-0160 zexel genuine, new aftermarket engine parts with delivery

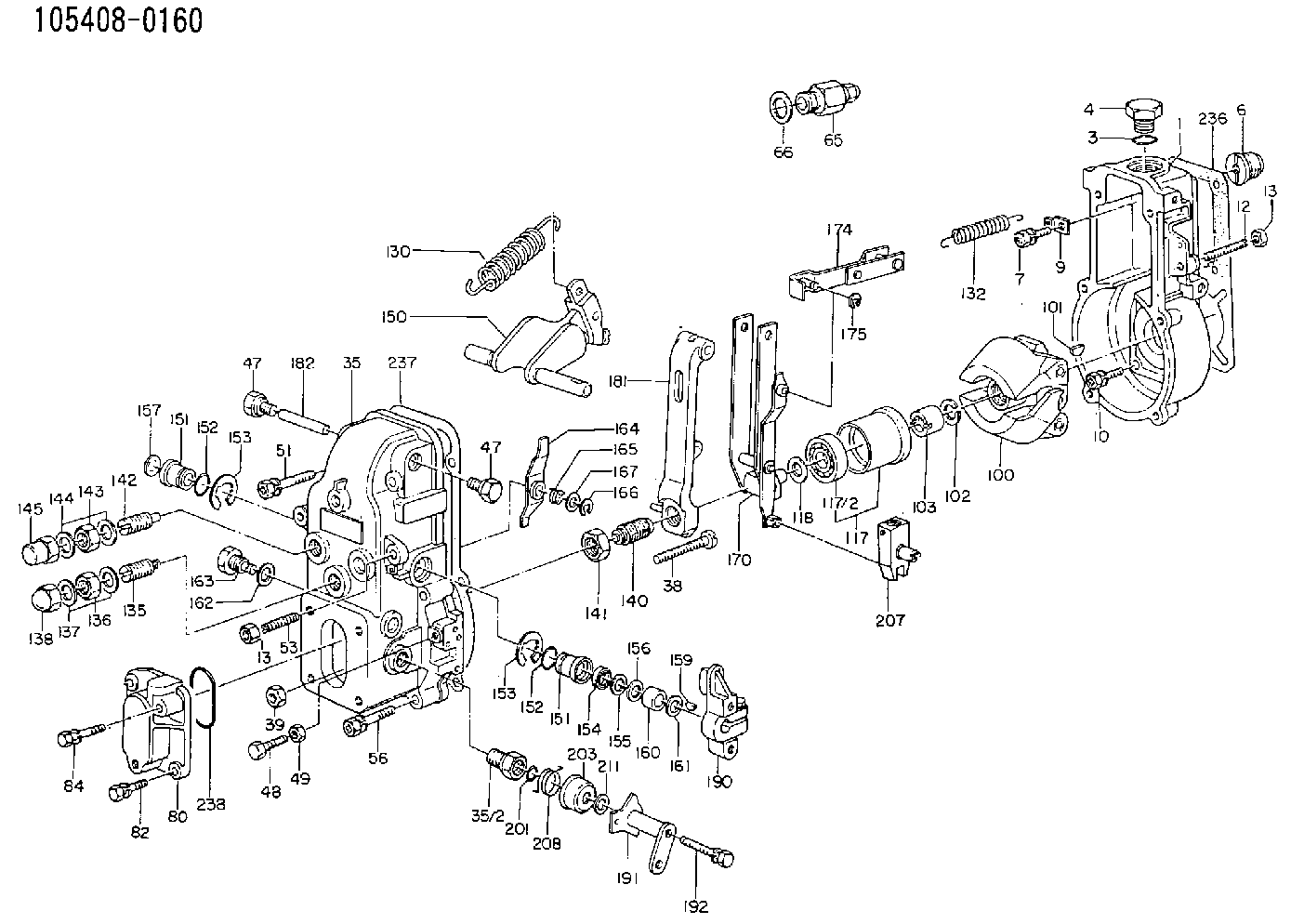

Scheme ###:

1. [1] 154000-4700 GOVERNOR HOUSING
3. [1] 029632-5070 O-RING
4. [1] 154007-2900 CAPSULE
9. [1] 154350-6000 PLATE
10. [8] 020106-2040 BLEEDER SCREW M6P1L20
12. [1] 154010-1100 FLAT-HEAD SCREW
13. [2] 154011-0100 HEXAGON NUT
13. [2] 154011-0100 HEXAGON NUT
35. [1] 154500-3120 GOVERNOR COVER
35/2. [1] 154321-0400 BUSHING
38. [1] 154031-0100 FLAT-HEAD SCREW
39. [1] 013020-6020 UNION NUT M6P1H5
47. [2] 154036-0300 CAPSULE
47. [2] 154036-0300 CAPSULE
48. [1] 154037-0700 BLEEDER SCREW
49. [1] 154038-0200 HEXAGON NUT
51. [2] 020106-5040 BLEEDER SCREW
53. [1] 154010-0100 FLAT-HEAD SCREW
56. [4] 020106-3840 BLEEDER SCREW
65. [1] 153021-2220 STOPPING DEVICE
66. [1] 026524-3040 GASKET
80. [1] 154063-4200 COVER
82. [2] 029020-6210 BLEEDER SCREW
82. [2] 029020-6210 BLEEDER SCREW
83. [2] 020006-1640 BLEEDER SCREW M6P1L16 4T
100. [1] 154100-9720 FLYWEIGHT ASSEMBLY
101. [1] 025803-1310 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-0120 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-0100 GOVERNOR SPRING
132. [1] 154154-0800 COILED SPRING
135. [1] 154157-3420 HEADLESS SCREW
136. [1] 029201-2290 UNION NUT
137. [2] 026512-1540 GASKET D15.4&12.2T1.50
138. [1] 154159-1200 CAP NUT
140. [1] 154177-1220 HEADLESS SCREW
141. [1] 029201-6010 UNION NUT
142. [1] 154242-0620 HEADLESS SCREW
143. [1] 029201-6150 UNION NUT
144. [2] 026516-2040 GASKET D19.9&16.2T1
145. [1] 154159-1100 CAP NUT
150. [1] 154200-6920 SWIVELLING LEVER
151. [1] 154204-4300 BUSHING
151. [1] 154204-4300 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 016010-1640 LOCKING WASHER
153. [2] 016010-1640 LOCKING WASHER
154. [1] 139611-0000 PACKING RING
155. [1] 139411-0000 SHIM
156. [0] 029311-1070 SHIM D16&11T0.5
157. [1] 154204-4400 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-2800 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
162. [1] 029331-0240 GASKET
163. [1] 154401-2700 BLEEDER SCREW
164. [1] 154243-0220 CONTROL LEVER
165. [1] 154327-1900 COILED SPRING
166. [1] 016010-0710 LOCKING WASHER
167. [1] 029310-8020 PLAIN WASHER D15&8.4T0.3
170. [1] 154216-2920 FORK LEVER
174. [1] 154230-2920 STRAP
175. [1] 016010-0540 LOCKING WASHER
181. [1] 154236-3220 TENSIONING LEVER
182. [1] 154237-0100 BEARING PIN
190. [1] 154340-0120 CONTROL LEVER
191. [1] 154364-3420 CONTROL LEVER
192. [1] 020006-4540 BLEEDER SCREW M6P1L45
201. [1] 029631-0030 O-RING &9.8W2.3
203. [1] 154322-0100 CAP
207. [1] 154326-9020 LEVER GROUP
208. [1] 154327-7300 COILED SPRING
211/1. [0] 029311-0520 SHIM D20.8&10.3T0.2
211/1. [0] 029311-0530 SHIM D20.8&10.3T0.25
211/1. [0] 029311-0540 SHIM D20.8&10.3T0.3
211/1. [0] 029311-0550 SHIM D20.8&10.3T0.35
211/1. [0] 029311-0560 SHIM D20.8&10.3T0.4
211/1. [0] 029311-0570 SHIM D20.8&10.3T0.5
236. [1] 154371-5600 GASKET
237. [1] 154390-0300 GASKET
238. [1] 029635-2020 O-RING
900S. [1] 025803-1310 WOODRUFF KEY
901S. [1] 025803-1610 WOODRUFF KEY

Include in #1:

106671-2350 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105408-0160
F 019 Z1E 383
NP-EP/RSV200-1300P1/301NP16D
ME059516  MITSUBISHI
GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV




Information:

Termination Date
January 31, 1993Problem
The fuel injection pumps used on certain Remanufactured 1160 and 3208 Engines need to be inspected for gummy deposits.
Affected Product
Model & Identification Number
1160 (57V1-34325)
3208 (9WC1-730; 5CD1-5868; 62W1-68596; 93Z1-8374)
Remanufactured Fuel Pump Part Numbers
0R07660R09030R23840R23860R09020R23740R23850R2877 The above list of remanufactured pumps are affected only if they are stamped with a date code of 12/91 (UMDU) or earlier.
Parts Needed
Not Applicable
Action Required
Before installing or delivering any of the affected product, perform the following steps to ensure the internal fuel injection pump components are not stuck due to fuel pump gumming:
1. Remove the top cover of the fuel injection pump and check to ensure that all sleeves and levers are free and there are no gummy deposits on any of these components.2. If inspection performed in Step 1 indicates everything is clean, install top cover and return to parts stock.3. If inspection reveals components have gummy deposits, remove 12 ounces of fuel from the fuel pump housing and replace it with: - Fuel Injector Cleaner or
- Carburetor/Choke Cleaner
4. Allow the components to soak in cleaning solution for 45 minutes, then rotate the engine crankshaft to rotate the fuel injection pump (on pumps only, rotate the fuel pump camshaft). This will ensure the components have the gummy deposits removed. If the engine or fuel pump will be used immediately, install the cover on the fuel injection pump, and install or deliver the engine or pump.5. If the engine or fuel pump will be returned to stock, DO NOT leave the fuel injection pump full of cleaning solution because it may not contain any rust inhibitors. Remove the cleaning solution, fill the fuel injector pump with clean diesel fuel, and install the cover on the pump.Service Claim Allowances
It is a .5-hr. job to inspect the pump. An additional .5-hr. may be claimed if cleaning is required.
Parts Disposition
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.

Have questions with 105408-0160?





Group cross 105408-0160 ZEXEL

Nissan-Diesel


1910196512

Hino


223201140A
GOVERNOR

Mitsubishi


3099593612
GOVERNOR
F 019 Z4E 406
NP-EP/RSV200-1300P1/301NP101
ME059512
GOVERNOR
105408-0160
F 019 Z1E 383
NP-EP/RSV200-1300P1/301NP16D
ME059516
GOVERNOR

Nissan-Diesel


1910197067
GOVERNOR
9 420 614 955

GOVERNOR
