105408-0150 ZEXEL F 019 Z4E 406 BOSCH GOVERNOR f019z4e406 1054080150 me059512

Information governor

BOSCH F 019 Z4E 406 f019z4e406

ZEXEL 105408-0150 1054080150

MITSUBISHI ME059512 me059512

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105408-0150 zexel genuine, new aftermarket engine parts with delivery

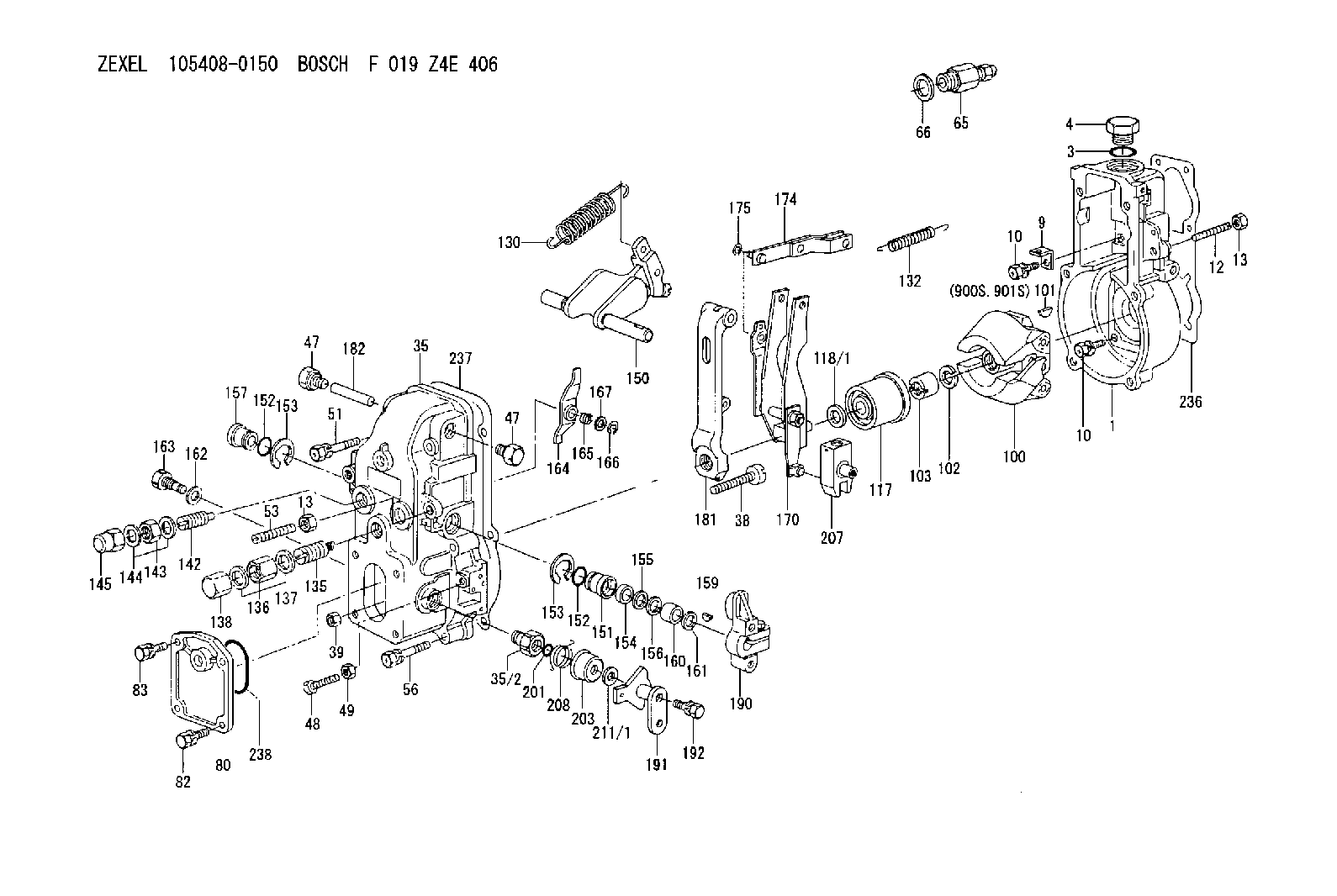

Scheme ###:

1.	[1]	154000-4700	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
9.	[1]	154350-6000	PLATE
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
12.	[1]	154010-1100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
35.	[1]	154500-3120	GOVERNOR COVER
35/2.	[1]	154321-0400	BUSHING
38.	[1]	154031-0100	FLAT-HEAD SCREW
39.	[1]	013020-6020	UNION NUT M6P1H5
47.	[2]	154036-0300	CAPSULE
47.	[2]	154036-0300	CAPSULE
48.	[1]	154037-0700	BLEEDER SCREW
49.	[1]	154038-0200	HEXAGON NUT
51.	[2]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0100	FLAT-HEAD SCREW
56.	[4]	020106-3840	BLEEDER SCREW
65.	[1]	153021-2220	STOPPING DEVICE
66.	[1]	026524-3040	GASKET
80.	[1]	154060-4900	COVER
82.	[2]	029020-6210	BLEEDER SCREW
83.	[2]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154100-9720	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-0120	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-0100	GOVERNOR SPRING
132.	[1]	154154-0800	COILED SPRING
135.	[1]	154157-0320	HEADLESS SCREW
136.	[1]	029201-2030	UNION NUT M12P1.0H4
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-0100	CAP NUT
142.	[1]	154242-0620	HEADLESS SCREW
143.	[1]	029201-6150	UNION NUT
144.	[2]	026516-2040	GASKET D19.9&16.2T1
145.	[1]	154159-1100	CAP NUT
150.	[1]	154200-6920	SWIVELLING LEVER
151.	[1]	154204-4300	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-4400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
162.	[1]	029331-0240	GASKET
163.	[1]	154401-2700	BLEEDER SCREW
164.	[1]	154243-0220	CONTROL LEVER
165.	[1]	154327-1900	COILED SPRING
166.	[1]	016010-0710	LOCKING WASHER
167.	[1]	029310-8020	PLAIN WASHER D15&8.4T0.3
170.	[1]	154216-2920	FORK LEVER
174.	[1]	154230-2920	STRAP
175.	[1]	016010-0540	LOCKING WASHER
181.	[1]	154236-3220	TENSIONING LEVER
182.	[1]	154237-0100	BEARING PIN
190.	[1]	154340-0120	CONTROL LEVER
191.	[1]	154364-3420	CONTROL LEVER
192.	[1]	020006-4540	BLEEDER SCREW M6P1L45
201.	[1]	029631-0030	O-RING &9.8W2.3
203.	[1]	154322-0100	CAP
207.	[1]	154326-9020	LEVER GROUP
208.	[1]	154327-7300	COILED SPRING
211/1.	[0]	029311-0520	SHIM D20.8&10.3T0.2
211/1.	[0]	029311-0530	SHIM D20.8&10.3T0.25
211/1.	[0]	029311-0540	SHIM D20.8&10.3T0.3
211/1.	[0]	029311-0550	SHIM D20.8&10.3T0.35
211/1.	[0]	029311-0560	SHIM D20.8&10.3T0.4
211/1.	[0]	029311-0570	SHIM D20.8&10.3T0.5
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106671-2280 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105408-0150

F 019 Z4E 406
NP-EP/RSV200-1300P1/301NP101

ME059512 MITSUBISHI

GOVERNOR
K

Information:

Problem
The fuel injection nozzles used in certain D3C, D4C, D4H, D5C, and D5C LGP Tractors; D4H Track Skidders; 931C, 935C, 943, And 953 Loaders; 916 and 926E Loaders; and IT18B and IT28B Tool Carriers may not have had the orifices machined at the correct spray angle. The fuel nozzles in question are 4W7015 Nozzles with a date code of D91, E91, or F91.
Affected Product
Model & Identification Number
D3C (5CJ552-751; 4HJ443-573; 8DG67-105; 7JG76-90; 5ZG48-51)
D4C (7KG469-597; 9BG197-303)
D4H (2AC4156-5522; 3AC4196-4217; 8PB4997-5566; 9DB4798-5058)
D5C (6PJ183-339)
D5C LGP (3MK189-223)
D4H TSK (8ZF53-56)
931C (9AG36-39; 2AK62-66; 6AJ87-101)
935C (5DJ108-151)
943 (19Z1901-1904)
953 (20Z4305-4355; 44Z758-763)
IT18B (2NJ344-390)
IT28B (1JK457-548; 1HF2397-2420)
916 (5KC1832-1924)
926E (4NB3675-3703; 8NB2464-2625)
Parts Needed
1 - 7C7955 Gasket1 - 4W7015 Nozzle AssemblyUse as required (1 to 4 Nozzles May Be Needed)
Action Required
Parts Stock
Remove all 4W7015 Nozzles, that have a date code of D91, E91, or F91, from parts stock.
Affected Product
If excessive quantities of black smoke are noticeable when operating at high idle or under full load conditions, remove and inspect all four of the nozzles. Replace any 4W7015 Nozzle that has a date code of D91, E91, or F91. One or more of the four nozzles may have these date codes.
Service Claim Allowances
Parts Stock
Submit one claim for all 4W7015 Nozzles removed from parts stock.
Affected Product
This is a 3-hour job.
Parts Disposition
U.S. And Canadian Dealers
Return all 4W7015 Nozzles and a copy of the claim to:
Caterpillar Inc.
Attn: Supplier Recovery Supervisor
Warehouse #4 Docks 7 thru 10
8201 N. University
Peoria, IL 61615
CofA
Return all 4W7015 Nozzles and a copy of the claim to:
Caterpillar of Australia
Warranty Claims Area
1 Sharps Rd.
Tullamarine Vic 3043
All Other Dealers
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
