105407-8511 ZEXEL F 019 Z1F 955 BOSCH GOVERNOR f019z1f955 1054078511 223205491a

Information governor

BOSCH F 019 Z1F 955 f019z1f955

ZEXEL 105407-8511 1054078511

HINO 223205491A 223205491a

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105407-8511 zexel genuine, new aftermarket engine parts with delivery

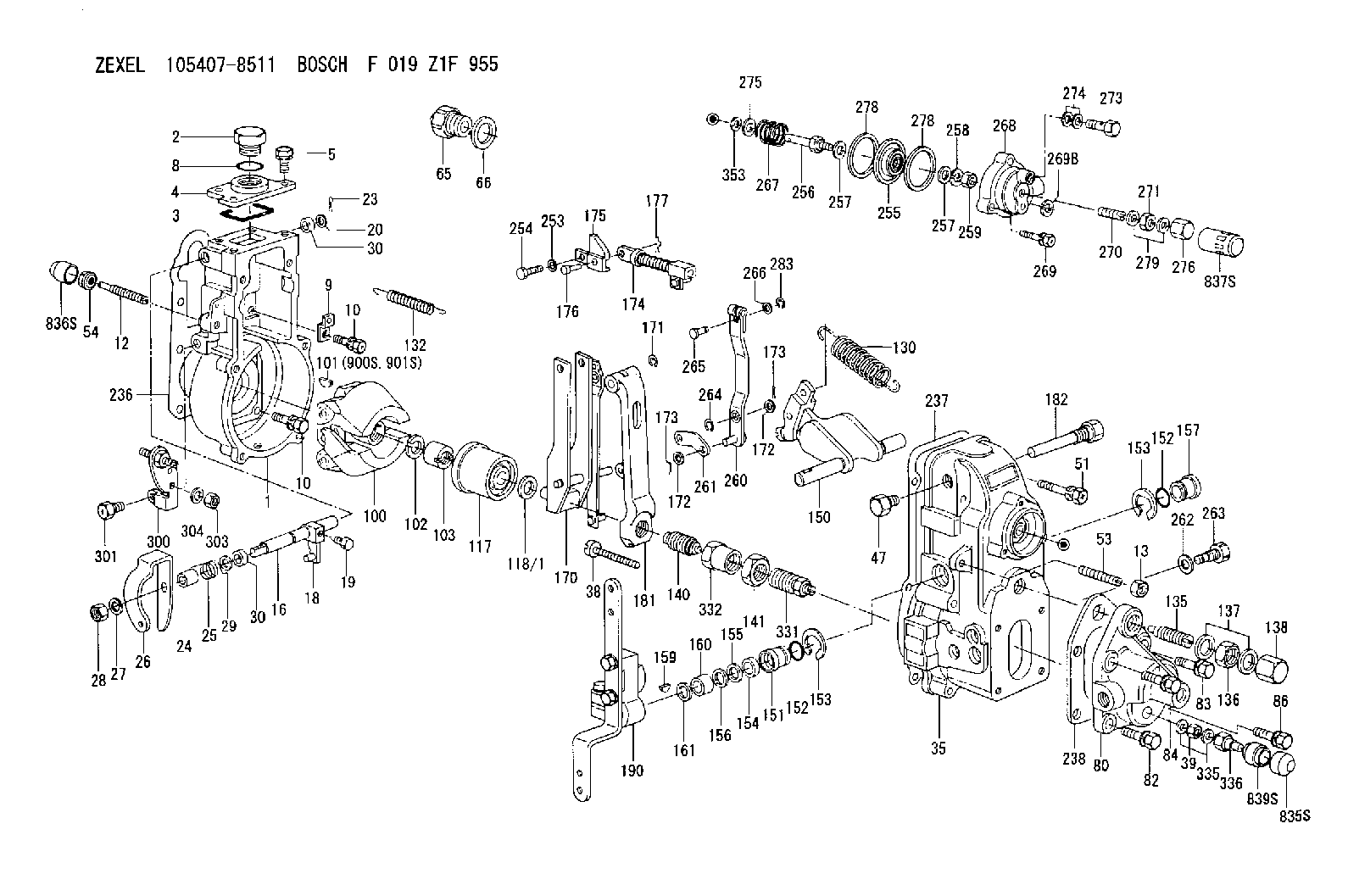

Scheme ###:

1.	[1]	154004-2822	GOVERNOR HOUSING
2.	[1]	154007-2900	CAPSULE
3.	[1]	154358-2500	SEAL RING
4.	[1]	154064-4500	COVER
5.	[4]	020006-1640	BLEEDER SCREW M6P1L16 4T
8.	[1]	029632-5070	O-RING
9.	[1]	154350-6000	PLATE
10.	[8]	139006-4100	BLEEDER SCREW
10.	[8]	139006-4100	BLEEDER SCREW
12.	[1]	154013-4000	FLAT-HEAD SCREW
12B.	[1]	154013-5000	FLAT-HEAD SCREW
13.	[1]	154011-0100	HEXAGON NUT
16.	[1]	155004-3600	LEVER SHAFT
18.	[1]	155003-2101	CONTROL LEVER
19.	[1]	155006-0700	BLEEDER SCREW
20.	[1]	139308-0900	PLAIN WASHER D16&8T1
20B.	[1]	139308-1000	PLAIN WASHER D16&8T1.5
20C.	[1]	139408-1500	SHIM
23.	[1]	025520-1210	SPLIT PIN
24.	[1]	154206-6300	BUSHING
25.	[1]	154327-3600	COILED SPRING
26.	[1]	154382-2300	CONTROL LEVER
27.	[1]	014110-8440	LOCKING WASHER
28.	[1]	013020-8040	UNION NUT M8P1.25H7
29.	[1]	139408-1500	SHIM
29B.	[0]	139408-1400	SHIM
29C.	[0]	139408-1500	SHIM
30.	[2]	029620-8050	PACKING RING
30.	[2]	029620-8050	PACKING RING
35.	[1]	154022-9020	GOVERNOR COVER
38.	[1]	154031-4700	FLAT-HEAD SCREW
39.	[1]	139208-0400	UNION NUT
47.	[1]	154036-0300	CAPSULE
51.	[6]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0100	FLAT-HEAD SCREW
54.	[1]	154011-4900	UNION NUT
65.	[1]	153021-4820	STOPPING DEVICE
66.	[1]	026524-3040	GASKET
80.	[1]	154064-4200	COVER
82.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
83.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
84.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
86.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154101-0020	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154151-1300	GOVERNOR SPRING
132.	[1]	154154-0500	COILED SPRING
135.	[1]	154158-1320	HEADLESS SCREW
136.	[1]	029201-2130	UNION NUT M12P1.0H6
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154185-1320	HEADLESS SCREW
141.	[1]	029201-6130	UNION NUT
150.	[1]	154200-8220	SWIVELLING LEVER
151.	[1]	154204-4300	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-4400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154218-7920	FORK LEVER
171.	[1]	016010-0540	LOCKING WASHER
172.	[3]	029310-5170	SHIM D8&5.3T0.5
172.	[3]	029310-5170	SHIM D8&5.3T0.5
173.	[2]	025520-1210	SPLIT PIN
173.	[2]	025520-1210	SPLIT PIN
174.	[1]	154235-5020	STRAP
175.	[1]	154232-2420	CONNECTOR
176.	[1]	159231-4900	BEARING PIN
177.	[1]	155402-3800	SAFETY PIN
181.	[1]	154239-6120	TENSIONING LEVER
182.	[1]	154237-1100	BEARING PIN
190.	[1]	154396-8320	CONTROL LEVER
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	154390-5000	GASKET
253.	[1]	029320-5020	LOCKING WASHER
254.	[1]	010535-1040	FLAT-HEAD SCREW M5P0.8L10
255.	[1]	154400-7820	DIAPHRAGM
256.	[1]	154400-4800	STOP PIN
257.	[2]	029330-8050	GASKET
257.	[2]	029330-8050	GASKET
258.	[1]	139308-0700	LOCKING WASHER
259.	[1]	013030-6040	UNION NUT M6P1H3.6
260.	[1]	154401-3620	CONTROL LEVER
261.	[1]	154401-1320	STRAP
262.	[1]	026510-1440	GASKET D13.9&10.2T1
263.	[1]	154401-2100	BLEEDER SCREW
264.	[1]	016010-0540	LOCKING WASHER
265.	[1]	154222-6200	BEARING PIN
266.	[1]	029300-4010	PLAIN WASHER
267.	[1]	154402-6400	COILED SPRING
268.	[1]	154404-5600	COVER
269.	[3]	154062-2900	BLEEDER SCREW
269B.	[3]	014110-6440	LOCKING WASHER
270.	[1]	154034-1900	FLAT-HEAD SCREW
271.	[1]	013030-6040	UNION NUT M6P1H3.6
273.	[1]	029731-0180	EYE BOLT
274.	[2]	026510-1340	GASKET D13.4&10.2T1
275.	[0]	029312-0180	SHIM D25.5&20T0.5
275B.	[0]	029312-0210	SHIM D25.5&20T0.2
276.	[1]	154035-1600	CAP NUT
278.	[2]	154413-2600	GASKET
278.	[2]	154413-2600	GASKET
279.	[2]	026506-1040	GASKET D9.9&6.2T1
283.	[1]	016010-0440	LOCKING WASHER
300.	[1]	154359-1320	BRACKET
301.	[1]	020118-1640	BLEEDER SCREW
303.	[1]	154011-1100	UNION NUT
304.	[1]	029300-8320	SHIM
331.	[1]	154188-4520	HEADLESS SCREW
332.	[1]	029201-6010	UNION NUT
335.	[2]	026508-1140	GASKET D11.4&8.2T1
336.	[1]	154035-2900	CAP NUT
353.	[2]	029310-9080	SHIM D16&9T1.7
835S.	[1]	154062-4020	CAP
836S.	[1]	154062-3520	CAP
837S.	[1]	154062-2720	CAP
839S.	[1]	154062-3900	ADAPTOR
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106681-3001 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105407-8511

F 019 Z1F 955
NP-EP/RSV200-1200PQ36C312K

223205491A HINO

GOVERNOR
A K 14JB MECHANICAL GOVERNOR GOV RSV GOV

Information:

Caterpillar: Confidential Yellow
PARTS STOCK ACTION ONLY - CERTAIN 7000 SERIES FUEL INJECTION NOZZLES NEED TO BE REMOVED FROM PARTS STOCK - PI7210 - MAILED US AND CANADA, CACO, COFA, BRAZIL, CFEL, COSA, TRUCK TEPS
The information supplied in this service letter may not be valid after the termination date of this program. Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
U-105 A-76 AU-71 B-16 E-49 O-69 TT-4 PARTS STOCK ACTION NEEDED 1254 PI7210 Termination Date
August 31, 1989
Problem
Certain 7000 Series fuel injection nozzles may crack and loose their nozzle tips if there is a small indentation or dent in the nozzle between the tip end and the carbon dam.
Action Required
Inspect the following nozzles in parts stock for any small indentations or dents in the tip of the nozzle between the carbon dam groove and the tip end of the nozzle. Remove all nozzles from parts stock that have indentations or dents that are deep enough to be felt with a thumbnail. See the illustration. 8N7003 4W7015 7W7023 8N7005 4W7016 7W7024 8N7006 4W7017 7W7026 4W7018 7W7030 4W7019 7W7031 4W7020 7W7032 4W7021
