105407-7772 ZEXEL F 019 Z2E 681 BOSCH GOVERNOR f019z2e681 1054077772

Information governor

BOSCH F 019 Z2E 681 f019z2e681

ZEXEL 105407-7772 1054077772

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105407-7772 zexel genuine, new aftermarket engine parts with delivery

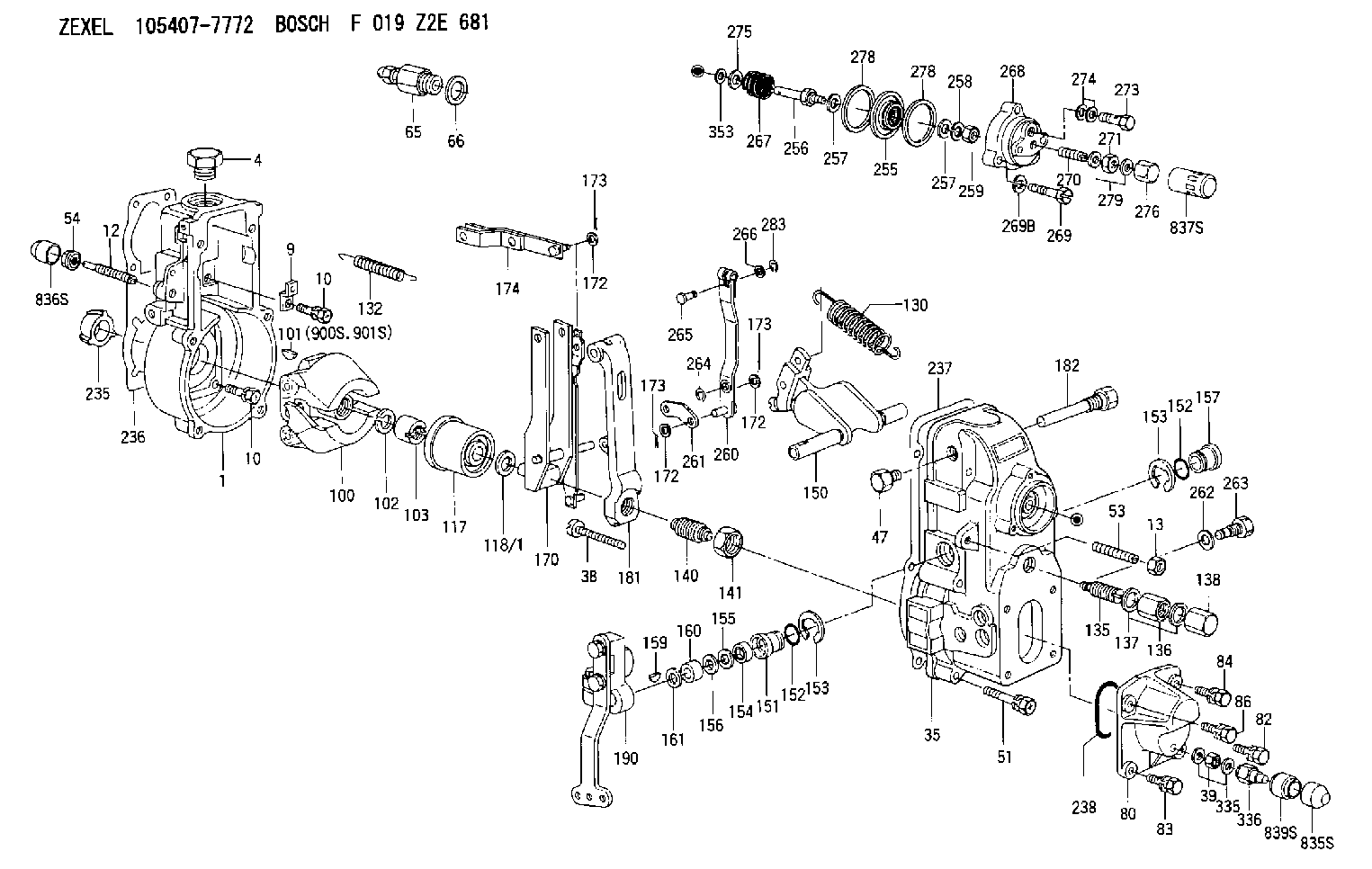

Scheme ###:

1.	[1]	154000-5720	GOVERNOR HOUSING
4.	[1]	154007-1600	CAPSULE
9.	[1]	154350-6000	PLATE
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
12.	[1]	154013-5000	FLAT-HEAD SCREW
13.	[1]	154011-0100	HEXAGON NUT
35.	[1]	154022-6020	GOVERNOR COVER
38.	[1]	154031-5000	FLAT-HEAD SCREW
39.	[1]	139208-0400	UNION NUT
47.	[1]	154036-0300	CAPSULE
51.	[6]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0200	FLAT-HEAD SCREW
54.	[1]	154011-4900	UNION NUT
65.	[1]	153021-2220	STOPPING DEVICE
66.	[1]	026524-3040	GASKET
80.	[1]	154063-8400	COVER
82.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
83.	[1]	029020-6210	BLEEDER SCREW
84.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
86.	[1]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154101-0020	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-6400	GOVERNOR SPRING
132.	[1]	154154-0701	COILED SPRING
135.	[1]	154158-1720	HEADLESS SCREW
136.	[1]	029201-2290	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154177-3520	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-7020	SWIVELLING LEVER
151.	[1]	154204-4300	BUSHING
152.	[2]	139718-0200	O-RING
152.	[2]	139718-0200	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0300	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-4400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154216-7220	FORK LEVER
172.	[3]	029310-5170	SHIM D8&5.3T0.5
172.	[3]	029310-5170	SHIM D8&5.3T0.5
172.	[3]	029310-5170	SHIM D8&5.3T0.5
173.	[3]	025520-1210	SPLIT PIN
173.	[3]	025520-1210	SPLIT PIN
173.	[3]	025520-1210	SPLIT PIN
174.	[1]	154230-2920	STRAP
181.	[1]	154236-4100	TENSIONING LEVER
182.	[1]	154237-1100	BEARING PIN
190.	[1]	154395-4920	CONTROL LEVER
235.	[1]	155412-5300	IMPELLER WHEEL
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
255.	[1]	154400-7420	DIAPHRAGM
256.	[1]	154400-4800	STOP PIN
257.	[2]	029330-8050	GASKET
257.	[2]	029330-8050	GASKET
258.	[1]	139308-0700	LOCKING WASHER
259.	[1]	013030-6040	UNION NUT M6P1H3.6
260.	[1]	154401-3620	CONTROL LEVER
261.	[1]	154401-1320	STRAP
262.	[1]	026510-1440	GASKET D13.9&10.2T1
263.	[1]	154401-2100	BLEEDER SCREW
264.	[1]	016010-0540	LOCKING WASHER
265.	[1]	154222-6200	BEARING PIN
266.	[1]	029300-4010	PLAIN WASHER
267.	[1]	154425-1700	COILED SPRING
268.	[1]	154404-5600	COVER
269.	[3]	154062-2900	BLEEDER SCREW
269B.	[3]	014110-6440	LOCKING WASHER
270.	[1]	154034-1900	FLAT-HEAD SCREW
271.	[1]	013030-6040	UNION NUT M6P1H3.6
273.	[1]	029731-0180	EYE BOLT
274.	[2]	029341-0110	GASKET
275.	[0]	029312-0180	SHIM D25.5&20T0.5
275B.	[0]	029312-0210	SHIM D25.5&20T0.2
276.	[1]	154035-1600	CAP NUT
278.	[2]	154413-2600	GASKET
278.	[2]	154413-2600	GASKET
279.	[2]	026506-1040	GASKET D9.9&6.2T1
283.	[1]	016010-0440	LOCKING WASHER
335.	[2]	026508-1140	GASKET D11.4&8.2T1
336.	[1]	154035-2900	CAP NUT
353.	[2]	029310-9080	SHIM D16&9T1.7
835S.	[1]	154062-4020	CAP
836S.	[1]	154062-3520	CAP
837S.	[1]	154062-2720	CAP
839S.	[1]	154062-3900	ADAPTOR
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106671-9992 as GOVERNOR

106671-9993

Cross reference number

Zexel num

Bosch num

Firm num

Name

105407-7772
105407-7773

F 019 Z2E 681

GOVERNOR
* K

Information:

Problem
The 9Y3222 Injector Rocker Arms may fail on certain 205B, 206B, 211B, 212B, 213B, 214B, 224B, and 325 Excavators; D20D and D250D Articulated Trucks; 446 Backhoe Loaders; 950F Loaders; 3114 Industrial Engines; 3116 Industrial Engines; 3116 Marine Engines; and 3116 Truck Engines. The arm may fail near the adjusting screw or the insert on the injector end of the arm may break.
Affected Product
Model & Identification Number
205B (5ZF1-91)
206B (9BF1-691)
211B (6XG1-162)
212B (3PJ1-912)
213B (1EJ1-378)
214B (4CF1-517; 9MF1-386)
224B (7WF1-181)
325 (2JK174-254)
D20D (9MG1-46)
D250D (6NG1-35)
446 (6XF1-689)
950F (6YG1-2729; 7ZF1-1045)
3114 (Industrial) (5EF1-974)
3116 (Industrial) (2WG1-2506; 4PG1-847)
3116 (Marine) (4KF1-1154)
3116 (Truck) (2BK10000-14485)
Parts Needed
6 - 9Y3222 Injector Arm AssemblyAction Required
If one 9Y3222 Injector Arm Assembly fails, follow the procedures in the Service Manual and replace all six 9Y3222 Injector Arm Assemblies.
In marine applications where there is more than one engine per vessel, install six new 9Y3222 Injector Arm Assemblies on all engines if there is a 9Y3222 Injector Arm Assembly failure.
Service Claim Allowances
All Affected Product Except Truck Engines
This is a 4-hour job.
Truck Engines
Labor segment for test after repair not allowed for this repair.
Parts Disposition
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
