105407-7771 ZEXEL F 019 Z2E 534 BOSCH GOVERNOR f019z2e534 1054077771




Information governor

BOSCH F 019 Z2E 534 f019z2e534
ZEXEL 105407-7771 1054077771
105407-7771 GOVERNOR
Rating:
43
Buy GOVERNOR 105407-7771 zexel genuine, new aftermarket engine parts with delivery

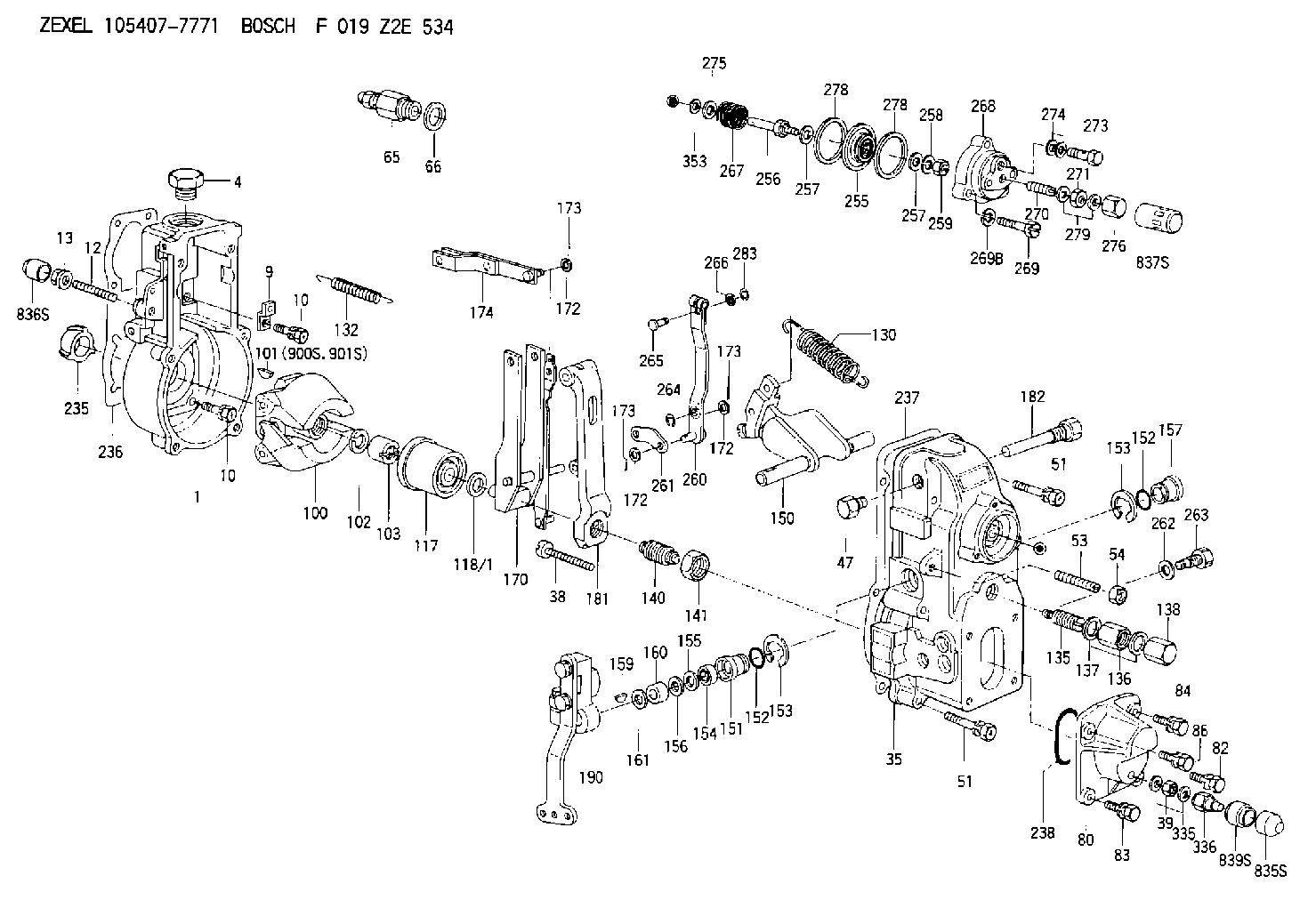

Scheme ###:

1. [1] 154000-5720 GOVERNOR HOUSING
4. [1] 154007-1600 CAPSULE
9. [1] 154350-6000 PLATE
10. [8] 020106-2040 BLEEDER SCREW M6P1L20
10. [8] 020106-2040 BLEEDER SCREW M6P1L20
12. [1] 154013-5000 FLAT-HEAD SCREW
13. [1] 154011-0100 HEXAGON NUT
35. [1] 154022-6020 GOVERNOR COVER
38. [1] 154031-5000 FLAT-HEAD SCREW
39. [1] 139208-0400 UNION NUT
47. [1] 154036-0300 CAPSULE
51. [6] 020106-5040 BLEEDER SCREW
51. [6] 020106-5040 BLEEDER SCREW
53. [1] 154010-0200 FLAT-HEAD SCREW
54. [1] 154011-4900 UNION NUT
65. [1] 153021-2220 STOPPING DEVICE
66. [1] 026524-3040 GASKET
80. [1] 154063-8400 COVER
82. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
83. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
84. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
86. [1] 020006-1640 BLEEDER SCREW M6P1L16 4T
100. [1] 154101-0020 FLYWEIGHT ASSEMBLY
101. [1] 025803-1310 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-2320 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
130. [1] 154150-6400 GOVERNOR SPRING
132. [1] 154154-0701 COILED SPRING
135. [1] 154158-1720 HEADLESS SCREW
136. [1] 029201-2290 UNION NUT
137. [2] 026512-1540 GASKET D15.4&12.2T1.50
138. [1] 154159-1200 CAP NUT
140. [1] 154177-3520 HEADLESS SCREW
141. [1] 029201-6010 UNION NUT
150. [1] 154200-7020 SWIVELLING LEVER
151. [1] 154204-4300 BUSHING
152. [2] 139718-0200 O-RING
152. [2] 139718-0200 O-RING
153. [2] 016010-1640 LOCKING WASHER
153. [2] 016010-1640 LOCKING WASHER
154. [1] 139611-0300 PACKING RING
155. [1] 139411-0000 SHIM
156. [0] 029311-1070 SHIM D16&11T0.5
157. [1] 154204-4400 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-2800 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
170. [1] 154216-7220 FORK LEVER
172. [3] 029310-5170 SHIM D8&5.3T0.5
172. [3] 029310-5170 SHIM D8&5.3T0.5
172. [3] 029310-5170 SHIM D8&5.3T0.5
173. [3] 025520-1210 SPLIT PIN
173. [3] 025520-1210 SPLIT PIN
173. [3] 025520-1210 SPLIT PIN
174. [1] 154230-2920 STRAP
181. [1] 154236-4100 TENSIONING LEVER
182. [1] 154237-1100 BEARING PIN
190. [1] 154395-4920 CONTROL LEVER
235. [1] 155412-5300 IMPELLER WHEEL
236. [1] 154371-5600 GASKET
237. [1] 154390-0300 GASKET
238. [1] 029635-2020 O-RING
255. [1] 154400-7420 DIAPHRAGM
256. [1] 154400-4800 STOP PIN
257. [2] 029330-8050 GASKET
257. [2] 029330-8050 GASKET
258. [1] 139308-0700 LOCKING WASHER
259. [1] 013030-6040 UNION NUT M6P1H3.6
260. [1] 154401-3620 CONTROL LEVER
261. [1] 154401-1320 STRAP
262. [1] 026510-1440 GASKET D13.9&10.2T1
263. [1] 154401-2100 BLEEDER SCREW
264. [1] 016010-0540 LOCKING WASHER
265. [1] 154222-6200 BEARING PIN
266. [1] 029300-4010 PLAIN WASHER
267. [1] 154416-4100 COILED SPRING
268. [1] 154404-5600 COVER
269. [3] 154062-2900 BLEEDER SCREW
269B. [3] 014110-6440 LOCKING WASHER
270. [1] 154034-1900 FLAT-HEAD SCREW
271. [1] 013030-6040 UNION NUT M6P1H3.6
273. [1] 029731-0180 EYE BOLT
274. [2] 029341-0110 GASKET
275. [0] 029312-0180 SHIM D25.5&20T0.5
275B. [0] 029312-0210 SHIM D25.5&20T0.2
276. [1] 154035-1600 CAP NUT
278. [2] 154413-2600 GASKET
278. [2] 154413-2600 GASKET
279. [2] 026506-1040 GASKET D9.9&6.2T1
283. [1] 016010-0440 LOCKING WASHER
335. [2] 026508-1140 GASKET D11.4&8.2T1
336. [1] 154035-2900 CAP NUT
353. [2] 029310-9080 SHIM D16&9T1.7
835S. [1] 154062-4020 CAP
836S. [1] 154062-3520 CAP
837S. [1] 154062-2720 CAP
839S. [1] 154062-3900 ADAPTOR
900S. [1] 025803-1310 WOODRUFF KEY
901S. [1] 025803-1610 WOODRUFF KEY

Include in #1:

106671-9991 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105407-7771
105407-7772
F 019 Z2E 534

GOVERNOR
* K




Information:

Group 2
1 - 6I0347 Bracket2 - 7C6591 Clamp2 - 7C7747 Clamp2 - 4B4274 Washer2 - 9N3388 Screw1 - 6I4813 Clamp Kit1 - 8T1296 Washer2 - 5P4939 Screw1 - 9Y3357 Clamp1 - 1029228 Clamp AssemblyGroup 3
2 - 5P4939 Screw1 - 9Y3357 Clamp1 - 1029228 Clamp AssemblyAction Required
See the attached procedure.
Service Claim Allowances
Parts Disposition
Handle the parts in accordance with your Warranty Bulletin on warranty parts handling.
Attach. (1-Rework Procedure)Rework Procedure
Refer to the following instructions and illustrations. Replace the existing fuel lines and their related parts with the new fuel line groups.
To insure correct clamp locations, install left and right fuel line groups as assembled. However, if clamps are removed, mark locations to insure correct positions when reassembling.
On the 992C Wheel Loader, it is necessary to remove the 6N8322 Air Outlet Tube Assembly to be able to install the right bank fuel line group.
Tighten the fuel line clamp screws to a torque of 2.25 N m (20 lb in). Do not over tighten. Use a 6V6069 Torque Screwdriver or similar tool to tighten the screws.
Group 1 Procedure
1. Clean and paint the new 6I0361 and 7E3539 Fuel Line Groups before proceeding to the job site.A) "Tape Off" the number 3, 5, and 6 fuel lines in the area of the tower clamp. (See Illustration 1 - Part 4 of 5, Section C-C)B) Install 5F2807 Plastic Caps and 2F2990 Plastic Plugs on the ends of the fuel lines.C) Clean and paint the fuel line groups.D) After drying completely, remove the tape. Do not remove the plastic caps and plugs until the fuel lines are ready to be installed on the engine. Transport the fuel line groups in their original boxes.2. Remove all mounting bolts from the fuel line brackets at the aftercooler housing. Except for the tower clamp assembly, new mounting bolts and washers will be used. Keep the washers. The washers may be needed later as spacers.3. A) Disassemble the tower clamp assembly behind the fuel injection pump. The 9Y3356 Clamp and 9Y3359 Clamp As. that form the tower clamp will be reused. (See Illustration 1 - Part 4 of 5, Section C-C)B) Disconnect the 2 line clamps from the 9Y3361 Bracket (Front V Bracket).C) Disconnect the 6 line clamps from the 7E5779 Bracket (Large V Bracket).4. Disconnect all the fuel lines at the fuel injection pump and at the adaptors in the valve cover bases.5. A) Remove the left and right side fuel line groups as separate assemblies.B) Remove the 9Y3361 Bracket (Front V Bracket). Replace it with a new 6I0347 Bracket.6. Remove the plastic caps and plugs from the fuel lines. Set the new 6I0361 Fuel Lines Group (left side) and the new 7E3539 Fuel Lines Group (right side) in place and hand tighten the fuel nuts. (See Illustration 1 - Part 1 of 5). If any of the ends of the individual fuel lines are not square with the bonnets in the fuel injection pump or with the adaptors in the valve cover bases, gently bend the lines
