105407-7720 ZEXEL 9 420 614 913 BOSCH GOVERNOR 9420614913 1054077720

Information governor

BOSCH 9 420 614 913 9420614913

ZEXEL 105407-7720 1054077720

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105407-7720 zexel genuine, new aftermarket engine parts with delivery

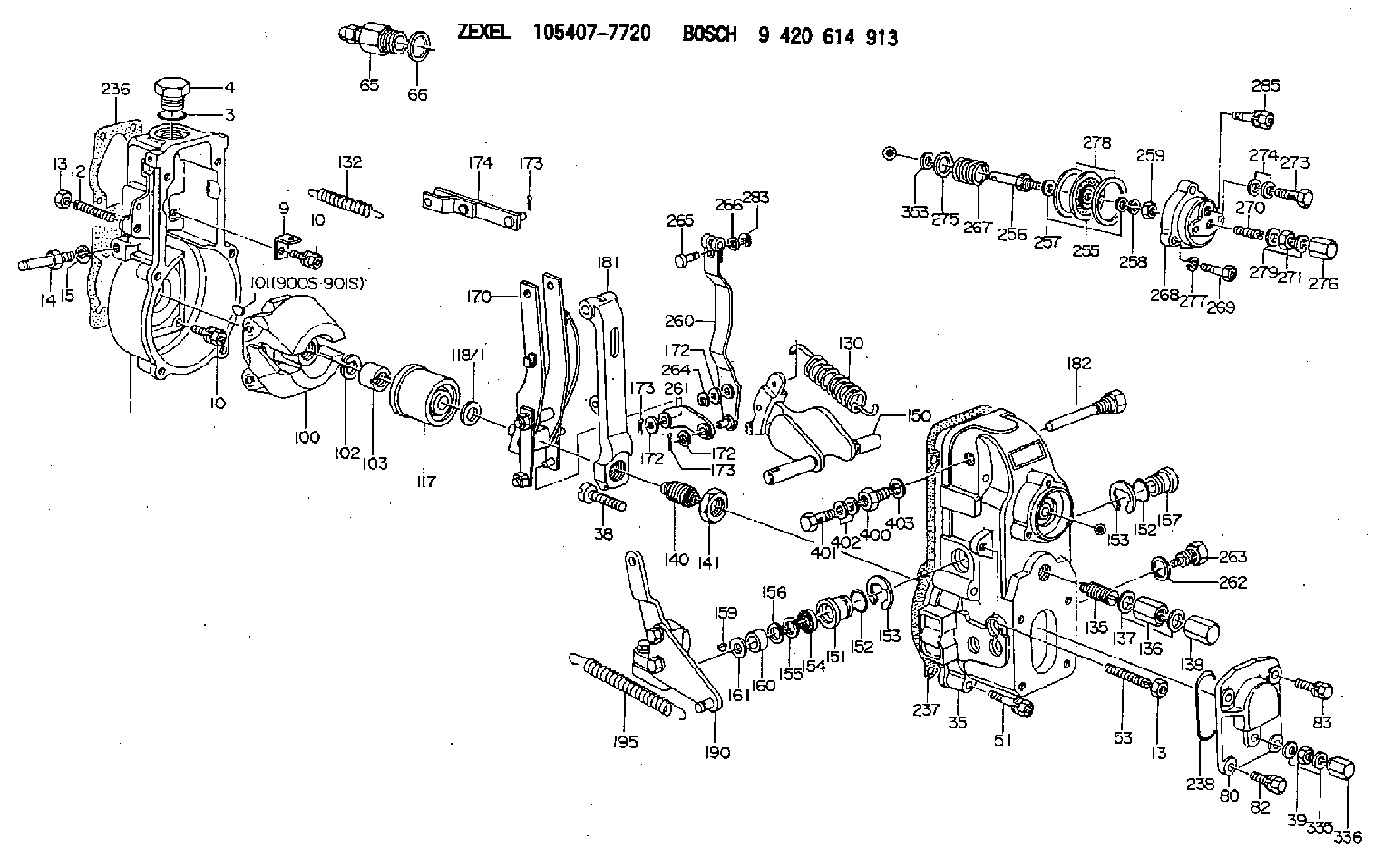

Scheme ###:

1.	[1]	154000-4700	GOVERNOR HOUSING
3.	[1]	029632-5070	O-RING
4.	[1]	154007-2900	CAPSULE
9.	[1]	154350-6000	PLATE
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
12.	[1]	154010-0100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
14.	[1]	154013-2320	BLEEDER SCREW
15.	[1]	014110-8440	LOCKING WASHER
35.	[1]	154022-6020	GOVERNOR COVER
38.	[1]	154031-4800	FLAT-HEAD SCREW
39.	[1]	139208-0500	UNION NUT
51.	[6]	020106-5040	BLEEDER SCREW
53.	[1]	154010-1100	FLAT-HEAD SCREW
65.	[1]	153021-2220	STOPPING DEVICE
66.	[1]	026524-3040	GASKET
80.	[1]	154063-7300	COVER
82.	[2]	029020-6210	BLEEDER SCREW
83.	[2]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154101-0020	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
130.	[1]	154150-0400	GOVERNOR SPRING
132.	[1]	154154-0500	COILED SPRING
135.	[1]	154158-0820	HEADLESS SCREW
136.	[1]	029201-2290	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154177-0820	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-7020	SWIVELLING LEVER
151.	[1]	154204-4300	BUSHING
152.	[2]	139718-0200	O-RING
152.	[2]	139718-0200	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0300	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-4400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154216-7220	FORK LEVER
172.	[3]	029310-5170	SHIM D8&5.3T0.5
172.	[3]	029310-5170	SHIM D8&5.3T0.5
172.	[3]	029310-5170	SHIM D8&5.3T0.5
173.	[3]	025520-1210	SPLIT PIN
173.	[3]	025520-1210	SPLIT PIN
173.	[3]	025520-1210	SPLIT PIN
174.	[1]	154230-2920	STRAP
181.	[1]	154236-4100	TENSIONING LEVER
182.	[1]	154237-1700	BEARING PIN
190.	[1]	154395-8320	CONTROL LEVER
195.	[1]	154314-2600	COILED SPRING
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
255.	[1]	154400-7420	DIAPHRAGM
256.	[1]	154400-4800	STOP PIN
257.	[2]	029330-8050	GASKET
258.	[1]	139308-0700	LOCKING WASHER
259.	[1]	013030-6040	UNION NUT M6P1H3.6
260.	[1]	154401-3620	CONTROL LEVER
261.	[1]	154401-1320	STRAP
262.	[1]	026510-1440	GASKET D13.9&10.2T1
263.	[1]	154401-2100	BLEEDER SCREW
264.	[1]	016010-0540	LOCKING WASHER
265.	[1]	154222-6200	BEARING PIN
266.	[1]	029300-4010	PLAIN WASHER
267.	[1]	154402-5400	COILED SPRING
268.	[1]	154404-5600	COVER
269.	[2]	020106-2540	BLEEDER SCREW M6P1L25
270.	[1]	154034-1900	FLAT-HEAD SCREW
271.	[1]	013020-6040	UNION NUT M6P1H5
273.	[1]	029731-0180	EYE BOLT
274.	[2]	029341-0110	GASKET
275.	[0]	029312-0180	SHIM D25.5&20T0.5
275B.	[0]	029312-0210	SHIM D25.5&20T0.2
276.	[1]	154035-1600	CAP NUT
277.	[1]	014110-6440	LOCKING WASHER
278.	[2]	154413-2600	GASKET
279.	[2]	026506-1040	GASKET D9.9&6.2T1
283.	[1]	016010-0440	LOCKING WASHER
285.	[1]	029010-6310	BLEEDER SCREW
335.	[2]	026508-1140	GASKET D11.4&8.2T1
336.	[1]	154035-2000	CAP NUT
353.	[1]	029310-9080	SHIM D16&9T1.7
400.	[1]	154036-1600	ADAPTOR
401.	[1]	139806-0000	EYE BOLT
402.	[2]	029340-6120	GASKET
403.	[1]	029331-0090	GASKET
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106675-4581 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105407-7720

9 420 614 913
NP-EP/RSV200-1300PQ39C4

GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV

Information:

Caterpillar: Confidential Yellow
PARTS STOCK ACTION ONLY - CERTAIN 7000 SERIES FUEL INJECTION NOZZLES NEED TO BE REMOVED FROM PARTS STOCK - PI7210 - MAILED US AND CANADA, CACO, COFA, BRAZIL, CFEL, COSA, TRUCK TEPS
The information supplied in this service letter may not be valid after the termination date of this program. Do not perform the work outlined in this Service Letter after the termination date without first contacting your Caterpillar product analyst.
U-105 A-76 AU-71 B-16 E-49 O-69 TT-4 PARTS STOCK ACTION NEEDED 1254 PI7210 Termination Date
August 31, 1989
Problem
Certain 7000 Series fuel injection nozzles may crack and loose their nozzle tips if there is a small indentation or dent in the nozzle between the tip end and the carbon dam.
Action Required
Inspect the following nozzles in parts stock for any small indentations or dents in the tip of the nozzle between the carbon dam groove and the tip end of the nozzle. Remove all nozzles from parts stock that have indentations or dents that are deep enough to be felt with a thumbnail. See the illustration. 8N7003 4W7015 7W7023 8N7005 4W7016 7W7024 8N7006 4W7017 7W7026 4W7018 7W7030 4W7019 7W7031 4W7020 7W7032 4W7021
