105407-7421 ZEXEL F 019 Z2E 009 BOSCH GOVERNOR f019z2e009 1054077421 me755351




Information governor

BOSCH F 019 Z2E 009 f019z2e009
ZEXEL 105407-7421 1054077421
MITSUBISHI ME755351 me755351
105407-7421 GOVERNOR
Rating:
18
Buy GOVERNOR 105407-7421 zexel genuine, new aftermarket engine parts with delivery

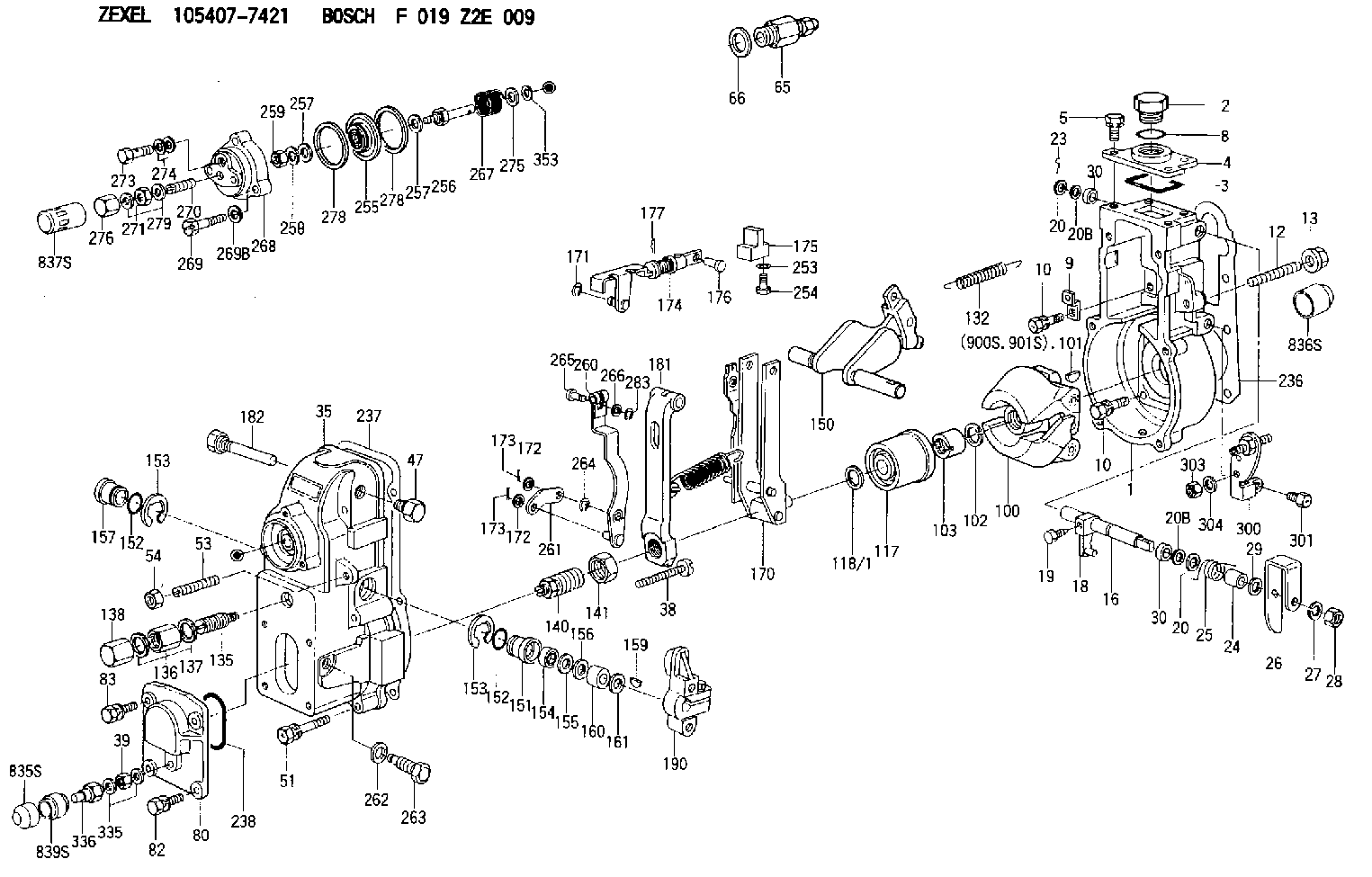

Scheme ###:

GOVERNOR HOUSING
1. [1] 154004-2822 GOVERNOR HOUSING
2. [1] 154007-2900 CAPSULE
3. [1] 154358-2500 SEAL RING
4. [1] 154064-4500 COVER
5. [4] 020006-1640 BLEEDER SCREW M6P1L16 4T
8. [1] 029632-5070 O-RING
9. [1] 154350-6000 PLATE
10. [8] 020106-2040 BLEEDER SCREW M6P1L20
10. [8] 020106-2040 BLEEDER SCREW M6P1L20
12. [1] 154013-5000 FLAT-HEAD SCREW
13. [1] 154011-0100 HEXAGON NUT
16. [1] 155004-3600 LEVER SHAFT
18. [1] 155003-2101 CONTROL LEVER
19. [1] 155006-0700 BLEEDER SCREW
20. [1] 139308-0900 PLAIN WASHER D16&8T1
20. [1] 139308-0900 PLAIN WASHER D16&8T1
20B. [1] 139308-1000 PLAIN WASHER D16&8T1.5
20B. [1] 139308-1000 PLAIN WASHER D16&8T1.5
23. [1] 025520-1210 SPLIT PIN
24. [1] 154206-2000 BUSHING
25. [1] 154327-4200 COILED SPRING
26. [1] 154381-7900 CONTROL LEVER
27. [1] 014110-8440 LOCKING WASHER
28. [1] 013020-8040 UNION NUT M8P1.25H7
29. [1] 139408-1500 SHIM
29B. [0] 139408-1400 SHIM
29C. [0] 139408-1500 SHIM
30. [2] 029620-8050 PACKING RING
30. [2] 029620-8050 PACKING RING
35. [1] 154022-7920 GOVERNOR COVER
38. [1] 154031-1300 FLAT-HEAD SCREW
39. [1] 139206-0600 UNION NUT
47. [1] 154036-0300 CAPSULE
51. [6] 020106-5040 BLEEDER SCREW
53. [1] 154010-0100 FLAT-HEAD SCREW
54. [1] 154011-4900 UNION NUT
65. [1] 153021-2220 STOPPING DEVICE
66. [1] 026524-3040 GASKET
80. [1] 154063-1400 COVER
82. [2] 029020-6210 BLEEDER SCREW
83. [2] 020006-1640 BLEEDER SCREW M6P1L16 4T
100. [1] 154101-0020 FLYWEIGHT ASSEMBLY
101. [1] 025803-1310 WOODRUFF KEY
102. [1] 029321-2020 LOCKING WASHER
103. [1] 029231-2030 UNION NUT
117. [1] 154123-2320 SLIDING PIECE
118/1. [0] 029311-0010 SHIM D14&10.1T0.2
118/1. [0] 029311-0180 SHIM D14&10.1T0.3
118/1. [0] 029311-0190 SHIM D14&10.1T0.40
118/1. [0] 029311-0210 SHIM D14&10.1T1
118/1. [0] 139410-0000 SHIM D14.0&10.1T0.5
118/1. [0] 139410-0100 SHIM D14.0&10.1T1.5
118/1. [0] 139410-3000 SHIM D14&10.1T2.0
118/1. [0] 139410-3100 SHIM D14&10.1T3.0
118/1. [0] 139410-3200 SHIM D14&10.1T4.0
132. [1] 154154-0500 COILED SPRING
135. [1] 154158-1620 HEADLESS SCREW
136. [1] 029201-2290 UNION NUT
137. [2] 026512-1540 GASKET D15.4&12.2T1.50
138. [1] 154159-1200 CAP NUT
140. [1] 154177-2320 HEADLESS SCREW
141. [1] 029201-6010 UNION NUT
150. [1] 154200-6920 SWIVELLING LEVER
151. [1] 154204-4300 BUSHING
152. [2] 029631-8020 O-RING
152. [2] 029631-8020 O-RING
153. [2] 016010-1640 LOCKING WASHER
153. [2] 016010-1640 LOCKING WASHER
154. [1] 139611-0000 PACKING RING
155. [1] 139411-0000 SHIM
156. [0] 029311-1070 SHIM D16&11T0.5
157. [1] 154204-4400 BUSHING
159. [1] 025803-1310 WOODRUFF KEY
160. [1] 154206-2800 BUSHING
161. [0] 154206-0200 PLAIN WASHER D19.5&11.2T1.0
170. [1] 154217-2920 FORK LEVER
171. [1] 016010-0540 LOCKING WASHER
172. [3] 029310-5170 SHIM D8&5.3T0.5
172. [3] 029310-5170 SHIM D8&5.3T0.5
173. [2] 025520-1210 SPLIT PIN
173. [2] 025520-1210 SPLIT PIN
174. [1] 154234-6920 STRAP
175. [1] 154232-2420 CONNECTOR
176. [1] 159231-4900 BEARING PIN
177. [1] 155402-3800 SAFETY PIN
181. [1] 154239-3320 TENSIONING LEVER
182. [1] 154237-1100 BEARING PIN
190. [1] 154340-0120 CONTROL LEVER
236. [1] 154371-5600 GASKET
237. [1] 154390-0300 GASKET
238. [1] 029635-2020 O-RING
253. [1] 029320-5020 LOCKING WASHER
254. [1] 010535-1040 FLAT-HEAD SCREW M5P0.8L10
255. [1] 154400-7420 DIAPHRAGM
256. [1] 154400-4800 STOP PIN
257. [2] 029330-8050 GASKET
257. [2] 029330-8050 GASKET
258. [1] 139308-0700 LOCKING WASHER
259. [1] 013030-6040 UNION NUT M6P1H3.6
260. [1] 154401-3620 CONTROL LEVER
261. [1] 154401-1320 STRAP
262. [1] 026510-1440 GASKET D13.9&10.2T1
263. [1] 154401-2100 BLEEDER SCREW
264. [1] 016010-0540 LOCKING WASHER
265. [1] 154222-6200 BEARING PIN
266. [1] 029300-4010 PLAIN WASHER
267. [1] 154411-5200 COILED SPRING
268. [1] 154404-5600 COVER
269. [3] 154062-2900 BLEEDER SCREW
269B. [3] 014110-6440 LOCKING WASHER
270. [1] 154034-1900 FLAT-HEAD SCREW
271. [1] 013030-6040 UNION NUT M6P1H3.6
273. [1] 029731-0180 EYE BOLT
274. [2] 026510-1340 GASKET D13.4&10.2T1
275. [0] 029312-0180 SHIM D25.5&20T0.5
275B. [0] 029312-0210 SHIM D25.5&20T0.2
276. [1] 154035-1600 CAP NUT
278. [2] 154413-2600 GASKET
278. [2] 154413-2600 GASKET
279. [2] 026506-1040 GASKET D9.9&6.2T1
283. [1] 016010-0440 LOCKING WASHER
300. [1] 154358-9420 BRACKET
301. [1] 020118-1640 BLEEDER SCREW
303. [1] 154011-1100 UNION NUT
304. [1] 029300-8320 SHIM
335. [2] 026506-1040 GASKET D9.9&6.2T1
336. [1] 154035-2800 CAP NUT
353. [3] 029310-9080 SHIM D16&9T1.7
835S. [1] 154062-4020 CAP
836S. [1] 154062-3520 CAP
837S. [1] 154062-2720 CAP
839S. [1] 154062-3800 ADAPTOR
900S. [1] 025803-1310 WOODRUFF KEY
901S. [1] 025803-1610 WOODRUFF KEY

Include in #1:

106676-2322 as GOVERNOR

Cross reference number

Zexel num
Bosch num
Firm num
Name
105407-7421
F 019 Z2E 009
NP-EP/RSV200-1350PQ49/311
ME755351  MITSUBISHI
GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV




Information:

6N9294 Alternator Group, 3T6352 Alternator 24V 35A (Delco-Remy Number 1117647)
Load the battery with a carbon pile (6V4930 Battery Load Tester) to get the maximum alternator output.Polarity ... Negative GroundRotation ... Either DirectionSpeed for testing (rpm) ... 5000Output voltage ... 27.5 1.0VOutput (hot) ... 35A(1) Torque for the ground terminal nut ... 2.3 0.6 N m (21 5 lb in)(2) Torque for the pulley nut ... 102 7 N m (76 5 lb ft)(3) Torque for the output terminal nut ... 7.1 0.9 N m (64 8 lb in)3T6354 Regulator (Delco-Remy Number 1116405) Inside Alternator
Voltage setting ... No adjustmentPermissible voltage range ... 26 to 30VDelco-Remy (25SI)
5S9088 Alternator Group, 3T1888 Alternator 24V 50A (Delco-Remy Number 1117248)
Load the battery with a carbon pile (6V4930 Battery Load Tester) to get the maximum alternator output.Polarity ... Negative GroundRotation ... Either DirectionSpeed for testing (rpm) ... 5000Output (hot) ... 50A(1) Torque for the pulley nut ... 102 7 N m (76 5 lb ft)(2) Torque for the output terminal nut ... 13.5 1.3 N m (10 1 lb ft)7N129 Regulator (Delco-Remy Number 1892824) Inside Alternator
Voltage setting range ... 27.5 1.0VAdjust voltage setting to ... 28V There are two types of adjustment: One type of adjustment is made by removing a pipe plug and turning the adjusting screw one or two notches in a clockwise direction to increase the voltage setting or one or two notches in a counterclockwise direction to decrease the voltage setting. The second type of adjustment is similar except, remove the end cover to expose the potentiometer for adjustment.Then increase speed to get a maximum output of ... 50ABosch
6N9294 Alternator Group, 7N9720 Alternator 24V 35A (Bosch Number 0-122-469-001)
Load the battery with a carbon pile (6V4930 Battery Load Tester) to get the maximum alternator output.Polarity ... Negative GroundRotation ... Either DirectionSpeed for testing (rpm) ... 5000Output voltage ... 27.5 1.0VOutput (hot) ... 37ATorque for the ground terminal nut ... 2.1 to 2.8 N m (19 to 25 lb in)(1) Torque for the pulley nut ... 95 to 110 N m (70 to 80 lb ft)(2) Torque for the output terminal nut ... 13.5 1.3 N m (10 1 lb ft)9G7567 Regulator (Bosch Number 1-197-011-000) Under Alternator Cover. For

Have questions with 105407-7421?





Group cross 105407-7421 ZEXEL

105407-7400
F 019 Z1E 940
NP-EP/RSV200-1300PQ39C4

GOVERNOR

Mitsubishi

105407-7410
9 420 614 780
NP-EP/RSV200-1350PQ49/311
ME748326
GOVERNOR
105407-7420

105407-7421
9 420 614 781
ME748743
GOVERNOR
105407-7421
F 019 Z2E 009
NP-EP/RSV200-1350PQ49/311
ME755351
GOVERNOR
105407-7430



Hino

105407-7440
9 420 614 676
NP-EP/RSV200-1300PQ44C312
223204630A
GOVERNOR
105407-7450
9 420 614 937
NP-EP/RSV200-1300PQ44C312
223204660A
GOVERNOR

Mitsubishi

105407-7460
9 420 614 943
NP-EP/RSV200-1350PQ49/311
ME748951
GOVERNOR
105407-7470
F 019 Z4E 382
NP-EP/RSV200-1350PQ49/311
ME748952
GOVERNOR
105407-7480
F 019 Z4E 383
NP-EP/RSV200-1350PQ49/311
ME748950
GOVERNOR
105407-7490
F 019 Z3E 226
NP-EP/RSV200-1350PQ49/311
ME748953
GOVERNOR
