Information governor
BOSCH
9 420 614 438
9420614438
ZEXEL
105407-7300
1054077300
NISSAN-DIESEL
1910196464
1910196464

Rating:

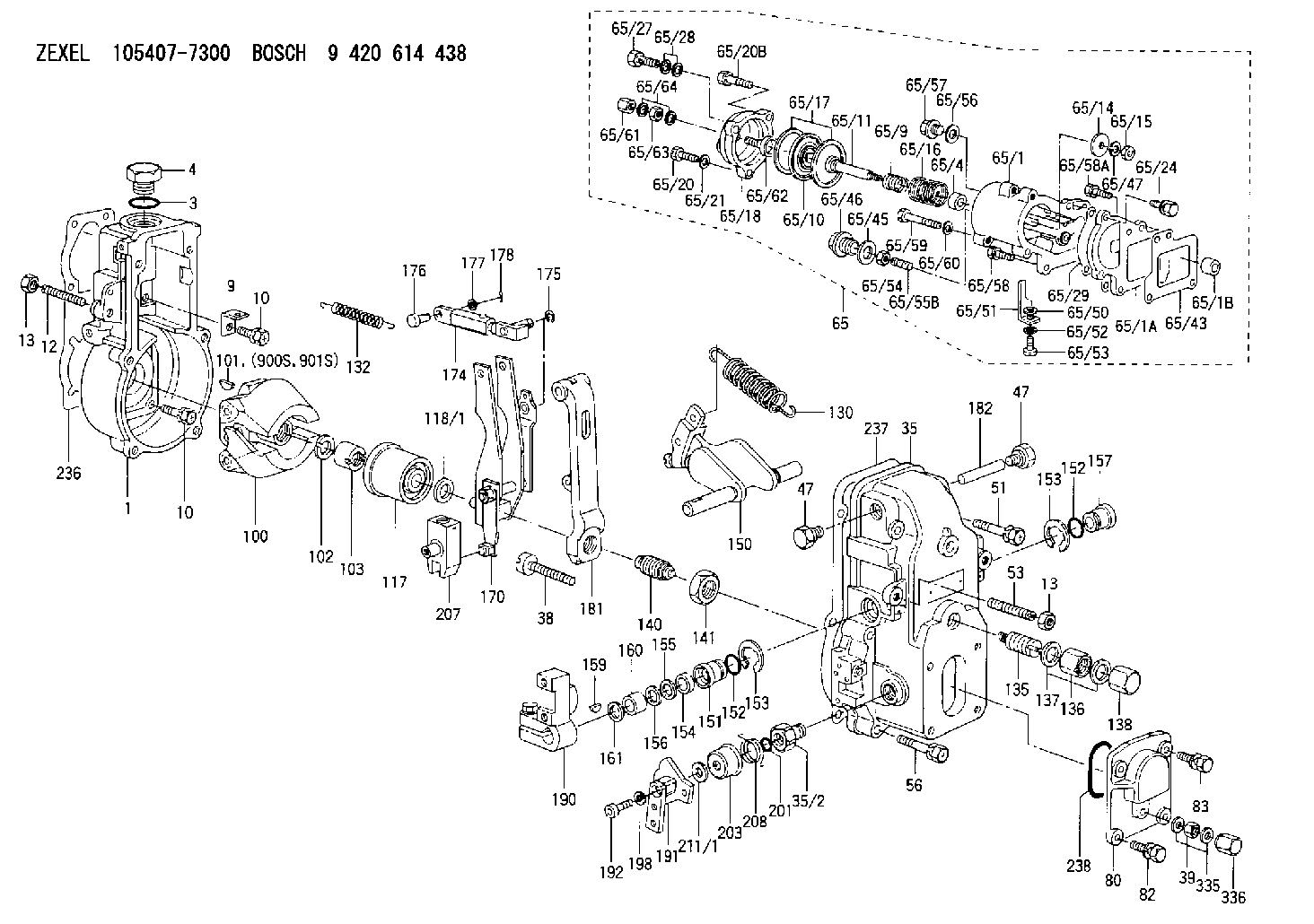

Scheme ###:
1. | [1] | 154000-4700 | GOVERNOR HOUSING |
3. | [1] | 029632-5070 | O-RING |
4. | [1] | 154007-2900 | CAPSULE |
9. | [1] | 154350-6000 | PLATE |
10. | [8] | 020106-2040 | BLEEDER SCREW M6P1L20 |
10. | [8] | 020106-2040 | BLEEDER SCREW M6P1L20 |
12. | [1] | 154010-0100 | FLAT-HEAD SCREW |
13. | [2] | 154011-0100 | HEXAGON NUT |
13. | [2] | 154011-0100 | HEXAGON NUT |
35. | [1] | 154500-1020 | GOVERNOR COVER |
35/2. | [1] | 154321-0400 | BUSHING |
38. | [1] | 154031-2400 | FLAT-HEAD SCREW |
39. | [1] | 139206-0600 | UNION NUT |
47. | [2] | 154036-0300 | CAPSULE |
47. | [2] | 154036-0300 | CAPSULE |
51. | [2] | 020106-5040 | BLEEDER SCREW |
53. | [1] | 154010-0100 | FLAT-HEAD SCREW |
56. | [4] | 020106-3840 | BLEEDER SCREW |
65. | [1] | 154422-3320 | MANIFOLD-PRESSURE COMP. |
65/1. | [1] | 154412-0122 | GOVERNOR HOUSING |
65/1A. | [1] | 154412-0201 | SPACER BUSHING |
65/1B. | [1] | 134009-0000 | SPACER BUSHING |
65/4. | [1] | 154413-0500 | BUSHING |
65/9. | [1] | 154414-8800 | COILED SPRING |
65/10. | [1] | 154400-8220 | DIAPHRAGM |
65/11. | [1] | 154412-4101 | STOP PIN |
65/14. | [1] | 154406-5500 | SLOTTED WASHER |
65/15. | [1] | 013020-6040 | UNION NUT M6P1H5 |
65/16. | [1] | 154411-8900 | COILED SPRING |
65/17. | [2] | 154413-2600 | GASKET |
65/18. | [1] | 154404-5000 | COVER |
65/20. | [2] | 029010-6310 | BLEEDER SCREW |
65/20B. | [1] | 020106-4540 | BLEEDER SCREW M6P1.0L45 |
65/21. | [2] | 014110-6440 | LOCKING WASHER |
65/24. | [2] | 020106-2040 | BLEEDER SCREW M6P1L20 |
65/27. | [1] | 029731-0180 | EYE BOLT |
65/28. | [2] | 026510-1340 | GASKET D13.4&10.2T1 |
65/29. | [1] | 154390-2200 | GASKET |
65/43. | [1] | 154390-2300 | GASKET |
65/45. | [1] | 029331-8040 | GASKET |
65/46. | [1] | 154406-5800 | FLAT-HEAD SCREW |
65/47. | [1] | 014110-6440 | LOCKING WASHER |
65/50. | [1] | 154406-6800 | PLAIN WASHER |
65/51. | [1] | 154412-3900 | CONTROL LEVER |
65/52. | [1] | 014110-4440 | LOCKING WASHER |
65/53. | [1] | 010234-0820 | HEX-SOCKET-HEAD CAP SCREW |
65/54. | [1] | 013030-6040 | UNION NUT M6P1H3.6 |
65/55B. | [1] | 154404-1600 | FLAT-HEAD SCREW L26.00 |
65/56. | [1] | 029331-2130 | GASKET |
65/57. | [1] | 154406-6500 | FLAT-HEAD SCREW |
65/58. | [2] | 020106-2840 | BLEEDER SCREW |
65/58A. | [1] | 020106-1440 | BLEEDER SCREW M6P1.0L14 |
65/59. | [1] | 010006-7040 | BLEEDER SCREW M6P1L70 |
65/60. | [1] | 014110-6440 | LOCKING WASHER |
65/61. | [1] | 154035-1600 | CAP NUT |
65/62. | [1] | 154404-4400 | FLAT-HEAD SCREW |
65/63. | [1] | 013030-6040 | UNION NUT M6P1H3.6 |
65/64. | [2] | 026506-1040 | GASKET D9.9&6.2T1 |
80. | [1] | 154063-1400 | COVER |
82. | [2] | 029020-6210 | BLEEDER SCREW |
83. | [2] | 020006-1640 | BLEEDER SCREW M6P1L16 4T |
100. | [1] | 154101-0120 | FLYWEIGHT |
101. | [1] | 025803-1310 | WOODRUFF KEY |
102. | [1] | 029321-2020 | LOCKING WASHER |
103. | [1] | 029231-2030 | UNION NUT |
117. | [1] | 154123-0120 | SLIDING PIECE |
118/1. | [0] | 029311-0010 | SHIM D14&10.1T0.2 |
118/1. | [0] | 029311-0180 | SHIM D14&10.1T0.3 |
118/1. | [0] | 029311-0190 | SHIM D14&10.1T0.40 |
118/1. | [0] | 029311-0210 | SHIM D14&10.1T1 |
118/1. | [0] | 139410-0000 | SHIM D14.0&10.1T0.5 |
118/1. | [0] | 139410-0100 | SHIM D14.0&10.1T1.5 |
118/1. | [0] | 139410-3000 | SHIM D14&10.1T2.0 |
118/1. | [0] | 139410-3100 | SHIM D14&10.1T3.0 |
118/1. | [0] | 139410-3200 | SHIM D14&10.1T4.0 |
130. | [1] | 154150-2700 | GOVERNOR SPRING |
132. | [1] | 154154-0500 | COILED SPRING |
135. | [1] | 154158-1820 | HEADLESS SCREW |
136. | [1] | 154011-1700 | UNION NUT |
137. | [2] | 026512-1540 | GASKET D15.4&12.2T1.50 |
138. | [1] | 154159-1200 | CAP NUT |
140. | [1] | 154185-3620 | HEADLESS SCREW |
141. | [1] | 029201-6010 | UNION NUT |
150. | [1] | 154200-7120 | SWIVELLING LEVER |
151. | [1] | 154204-4300 | BUSHING |
152. | [2] | 029631-8020 | O-RING |
152. | [2] | 029631-8020 | O-RING |
153. | [2] | 016010-1640 | LOCKING WASHER |
153. | [2] | 016010-1640 | LOCKING WASHER |
154. | [1] | 139611-0000 | PACKING RING |
155. | [1] | 139411-0000 | SHIM |
156. | [0] | 029311-1070 | SHIM D16&11T0.5 |
157. | [1] | 154204-4400 | BUSHING |
159. | [1] | 025803-1310 | WOODRUFF KEY |
160. | [1] | 154206-2800 | BUSHING |
161. | [0] | 154206-0200 | PLAIN WASHER D19.5&11.2T1.0 |
170. | [1] | 154210-9920 | FORK LEVER |
174. | [1] | 154230-5120 | STRAP |
175. | [1] | 016010-0540 | LOCKING WASHER |
176. | [1] | 159231-4900 | BEARING PIN |
177. | [1] | 029310-5170 | SHIM D8&5.3T0.5 |
178. | [1] | 155402-3800 | SAFETY PIN |
181. | [1] | 154236-1500 | TENSIONING LEVER |
182. | [1] | 154237-0100 | BEARING PIN |
190. | [1] | 154340-0020 | CONTROL LEVER |
191. | [1] | 154364-7520 | CONTROL LEVER |
192. | [1] | 010206-1440 | HEX-SOCKET-HEAD CAP SCREW M6P1L14 |
198. | [1] | 029320-6010 | LOCKING WASHER |
201. | [1] | 029631-0030 | O-RING &9.8W2.3 |
203. | [1] | 154322-0100 | CAP |
207. | [1] | 154326-5020 | CONTROL LEVER |
208. | [1] | 154327-7600 | COILED SPRING |
211/1. | [0] | 029311-0520 | SHIM D20.8&10.3T0.2 |
211/1. | [0] | 029311-0530 | SHIM D20.8&10.3T0.25 |
211/1. | [0] | 029311-0540 | SHIM D20.8&10.3T0.3 |
211/1. | [0] | 029311-0550 | SHIM D20.8&10.3T0.35 |
211/1. | [0] | 029311-0560 | SHIM D20.8&10.3T0.4 |
211/1. | [0] | 029311-0570 | SHIM D20.8&10.3T0.5 |
236. | [1] | 154371-5600 | GASKET |
237. | [1] | 154390-0300 | GASKET |
238. | [1] | 029635-2020 | O-RING |
335. | [2] | 026506-1040 | GASKET D9.9&6.2T1 |
336. | [1] | 154035-1600 | CAP NUT |
900S. | [1] | 025803-1310 | WOODRUFF KEY |
901S. | [1] | 025803-1610 | WOODRUFF KEY |
Include in #1:
106671-5910
as GOVERNOR
Cross reference number
Zexel num
Bosch num
Firm num
Name
105407-7300
1910196464 NISSAN-DIESEL
GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV
K 14JB MECHANICAL GOVERNOR GOV RSV GOV
Information:
start by:a) disassemble governorb) remove fuel injection pumps 1. Remove cover (1) from the fuel injection pump housing. 2. Remove rack (2) from the fuel injection pump housing. 3. Remove the lifters (3) from the fuel injection pump housing. 4. Put the fuel injection pump housing on end on blocks and use tool (A) to remove snap ring (4) from the camshaft. 5. Use a soft hammer to push the camshaft toward the governor end of the fuel injection pump housing to loosen washer (5) on the camshaft. Remove washer (5). 6. Remove camshaft (6) from the fuel injection pump housing. 7. Remove bearings (7) from the drive end of the fuel injection pump housing. 8. Remove bearings (8) from the governor end of the fuel injection pump housing.Assemble Fuel Injection Pump Housing
Be sure all oil passages are clear and put clean oil on all parts before assembly. 1. Use tooling (A) to install bearing (2) in the governor end of the fuel injection pump housing with junction (joint) (3) toward the top of the fuel injection pump housing. Install the bearing so it is 0.25 0.20 mm (0.10 0.008 in.) below the surface of the housing.2. Use tooling (A) to install bearing (1) in the governor end of the fuel injection pump housing so it is 7.16 0.13 mm (0.282 0.005 in.) below the surface of the housing. 3. Use tooling (A) to install bearing (4) in the drive end of the fuel injection pump housing with the junction (joint) in the bearing toward the top of the fuel injection pump housing. Install the bearing so it is 1.00 0.25 mm (0.039 0.010 in.) below the surface of the housing. 4. Install plate (6) of tooling (C) on the drive end of the fuel injection pump housing to install the bearing for the rack. Use clean grease to hold the new rack bearing on driver (5) of tooling (C). Install the driver and bearing in plate (6) with the groove in the driver in alignment with the pin in the plate and use a hammer to push the bearing into position. The bearing will be installed to the correct depth when the shoulder of the driver is against plate (6).5. Remove tooling (C) from the fuel injection pump housing. The rack bearing must be installed so it is 0.25 0.25 mm (0.010 0.010 in.) below the surface of the housing. 6. Install camshaft (7) in the fuel injection pump housing.7. Put the fuel injection pump housing on end and put a block under the camshaft. 8. Put washer (9) over the end of the camshaft and use tooling (A) and a spacer (8) that has an inside diameter of 38.1 mm (1.5 in.) and a length of 31.75 mm (1.25 in.) to push the washer against its seat on the camshaft. Camshaft must have 0.285 0.235 mm (0.0112 0.0093 in.) end play when washer is pushed against
