105407-7231 ZEXEL 9 420 614 951 BOSCH GOVERNOR 9420614951 1054077231 me755350

Information governor

BOSCH 9 420 614 951 9420614951

ZEXEL 105407-7231 1054077231

MITSUBISHI ME755350 me755350

Price: query

Buy now
Add to cart Go to cart

Rating:

Buy GOVERNOR 105407-7231 zexel genuine, new aftermarket engine parts with delivery

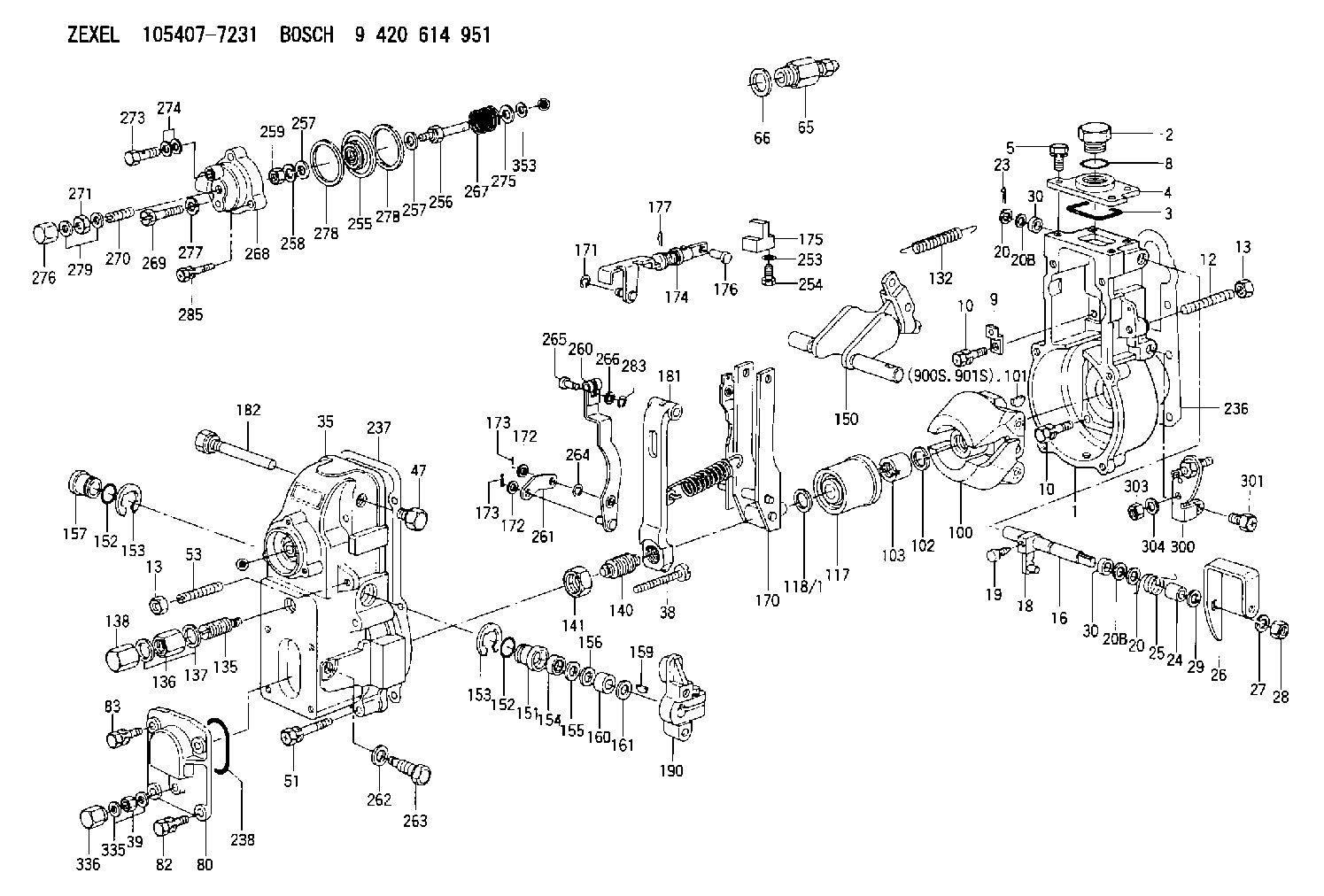

Scheme ###:

1.	[1]	154004-2822	GOVERNOR HOUSING
2.	[1]	154007-2900	CAPSULE
3.	[1]	154358-2500	SEAL RING
4.	[1]	154064-4500	COVER
5.	[4]	020006-1640	BLEEDER SCREW M6P1L16 4T
8.	[1]	029632-5070	O-RING
9.	[1]	154350-6000	PLATE
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
10.	[8]	020106-2040	BLEEDER SCREW M6P1L20
12.	[1]	154010-1100	FLAT-HEAD SCREW
13.	[2]	154011-0100	HEXAGON NUT
13.	[2]	154011-0100	HEXAGON NUT
16.	[1]	155004-3600	LEVER SHAFT
18.	[1]	155003-2101	CONTROL LEVER
19.	[1]	155006-0700	BLEEDER SCREW
20.	[1]	139308-0900	PLAIN WASHER D16&8T1
20.	[1]	139308-0900	PLAIN WASHER D16&8T1
20B.	[1]	139308-1000	PLAIN WASHER D16&8T1.5
20B.	[1]	139308-1000	PLAIN WASHER D16&8T1.5
23.	[1]	025520-1210	SPLIT PIN
24.	[1]	154206-2000	BUSHING
25.	[1]	154327-4200	COILED SPRING
26.	[1]	154381-7900	CONTROL LEVER
27.	[1]	014110-8440	LOCKING WASHER
28.	[1]	013020-8040	UNION NUT M8P1.25H7
29.	[1]	139408-1500	SHIM
29B.	[0]	139408-1400	SHIM
29C.	[0]	139408-1500	SHIM
30.	[2]	029620-8050	PACKING RING
30.	[2]	029620-8050	PACKING RING
35.	[1]	154022-7920	GOVERNOR COVER
38.	[1]	154031-1300	FLAT-HEAD SCREW
39.	[1]	139206-0600	UNION NUT
47.	[1]	154036-0300	CAPSULE
51.	[6]	020106-5040	BLEEDER SCREW
53.	[1]	154010-0100	FLAT-HEAD SCREW
65.	[1]	153021-2220	STOPPING DEVICE
66.	[1]	026524-3040	GASKET
80.	[1]	154063-1400	COVER
82.	[2]	029020-6210	BLEEDER SCREW
83.	[2]	020006-1640	BLEEDER SCREW M6P1L16 4T
100.	[1]	154101-0020	FLYWEIGHT ASSEMBLY
101.	[1]	025803-1310	WOODRUFF KEY
102.	[1]	029321-2020	LOCKING WASHER
103.	[1]	029231-2030	UNION NUT
117.	[1]	154123-2320	SLIDING PIECE
118/1.	[0]	029311-0010	SHIM D14&10.1T0.2
118/1.	[0]	029311-0180	SHIM D14&10.1T0.3
118/1.	[0]	029311-0190	SHIM D14&10.1T0.40
118/1.	[0]	029311-0210	SHIM D14&10.1T1
118/1.	[0]	139410-0000	SHIM D14.0&10.1T0.5
118/1.	[0]	139410-0100	SHIM D14.0&10.1T1.5
118/1.	[0]	139410-3000	SHIM D14&10.1T2.0
118/1.	[0]	139410-3100	SHIM D14&10.1T3.0
118/1.	[0]	139410-3200	SHIM D14&10.1T4.0
132.	[1]	154154-0500	COILED SPRING
135.	[1]	154158-1620	HEADLESS SCREW
136.	[1]	029201-2290	UNION NUT
137.	[2]	026512-1540	GASKET D15.4&12.2T1.50
138.	[1]	154159-1200	CAP NUT
140.	[1]	154177-2320	HEADLESS SCREW
141.	[1]	029201-6010	UNION NUT
150.	[1]	154200-6920	SWIVELLING LEVER
151.	[1]	154204-4300	BUSHING
152.	[2]	029631-8020	O-RING
152.	[2]	029631-8020	O-RING
153.	[2]	016010-1640	LOCKING WASHER
153.	[2]	016010-1640	LOCKING WASHER
154.	[1]	139611-0000	PACKING RING
155.	[1]	139411-0000	SHIM
156.	[0]	029311-1070	SHIM D16&11T0.5
157.	[1]	154204-4400	BUSHING
159.	[1]	025803-1310	WOODRUFF KEY
160.	[1]	154206-2800	BUSHING
161.	[0]	154206-0200	PLAIN WASHER D19.5&11.2T1.0
170.	[1]	154217-2920	FORK LEVER
171.	[1]	016010-0540	LOCKING WASHER
172.	[3]	029310-5170	SHIM D8&5.3T0.5
172.	[3]	029310-5170	SHIM D8&5.3T0.5
173.	[2]	025520-1210	SPLIT PIN
173.	[2]	025520-1210	SPLIT PIN
174.	[1]	154235-5020	STRAP
175.	[1]	154232-2420	CONNECTOR
176.	[1]	159231-4900	BEARING PIN
177.	[1]	155402-3800	SAFETY PIN
181.	[1]	154239-3320	TENSIONING LEVER
182.	[1]	154237-1100	BEARING PIN
190.	[1]	154340-0120	CONTROL LEVER
236.	[1]	154371-5600	GASKET
237.	[1]	154390-0300	GASKET
238.	[1]	029635-2020	O-RING
253.	[1]	029320-5020	LOCKING WASHER
254.	[1]	010535-1040	FLAT-HEAD SCREW M5P0.8L10
255.	[1]	154400-7420	DIAPHRAGM
256.	[1]	154400-4800	STOP PIN
257.	[2]	029330-8050	GASKET
257.	[2]	029330-8050	GASKET
258.	[1]	139308-0700	LOCKING WASHER
259.	[1]	013030-6040	UNION NUT M6P1H3.6
260.	[1]	154401-3620	CONTROL LEVER
261.	[1]	154401-1320	STRAP
262.	[1]	026510-1440	GASKET D13.9&10.2T1
263.	[1]	154401-2100	BLEEDER SCREW
264.	[1]	016010-0540	LOCKING WASHER
265.	[1]	154222-6200	BEARING PIN
266.	[1]	029300-4010	PLAIN WASHER
267.	[1]	154411-5200	COILED SPRING
268.	[1]	154404-5000	COVER
269.	[2]	020106-2540	BLEEDER SCREW M6P1L25
270.	[1]	154034-1900	FLAT-HEAD SCREW
271.	[1]	013030-6040	UNION NUT M6P1H3.6
273.	[1]	029731-0180	EYE BOLT
274.	[2]	026510-1340	GASKET D13.4&10.2T1
275.	[0]	029312-0180	SHIM D25.5&20T0.5
275B.	[0]	029312-0210	SHIM D25.5&20T0.2
276.	[1]	154035-1900	CAP NUT
277.	[1]	014110-6440	LOCKING WASHER
278.	[2]	154413-2600	GASKET
278.	[2]	154413-2600	GASKET
279.	[2]	026506-1040	GASKET D9.9&6.2T1
283.	[1]	016010-0440	LOCKING WASHER
285.	[1]	029010-6310	BLEEDER SCREW
300.	[1]	154358-9420	BRACKET
301.	[1]	020118-1640	BLEEDER SCREW
303.	[1]	154011-1100	UNION NUT
304.	[1]	029300-8320	SHIM
335.	[2]	026506-1040	GASKET D9.9&6.2T1
336.	[1]	154035-1600	CAP NUT
353.	[3]	029310-9080	SHIM D16&9T1.7
900S.	[1]	025803-1310	WOODRUFF KEY
901S.	[1]	025803-1610	WOODRUFF KEY

Include in #1:

106676-2192 as GOVERNOR

Cross reference number

Zexel num

Bosch num

Firm num

Name

105407-7231

9 420 614 951
NP-EP/RSV200-1350PQ49/311

ME755350 MITSUBISHI

GOVERNOR
K 14JB MECHANICAL GOVERNOR GOV RSV GOV

Information:

Do not let the retaining compound get into the compressor wheel bore or on the shaft, because it can make removal of the compressor wheel difficult during future turbocharger disassembly.
C. Put a small amount of lubricant, such as Lubriplate, on the nut seat area on the compressor. Do not put lubricant on the threads.D. Tighten the compressor wheel retainer nut to ... 30 3 N m (264 24 lb in)
Do not bend or add stress to the shaft when nut is tightened.
(7) Bore in housing (new) ... 22.255 to 22.268 mm (.8762 to .8767 in.) Outside diameter of the bearing (new) ... 22.144 to 22.154 mm (.8718 to .8722 in.)Maximum permissible clearance
